Summary of Contents for Akron GYNAECOLOGY 2

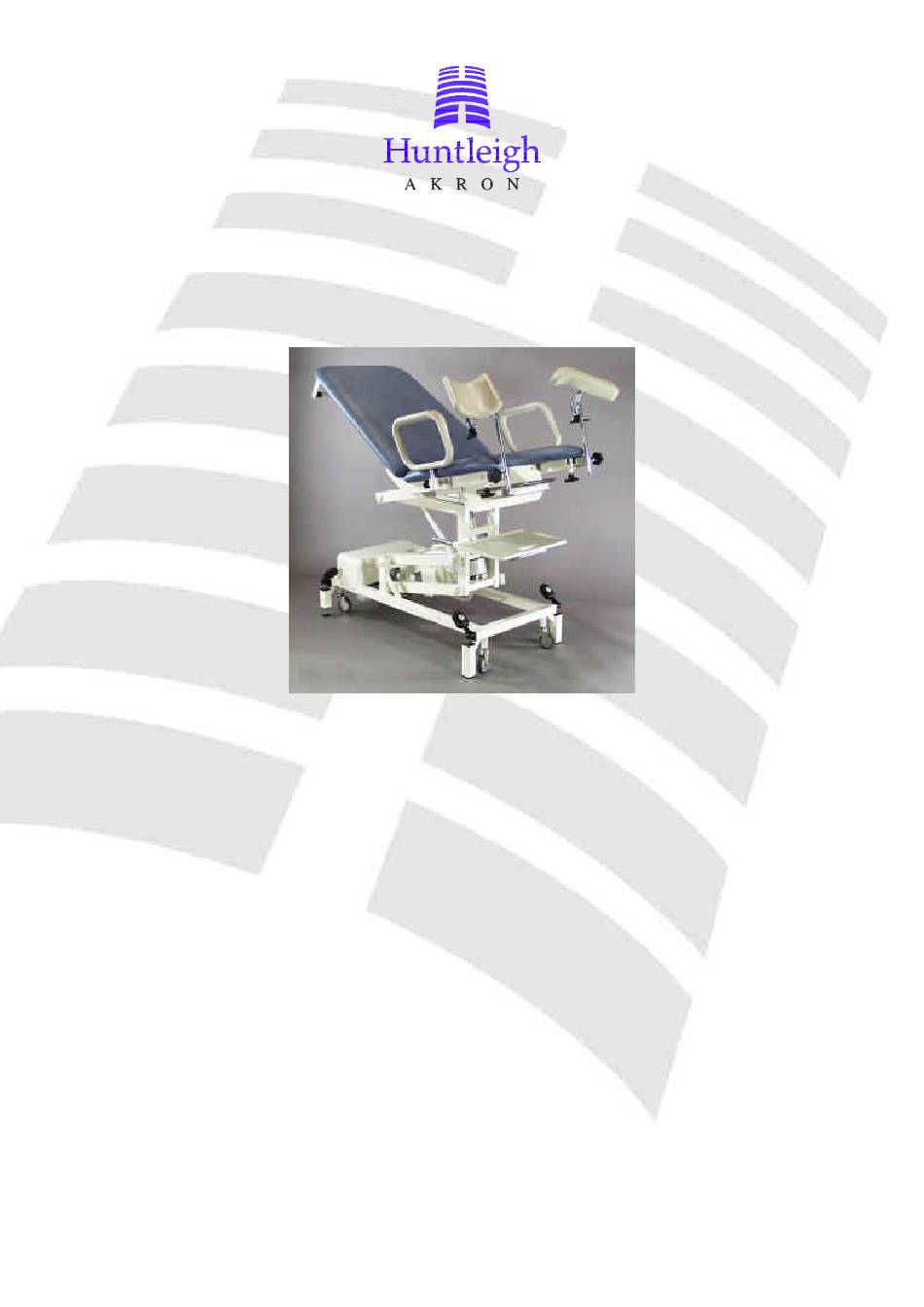

- Page 1 ® AKRON GYNAECOLOGY 2 Models 9822, 9832 SERVICE MANUAL 794-026...
-
Page 2: General Maintenance
General Maintenance It is recommended that the following checks and adjustments are carried out at minimum of twice a year and more frequently if the couch is in constant use. The framework of the couch is of steel construction and coated with an epoxy paint finish. -
Page 3: Manufacturers Details
Ipswich Suffolk IP1 5AP England Tel. (0)1473 749544 Fax. (0)1473 463096 Huntleigh Akron T/A a Division of Huntleigh Nesbit Evans Limited A Member of the Huntleigh Technology PLC Group of Companies Gynaecology 2 Revision History DOCUMENT ISSUE DCN No. SIGNED... - Page 4 40x40 Moulded End Cap 5N3737M 40x40x2.5mm Threaded Insert 5N3737V 40x40x2.5mm Grey Insert 5N3744Z 10mm Foot Adjusting Stud 5N3782U 50x25x2.5mm Grey Insert 5N3944Z Nylon Foot Lever 5T0028Z Pedal Rubber 5T3200Z Huntleigh Akron Label 5U1006Z Pedal Sticker 5U1066Z Issue Date 9/99 12/99 E.C.N.
- Page 6 8.5mm Grey Insert 5N2100M 40x40x2.5mm Grey Insert 5N3744Z 50x25x2.5mm Grey Insert 5N3944Z 3/4”x16G Round Grey Insert 5N9251M Nylon Foot Lever 5T0028Z Pedal Rubber 5T3200Z Huntleigh Akron Label 5U1006Z Pedal Label 5U1065Z Pedal Label 5U1066Z Issue Date 9/99 12/99 9/00 E.C.N.
-
Page 8: Parts List
PARTS LIST 2M3412Z 230v TRIPLE MAGNETIC RAM KIT WITH BATTERY BACKUP 2M3412Z – Issue 03 Reference Description Quantity Part Issue Number Number Status Motor Mounting Bracket 3A2006Z Ram Fixing Pin 3A2088Z LHS Control Mounting Bracket 3A3652Z RHS Control Mounting Bracket 3A3660Z 10mm Spacer 3G9434Z... - Page 9 PARTS LIST 2M3412Z 230v TRIPLE MAGNETIC RAM KIT WITH BATTERY BACKUP 2M3412Z – Issue 03 Reference Description Quantity Part Issue Number Number Status 5mm Crimped Eyelet 5S0335Z Control Box Cover 5T0055Z Serial Number Label 760.43 Issue Date 9/99 12/99 3/00 E.C.N.
- Page 11 PARTS LIST 2M3414Z 115v TRIPLE MAGNETIC RAM KIT WITH BATTERY BACKUP 2M3414Z – Issue 03 Reference Description Quantity Part Issue Number Number Status Motor Mounting Bracket 3A2006Z Ram Fixing Pin 3A2088Z LHS Control Mounting Bracket 3A3652Z RHS Control Mounting Bracket 3A3660Z 10mm Spacer 3G9434Z...
- Page 12 PARTS LIST 2M3414Z 115v TRIPLE MAGNETIC RAM KIT WITH BATTERY BACKUP 2M3414Z – Issue 03 Reference Description Quantity Part Issue Number Number Status 5mm Crimped Eyelet 5S0335Z Control Box Cover 5T0055Z Serial Number Label 760.49 Issue Date 9/99 12/99 3/00 E.C.N.
- Page 14 PARTS LIST 2M3417Z GYNAECOLOGY 2/3 TOP FRAME 2M3417Z – Issue 02 Reference Description Quantity Part Issue Number Number Status Hinge Pin 3A3181Z Mid Frame 3A3602Z Gynae 2 & 3 Backrest 3A3678Z Gynae 2 & 3 Tilt Frame 3A3681Z Sliding Debris Tray Holder 3A3682Z Gynae 2 &...
- Page 16 PARTS LIST A7317 SLIDING LEG SUPPORT ASSEMBLY 2M3420Z – Issue 03 Reference Description Quantity Part Issue Number Number Status Leg Support Socket 3A3624Z M10x42 Brass Stud 3G4431Z M10 Half Nut 5L3319A Single Pin Button Lock 5M2850P M10x2-1/4” Knob 5N1582N 45x20x14-20G Insert 5N3832Z Issue Date...
- Page 18 PARTS LIST A7318 ACCESSORY MOUNTING BRACKET ASSEMBLY 2M3421Z – Issue 03 Reference Description Quantity Part Issue Number Number Status Arm Rest Bracket 3A3689Z Arm Rest Fixing Plate 3F3695Z M10x25 Brass Stud 3G5023Z M8x40 CSK Allen Screw 5J7862U M10 Half Nut 5L3319A 2-1/4"x M10 Knob 5N1582N...
- Page 20 PARTS LIST 2M3422Z A7303 SEAT EXTENSION 2M3422Z – Issue 03 Reference Description Quantity Part Issue Number Number Status Seat Section Loop 3A3683Z M10x42 Brass Stud 3G4431Z M6x40 Pan Head Set Screw 5K1241U M10 Half Nut 5L3319A 1”x1”x16G Rounded Insert 5N0909M 2 ¼”xM10 Knob (Red) 5N1560N Issue...
- Page 22 PARTS LIST A7302 SHELF ASSEMBLY 2M3423Z – Issue 04 Reference Description Quantity Part Issue Number Number Status Shelf Bar 3A3697Z M5x12 Pan Head Set Screw 5K1135T R Clip 5M0800R 3/4" x 16G Grey Insert 5N9251M Gynae Shelf 5U1600Z Issue Date 9/99 12/99 3/00...
- Page 24 PARTS LIST A7301 SINGLE ADJUSTABLE ARM SUPPORT 2M3424Z – Issue 04 Reference Description Quantity Part Issue Number Number Status Leg Support Assembly 3A3688Z Arm Support Pivot Plate 3A3696Z M12x60 Steel Stud 3A9415Z M6x6 Grub Screw 5J7653Z No 10x1" CSK Set Screw 5K0411Z M12 Half Nut 5L3519C...
- Page 26 PARTS LIST PAPER ROLL HOLDER A7292 – Issue 02 Reference Description Quantity Part Issue Number Number Status Paper Roll Holder Frame 3A3630Z End Cap with 12.7mm Hole 3F3632Z End Cap with 15.875mm Hole 3F3633Z Spacer (15.5mm) 3G3620Z Paper Roll Tube 3G3621Z Paper Roll Sleeve 3G3634Z...
- Page 28 PARTS LIST LEG SUPPORT A7309 – Issue 02 Reference Description Quantity Part Issue Number Number Status Leg Support Assembly 3A3688Z M12x60 Steel Stud 3A9415Z M12 Half Nut 5L3519C Tee Handle 1347 Black 5N1630Q Ball Joint 5T0051Z Joint Nut 5T0053Z Leg Rest Moulding 5T0067Z Issue Date...
- Page 30 PARTS LIST ARM LOOPS A7310 – Issue 02 Reference Description Quantity Part Issue Number Number Status Arm Rest Support Bracket 3A3690Z M6x20 Cap Head Screw 5J7658R Arm Rest Loop 5T0062Z Issue Date 03/00 03/01 E.C.N.
- Page 32 PARTS LIST SINGLE DIN RAIL ASSEMBLY A7311 – Issue 01 Reference Description Quantity Part Issue Number Number Status Din Rail Spacer 3A3692Z Din Rail 3F3691Z Din Rail Plate 3F3693Z M8x40 CSK Allen Screw 5J7862U Issue Date 03/00 E.C.N.
-
Page 34: Parts List
PARTS LIST Magnetic 3 Channel Footswitch Assembly A7314 – Issue 01 Reference Description Quantity Part Issue Number Number Status Magnetic 3 Channel Foot Switch 5F9105Z Push in Rubber Foot 5T4400Z Issue Date 02/00 E.C.N.
