Olin HVBTR-1400 User Manual

Olin high definition pvr ready set top box
Hide thumbs

Advertisement

Table of Contents

Advertisement

Table of Contents
loading

Related Manuals for Olin HVBTR-1400

Summary of Contents for Olin HVBTR-1400

  • Page 2: Table Of Contents

    Contents Contents GENERAL INFORMATION Main Features For Your Safety Unpacking(optional) General Operation INSTALLATION WELCOME PAGE MAIN MENU 1. Edit Channel 2. Installation 3. System Setup 4. Tools 5. Game 6. REC(PVR Ready) 7 . Hot key SPECIFICATION TROUBLE SHOOTING HVBTR-1400_User_Manual_V1.1...
  • Page 3 GENERAL INFORMATION GENERAL INFORMATION This Set Top Box (STB) will take you to the new and exciting world of television. A world of crystal clear widescreen pictures, digital sound, more information services. To make full use of your STB, please take the time to familiarize yourself extensive features of the unit detailed in this User Manual.
  • Page 4 GENERAL INFORMATION GENERAL INFORMATION For Your Safety To avoid electric-shock hazards, do not Keep the receiver away from flower vases, open the cabinet, refer servicing to qualified tubs, sinks, etc., in order to avoid damaging personnel only. the equipment. Do not expose the receiver un-der the Do not block ventilation holes of the sunlight.
  • Page 5 GENERAL INFORMATION GENERAL INFORMATION Unpacking(optional) Remote Control Batteries User Manual AV cable General Operation Throughout this manual you will notice that the everyday operation of the receiver is based on a series of user friendly on screen display and menus. These menus will help you get the most from your receiver, guiding you through installation, channel organizing, viewing and many other functions.
  • Page 6 GENERAL INFORMATION GENERAL INFORMATION Function Standby When watching a channel, mute the sound Enter number of the required menu item or select a channel number to watch TV/RADIO Switches between TV and Radio mode Switches back to previous channel Displays the favorite group list Time shift function (External Drive is required) SHIFT PAGE+...

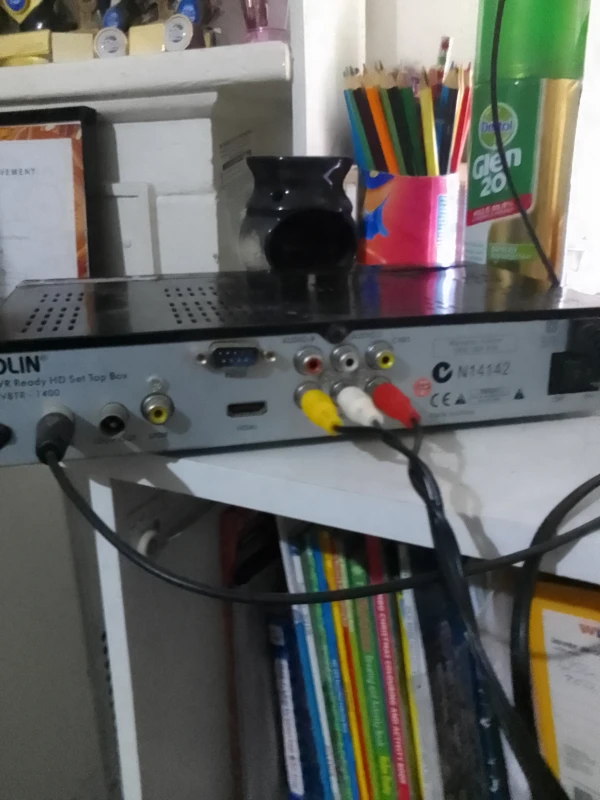

  • Page 7 INSTALLATION INSTALLATION Front Panel Pull USB compartment door as indicated on the front panel. Connect your removable external drive via built-in USB port when trying to record programs. Rear Panel CONNECT TO AUDIO R/L TO TV OR AUDIO TUNER CONNECT TO PC FOR SOFTWARE UPGRADE COMPOSITE VIDEO BROADCAST SIGNAL POWER ON/OFF...
  • Page 8 INSTALLATION INSTALLATION Antenna The picture is for reference only , actual product may vary.
  • Page 9 WELCOME PAGE WELCOME PAGE When power on first time, it will show welcome page like below. Press PR+,PR- keys to move highlight to select Region, Display Mode, Aspect Mode and language. Press keys to change Region, Language and Aspect Mode. Press OK when highlight Display Mode and select from pop-up window.

  • Page 10: Main Menu

    MAIN MENU MAIN MENU When you press [MENU] key, you can enter Main Menu. This menu consists of 6 major sub-menus as below. - Edit Channel - Installation - System Setup - Tools - Game - REC 1. Edit Channel Move highlight on Edit Channel item and press [OK] key to enter Edit Channel menu as besides.
  • Page 11 MAIN MENU MAIN MENU 4. Press green colour key to move the Skip button upward. Select the program and press OK key to mark this program with the skip mark. You can cancel this mark by pressing OK key once more. Press green colour key again to exit from the skip mode, and you will find the Skip button return to the origin position.
  • Page 12 MAIN MENU MAIN MENU iii. Delete (blue colour key) In Delete window, press blue colour key to move the Delete button upward. Select the program and press OK key to mark this program with the deletion mark. You can cancel this mark by pressing OK key again. Press EXIT key two times to pop up the dialogue "Are you sure to save?".
  • Page 13 MAIN MENU MAIN MENU 2.2 Channel Scan When you enter Channel Scan, the screen will display as beside. There are two scan modes for you. You can choose to scan by channel or by frequency. Move highlight to search option, and press [OK] key to start scanning.
  • Page 14 MAIN MENU MAIN MENU 3.2 TV System Press PR+, PR- key to move the cursor up or down, while press keys to change the setting and the setting will take effect immediately. 1 . V i d e o R e s o l u t i o n : S e l e c t b e t w e e n 4 8 0 i /480p/576i/576P/720P/1080i.
  • Page 15 MAIN MENU MAIN MENU 3.5 Parental Lock Before entering into the Parental Lock window, you need input the correct password. The default password is 0000. 1. Menu Lock: Press keys to select between Off and On. If ON is selected, password will be required to access sub-menus.
  • Page 16 MAIN MENU MAIN MENU 4.1 Information When you enter Information menu, you should see the screen like it displays on the right. This screen displays receiver information. You should press [EXIT] key to cancel this menu. 4.2 Load Factory Setting Highlight “Load Factory Setting”...
  • Page 17 MAIN MENU MAIN MENU 4.6 Media Player A "USB device connected" notice box will appear and stays for 3 seconds when a removable device is plugged-in via USB port. To browse this device content, go to Menu Tools USB Device and press OK. Note: only certain media formats are supported, please refer to the end section of the manual.
  • Page 18 MAIN MENU MAIN MENU Image List Press PR+,PR- key to select the iamge you want, and press FAV key to added it to the image list, or you can press number key 1 to add all the images to image list. Press yellow key and select the image button in the window, you can see the iamge you selected and in this list you can play and delete them.
  • Page 19 MAIN MENU MAIN MENU 6. REC (PVR Ready) Before you can access the menu page, please have this unit connected to a compatible removable storage device. To achieve the best recording result, users are strongly recommended to use Removable Hard Disk from trusted brands. Certain USB Drive with lower speed or smaller capacity may not be compatible with this unit.
  • Page 20 MAIN MENU MAIN MENU 1. Current date 2. Current time 3. Current time detailed to seconds 4. Recording time 5. Preset recording duration 6. Remaining time to record (Remark: based on the current free space of your external drive, the remaining time displayed on the screen is an estimated data only.

  • Page 21: Hot Key

    MAIN MENU MAIN MENU 6.7 PVR Configuration 1. Time shift: to enable or disable the function of 'SHIFT' button on your remote control. The duration of time shift will be based on your free space of external drive. 2. Record Selection: You can change the default storage location of recorded file on your removable device.
  • Page 22 MAIN MENU MAIN MENU 7.9 OK 1. During the viewing or listening, press OK key to pop up the TV program list or the Radio program list. 2. Press PR+, PR- keys to select the channel up or down, and then press OK key to play this channel in full-screen.
  • Page 23 MAIN MENU MAIN MENU 7.14 EPG Press EPG key to enter into the EPG window. 1. Press PR+, PR-, keys to select up or down, left or right. 2. Press red colour key to pop up the Time Bar window. Press PR+, PR- keys to select up or down, while press keys to select left or right in the time bar.

  • Page 24: Specification

    SPECIFICATION SPECIFICATION...

  • Page 25: Trouble Shooting

    TROUBLE SHOOTING TROUBLE SHOOTING Problem Possible causes What to do The display on the front Check that the power line is plugged into Power line is not connected. panel does not light up. the power socket. No sound or picture, but the receiver is in standby mode.
  • Page 26 Copyright This manual contains information by copyright law. No part of this document may be used or reproduce in any form or by means, or stored in a database/retrieval system without prior written permission from us. The information of this manual is based on the current version of the product. We reserve the right to alter the content without prior notice.

This manual is also suitable for:

Hvbtr-1200
