Chapter 2

Headset with Attached Microphone

ViaVideo Technical Reference

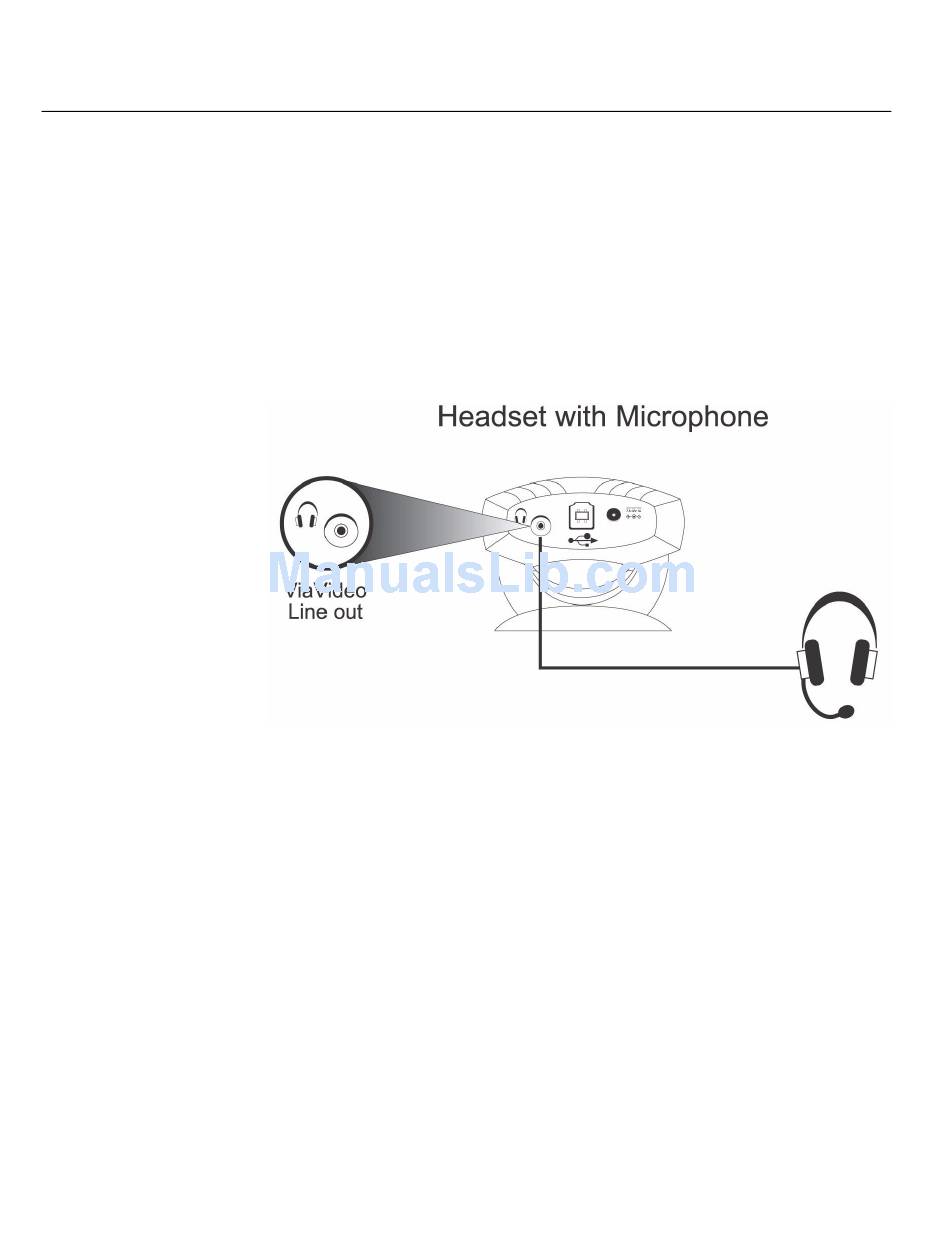

This diagram shows the correct connection from the ViaVideo audio
line out to a headset with attached microphone. Select the Headset
with Microphone option in the Audio screen (System
Information>Setup>Audio) when using this type of audio
connection.
Headsets with attached microphones have a 2.5 mm phono
connection. Note that this type of connection requires the use of a
2.5 mm female to 3.5 mm male stereo phono adapter to fit the 3.5
mm Line Out port.
With this type of connection, you will be able to hear all sounds
generated by the ViaVideo camera unit processor:
• In-call audio
• Keypad tones
• Audio test tone.
You will not be able to hear sounds generated by the ViaVideo
application on your PC:
• Far and near site ring tones
• Splash screen sound effects
• Busy signals
• ViaVideo sound effects.
6
Audio Connection
