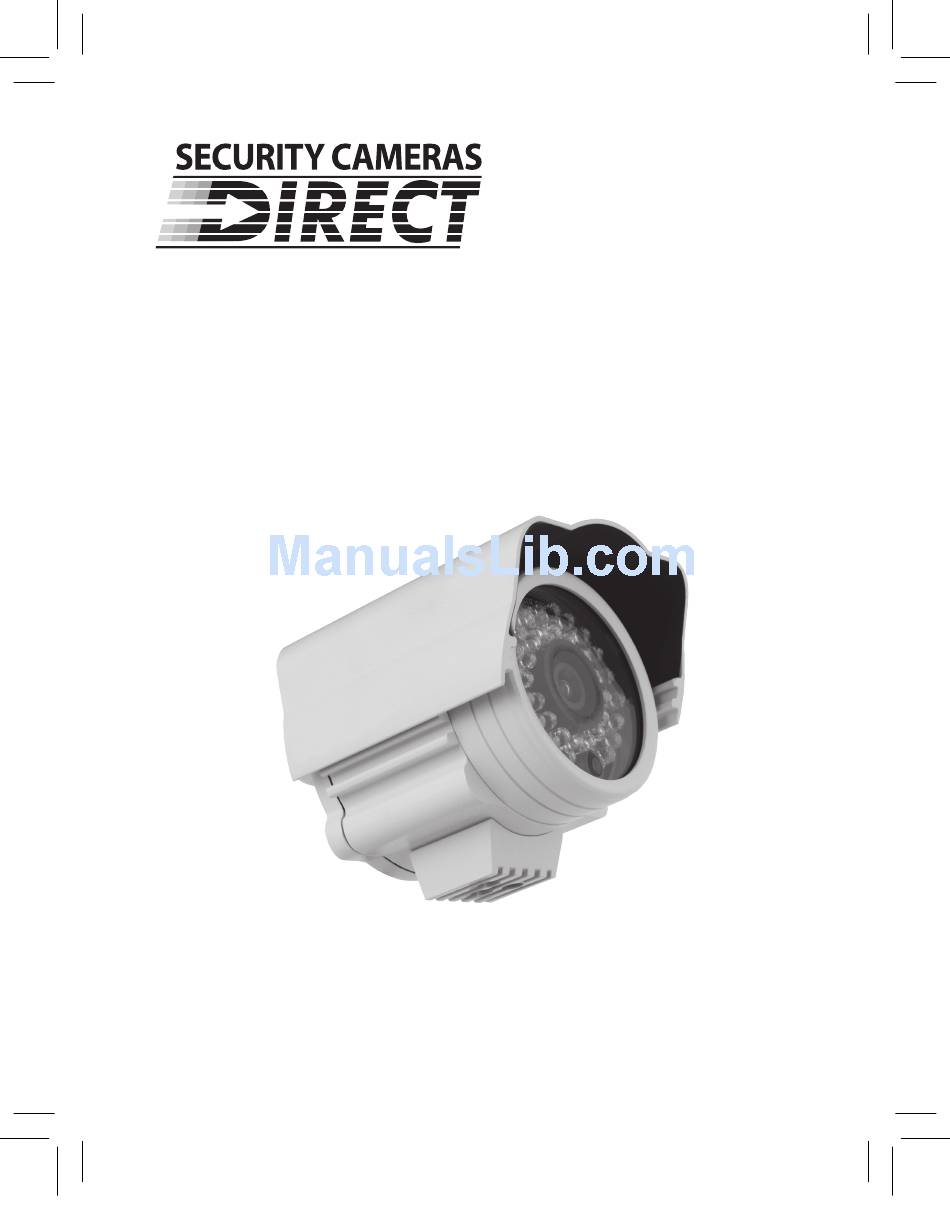

- Page 1 Weatherproof IR Color Day/Night Cameras Products: CFC6042IR, CFC6042IR2, CFC6042IR3, CFC6043IR, CFC6043IR2, CFC6043IR3 Please read this manual before installing and using this camera and always follow instructions for proper use. Please file this manual away for future reference. CFC6042_43_CM CFC6042_43_CM.indd 1...
-
Page 2: Legal Notice
No part of this document may be reproduced or distributed in any form or by any means without the express written permission of Security Cameras Direct © 2010 Security Cameras Direct. All rights reserved. - Page 3 warnings & cautions Do not use the camera if fumes, smoke or a strange odor is emitted from the unit, or if it seems to not function correctly. Disconnect the power source WARNING immediately and consult your supplier. Do not adjust or modify the camera’s internal circuits or power supply modules.
- Page 4 warnings & cautions Do not install the camera or route video cables near a TV, radio transmitter, magnet, electric motor transformer or audio speakers. The magnetic fields generated by CAUTION these devices may interfere with or distort the image. Only use the camera in areas where the ...
-
Page 5: Table Of Contents
5 Table 1 . Specifications for CFC6042IR, CFC6042IR2, CFC6042IR3 . . . . . . . . . . . . . . . . 9 Table 2 . -
Page 6: Features

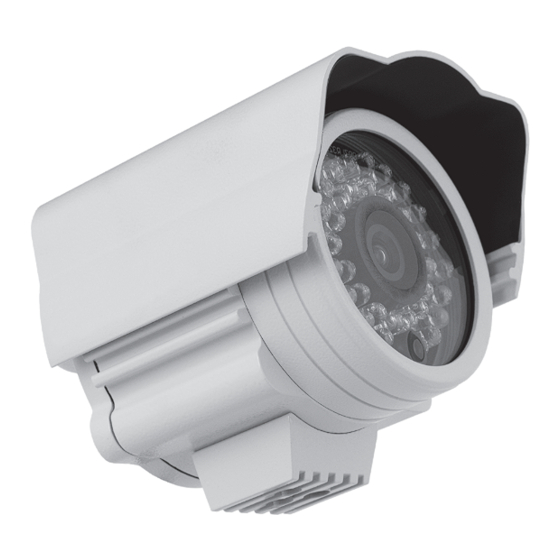

section 1: features section 1 Features The CFC6042/43 series weatherproof, IR color day/night cameras are highly durable and easy to install. These cameras include: Advanced image sensors for greater picture clarity • Ability to see in the dark with a built-in IR array •... -
Page 7: Camera Connections
section 1: features 1.2 Camera connections Connect Connect Single camera system with monitor Multiple camera system with DVR and monitor Weatherproof IR Color Day/Night Cameras CFC6042_43_CM.indd 3 2/9/2010 3:24:21 PM... -
Page 8: Installation
section 2: installation section 2 Installation 2.1 What’s in the box The camera package contains: Camera assembly • Bracket screws • Instruction manual • 2.2 What you need To install the camera, you will need: #2 Phillips screwdriver • Hardware to attach the mounting bracket to the mounting surface •... -
Page 9: Installing The Camera
section 2: installation 2.3 Installing the camera This procedure steps through the installation of a CFC6042/43 camera using the mounting bracket. If you are using a different mounting bracket, this procedure can serve as a general guideline for installing your equipment. Using the bracket mounting plate as a template, mark the location of the holes for the mounting screws on the mounting surface. - Page 10 section 2: installation Camera to bracket Attach the mounting bracket to the mounting surface with the included hardware. Connect To DVR/Monitor To DVR/Monitor and Power and Power Cable attachment Attach the BNC cable to the camera drop cable as required. NOTE Connectors on the video/power cable are different at each end! NOTE...
-
Page 11: Aiming The Camera
section 3: aiming the camera section 3 Aiming the Camera Connect the video cable from the camera to a test monitor or to a video input on the DVR. Connect the DC12V adapter to the camera. Loosen the pan and tilt set screws on the camera mounting bracket until the camera direction can adjusted. -
Page 12: Cleaning
section 4: cleaning section 4 Cleaning Clean the camera lens and IR lamp shield with an approved glass cleaning solution and a lint free cloth. Remove all foreign particles, such as plastic or rubber materials, • attached to the camera housing. These may cause damage to the surface over time. -
Page 13: Section 5: Specifications
5: specifications Model CFC6042IR CFC6042IR2 CFC6042IR3 Image Sensor 1/4" Sharp CCD TV system NTSC CCD total pixels 510(H) × 492 (V) Scanning system 525 lines, 60 fields/sec SYNC system Internal Horizontal resolution 420 TV lines Minimum illumination 0 Lux / F2.0 (LED on) Lens 3.6 mm / F2.0... -
Page 14: Cfc6043Ir2, Cfc6043Ir3
section 5: specifications Model CFC6043IR CFC6043IR2 CFC6043IR3 Image Sensor 1/3" Sony CCD TV system NTSC CCD total pixels 811 (H) × 508 (V) Scanning system 525 lines, 60 fields/sec SYNC system Internal Horizontal resolution 540 TV lines Minimum illumination 0 Lux / F2.0 (LED on) Lens 3.6 mm / F2.0 6 mm / F2.0... -
Page 15: Troubleshooting
If it still does not perform adequately, please consult your supplier or contact Security Cameras Direct at 800.316.6027. No picture on the monitor screen. Check that all connected devices are powered on. - Page 16 section 6: troubleshooting The picture has interference. The camera may be close to a high voltage source, such as a power generator. The BNC cable is not terminated properly. The video cables are not connected properly. The camera doesn’t operate at night. Your cable run may be too long and you are experiencing a drop in voltage.
