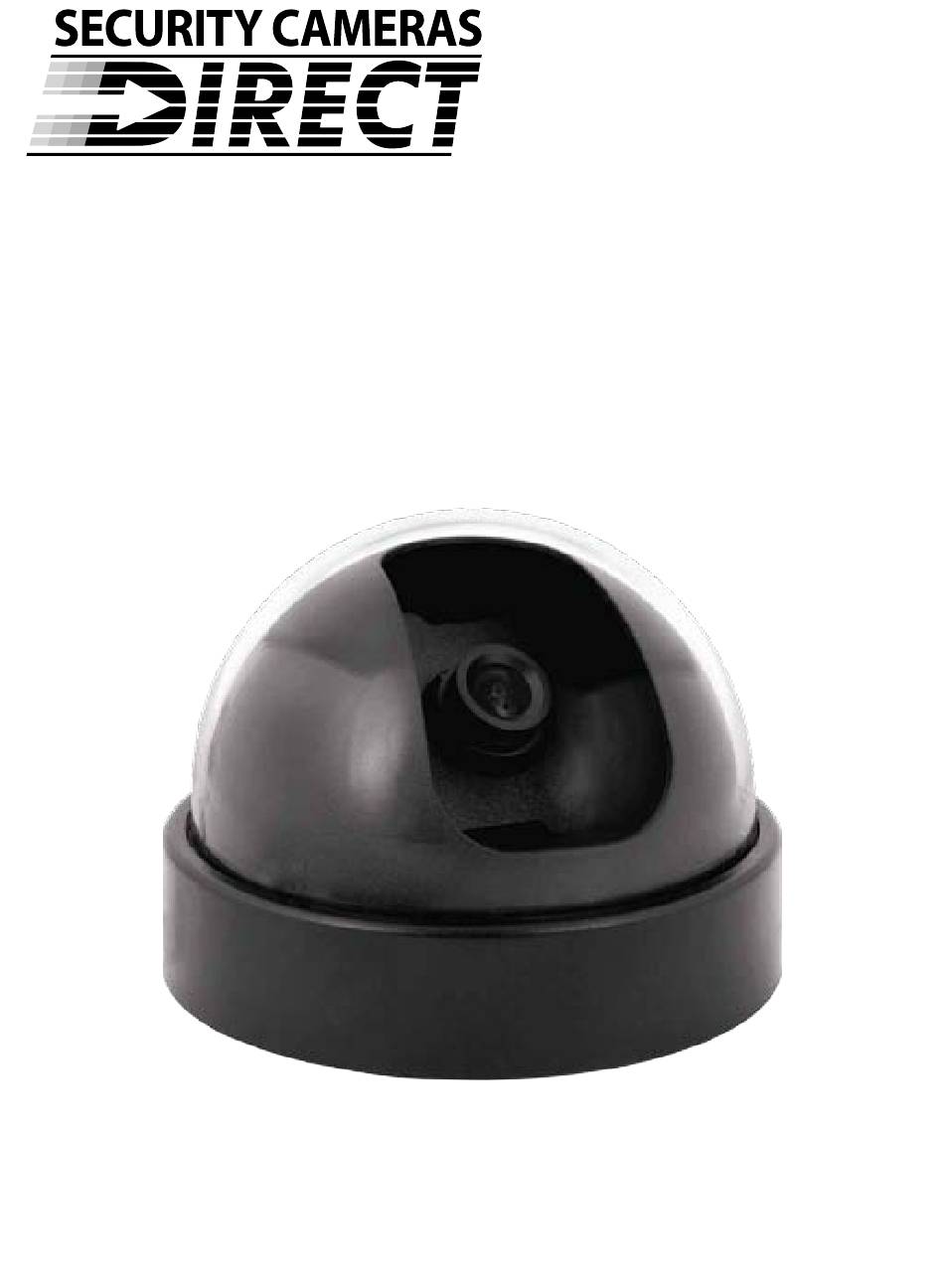

- Page 1 Compact Color Dome Camera Product: CDC3008ST2 Please read this manual before using your camera, and always follow the instructions for safety and proper use. Save this manual for future reference. CDC3008ST2_CM...
- Page 2 No part of this document may be reproduced or distributed in any form or by any means without the express written permission of Security Cameras Direct © 2010 Security Cameras Direct. All rights reserved.
- Page 3 warnings & cautions Do not use the camera if fumes, smoke or a strange odor is emitted from the unit, or if it seems to not function correctly. Disconnect the power source WARNING immediately and consult your supplier. Do not adjust or modify the camera’s internal circuits or power supply modules.
- Page 4 warnings & cautions Do not install the camera or route video cables near a TV, radio transmitter, magnet, electric motor, transformer, or audio speaker. Magnetic fields CAUTION generated by these devices may distort the video image. Use the camera only in areas where the temperature ...
-
Page 5: Table Of Contents
table of contents table of contents Features. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 section 1 1 .1.Camera.components . -
Page 6: Features
1: features Features section 1 The CDC3008ST2 camera is a very low-profile indoor camera for locations where unobtrusive surveillance is important. This cameras includes: 420 Lines of resolution • 78° field of view • Automatic white balance and automatic gain control •... - Page 7 section 1: features Connect Connect Single camera system with monitor Multiple camera system with DVR and monitor Compact Color Dome Camera...
-
Page 8: Installation
section 2: installation Installation section 2 2.1 What’s in the box The camera package contains: Camera assembly • Instruction manual • 2.2 What you need To install the camera, you will need: Hardware and tools to attach the camera to the mounting surface •... - Page 9 section 2: installation Position the camera base on the mounting surface so that the camera lens points at the surveillance target. Using the base as a template, mark the location of the mounting screw holes. Also mark the hole location for the camera drop cable. Hole for drop cable...
- Page 10 section 2: installation Attach the camera base to the mounting surface with the attachment hardware. Connect the camera drop cable connectors to the video and power extension cable. Route the extension cable to the monitor or DVR and the power source. Video Connect connector...
-
Page 11: Aiming.the.camera
section 2: installation Apply power to the camera. Verify that video from the camera can be seen on a monitor or DVR. 2.4 Aiming the Camera Use a Phillips screwdriver to loosen the up-down adjustment set screws. One is on each side of the camera module bracket. Up - down adjustment set screw... - Page 12 section 2: installation Tighten the up-down adjustment set screws to secure the camera module bracket in place. Replace camera dome by inserting the locking tabs into the slots in the base, and rotating it approximately ¼ turn clockwise. Ensure that the window in the dome is over the camera lens. www.scdlink.com...
-
Page 13: Cleaning
section 3: cleaning Cleaning section 3 Clean the camera dome and lens with an approved glass cleaning solution and a lint free cloth. Remove all foreign particles, such as plastic or rubber materials, • attached to the camera housing. These may cause damage to the surface over time. -
Page 14: Specifications
4: specifications Specifications section 4 Model CDC3008ST2 Image Sensor ¼” Sharp CCD Resolution 420 TV Lines Lux Rating 1 LUX Pixels 510 (H) x 492 (V) NTSC Video output 1 Vp-p @ 75Ω, composite video Scanning system 2:1 Interlace... -
Page 15: Troubleshooting
If it still does not perform adequately, please consult your supplier or contact Security Cameras Direct at 800.316.6027. No picture on the monitor screen: Check that all connected devices are powered on. - Page 16 section 5: troubleshooting Check the monitor display for ripple on other video channels. Check cable routing for proximity to high electrical or magnetic fields. The picture is not clear: Check the camera zoom and focus adjustments. Check that your monitor is correctly adjusted. Confirm that the glass in front of the lens is clean.
- Page 17 section 5: troubleshooting The camera doesn’t operate: Your cable run may be too long and you are experiencing a drop in voltage. This camera is a precision instrument and when treated with care, will provide years of satisfactory performance. If a problem does occur, do not open the CAUTION camera to make repairs.
- Page 18 www.scdlink.com...
