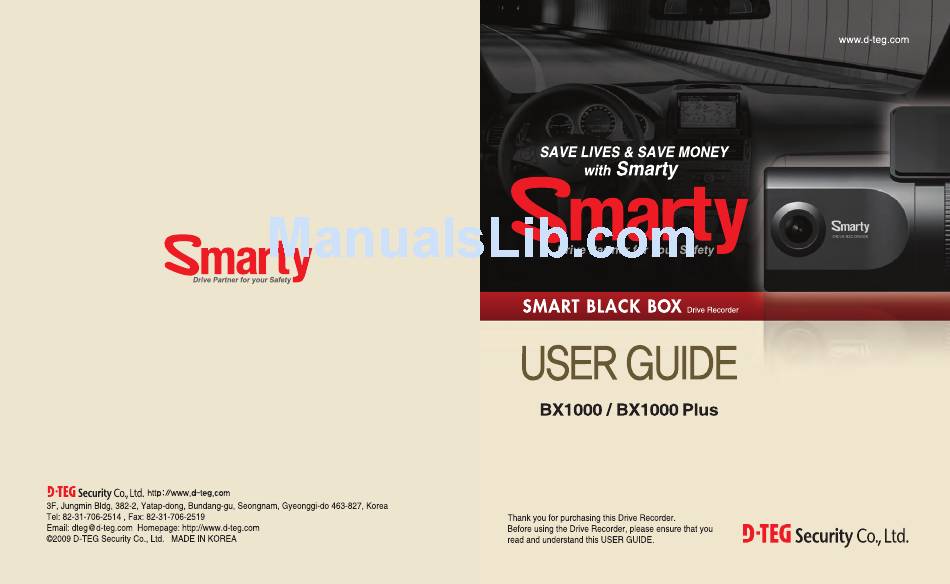

- Page 2 Drive Partner for your Safety USER GUIDE Model: BX1000 / BX1000 Plus Ver 2.0.0 Edition ● Thank you for purchasing this Drive Recorder. ● Please ensure that you read and understand this USER GUIDE and use it before connecting and installing this Recorder.
- Page 3 SAFETY ADVICE CAUTION : TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER. NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. Please make sure you follow the safety advice/instructions given in the user guide. Caution RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TYPE. DISPOSE OF USED BATTERIES ACCORDING TO THE INSTRUCTIONS.
- Page 4 1. Activate the product in an area without large buildings toimprove GPS reception. 1. Smarty BX1000 / BX1000 Plus unit The commercial purpose GPS has the average rage error of more than 1 meters and the range error could be more than 100 meters due to environmental conditions like buildings, roadside trees etc.
- Page 5 Drive Partner for your Safety BX1000 / BX1000 Plus User Guide INTRODUCTION INTRODUCTION Back Internal GPS Antenna Front Bracket [Adhere tape on bracket] Record LED (BLUE LED) Camera Lens Overwrite LED (RED LED) Record Button SD Card Format Button UNIT PARTS...
- Page 6 Park your vehicle on a flat level surface. 3. Adjust camera view. Make sure the lens has an unobstructed view. Turn off the engine before installing the BX1000 / BX1000 Plus. Check from outside the vehicle to check the camera angle. 1. Insert the SD memory card into the SD card slot.
- Page 7 (Use the provided power cable.) 2. Blue LED & Red LED will be slowly blinking simultaneously and then the Blue LED will remain on. The Blue LED light means BX1000 / BX1000 Plus is ready for the NOTE The unit will not start recording immediately after power on. It takes around 1 event recording.
- Page 8 To Un-install the “PC Viewer BX1000” Display 1,02 x 6 pixel/High Color(16bit) or higher Open the “Control Panel” If the PC does not meet the minimum system requirement, Select [Remove Program] and remove [PC Viewer BX1000] the PC Viewer Software may not function properly. www.d-teg.com...
- Page 9 Drive Partner for your Safety BX1000 / BX1000 Plus User Guide CONNECT SD MEMORY CARD PC VIEWER SOFTWARE SETTING 1. Connect SD memory card into the SD card reader. This setting is for the PC Viewer itself. To set the Drive Recorder, refer to page 2.
- Page 10 Drive Partner for your Safety BX1000 / BX1000 Plus User Guide SELECT FILE FOR PLAYbACk FILE LOADING When Record Method set as “Event record” 6. Click the [Load] button once, the [FileList] tab will be changed to the [PlayList] tab as shown below “G-Senor”...
- Page 11 Drive Partner for your Safety BX1000 / BX1000 Plus User Guide PLAYbACk SCREEN PLAYbACk When Record Method set as “Event record” . Click play button for playback. Playback speed GPS Speed, G sensor data & GPS location data Date & Time...
- Page 12 Drive Partner for your Safety BX1000 / BX1000 Plus User Guide PLAYbACk GOOGLE MAP (Supported by the “bX1000 Plus” only) NOTE: PC Keyboard hot buttons The route taken will be displayed on the Google map at lower right corner of the software.
- Page 13 Drive Partner for your Safety BX1000 / BX1000 Plus User Guide ThUMbNAIL FUNCTION SAVE JPG FILE & AVI FILE . Click the button for x multi view (Thumbnail function) 9. Pause the playback and click ‘Save Image’ icon to make a JPG file. ‘Save Image’ icon 10. Click ‘Save AVI’ icon to make a AVI file. Click the thumbnail image to change the playback position.
- Page 14 Drive Partner for your Safety BX1000 / BX1000 Plus User Guide PRINT IMAGE MAkE REPORT 11. Pause the playback and click ‘Print Image’ icon. 12. Click [Print] button in the print preview windows for printing. The File Name [Print Title], Comment [Print Comment], G-sensor graph & map (for BX1000 Plus Model only) will be printed on the first page. Print image icon Type in the File Name [Print Title] & any comments...
- Page 15 Drive Partner for your Safety BX1000 / BX1000 Plus User Guide bACkUP EVENT/LOG FILES SETTING DRIVE RECORDER 13. Click [Backup Event/Log files] icon to backup the files to the PC. 1. Click [Recorder Setting] icon for setup. [Backup Event/Log files] icon [Recorder Setting] icon Caution Backup the SD data first, before clicking initialize SDcard button. Once done, the old data cannot be recovered.
- Page 16 [BX1000 Plus] has the automatic GPS Time Synchronize function. with the internal GPS. The time recording is done based on UTC at the BX1000 Plus and automatically converts to the local time at the PC according to the PC time zone setting when playing back using the PC Viewer.
- Page 17 Drive Partner for your Safety BX1000 / BX1000 Plus User Guide PRODUCT INFORMATION LOG FILE PLAYbACk 1. Click [About] icon to check the product information. 16. Select [LOG] windows and then check the log from the log list using mouse or click [Check All] button.
- Page 18 Drive Partner for your Safety BX1000 / BX1000 Plus User Guide GPS LOG TO kML CONVERTER SPECIFICATION (for Google Earth) To see the whole route on Google Earth, select the log file and click Google Earth button. Image sensor 1/" CMOS (BX1000 Plus only) Standard DSP Angle of View 10° STEP1. Install the Google Earth on your PC.
- Page 19 Drive Partner for your Safety BX1000 / BX1000 Plus User Guide RECORDING TIME TAbLE TEChNICAL SUPPORT & WARRANTY TECHNICAL SUPPORT Resolution Quality Size 16GB For Technical Support, please contact your local distributor. min 10 min 311 min 10 hours...
- Page 20 1) Upgrade the BX1000 / BX1000 Plus main unit first. 2) Install new PC viewer software on your PC. The permanent power supply cable will allow you to hard wire the BX1000 series to the fuse box of your vehicle. 3) Initialize the SD card using new PC viewer software.
- Page 21 Drive Partner for your Safety APPENDIX (Upgrade bX1000 / bX1000 Plus) 3. Uninstall the old version PC Viewer Software from the PC PC Windows [Start] => [Control panel] And uninstall [PCViewer] 4. Install the new PC Viewer Run setup.exe and install the new PC Viewer X.X.X.X NOTE After installation the new PC Viewer, initialize the SD card.
- Page 22 Drive Partner for your Safety 3F, Jungmin Bldg, 32-2, Yatap-dong, Bundang-gu, Seongnam, Gyeonggi-do 63-2, Korea Tel: 2-31-06-21 , Fax: 2-31-06-21 Email: dteg@d-teg.com Homepage: http://www.d-teg.com ©200 D-TEG Security Co., Ltd. MADE IN KOREA...
