D-Teg CP2-NA User Manual

3g enabled vehicle recorder
Hide thumbs
Table of Contents

Advertisement

Quick Links

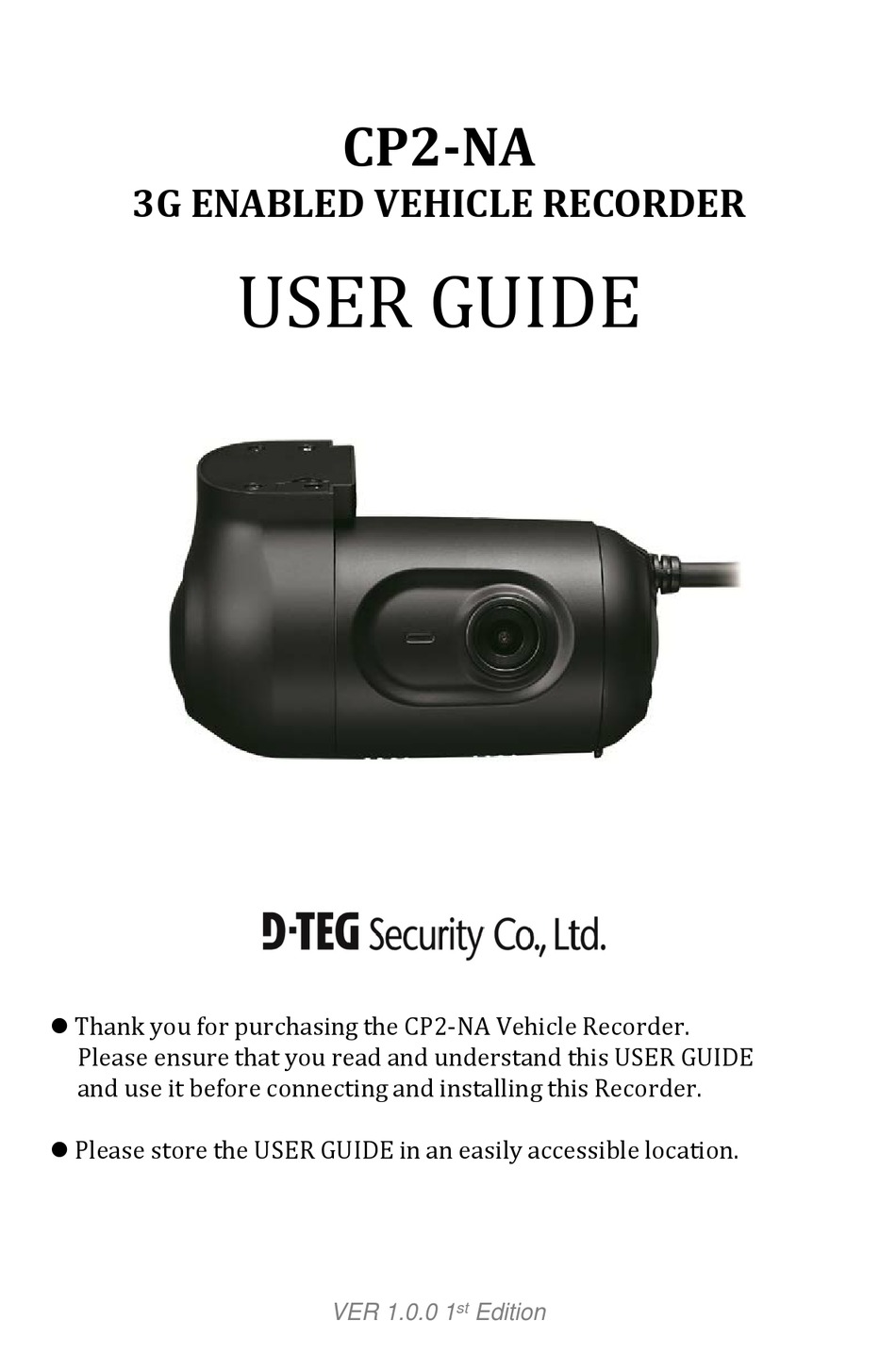

3G ENABLED VEHICLE RECORDER
 Thank you for purchasing the CP2-NA Vehicle Recorder.
Please ensure that you read and understand this USER GUIDE
and use it before connecting and installing this Recorder.
 Please store the USER GUIDE in an easily accessible location.
USER GUIDE
CP2-NA
VER 1.0.0 1
st
Edition

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CP2-NA and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for D-Teg CP2-NA

Summary of Contents for D-Teg CP2-NA

  • Page 1 USER GUIDE CP2-NA 3G ENABLED VEHICLE RECORDER  Thank you for purchasing the CP2-NA Vehicle Recorder. Please ensure that you read and understand this USER GUIDE and use it before connecting and installing this Recorder.  Please store the USER GUIDE in an easily accessible location.

  • Page 2: Table Of Contents

    INDEX SAFETY ADVICE GPS RECEPTION CONTENTS INTRODUCTION FINCTIONS LEDS &BUZZER SPECIFICATION Installation CONFIGURATION TOOL USER GUIDE INITIALIZE SD CARD DEVICE SETTINGS RECORD SETTINGS EVENT SETTINGS SYSTEM SETTINGS NETWORK SETTINGS DMS5 SETTINGS SOFTWARE USER GUIDE PC VIEWER SOFTWARE SETTINGS OPEN THE SD CARD OPEN FILES PLAYBACK DRIVE DATA...

  • Page 3: Safety Advice

    SAFETY ADVICE CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER. NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. Please make sure you follow the safety advice/instructions given in the user guide. Caution RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TYPE.
  • Page 4 Band5 : 824MHz ~ 849MHz for TX, 869MHz ~ 894MHz for RX GPS, GLONASS 1599 MHz ~ 1610 MHz WCDMA and WLAN are not simultaneous transmitter. Unique Identifier : CP2-NA Responsible Party Corporation: SmartWitness USA, LLC Address: 1108 Lunt Avenue Schaumburg, IL 60193...

  • Page 5: Gps Reception

    GPS RECEPTION Activate the product in an area without large buildings to The commercial purpose GPS has the average range error of more improve GPS reception. than 15 meters and the range error could be more than 100 meters due to environmental conditions like buildings, roadside trees etc. The temperature range for optimum operation of the GPS receiver in your car is -10 ~ 50°C.

  • Page 6: Contents

    CONTENTS CP2-NA Vehicle Recorder Power Cable (double sided tape x2) Sticker for Windscreen mounting Cord clips (x2) Additional Angle Stopper (x1) And screw(x1) Torx screw (x1) SD Cover (x1)

  • Page 7: Introduction

    INTRODUCTION FRONT Bracket (GPS/GLONASS inside) Camera Lens Cable (95cm) SIDE SIM Slot (Mini SIM) Lock using Torx screw SD Memory Card Slot...
  • Page 8 INTRODUCTION BACK Red LED Warning LED Blue LED PANIC Record LED Button G-Sensor Green LED Communication LED Calibration button camera port POWER CABLE POWER CABLE Mini Stereo connector 5V camera, Analog (D1 resolution) camera only. RS-232C port for an external device like OBD2, Driver RFID.
  • Page 9 INTRODUCTION POWER ADAPTOR POWER CABLE Black (Ground) Red (Power Battery +) White (Power ACC + ) Green (Alarm In, NC/NO), (External panic button+ ) Black (Ground), (External panic button- ) Orange (Alarm In, Voltage on/off (3~70V)) Yellow (Alarm out), Low(0V) to High (5V) External Panic Button (optional Item) Cable length: 2m90cm...

  • Page 10: Finctions

    FUNCTIONS Once the CP2-NA has been wired to your car power source the CP2-NA will be Automatic Booting boot up, this will take around 1 minute for the unit to be ready to record. The default setting for record is the continuous recording at 10fps, 720P resolution.
  • Page 11 Built-in power backup (Super Capacitor) file using the internal Super Capacitor. Time and Date There are no time and date settings as the CP2-NA get’s this information from the GPS satellite's. Please format [initialize] the SD card using the “Configuration Tool CP2-NA”...

  • Page 12: Leds &Buzzer Specification

    LEDS & BUZZER SPECIFICATION RED LED (Warning), BLUE LED (Record), GREEN LED (Communication)

  • Page 13: Installation

    Arrange the power cord neatly alongside of the windshield and door pillar trim. The CP2-NA requires a continuous 12/24volt power source from the vehicle. The cable supplied will allow you to hard wire the CP2-NA unit to the fuse box of your vehicle.

  • Page 14: Configuration Tool User Guide

    CONFIGURATION TOOL USER GUIDE Configuration Tool CP2-NA Software Recommended PC specifications for Configuration Tool Software PC SYSTEM REQUIREMENT Windows Vista. Windows 7, Windows 8/8.1 Core 2 Duo 2.5GHz or Higher 2GB or Higher Interface SD Memory Card Reader Install : 55MB or Higher...
  • Page 15 SOFTWARE INSTALLATION The Configuration Tool TX2000 Software is on the provided SD card. (Also available on our website.) 1. Connect the SD card into your PC (if your computer does not have and SD card slot use the USB SD card reader) and open the “My Computer” 2.

  • Page 16: Initialize Sd Card

    INITIALIZE SD CARD This icon is located at the bottom of the configuration tool software. To initialize the SD card quickly, click on the above icon and you will be presented with the following screen to choose the SD card to initialize. Click ‘OK’ when selected.

  • Page 17: Device Settings

    DEVICE SETTINGS Check all the cameras you wish to use. Camera check box Video Type: Set the video type for 2 camera and external monitor ”NTSC or PAL” Use the alphabet and numbers to rename (max 10 digits) the cameras. The new Cam Title names will be displayed on the live screen and all recordings.

  • Page 18: Record Settings

    RECORD SETTINGS CH1: VGA (640x480), HD (1280x720), FHD (1920x1080) Resolution CH2: NTSC D1 (720x480), PAL D1 (720x576) CH1 only: Adjust the frame rate from 30fps, 15fps, 10fps, 5~1fps Frame Rate CH1: FHD 15fps, 10fps, 5~1fps When you use 2 Channel (NTSC) HD 30fps, 15fps, 10fps, 5~1fps VGA 30fps, 15fps, 10fps, 5~1fps CH2: 30fps, 15fps, 10fps, 5~1fps...
  • Page 19 RECORD SETTINGS • Continuous (Always recording when powered by DC 12/24V.) Record Mode • Event (Automatically starts recording by G-sensor or Panic button or Alarm In.) • Dual (The continuous record fps is 1fps and Event record will work according to the Fps setting.) •...

  • Page 20: Event Settings

    (Medium) or 1 (Low). In custom set, you can set 3 different shock sensor values individually. Once it checked, CP2-NA will automatically decrease the G-Sensor sensitivity at Auto adjust G-Sensor to vehicle speed higher vehicle speeds to compensate for the naturally added G-forces that are...
  • Page 21 EVENT SETTINGS Select record channel Channel1 (Camera1) Channel2(Camera2) Over Speed: When the vehicle speed over the speed limit more than 5seconds. System Warning: SD card error, Video loss, Video Standard error...

  • Page 22: System Settings

    SYSTEM SETTINGS This option allows you to adjust the Time Zone, GPS Time synchronization, set your Vehicle No and also the Driver ID. SD Card Auto Format Feature: When the SD card has an error and cannot record, the card will be formatted and all data will be erased.

  • Page 23: Network Settings

    If they do not match, you will not get a wireless connection. Password: add AP password. Support only 3G or only Wi-Fi Please select one of way for networking from 3G and Wi-Fi. CP2-NA doesn’t have 3G/Wi-Fi switching function yet.

  • Page 24: Dms5 Settings

    DMS5 SETTINGS Set Domain/Static IP and Port number Default License Key is “DASKEY_001” And check the options • Transmit Live Tracking Data • Transmit Telematics Data (DRV) • Transmit Event Data. And then select events Please contact your distributor to set DMS5 setting it’s related with server.

  • Page 25: Software User Guide

    SOFTWARE USER GUIDE PC Viewer Software Recommended PC specifications for PC Viewer Software PC SYSTEM REQUIREMENT Windows Vista. Windows 7, Windows 8/8.1 Core 2 Duo 2.5GHz or Higher 2GB or Higher Interface SD Memory Card Reader Install : 55MB or Higher Backup : 4GB or Higher Free space Display...
  • Page 26 SOFTWARE INSTALLATION The PC Viewer Software is on the provided SD card. (Also available on our website.) 1. Connect the SD card into your PC (if your computer does not have and SD card slot use the USB SD card reader) and open the “My Computer” 2.

  • Page 27: Pc Viewer Software Settings

    Windows setting. However it can be changed with this software setting menu. Display time: Select time to see. Recorded time by CP2-NA or your PC local time Last Layout: The program will launch with the same layout as it was when it was closed.

  • Page 28: Open The Sd Card

    OPEN THE SD CARD ② Select the SD card drive and Insert the SD card into your PC ① Click “Select SD Card” icon click “OK” ③ Click “Open SD Card” The playback file list and “Continuous” and “Event” tap is displayed on the right side of the screen. You can hide the playback list by clicking the close icon.

  • Page 29: Open Files

    OPEN FILES If you want to play a specific file that has been backed up on the PC or SD Card, Click the “Open files” icon “Open files” icon Select the MDT file you want to play and click “Open”. The image of the selected file will then be displayed and you can click the “Play”...

  • Page 30: Playback

    PLAYBACK Camera title - Resolution Record Mode 1234AB Hank G-Sensor value GPS Speed Time Display Frame / Total frames number Vehicle No & Driver ID...
  • Page 31 PLAYBACK Reverse Play Previous Next Pause Image Image Capture Screen Record Video Volume Playback Speed Control Alarm Indicator Playback control bar...

  • Page 32: Drive Data

    DRIVE DATA “Drive Data” icon The default setting only displays the G-sensor graphs but other information may be added by checking the boxes in the upper part of the screen. G-Sensor: (X axis: red, Y axis: green, Z axis: blue, based on the positioning of the main unit) is shown with the data reference point zero-point calibrated and positive shocks as (+) and negative shocks as (-).

  • Page 33: Tracking Map

    TRACKING MAP “Tracking Map” icon The route taken will be displayed on the Google map. The playback position will be shown on the map with the orange arrow. The blue markings show the route taken. To see the route and position on the Google map, the GPS data should be recorded with video.

  • Page 34: Event Search

    EVENT SEARCH “Event Search” icon The “Event Search” help to find a specific data quickly. Select “Search Range” and select “Search Conditions” And then click Search button. Choose an event from the searched list and click “Go to Video” to see the video.

  • Page 35: Privacy Settings

    PRIVACY SETTINGS “Privacy Settings” icon Set the mosaic area on the video for privacy protection. When backing up the data as a JPG or AVI format and playing in the Viewer software, you are able to make a mosaic processing on the area you have set.

  • Page 36: Save Jpeg And Avi File

    SAVE JPEG AND MP4 FILE Pause the playback and click “Save JPG” icon to make JPG images. “Save JPG” icon Pause the playback and click “Save MP4 Video” icon to make a MP4 file. “Save MP4 Video” icon...

  • Page 37: Print Image

    PRINT IMAGE Pause the playback and click “Print Image” icon. “Print Image” icon Type Subject and Comments1 and Comments 2 Alter the printer settings to change paper size/orientation etc.

  • Page 38: Backing Up Files

    BACKING UP FILES Back up the recorded data on your PC. There is an option to store data by type to easy management of data. “Backup Data” icon The start time is when the video was paused and cannot be changed once you start this process.

  • Page 39: Backup Data List And Export

    BACKUP DATA LIST AND EXPORT You can use the data backup list to play data files easier that have been backed up. “Backup Data List and Export” icon Choose the folder where the backup files are at the bottom of the screen. (It will automatically show the last folder that was accessed.) Then, select the type by scrolling down the options.

  • Page 40: Specification

    SPECIFICATION Image sensor 2 Megapixel CMOS Sensor Angle of View 150 ° (H ： 121.1 ° , V : 62.4 ° ± 5% ) Band support WCDMA Band1(2,100MHz)/ Band8 (900MHz) Max Data Rate UL:5.76Mbps, DL : 7.2Mbps 1080p(1920x1080), 720p(1280x720), VGA(640x480) Video resolution 2nd camera: D1(720x480) CH1: FHD (30fps)

  • Page 41: Appendix Recording Time Table

    APPENDIX Recording time table This table is a guideline only. Actual results may vary depending on a variety of factors on the road.

  • Page 42: Appendix Upgrade

    1. Prepare Firmware Make a folder called [program] on the SD root folder as shown below, Copy “XXXXXX_x.x.x.img” file to the SD card [program] folder. Insert the prepared SD card to CP2-NA unit and turn on the 2. Upgrade CP2-NA power.

  • Page 43: Technical Support And Warranty

    Technical Support & Warranty For Technical Support, please contact your local distributor. TECHNICAL SUPPORT This product is supplied with 1 year warranty. The Warranty excludes products LIMITED WARRANTY That have been misused, (including accidental damage) and damage caused by normal wear and tear. In the unlikely event that you encounter a problem with this product, it should be returned to the place of purchase.

  • Page 44: Optional Item

    Optional Item Model Descriptions DTR-100 1/3" CMOS Sensor, DC 5V Camera Angle of View: 160° Min. Illumination: 0.2 lux Operating Temperature: -20°C ~ 60°C Input Voltage: DC 5V 30mm x 35mm x 25mm, 50g, Connector: 300mm 2Ø Mini Stereo STR-950IR-5V 1/3"...
  • Page 45 http://www.d-teg.com...
