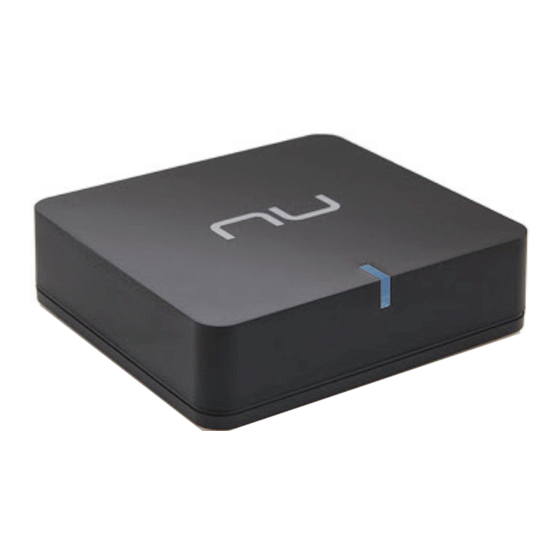

NuForce BTR-100
Bluetooth Audio Receiver
Supports A2DP, AAC, and aptX
®
aptX
codec support
AAC support
10 meters effective range
TOSLINK optical digital audio output
Stereo audio audio output
Can pair and store up to 8 device IDs
Main unit
What's in the box
AC/DC adaptor
®
Feature
3.5mm male to
3.5 male audio cable
1
3.5mm female to
RCA audio cable
Advertisement
Summary of Contents for NuForce BTR-100
- Page 1 NuForce BTR-100 Bluetooth Audio Receiver ® Supports A2DP, AAC, and aptX Feature ® aptX codec support AAC support 10 meters effective range TOSLINK optical digital audio output Stereo audio audio output Can pair and store up to 8 device IDs What’s in the box...
- Page 2 Anatomy of the BTR-100 Front Top View Back Bottom Setting up your BTR-100...
- Page 3 Analog audio output connection Connect the 3.5 mm audio input on your audio device to the BTR-100’s 3.5 mm audio output using the included 3.5 mm to 3.5 mm cable. If your audio device or home stereo system only has RCA inputs—First connect the two supplied cables together (3.5 mm male into 3.5 mm female), then connect...
- Page 4 Your iPhone/iPad/iPod will d..Turn Bluetooth on automatically search for available devices. The BTR-100 will appear in the list as “NuForce BTR-100;” Select it to pair. f. Your iPhone/iPad/iPod is now connected to the BTR-100...
- Page 5 Select it to pair. Note: The Blue LED on the BTR-100 will stay ON when the BTR-100 is connected to a device. Some devices, such as iPhone, will connect immediately after pairing so the Blue LED will be ON. Other devices, such as notebook, may ask you if you wish to connect and LED will go off after pairing until a connection is established.
- Page 6 Terminate the existing Bluetooth connection with connected device. Make sure the BLUE LED is flashing indicating that BTR-100 is ready for pairing Follow the instruction on “Pairing the BTR-100” to connect a new device. Out of range or lost signal: When the paired device is away from receiver (10 meters) or the Bluetooth signal is blocked.
-
Page 7: Troubleshooting
◎ Unplug the BTR-100 before cleaning. ◎ Place BTR-100 away from heat sources. ◎ Use only the included accessories. ◎ Unplug the BTR-100 when it is not used.. ® ***aptX software is copyrighted by CSR plc or its group companies. All rights reserved.
