ISymphony LED19iH55D Operating Instructions Manual

19” hd led backlit lcd television with built-in dvd player.
Hide thumbs

Advertisement

19" HD LED Backlit LCD Television with Built-in DVD Player
LED19iH55D

Advertisement

Troubleshooting

   Related Manuals for iSymphony LED19iH55D

No related manuals

   Summary of Contents for iSymphony LED19iH55D

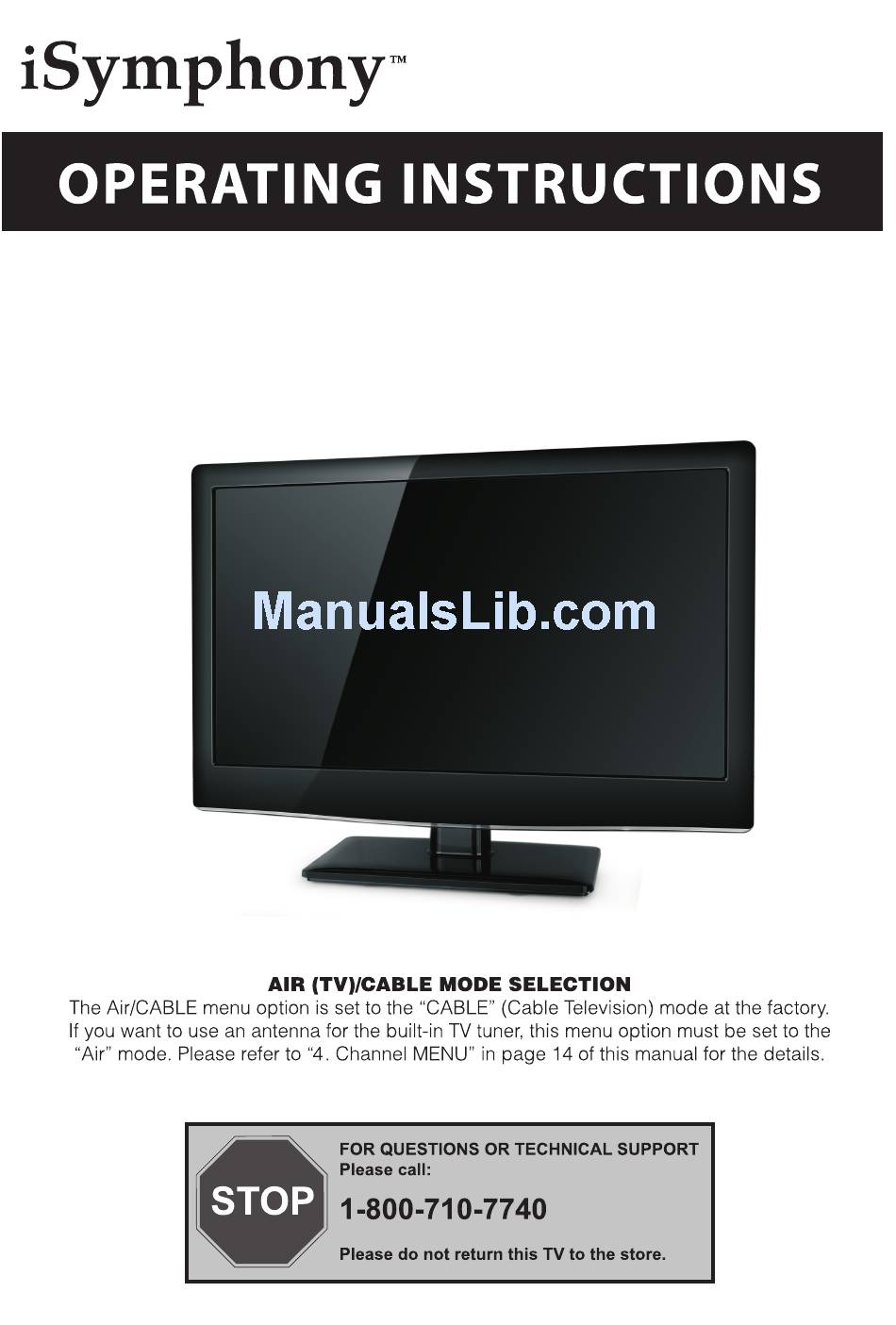

  • Page 1

    19” HD LED Backlit LCD Television with Built-in DVD Player LED19iH55D...

  • Page 2: Table Of Contents

    Contents Safety and warnings..................2-3 Introduction....................4 Installation....................5-8 Wall Mount ....................9 Remote Control...................10 Operation.....................11-16 Trouble Shooting..................17 DVD Operation....................18-21 DVD Trouble Shooting..................22...

  • Page 3: Safety And Warnings

    SAFETY AND WARNINGS Important Safety Instructions WARNING: 1) Read these instructions. To reduce the risk of fire or electric shock, do 2) Keep these instructions. not expose this apparatus to rain or moisture. 3) Heed all warnings. 4) Follow all instructions. 5) Do not use this apparatus near water.

  • Page 4: Safety And Warnings

    SAFETY AND WARNINGS High voltages are used in the operation of this television Never stand on, lean on, or suddenly push the television or receiver. Do not remove the cabinet back from your set. its stand. You should pay special attention to children. Refer servicing to qualified service personnel.

  • Page 5: Introduction

    INTRODUCTION Main features Accessories Adapter........18.5” wide screen for a complete home theater experience Infrared Remote Control... Super slim LCD TV with LED backlight User’ s M anual ......1366x 768 native resolution for HD performance Battery(AAA)......Integrated ATSC TV tuner for HDTV broadcast reception Quick Start Guide ....

  • Page 6: Installation

    INSTALLATION KEYBOARD Front panel SOURCE MENU VOL+ VOL- STANDBY 1.SOURCE: Display the input source menu.In MENU mode,press“SOURCE”to confirm the selected item. 2.MENU: Display main MENU. 3.CH+/CH- 1: Remote control sensor. In TV mode,press“CH+”or“CH-” 2: Indicator LED: to change the channel up and down. BLUE POWER ON.

  • Page 7

    INSTALLATION ANTENNA 100mm 100mm Note: Aerial connections:IEC(female). Input impendance:75 unbalanced. STEPS: Be sure both the TV and computer are set to Power off. 1.Connect VGA and audio cable. 2.Connect the power cord. 3.Power on the TV, switch to PC mode. 4.Power on the PC.

  • Page 8: Preset Mode

    INSTALLATION POWER CVBS PRESET MODE V.Freq.(Hz) H.Freq.(KHz) RESOLUTION 720*400 31.47 640*480 31.47 37.50 640*480 800*600 37.88 800*600 46.88 48.36 1024*768 1024*768 56.48 1024*768 60.02 1280*1024 63.98 1280*1024 80.00...

  • Page 9: Av Equipment

    INSTALLATION AV EQUIPMENT You can use the input terminals on TV set rear as follows. HEADPHONE PC AUDIO COAXIAL HDMI1 HDMI2 HDMI VIDEO EQUIPMENT with YPbPr Yellow (video) White(audio L) Red(audio R or Pr) Blue(Pb) Green(Y) POWER CVBS VIDEO EQUIPMIENT TO VIDEO OUTPUTS TO AUDIO OUTPUTS...

  • Page 10: Wall Mount

    - 4 pcs of type M4 screws are required for installing the wall mount bracket to your iSymphony TV. Do not use screws that are longer than 10 mm. Screws that are too long may cause damage to the inside of the TV set.

  • Page 11: Remote Control

    REMOTE CONTROL 1: POWER To set the TV standby or on. 2: NUMBER KEY RETURN DISPLAY AUDIO SUBTITLE For direct access to program. Displays the main on-screen menu. MTS/ 4: CURSOR To move within the menu. REPEAT GOTO MENU SETUP 5: EXIT Used to exit menu.

  • Page 12: Operation

    OPERATION 1.SETUP WIZARD 2)If "Retail" mode is selected, the following menu will be displayed to confirm your selection. Select The Setup Wizard is provided so that you can select "Yes" by using "left/right arrow" keys on your remote "Home" mode or "Retail" mode for the initial picture control, and press "ENTER"...

  • Page 13: Setup Menu

    OPERATION 3. SETUP MENU 1. PICTURE MENU The first item of the MENU is PICTURE MENU. The third item of the MENU is SETUP MENU. You can adjust picture effect here, such as contrast, brightness, etc. You can setup system here. Press to select and press to adjust.

  • Page 14: Change Password

    OPERATION Change Password: Press button and the screen will display as follows: Content Rating Content (Fantasy (Violence) (Sexual (Adult (Sexually violence) situation) language) suggestive dialog) TV-Y (All children) ---- TV-Y7(Direct to Old password order children) ---- Suggested New password TV-G(General ---- audience) Confirm password...

  • Page 15

    OPERATION 3.2 Timer Description Rating You can adjust timer here. Press to select, and press to adjust. Press MENU Exempt: Includes news, sports, documents and other information programming: talk shows, music videos, and variety programming. to exit. Children: Intended for younger children under the age of 8 years. Pays careful attention to themes that could threaten their sense of securityand well-being.

  • Page 16: Channel Menu

    OPERATION 3.4 Menu Settings You can adjust Menu Settings here. 1). Air/Cable: Select Air TV signal or cable TV signal. Press to select. Press to adjust. Press MENU 2). Auto Scan: If you selected Air on Air/Cable selection, to exit. scanning all TV channels is required prior to starting watching the TV programs.

  • Page 17: Multimedia Menu

    OPERATION 5. Multimedia MENU : play If you select storage source. You can use Multimedia Menu to play the JPEG picture and Mp3 music. : pause : stop 1. Select Photo item If select Photo item, the JPEG menu display on screen : fast back below: : previouse...

  • Page 18: Trouble Shooting

    TROUBLE SHOOTING Trouble phenomenon Symptom Inspection Check Picture Audio antenna position, direction Snow Noise or connection antenna position, direction Ghost Normal audio or connection electronic equipment,car/ Interference Noise motorcycle,fluorescent light Volume(check if mute is activated or if the audio system Normal Picture connections are not correct) Mute...

  • Page 19: Dvd Operation

    DVD OPERATION DVD SIDE PANEL OPEN/CLOSE PLAY/PAUSE Caution This DVD Player has a Class 1 laser which may be harmful to your eyes. Do not attempt to disassemble the cabinet or make any adjustments. Refer all servicing to a qualified professional.

  • Page 20

    DVD OPERATION MENU OPERATION SYSTEM SETUP Press the SETUP button on the remote control, the Aspect Ratio SETUP MENU will be displayed. After accessing the Select the aspect ratio. setup menu, press the direction buttons for up and Notes: down movement to select an item desired, and press The image display ratio is related to the recorded disc RIGHT direction button to select the SUBMENU format.

  • Page 21

    DVD OPERATION PICTURE CD PLAYBACK MP3/WMA/JPEG PLAYBACK The PICTURE CD disc has such a directory structure structure as shown in the following picture. The MP3/WMA disc has such a directory structure as shown picture above. Press Direction key to choose the root Press Direction key to choose the root directory and directory and then press ENTER/OK button to then press ENTER/OK button to enter into the sub...

  • Page 22

    DVD OPERATION 2: 0-9 keys These keys are used to input the time, as well as title, chapter and track numbers.When a numeric item is displayed on the screen, press the 0-9 keys to select the desired entry, and press ENTER/OK to confirm. When a VCD is playing(with PBC off), press the 0-9 keys to select a track RETURN DISPLAY...

  • Page 23: Dvd Trouble Shooting

    DVD Trouble shooting If you have any questions, please consult the troubleshooting guide below: NO PICTURE OR SOUND REMOTE NOT WORKING Ensure the power button is on. Make sure the Main unit s POWER button is on Ensure the power outlet is operational. Ensure the remote batteries are working.

  • Page 24

    Distribution and Sales 1-800-710-7740 Ver. 111024-1 www.isymphonyproducts.com Printed in China...
