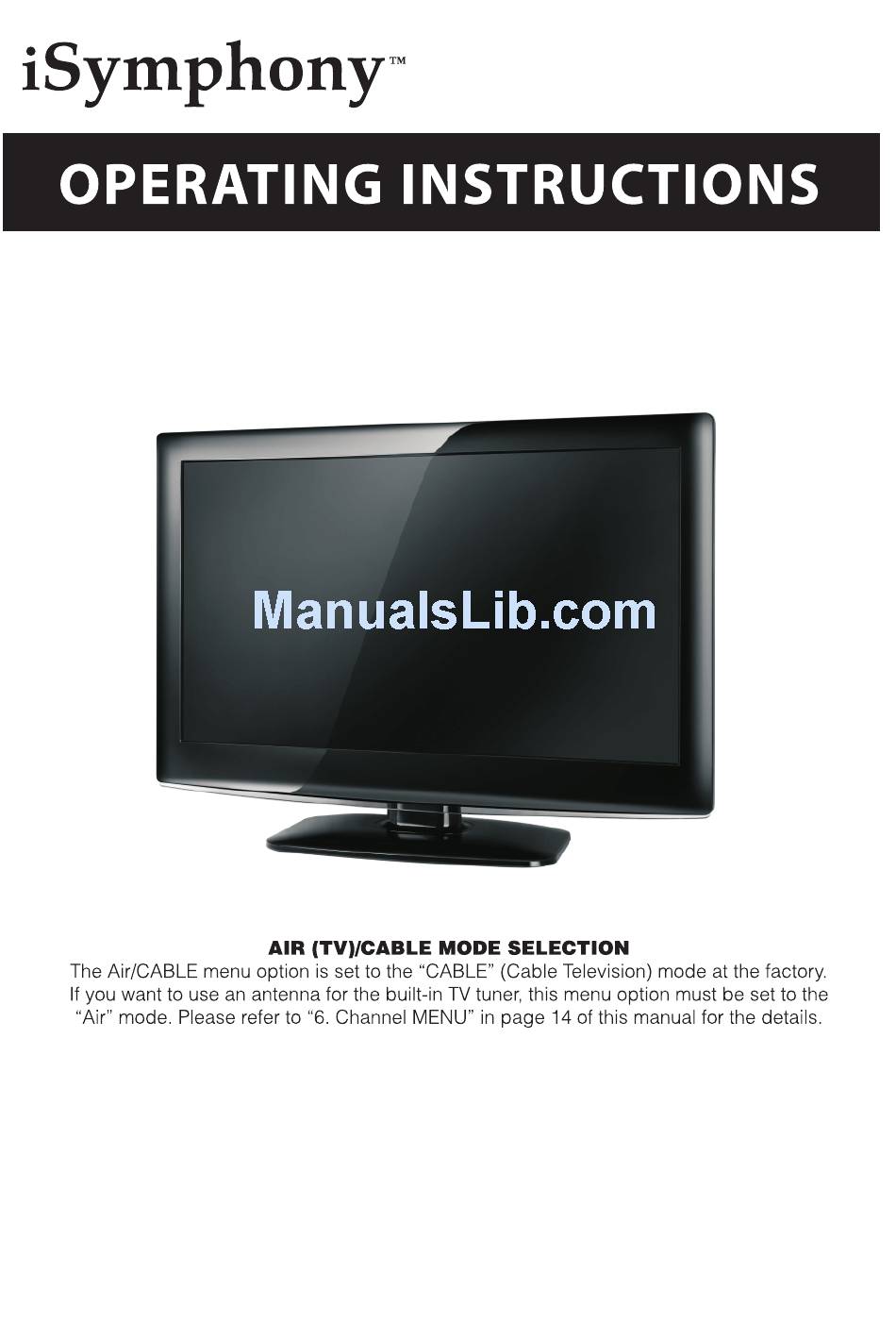

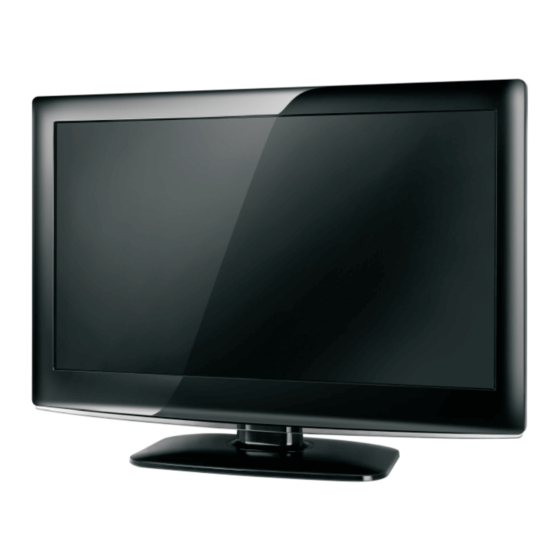

- Page 1 26" HD LCD Television with Built-in DVD Player LCD26iH56...
-
Page 2: Table Of Contents
Contents Safety and warnings...2-4 Introduction...5 Installation... 6-9 Remote Control...10 Operation... 11-14 DVD operation..15-18 DVD Trouble shooting...19 Trouble Shooting...2 0 Instruction For Wall Mount... 21 Warranty Card... 22... -
Page 3: Safety And Warnings
IMPORTANT SAFETY INSTRUCTION 1.Read these safety instructions. 2.Keep these safety instructions. 3.Heed all warnings. 4.Follow all safety instructions. 5.Do not use this apparatus near water. 6.Clean only with dry cloth. 7.Do not block any ventilation openings. Install in accordance with the manufacturers instructions. 8.Do not install near any heat sources such as radiators , stoves, or other apparatus (including amplifiers)that produce heat. - Page 4 High voltages are used in the operation of this television receiver. Do not remove the cabinet back from your set. Refer servicing to qualified service personnel. To prevent fire or electrical shock hazard, do not expose the television receiver to rain or moisture. Do not drop or push objects into the television cabinet slots or openings.
-
Page 5: Installation
TV with a dry soft cloth. During thunder and lighting, unplug the power cord and antenna cord to prevent damage to your TV. All repairs to this TV should only be performed by qualified TV service personnel. -
Page 6: Introduction
Main features 1366 x 768 native resolution for HD performance ■ Integrated ATSC TV tuner for HDTV broadcast reception ■ Built-in progressive scan DVD player ■ Built-in 3-in-1 card reader (SD, MMC, MS) and USB port ■ for playing digital media files High brightness provides a vivid and brilliant picture ■... - Page 7 2．MENU：Display main MENU. 3．CH+/CH-:In TV mode，press“CH+”or“CH-”to change the channel up and down.In MENU mode, press “CH+”or“CH-”to select items .In standby mode, press“CH+”or“CH-”to turn on the TV. 4．VOL+/VOL-:Adjust sound level.In MENU mode, press“VOL+”or“VOL-”to adjust the item that you POWER ON. selected.
-
Page 8: Preset Mode
STEPS: Be sure both the TV and computer are set to Power off. 1.Connect VGA and audio cable. 2.Connect the power cord. 3.Power on the TV, switch to VGA mode. 4.Power on the VGA. This sequence is very important. HDMI2 INPUT... - Page 9 INSTALLATION ANTENNA Note: Aerial connections:IEC(female). Input impendance:75 unbalanced.
- Page 10 AV EQUIPMENT This TV provides one group of AV ,one group of YPbPr for convenient connectionto VCR,DVD or other video equipment. Please refer to the owner s manual of the equipment to be connected as well. You can use the input terminals on TV set rear as follows.
-
Page 11: Remote Control
1:POWER To set the TV standby or on. 2:NUMBER KEY: For direct access to program. 3:MENU To display TV menu or to return to the previous menu. 4:CURSOR To move within the menu. 5:EXIT Used to exit menu. 6:VOL+/- To adjust sound level. -
Page 12: Operation
1. PICTURE MENU The first item of the MENU is PICTURE MENU. You can adjust picture effect here, such as contrast, brightness, etc. Press to select, press to exit. Audio Timer Setup Picture Picture mode Contrast Brightness Color Tint Sharpness Color Temp. - Page 13 1). Advanced: In PC Mode is available. Press button to select Advanced ,Press button, the screen will display as follow: Picture Audio Setup Timer H-pos V-pos Clock Phase Auto Select Adjust (1).H-Pos:Adjust the horizontal position of the screen. (2).V-Pos:Adjust the vertical position of the screen. (3).Clock: Fine tune the screen width.
-
Page 14: Control Feature
ON, the below options can be adjusted. US: Press button, the screen will display as follow: Picture Audio Timer Setup MPAA Select Adjust 1):TV: Press button, the screen will display as follow: Picture Audio Setup Timer TV rating TV-Y TV-Y7 TV-G TV-PG... -
Page 15: Operation
16ans+ Over 16 years: Could contain frequent violent scenes and violence. 18ans+ Over 18 years: Only for adult viewing. Could contain frequent violent scenes and extreme violence. RRT setting: in ATSC digital TV mode, it could be adjusted Reset RRT: Press... -
Page 16: Dvd Operation
DVD SIDE PANEL Disc data side NEXT PREV STOP PLAY/PAUSE OPEN/CLOSE In DVD mode, press DVD/USB button on the Remote control, insert a USB or a MP3 player with USB interface to play the MP3, JPEG and MPEG4 files. 3 in 1 Card Reader In DVD mode, press DVD/USB button on the Remote control, you can insert three kinds of card (SD, MMC, MS) to play the mp3 music or MPEG4... - Page 17 Some disc can not display images in the aspect ratio you choose. If you play a disc recorded in 4:3 format on a wide screen TV, black bars will appear on the left and right side of the screen. You must adjust the screen setting depending on the type of the television you have.
- Page 18 MP3/WMA/JPEG/MPEG4 PLAYBACK The MP3/WMA/MPEG4 disc has such a directory structure as shown picture above Press Direction key to choose the root directory and then press ENTER button to enter into the sub directory. Press Direction key to choose the desired track and then press ENTER or PLAY to enjoy the music or movie.
- Page 19 Function Buttons OPEN/CLOSE To open the disc tray, press OPEN/CLOSE; To close the disc tray, press OPEN/CLOSE again. SUBTITLE Press the button to choose different captions(Requires support from disc) GOTO For DVD discs, press the button to choose the desired title and chapter andsearch the desired title time and chapter time.For Super VCD,VCD,CD discs, press this button to search the...
-
Page 20: Dvd Trouble Shooting
DVD Trouble shooting If you have any questions, please consult the troubleshooting guide below: NO PICTURE OR SOUND Ensure the power button is on. Ensure the power outlet is operational. Ensure the power cord is not damaged. Ensure the power plug is connected firmly to the outlet. -
Page 21: Trouble Shooting
Trouble shooting Trouble phenomenon Symptom Picture Snow Ghost Interference Normal Picture No picture No colour Picture breaking up No colour The LCDTV panel is built with very high precision technology giving you fine picture details in vibrant color. Occasionally, a few non-active pixels may appear on the screen as a fixed point of red, green, blue, black or white. -
Page 22: Instruction For Wall Mount
INSTRUCTION FOR WALL MOUNT The wall mount kit (not included) with your purchase allows you to mount your iSymphony TV on the wall. For detailed information on installing the wall mount, refer to the instructions provided by the wall mount manufacturer. It is strongly recommended to contact a technician for professional assistance for wall mount installation. -
Page 23: Warranty Card
Symphony Phone: 1-800-710-7740 www.isymphonyproducts.com Ver. 091204... - Page 24 Distribution and Sales 1-800-710-7740 www.isymphonyproducts.com Printed in China...
