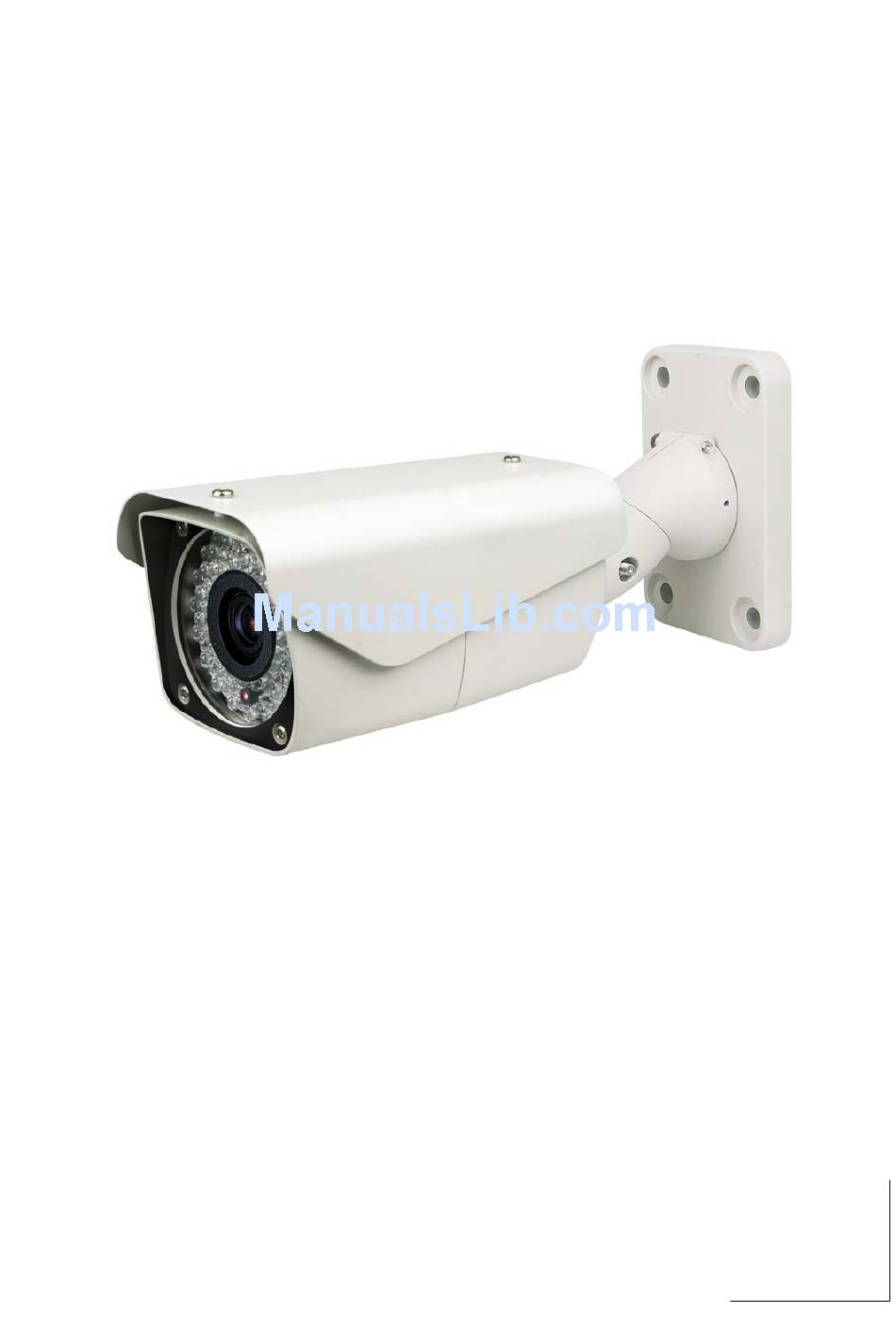

- Page 1 INSTALLATION MANUAL...
-
Page 2: Disclaimer
DISCLAIMER While every effort has been made to ensure that the information contained in this guide is accurate and complete, no liability can be accepted for any errors or omissions. We reserve the right to change the specifications of the hardware and software described herein at any time without prior notice. -
Page 3: Warning And Caution
WARNING AND CAUTION WARNING TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS PRODUCT TO RAIN OR MOISTURE. DO NOT INSERT ANY METALLIC OBJECTS THROUGH THE VENTILATION GRILLS OR OPENINGS ON THE EQUIPMENT. CAUTION The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage”... -
Page 4: Fcc Compliance Statement
FCC COMPLIANCE STATEMENT FCC INFORMATION: THIS EQUIPMENT HAS BEEN TESTED AND FOUND TO COMPLY WITH THE LIMITS FOR A CLASS A DIGITAL DEVICE, PURSUANT TO PART 15 OF THE FCC RULES. THESE LIMITS ARE DESIGNED TO PROVIDE REASONABLE PROTECTION AGAINST HARMFUL INTERFERENCE WHEN THE EQUIPMENT IS OPERATED IN A COMMERCIAL ENVIRONMENT. -
Page 5: Important Safeguards
IMPORTANT SAFEGUARDS 1. Read these instructions. 2. Heed all warnings. 3. Follow all instructions. 4. Do not use this equipment near water. 5. Clean only with dry cloth. 6. Do not block any ventilation openings. Install in accordance with the manufacturer's instructions. -
Page 6: Table Of Contents
TABLE OF CONTENTS DISCLAIMER ..........................２ WARNING AND CAUTION ......................３ FCC COMPLIANCE STATEMENT ....................４ CE COMPLIANCE STATE ......................４ IMPORTANT SAFEGUARDS ......................５ TABLE OF CONTENTS ........................６ INTRODUCTION..........................７ CONTENT VERIFICATION ......................８ DIMENSIONS ..........................８ ADJUSTING THE 3-AXIS BRACKET ................... ９ WIRING DIAGRAM ........................ -
Page 7: Introduction
INTRODUCTION Features Our camera is equipped with high resolution 1/4” Super HAD CCD Imager for enhanced lowlight sensitivity. User-friendly, on-screen pull-down menus and short-cuts make it easy to setup and program functions. *Before installing and using this camera, please read this manual fully and carefully, and be sure to keep it handy for later use. -
Page 8: Content Verification
CONTENT VERIFICATION Before installing the camera, please make sure that the following items are included in the box: 1. Integrated Camera 2. Sunshield 3. Remote Controller (Optional) 4. Instruction Manual 5. Mounting Hardware If any of these materials are missing, please contact the vendor or customer service department immediately. -
Page 9: Adjusting The 3-Axis Bracket
ADJUSTING THE 3-AXIS BRACKET Loosen the corresponding screws before attempting to make Pan, Tilt and Rotation adjustments. ９... -
Page 10: Wiring Diagram
WIRING DIAGRAM GENERAL OVERVIEW Use minimum of power source 12VDC, 5A / 24VAC, 2.5A Connect the VIDEO-OUT jack to the VIDEO-INPUT of the device. As the connecting method varies with the equipment, refer to the manual supplied with the equipment. - Page 11 WIRING DIAGRAM CONNECTING TO THE CONTROLLER CONNECTING TO THE DVR １１...
-
Page 12: Remote Controller Keys & Descriptions
REMOTE CONTROLLER KEYS & DESCRIPTIONS Loosen the corresponding screws before attempting to make Pan, Tilt and Rotation adjustments. ① POWER – Not used ② NUMBERS – Use Numbers when changing the ID of the remote controller. They are also used to save or recall presets. -
Page 13: Adjusting The Lens & Setup Menu
ADJUSTING THE LENS & SETUP MENU VIA IR REMOTE CONTROL Point the Remote Controller to the Camera to control the zoom. You can also use the remote controller to enter and make changes in the OSD Setup Menu. VIA CONTROLLER Use the controller to adjust the zoom by twisting the joystick. -
Page 14: Osd Menu Controls & Navigation
OSD MENU CONTROLS & NAVIGATION Menu Key - Used to access menu mode. Up / Down Key - Used to scroll through the desired menu selection and to move the cursor up or down during the OSD menu. ... -
Page 15: Focus
FOCUS This camera can be set up to automatically focus to the changing environment or just once at a preset field of view. (e.g.,a man walking across the monitored area closer to the camera.) Important: Continuous use of the Auto Focus feature under heavy movement conditions will significantly shorten the lifespan of the lens. -
Page 16: Wb Setup (White Balance Setup)
WB SETUP (WHITE BALANCE SETUP) The WB SETUP is used to control the white balance under different illumination sources. Adjust this setting to calibrate the camera for correct color rendering. MODE: The five white balance control modes are as follows: ... -
Page 17: Ae Setup (Auto Exposure Setup)
AE SETUP (AUTO EXPOSURE SETUP) MODE: AUTO, SHUTTER, IRIS, MANUAL AUTO: Exposure is controlled by Shutter Speed, Iris, and Gain to meet the Brightness. SHUTTER: The shutter speed is fixed. Exposure is controlled by Iris and Gain. IRIS: The IRIS is fixed. -
Page 18: Special
SPECIAL BACKLIGHT: Select between OFF(Default), LOW, MID., HIGH OFF: BLC is off LOW, MID., HIGH: The BLC divides the frame and calculates each zone according to its exposure level to counterbalance excessive background light to distinguish the subject in the foreground. You can adjust the sensitivity for the IR Cut Filter lighting conditions. - Page 19 SPECIAL ID: Assign ID number to the camera. It is available to set an ID from 1 to 99. BAUDRATE: Configure baud rate from 2400, 4800, 9600, 19200, 38400bps. PROTOCOL: Assign protocol to the camera. It is available to set at AUTO, NUVICO, Pelco- D, Pelco-P.
-
Page 20: Display
DISPLAY CAMERA TITLE: Use this feature to designate a name for the camera, which will display on the monitor screen. EDIT TITLE: You can enter up to 15 characters. A title may be entered by pressing the MENU/ENTER key while highlighting the desired letter, number, or symbol shown above. -
Page 21: Function
FUNCTION HOME PRESET: The HOME function invokes predefined Preset function after the remote controller or the controller has been idle for programmed time. FUNCTION: Set the preset number for the home. WAITING TIME: Set the dwell time before it goes into Home Function.(10-240SEC) OPERATION: Set to ON to execute the home. - Page 22 FUNCTION PRESET: Preset memorizes zoom, focus, iris and backlight, and title settings. Once programmed, pressing combination of 1 ~8 numbers and a PRESET button on your remote control or the controller automatically calls up the preset position. Presets may be assigned to alarm or motion actions. No.: Select the desired preset number using LEFT/RIGHT keys.
- Page 23 FUNCTION TYPE: Set the desired alarm input number. ( ALARM1, ALARM2) INPUT: Use this feature to designate dry contact relays (OFF, N/O and N/C) for alarm input. OUTPUT: Set to ON to activate the relay output for alarm. PRESET: Select the desired preset number for alarm action. HOLD TIME: Set the dwell time of the relay output for alarm output.(1~60seconds) MOTION: This camera has a feature that allows you to observe movements of objects on the screen, and motion icon appears on the screen when movement is detected.
- Page 24 FUNCTION DETECT AREA: Press right to enter the detect area. A white grid with 48 squares will appear. Choose the desired area by moving the highlighting the specific square colored in gray using arrow keys and pressing the NEAR or FAR key to change the color.
- Page 25 FUNCTION To setup the Privacy Zone masks, follow the simple instructions below. 1. Select the ZONE NUMBER (1-4), then scroll down to ENABLE and press the LEFT/RIGHT Key to turn the ENABLE to ‘ON’ to display the selected privacy zone mask. 2.
-
Page 26: Ir Radiator
IR RADIATOR Use this feature to adjust IR brightness. When manual mode is selected, user is able to control the brightness per each line of LEDs. Line 1 set-up from 0 to 9 is set-up of outside LED and Line 4 is inside. 0 means that IR is turned off and 9 is the at IR’s brightest mode. Note: For best result, please adjust the IR LEDs intensity levels while viewing the changes on a monitor. -
Page 27: Technical Specification
TECHNICAL SPECIFICATION Video Format NTSC Image Sensor 1/4" CCD 1/4" CCD Sync System Internal Internal Effective Pixels 768(H) x 494(V) 752(H) x 582(V) Scanning system 525, 2:1 Interlace 625, 2:1 Interlace Electronic Shutter 1/60 ~1/100,000 sec 1/50 ~1/100,000 sec Video Output 1.0 Vp-p Composite, 75 ohm Horizontal Resolution 580 TV Lines... - Page 28 000000000000...
