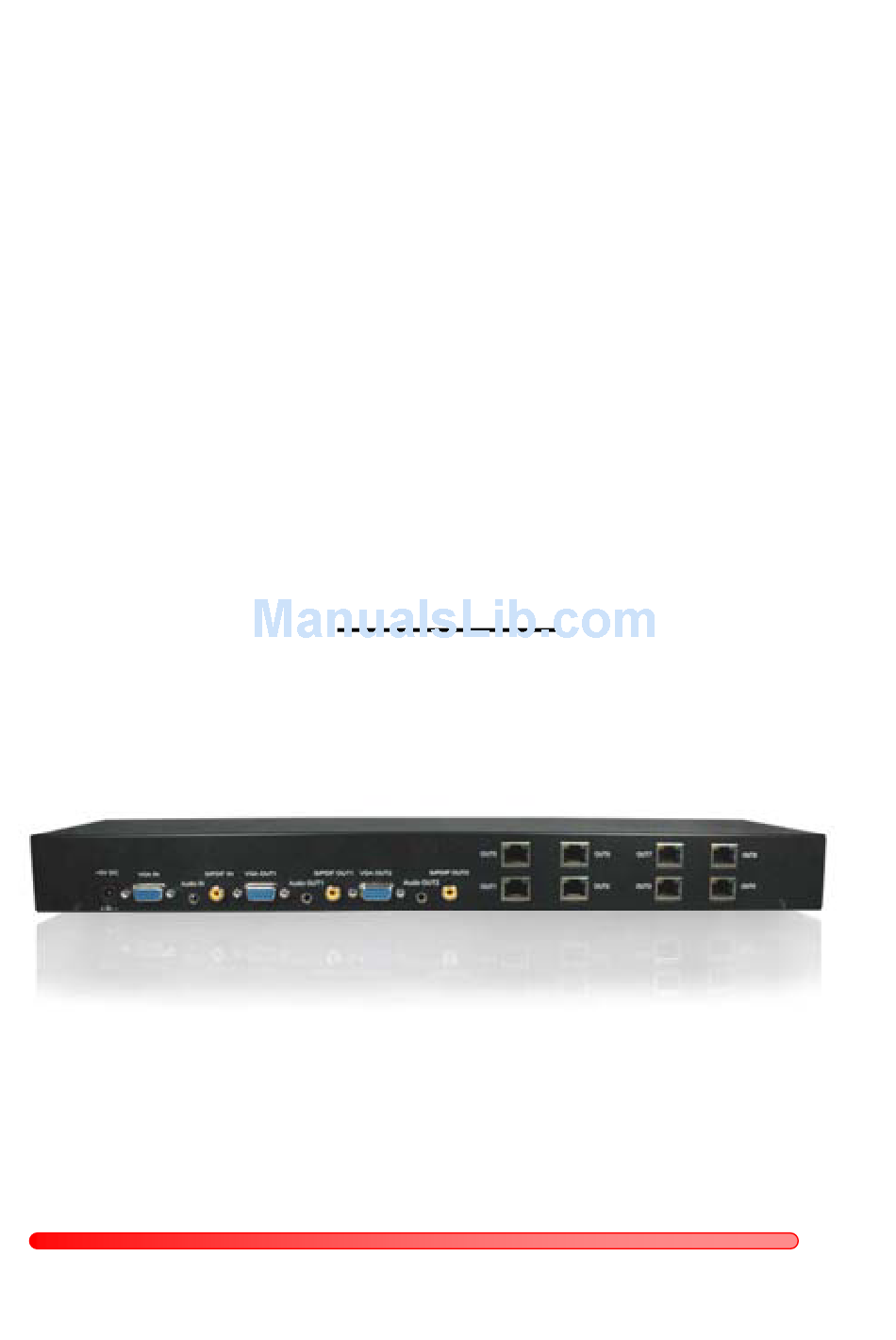

- Page 1 SP-9018 1x8 VGA over CAT5 Transmitter User Manual ...
-
Page 2: Safety And Notice
Safety and Notice The SP‐9018 1x8 VGA over CAT5 Transmitter has been tested for conformance to safety regulations and requirements, and has been certified for international use. However, like all electronic equipments, the SP‐9018 should be used with care. Please read and follow the safety instructions to protect yourself from possible injury and to minimize the risk of damage to the unit. Follow all instructions and warnings marked on this unit. Do not attempt to service this unit yourself, except where explained in this manual. Provide proper ventilation and air circulation and do not use near water. Keep objects that might damage the device and assure that the placement of this unit is on a stable surface. ... - Page 3 Introduction The SP‐9018 1x8 VGA over CAT5 Transmitter provides the most flexible solution by which the high resolution PC video and high quality stereo audio can be transmitted to different locations over super long distances. Built with 2 VGA and digital/analog audio loop outs, local A/V receivers can provide extra video and audio fan‐outs through typical VGA, SPDIF, and analog audio cables. The high bandwidth VGA can be transmitted up to 65 meters (210 feet) on the local ports. SP‐9018 also extends VGA and stereo audio source up to 330 meters (1000 feet) through cost effective CAT‐5 LAN cables. Accompanying the receivers of CV‐97 VGA CAT5 extender series equipped with the equalization, gain control and de‐skew functions, the video and audio quality can be further assured and make the quality of overall transmission superior than the other VGA splitters on the market. ...
- Page 4 VGA source VGA cable SP-9018 VGA cable CAT5 cable LCD#8 CAT5 cable CV-917D CAT5 cable CAT5 cable up to 330m (1000ft) CAT5 cable CV-917D CV-917D LCD #1 CV-917D LCD #2 LCD #7 CV-917D LCD #3 CV-917D VGA cable CV-917D CV-917D VGA cable VGA cable VGA cable LCD #6 LCD #4 LCD #5 ...
-
Page 5: Package Content
Package Content 1x SP‐9018 unit 1x 5V 4A power adapter 1x User Manual Technical Specifications Input Video Signal: 1.2 Volts p‐p Video Input Bandwidth: 350MHz VGA Connector: D‐Sub 15 Pin S/PDIF: RCA Analog stereo connector: 3.5 mm phone jack Power Supply: 5V 4A Power Consumption: 15 Watts (max) RJ‐45 Connector: 2 indication LEDs RS‐232 Connector: DSub‐9 Dimensions: 123mm x 95mm x 25mm (4.8”x3.7”x1”) (L x W x H) Weight: 400g (14oz) ... -
Page 6: Panel Descriptions
Panel Descriptions SP‐9018 1 2 3 4 5 7 Power jack 5V DC VGA Input: connect a VGA source here Stereo audio Input: connect a audio source here SPDIF audio Input Local video and audio loop out Local video and audio loop out RJ45 Outputs: link to the CV‐97 series receiver Remote Control... -
Page 7: Hardware Installation
Hardware Installation Broadcasts PC A/V signals to 8 remote displays and two local receivers 1. Switch off all devices, including monitors. 2. Connect a VGA and audio source (such as a PC) to the VGA and audio In. 3. Connect to the receivers (such as CV‐917‐RX or CV‐917D‐RX) via RJ45 connectors by a CAT5e cable. 4. Plug in 5V 4A DC power supply. 5. Power on the receiver’s monitors and speakers. 6. Power on the PC source. ... - Page 8 Notice 1. All the transmission distances are measured using Belden CAT‐5e 125MHz Solid cable and ASTRODESIGN Video Signal Generator VG‐859C. The transmission distance is defined as the distance between the SP‐9018 and the remote VGA display. 2. The transmission length is largely affected by the type of LAN cables, the type of A/V sources, and the type of A/V display. The testing result shows solid LAN cables (usually in 300m/1000ft form) can transmit a lot longer signals than stranded LAN cables (patch cord). Shielded STP cables are better suit than unshielded UTP cables. A solid UTP CAT5e cable shows longer transmission length than stranded STP CAT6 cable. For long extension users, solid LAN cables are your only choice. 3. EIA/TIA‐568‐B termination (T568B) for LAN cables is recommended for better performance. 4. To reduce the interference among the unshielded twisted pairs of wires in LAN cable, you can use shielded LAN cables to improve EMI problems, which is worsen in long transmission. 5. Because the quality of the LAN cables has the major effects in how long transmission distance will be made and how good is the received display, the actual transmission length is subject to your LAN cables. For resolution greater than 1080i or 1280x1024, a CAT‐6 cable is recommended. ...
-
Page 9: Limited Warranty
Limited Warranty The SELLER warrants the SP‐9018 1x8 VGA over CAT5 Transmitter to be free from defects in the material and workmanship for 1 year from the date of purchase from the SELLER or an authorized dealer. Should this product fail to be in good working order within 1 year warranty period, The SELLER, at its option, repair or replace the unit, provided that the unit has not been subjected to accident, disaster, abuse or any unauthorized modifications including static discharge and power surges. ...
