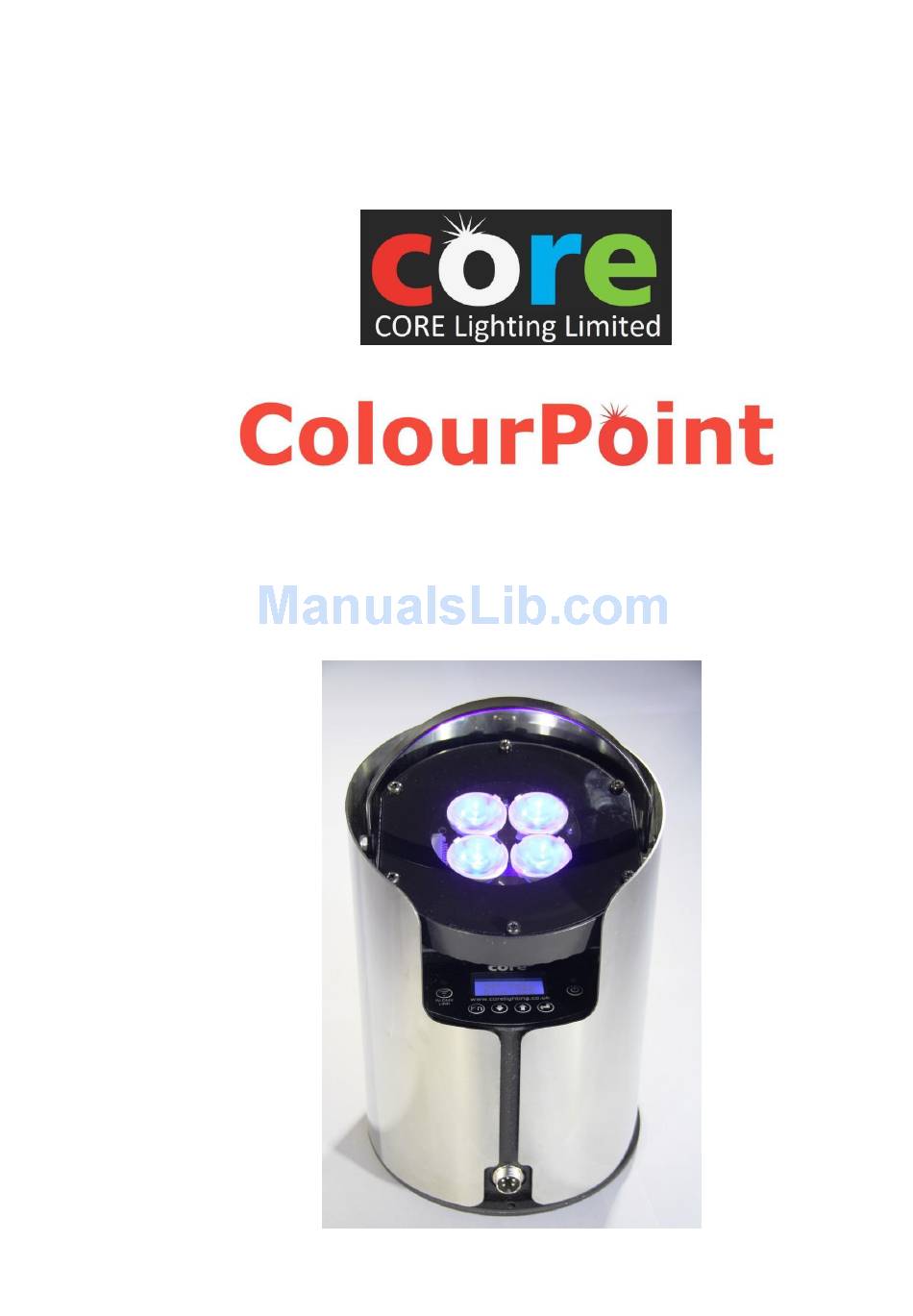

- Page 1 USER MANUAL Battery Wireless Up-light Lithium...
-
Page 3: Table Of Contents
Product Overview ....................4 Features ......................4 Product Contents ..................... 4 Safety ........................ 4 Getting Started ..................... 5 ColourPoint Key Elements ................5 Power ........................ 5 Ventilation and Mounting ................5 Operation ......................6 Power ........................ 6 Charging ......................6 Control Panel .................... - Page 4 Locking ......................15 Warranty ......................16 Compliance Information ..................17 System Compliance ..................17 FCC & Industry Canada Statement for Radio Compliance ......17 W-DMX Transmitter & Receiver ..............17 WEEE & RoHS Statement .................. 18 ColourPoint User Manual V1_2...
-
Page 5: Disclaimer
Disclaimer CORE Lighting Limited believe the information in this manual is accurate and complete however assumes no responsibility for any error or omissions within this document or any other documentation accompanying the product. We reserve the right to revise this document at any time. -
Page 6: Before You Begin
Before You Begin The CORE ColourPoint fixture is a battery-powered wireless up-lighter capable of providing portable and instant architectural and feature lighting anywhere. With high-powered red, green, blue and white LEDs the fixture is capable of producing any colour or shade of white using combinations of those LEDs. Ideal for illuminating buildings in colour, both indoors and outdoors, the fixture is powerful enough to light buildings of 3 or 4 storeys. -
Page 7: Getting Started
‘non-dim‘ or ‘switched’ operation. Ventilation and Mounting Always use the product in a safe position and ensure there is enough room around it for ventilation. Never close the lid during charging; this allows escape of heat. ColourPoint User Manual V1_2... -
Page 8: Operation
Push and hold this power button for >1 second to switch the unit ON or OFF The display will show “CORE Lighting” and software version for a few seconds before starting The display backlight will extinguish after a short time to reduce power use Charging ... -
Page 9: External Power (Optional Accessory)
Connect this to the charging/power port in the front of the unit. The device supplies 24VDC to the ColourPoint which replaces battery power. Battery is disconnected whilst the Power Supply is plugged in so will not be charged or discharged. -
Page 10: Function Modes
Value range 0 to 255. Grn: 000 Set Col. Tip: Mix red & blue for purple/pink Blu:128 Tip: Mix red & green for orange/yellow Set Col. Tip: Mix red & green with White for warm shades of white Wht: 050 ColourPoint User Manual V1_2... -
Page 11: Static Operation
Pale Lavender Lee779 Bastard Pink Lee026 Bright Red Lee138 Pale Green Lee789 Blood Red Lee046 Lee139 Lee793 Dark Magenta Primary Green Vanity Fair Lee058 Lavender Lee147 Apricot Lee795 Magical Magenta Lee068 Sky Blue Lee153 Pale Salmon ColourPoint User Manual V1_2... -
Page 12: Dmx Operation
A compatible W-DMX transmitter attached to a DMX controller is necessary, available separately. This could be a lighting desk, a specific controller, or a CORE Point 15, 20 or 30 Master unit. When in DMX mode the display will show the current active DMX Start Address. - Page 13 W-DMX Pairing and Unpairing ColourPoint units need to be manually paired with the lighting control unit equipped with a W-DMX transmitter. This could be a lighting desk with DMX Output, or a CORE Point15/20/30 Master unit with a W-DMX transmitter inside.
- Page 14 Switch on the ColourPoint. Ensure the ColourPoint is unpaired from any other transmitter (the LINK LED is OFF) – above. Ensure the transmitter is within range and switched on. Press its ‘FUNCTION’ button for more than 1s.
-
Page 15: Additional Settings
DMX mode remains unchanged as the unit remains under external control. Soft Dimmer ColourPoint is equipped with a soft dimmer curve option which ‘smoothes out’ the dimmer curve as well as improving the fade at extremely low levels. keys to select “CHANGE Settings” then... -
Page 16: Keypad Lock
The Soft Dimmer function only affects use in DMX mode. Note the “Soft Dimmer Off” mode is compatible with Point15, Point20 and Point30 dimmer curves to ensure all CORE Lighting fixtures have the same behaviour when used on the same W- DMX system. -
Page 17: Mechanical
Antenna The antenna is a high-gain type similar in performance to the Wireless Solutions W-DMX 2dB standard antenna according to testing. This antenna is now fitted to all CORE POINT units. Locking The unit may be locked to a nearby object by passing a locking wire or padlock through the locking holes in the top or bottom plates. -
Page 18: Warranty
To obtain warranty service, please contact the CORE Lighting authorised dealer from which you purchased this product. If your dealer is not equipped to perform the repair of your CORE Lighting product, it can be returned directly to CORE Lighting, with carriage being paid at your own expense. You will need to ship this product in either its original packaging or packaging affording an equal degree of protection. -
Page 19: Compliance Information
Compliance Information System Compliance CORE Lighting Limited declares that this product conforms to the specifications listed in this manual, following the provisions of the European R&TTE directive 1999/5/EC: Restrictions on Hazardous Substances (RoHS) (2002/95/CE) Electromagnetic Compatibility (2004/108/EC). Safety (EN 60950) Technical requirements for radio equipment. -
Page 20: Weee & Rohs Statement
The consumer must contact their local authority or retailer for information concerning disposal of their products. CORE Lighting provides a take-back facility for batteries used within CORE Lighting products, although the expense for transport remains the liability of the consumer. Please contact CORE Lighting directly if this service is required. ColourPoint User Manual V1_2...
