Apollo Radius Owner's Manual page 48

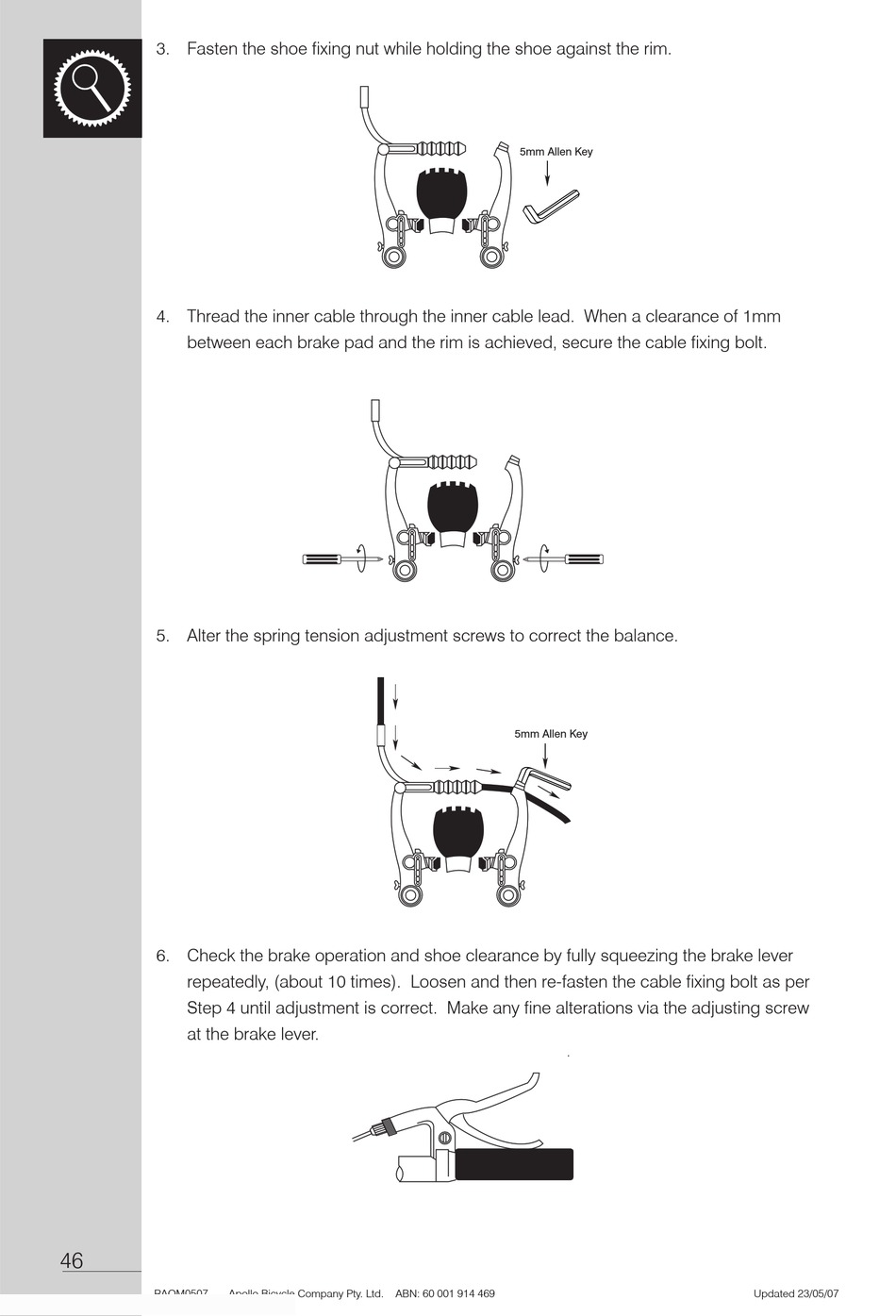

3. Fasten the shoe fixing nut while holding the shoe against the rim.
4. Thread the inner cable through the inner cable lead. When a clearance of 1mm
between each brake pad and the rim is achieved, secure the cable fixing bolt.
5mm Allen Key
5. Alter the spring tension adjustment screws to correct the balance.
5mm Allen Key
5mm Allen Key
6. Check the brake operation and shoe clearance by fully squeezing the brake lever
repeatedly, (about 10 times). Loosen and then re-fasten the cable fixing bolt as per
Step 4 until adjustment is correct. Make any fine alterations via the adjusting screw
at the brake lever.
5mm Allen Key
46
RAOM0507 Apollo Bicycle Company Pty. Ltd.
5mm Allen Key
5mm Allen Key
5mm Allen Key
5mm Allen Key
ABN: 60 001 914 469 Updated 23/05/07
