Summary of Contents for DoorHan SWING-5000
-
Page 1: Installation Manual

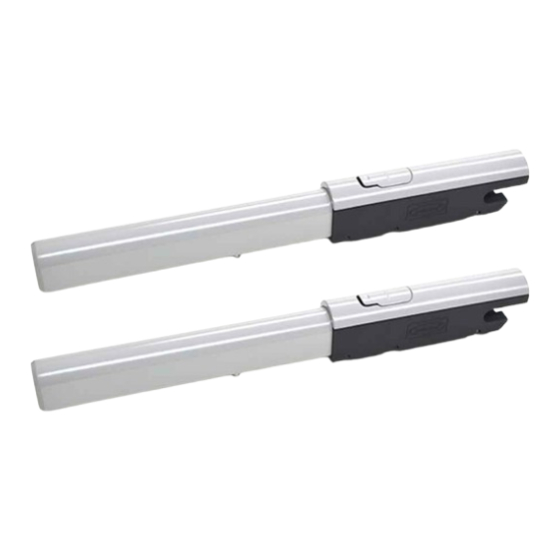

INSTALLATION MANUAL MOTOR FOR SWING LEAF GATES SWING-3000/5000... -
Page 2: Table Of Contents
Contents INSTALLATION MANUAL ........................................ 1 MOTOR FOR SWING LEAF GATES ....................................1 SWING-3000/5000 ..........................................1 Contents ..............................................2 GENERAL SAFETY INSTRUCTIONS FOR INSTALLATION AND MAINTENANCE ....................3 TOOLS AND MATERIALS ......................................... 4 WARNINGS FOR THE INSTALLER....................................6 FUNCTIONS ............................................7 TECHNICAL SPECIFICATIONS ...................................... -
Page 3: General Safety Instructions For Installation And Maintenance
GENERAL SAFETY INSTRUCTIONS FOR INSTALLATION AND MAINTENANCE • For an efficient and safe automated door, correctly observe the installation procedures and instructions for use. • Incorrect installation and use can cause serious damage to persons and property. • Carefully read the whole installation manual before you begin installing. •... -
Page 4: Tools And Materials
IMPORTANT! DANGER OF CRUSHING. If the power cable of operator SWING is damaged, it must be replaced by qualified personnel, using a new cable of the same type. Do not use different power cables. TOOLS AND MATERIALS Tools you will require to install the SWING operator: 1. - Page 5 Material required for installing the SWING operator and the relevant accessories (if present): Cable 2x0,5 mm (emitting photocells, pulse generators for opening movement and stop) Cable 4x0.5 mm (receiver photocells) Cable 2 x 1.5 mm (power) Use cables with an adequate degree of insulation. The electric system must conform to the prescriptions in the chapter entitled “Warnings for the installer”.
-
Page 6: Warnings For The Installer
Standards mentioned above must be observed, in addition to national legal regulations. 9) DOORHAN is not responsible for failure to observe Good Technique in the construction of the closing elements to be motorised, or for any deformation that may occur during use. -
Page 7: Functions
20) The installer shall supply all information concerning manual operation of the system in case of an emergency, and shall hand over to the user the warnings handbook supplied with the product. 21) Do not allow children or adults to stay near the product while it is operating. 22) Keep remote controls or other pulse generators away from children, to prevent the automated system from being activated involuntarily. -
Page 8: Technical Specifications
3000 5000 Protection class For indoor use only (IP54) Operating ambient temperature (°C) -40 / +55 Condenser 10 mkF Drive Chain Swing-5000 Swing-3000 Leaf width, m Leaf weight, kg 2.00 1000 Leaf width, m Leaf weight, kg 2.50 2.00 3.00 2.50... -
Page 9: Dimensions
Dimensions 1. Cover 2. Front bracket 3. Rear joint 4. Rear bracket 5. Release unit 6. Worm gear... -
Page 10: Components Set
COMPONENTS SET № Component Quantity Opener Front bracket Rear joint Rear bracket Fixing set Control board Keyswitch Lamp Photocells Manual... -
Page 11: Assembly
ASSEMBLY Preliminary checks To ensure trouble-free operation, make sure that the gate (whether existing or yet to be installed) has the following specifications: • max. length of each gate leaf in accordance with recomendations • strong and rigid leaf frame •... - Page 12 1.2 - Basic Cable Layout THIS DIAGRAM DETAILS THE BASIC CABLE LAYOUT FOR A PAIR OF MOTORS. THE POWER SUPPLY TO THE CONTROL PANEL SHOULD BE LIVE AND PROTECTED IN ACCORDANCE WITH THE 16TH EDITION ELECTRICAL REGULATIONS. THE SUPPLY SHOULD BE RATED AT A MINIMUM OF 6 AMPS. WHEN INSTALLING WIRES OUTDOORS THE CABLE APPROACH TO ALL DEVICES MUST BE FROM BELOW TO CREATE A “DRIP-LOOP”...
- Page 13 1.3 - Low Voltage Cable Layout ALL CAME ACCESSORIES CAN BE WIRED 0.2m STRANDED CABLE (BUGLAR ALARM TYPE). THE TUNED ANTENNA SHOULD BE WIRED WITH COAXIAL CABLE (RG59).
-
Page 14: Installation
INSTALLATION - To ensure you work in safe conditions, we advise you to install the operator while keeping the door fully closed. - Use all the specified anchorage points. - The fastening systems must be suitable for the type of support and sufficiently tough. - Protect your hands and face adequately while drilling the holes. - Page 15 1.5 - Attaching the Rear Bracket THE REAR BRACKET IS EQUIPPED WITH ADDITIONAL HOLES TO MAKE INSTALLATION OF THE GATE MOTOR EASIER, OR TO CHANGE THE OPENING ANGLE OF THE GATE. THE REAR BRACKET CAN BE LENGHENED OR SHORTENED TO SUIT THE INDIVIDUAL INSTALLATION SITE AND THE POSITION OF THE GATES (WITH RESPECT TO THE PILLARS).
- Page 16 1.6 - Attaching the Front Bracket WITH THE GATE IN THE FULLY CLOSED POSITION WELD THE FRONT BRACKET TO THE FIXING PLATE THEN ATTACH IT TO THE GATE. THE ANCHOR PLATE MUST BE HORIZONTALLY ALIGNED WITH THE REAR BRACKET MOUNTED ON THE PEIR OR POST ENSURING DIMENSION IS OBSERVED.
- Page 17 2.3 - Installing the Motors WITH THE COVERS REMOVED INSTALL THE MOTOR ON THE TWO BRACKETS AND SECURE THE MOTOR WITH THE NUTS AND BOLTS PROVIDED.
- Page 18 2.4 - Adjusting the Open Stop Microswitch MANUALLY RELEASE THE REDUCTION GEAR BY INSERTING THE RELEASE KEY AND TURNING IT 180. MOVE THE GATE TO THE DESIRED OPEN POSITION. LOOSEN THE SCREWS WHICH HOLD THE MICROSWITCH IN POSITION. SLIDE THE MICROSWITCH ON THE SUPPORT PLATE UNTIL THE MICROSWITCH IS TRIPPED. THEN TIGHTEN THE SCREWS TO ANCHOR THE MICROSWITCH IN POSITION.
- Page 19 2.5 - Wiring the Motors ENSURE BOTH MOTORS ARE ADEQUATELY EARTHED. Fitting the Control Panel in the Casing Securely fasten the control panel PCB to the casing with the screws supplied.
-
Page 20: Control Board
CONTROL BOARD Technical specifications Power supply 230 V~ ( +6% -10%) - 50 Hz Absorbed power 10 W Motor max. load 800 W Accessories max. load 0,5 A Electric lock max. load 15 VA Operating ambient -20 °C +55 °C temperature Protection fuses 2 (see fig. - Page 21 Led OP_A TOTALLY OPEN LED Led OP_B LED: LED: OPEN LEAF 1 / CLOSE Led STOP LED LED STOP Led FSWCL LED: LED: CLOSING SAFETY DEVICES Led FSWOP LED: LED: OPENING SAFETY DEVICES DL10 LED: LED: TIME LEARNING SIGNALLING LOW VOLTAGE TERMINAL BOARD CONNECTOR FOR DECODER/MINIDEC/RP RECEIVER 230 VAC POWER SUPPLY TERMINAL...
-
Page 22: Electrical Connections
Electrical connections IMPORTANT: Before attempting any work on the board (connections, maintenance), always cut off power. - Page 23 Terminal board J1 - Accessories OPEN A - "Total Opening" command (N.O.): any pulse generator (push-button, detector, etc.) which, by closing a contact, commands opening and/or closing of both gate leaves. To install several full opening pulse generators, connect the N.O. contacts in parallel OPEN B - "Partial Opening"...
-
Page 24: Programming
PROGRAMMING Leaf l and 2 force By using microswitches SW1, SW2 and SW3, the force (and thus anticrushing safety) of the operator connected to leaf 1 can be programmed. The same operation has to be repeated on the motor connected to leaf 2, by using microswitches SW4, SW5 and SW6. - Page 25 Function logic The automated system's function logic can be selected with microswitches SW7, SW8, SW9 and SW10. By selecting an automatic logic (A, SP), the combination of microswitches enables selection of pause time too (waiting time, in opening position, before automatic re-closing). The available logics - their operation is described in tables 3/a-b-cd-e-f, are as follows: A - SP (Automatic), E - EP - B (Semi-automatic), C (Dead-man).
- Page 26 - SIMPLE LEARNING: Check if the leaves are closed, and then press F push-button for one second: DL10 LED begins flashing and the leaves begin the opening movement. Wait for the leaf to reach the opening stop limit and then supply an OPEN A pulse (with the radio control or with the key controlled push-button) to stop the movement: the leaves stop and the DL10 LED stops flashing.
-
Page 27: Radio Controls Encoding
Radio controls encoding Connection of DHRE-2 reciever External receiver DHRE-2 is meant for receiving radio remote control signal with 433 MHz frequency, decoding it and control signal actuating. Installation 1. Connect your receiver to a power supply 12/24 V, AC/DC by using input terminals +24V and GND. -
Page 28: Start Up
Led off = open contact Check the state of the LEDs as per Table. REPAIRS For repairs, contact DOORHAN’s authorized Repair Centers MAINTENANCE Swing type opener is an environmentally friendly product generally requiring a minimum of maintenance in normal use. -
Page 29: Troubleshooting
TROUBLESHOOTING To avoid being electrocuted, only a professional technician is allowed to touch the wires and components on the main panel. PROBLEM SOLUTION GATE WILL NOT RESPOND WHEN 1. CHECK POWER SUPPLY TO THE CONTROL PANEL. GIVEN A COMMAND 2. CHECK CONTROL PANEL FUSES. 3. -
Page 30: Notes
NOTES...
