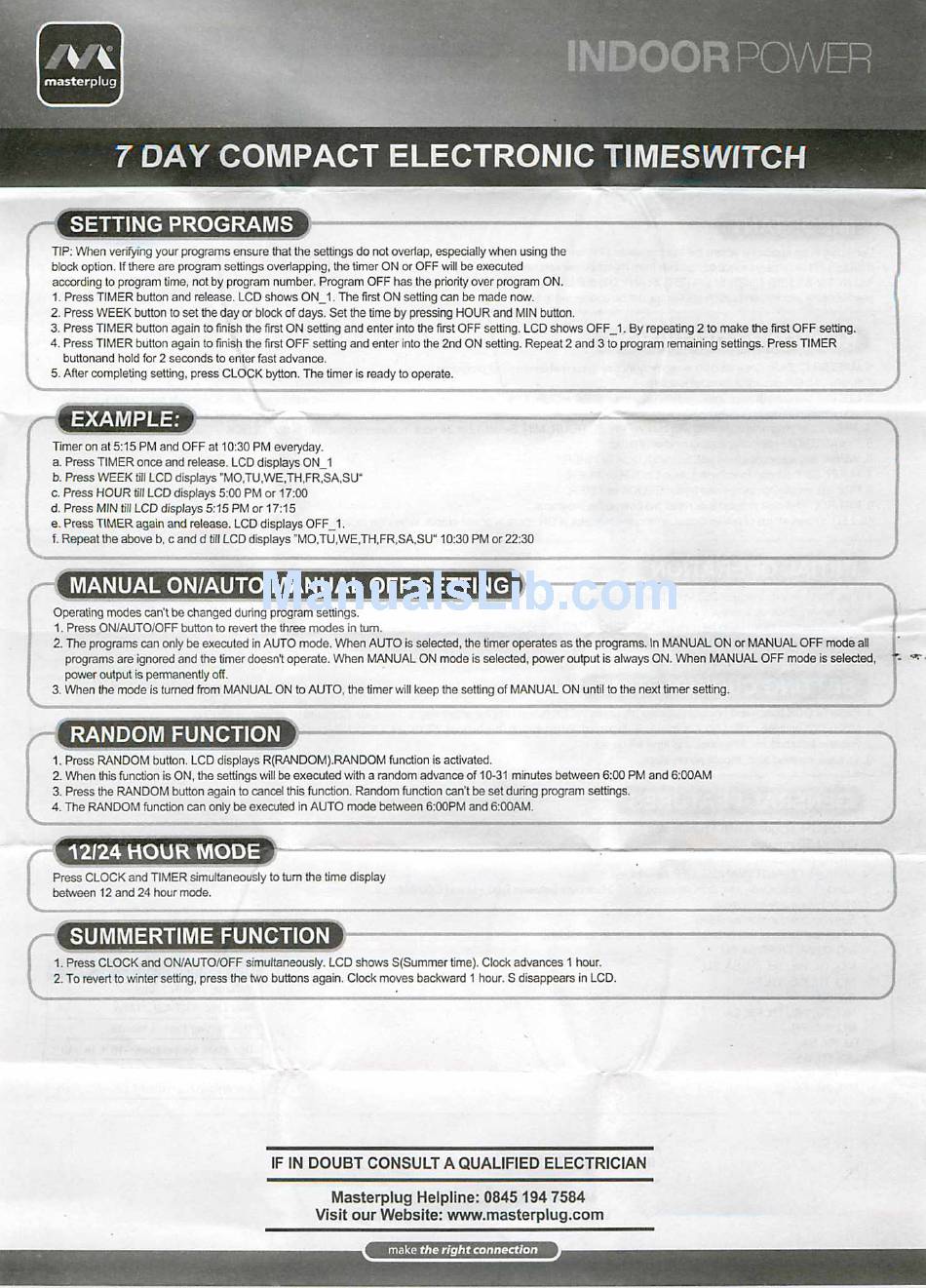

7 DAY COMPACT ELECTRONIC TIMESWITCH
SETTING PROGRAMS
TIP: When verifying your programs ensure that the settings do not overlap, especially when using the
block option. If there are program settings overlapping, the timer ON or OFF will be executed
according to program time, not by program number. Program OFF has the priorityover program ON.
1. Press TIMER button and release. LCD shows ON_1. The first ON setting can be made now.
2. Press WEEK button to set the day or block of days. Set the time by pressing HOUR and MIN button.
3. Press TIMER button again to finish the first ON setting and enter into the first OFF setting. LCD shows OFF_1. By repeating 2 to make the first OFF setting.
4. Press TIMER button again to finish the first OFF setting and enter into the 2nd ON setting. Repeat 2 and 3 to program remaining settings. Press TIMER
buttonand hold for 2 seconds to enter fast advance.
5. After completing setting, press CLOCK bytton. The timer is ready to operate.
EXAMPLE:
Timer on at 5:15 PM and OFF at 10:30 PM everyday.
a. Press TIMERonce and release. LCDdisplays ON_1
b. Press WEEK tillLCD displays "MO,TU.WE,TH,FR,SA,SU"
c. Press HOUR till LCDdisplays 5:00 PM or 17:00
d. Press MIN tillLCD displays 5:15 PM or 17:15
e. Press TIMERagain and release. LCDdisplays OFF_1.
f. Repeat the above b, c and d till LCDdisplays "MO.TU,WE,TH,FR,SA,SU" 10:30 PM or 22:30
v*.
MANUAL ON/AUTO/MANUAL OFF SETTING
1
Operating modes can't be changed during program settings.
1. Press ON/AUTO/OFF button to revert the three modes in turn.
2. The programs can only be executed inAUTO mode. When AUTO is selected, the timer operates as the programs. In MANUAL ON or MANUAL OFF mode all
programs are ignored and the timer doesn't operate. When MANUAL ON mode is selected, power output is always ON. When MANUAL OFF mode is selected,
power output is permanently off.
3. When the mode is turned from MANUAL ON to AUTO, the timer will keep the setting of MANUAL ON until to the next timer setting.
RANDOM FUNCTION
1. Press RANDOM button. LCD displays R(RANDOM).RANDOM function is activated.
2. When this function is ON, the settings willbe executed with a random advance of 10-31 minutes between 6:00 PM and 6:00AM
3. Press the RANDOM button again to cancel this function. Random functioncan't be set during program settings.
4. The RANDOM function can only be executed in AUTO mode between 6:00PM and 6:00AM.
12/24 HOUR MODE
Press CLOCK and TIMER simultaneously to turn the time display
between 12 and 24 hour mode.
SUMMERTIME FUNCTION
1. Press CLOCKand ON/AUTO/OFF simultaneously. LCDshows S(Summer time). Clock advances 1 hour.
2. To revert to winter setting, press the two buttons again. Clock moves backward 1 hour. S disappears in LCD.
IF IN DOUBT CONSULT A QUALIFIED ELECTRICIAN
