Masterplug TMIHDIG Programing Manual

TIMER
digital weekly immersion timer
POWER

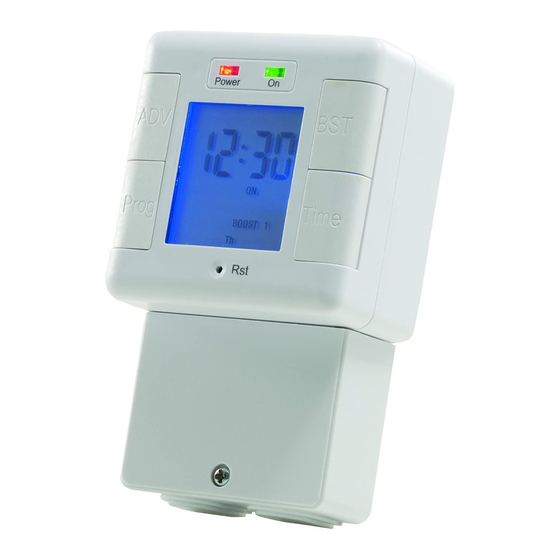

DIGITAL IMMERSION TIMER
FEATURES
• Ideal for immersion heaters, towel rails and lighting
• Battery backup in the event of power failure
• 24 hour, 7 day control
• Two fixing points
16
1
Before programming for the first time, leave the timer to charge
for approximately 14 hours to charge the memory back up
battery.
3
3
Use the ADV button to change between on and off for
automatic summer time adjustment (Automatic Summer
Change Over).
Masterplug Help Line
0300 249 279
Time control for your appliances. Easy
operation, with weekly programs

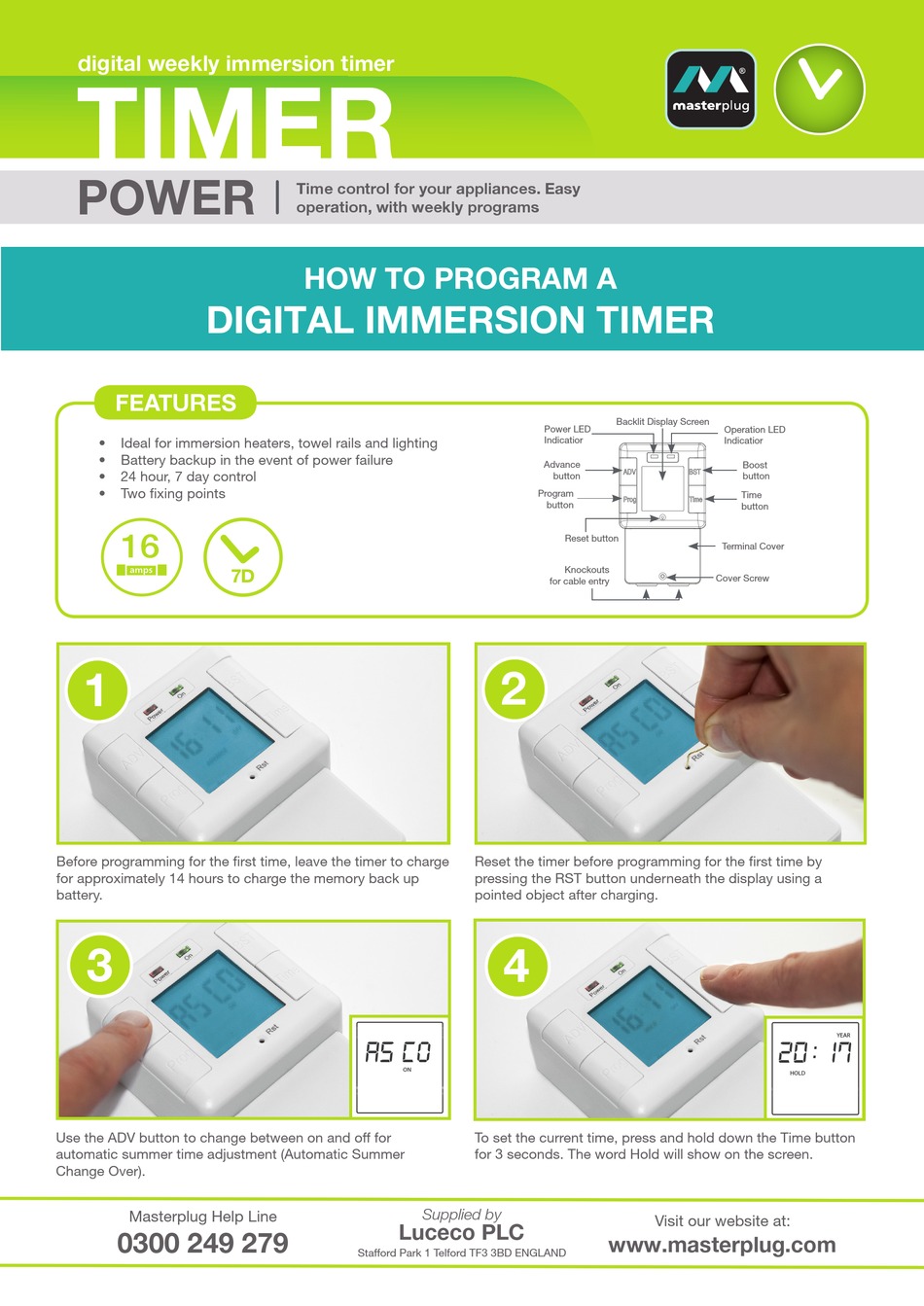

HOW TO PROGRAM A
7D
AS CO
ON
Luceco PLC
Stafford Park 1 Telford TF3 3BD ENGLAND
Power LED
Indicatior
Advance
button
Program
button
Reset button
Knockouts
for cable entry
2
Reset the timer before programming for the first time by
pressing the RST button underneath the display using a
pointed object after charging.
4
To set the current time, press and hold down the Time button
for 3 seconds. The word Hold will show on the screen.
Supplied by
Backlit Display Screen
Operation LED
Indicatior
Boost
button
Time
button
Terminal Cover
Cover Screw
20:17
Visit our website at:
www.masterplug.com
YEAR
HOLD
