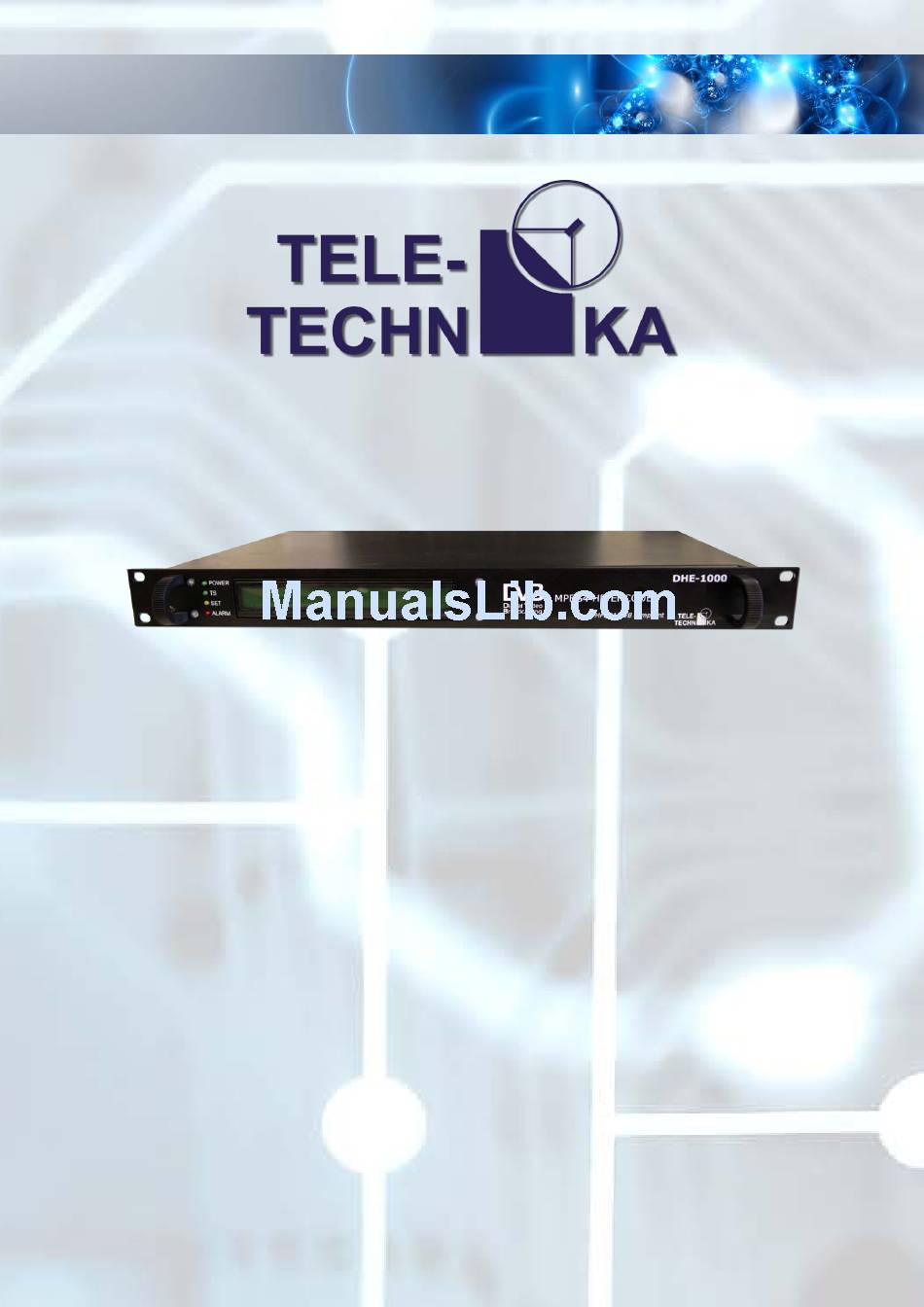

- Page 1 DHE-1000 MPEG4 HD ENCODER MPEG4 system with IP output Technical documentation / Instruction set Teletechnika Ltd. 3rd Edition / 6 November 2012...
- Page 2 General description The MPEG-2 compression that brought a revolutionary advance in the transmission of picture and sound, by today was superseded by the MPEG-4 compression technique. On the customers’ intensive demand Teletechnika developed the new generation of its encoders, the MPEG-4 (H.264) Encoder.
- Page 3 Mechanical parameters, operation The height of the encoder is 1 unit (1U) with 19’’ width and is supplied with standard power cable. In case of rack-mounted usage, the operator should take care of the proper airflow and ventilation! Do not cover the case because it could cause overheating! Hardware structure Front Panel: State indicator LEDs LCD...
- Page 4 page: Multicast MAC Address: The MAC Address of multicast sending in ‘To multicast’ mode in hexadecimal format. Streaming mode: Stopped: No TS output Unicast to IP: TS sending in the local network without gateway Through Gateway: TS sending through a gateway if we use a router to connection To Multicast: TS sending to Multicast destination...
- Page 5 page: Stream ID: The identifier of the TS in hexadecimal format. The possible values of this ID are in full 0x0000 … 0xFFFF range. Repetition T: Repetition time of PSI table. Network Name: The name of the network in max. 20 characters. page: MGMT IP: The IP address of the configuration port.
- Page 6 Rear Panel: 230V AC POWER MGMT PGM UDP/IP SDI IN 230V AC: 230V power connector (cable included) 1AT: 1 Amper ’T’ type fuse, removable POWER: Supply switch MGMT: Management 10/100 Base-T Ethernet Port for configuration PGM: Programmer connector just for service purposes. UDP/IP: 100 Base-T Ethernet port for TS sending in UDP/IP packets.
- Page 7 User manual The equipment could be started by turning the power switch ON, located beside power connector. After the turn on, the POWER LED starts to light in case of faultless function. After the start the LCD informs the user about the main state of the equipment: At first by the boot procedure in the 1 line with the ‘Teletechnika Ltd.
- Page 8 Web surface The general and IP settings of the equipment can be reached via our PC’s browser. Type the IP address into the browser’s heading and press enter. At first an username / password window will appear. In factory settings there are not Username or Password.
- Page 9 Network Settings IP Configuration Obtain IP address automatically: DHCP: automatic IP settings from the used DHCP server Use the following IP configuration: Manual IP network settings: IP Address: IP address of the equipment’s MGMT port Subnet Mask: subnet mask of the equipment’s MGMT port Default Gateway: default MGMT gateway DNS Server:...
- Page 10 Ethernet Configuration (These settings should not be changed!) Auto Negotiate: Check box for automatic negotiation Speed: If Auto Negotiate is not checked give the parameters of the used network 10 or 100 Mbps Duplex: Duplex- or half-duplex mode of the two way communication Prepare for sending the network settings (if it is done it is marked with ‘DONE!’...
- Page 11 reset operation is not possible without knowing the password. Advanced ARP Cache Timeout (secs): The timeout of the address resolution in seconds. TCP Keepalive (secs): Alive hold time of the TCP connection in seconds. Monitor Mode @ Bootup: Internal service mode enable / disable. CPU Performance Mode: The internal CPU Performance mode, you should be high.
- Page 12 Measure / Main parameters: Clicking this menu item in the web browser connects to the Encoder’s 10001 control TCP port. The process of connecting a disconnected puzzle icon and the 'Connecting ...' label is marked: If the connection is successfully a connected puzzle and a ’Connected’ label is displayed: If you lose the connection with the device a disconnected puzzle again a ‘Disconnected’...
- Page 13 After a successful connection to the content page, and configured the device status parameters are displayed: The interface works: data query page when you open always happens, and it can be set to double click on the desired field and press Enter, and rewrite the content fix it, you can return with Escape.
- Page 14 Status field: This section shows the measured parameters. The left side shows the name of the parameter. On the right side is the parameter. System Status: ‘OK’: Encoder module is works perfectly, ‘ERR’: Problem with the encoder unit. Video Status: ‘OK’: SDI video signal is connected, ‘Not Connected’: SDI video signal is disconnected.
- Page 15 Network ID: The identifier of the network in hexadecimal format. The possible values of this ID are in full 0x0000 … 0xFFFF range. Repetition Time: Repetition time of PSI table. Network Name: The name of the network in max. 20 characters. Streaming mode: Stopped: No TS output...
