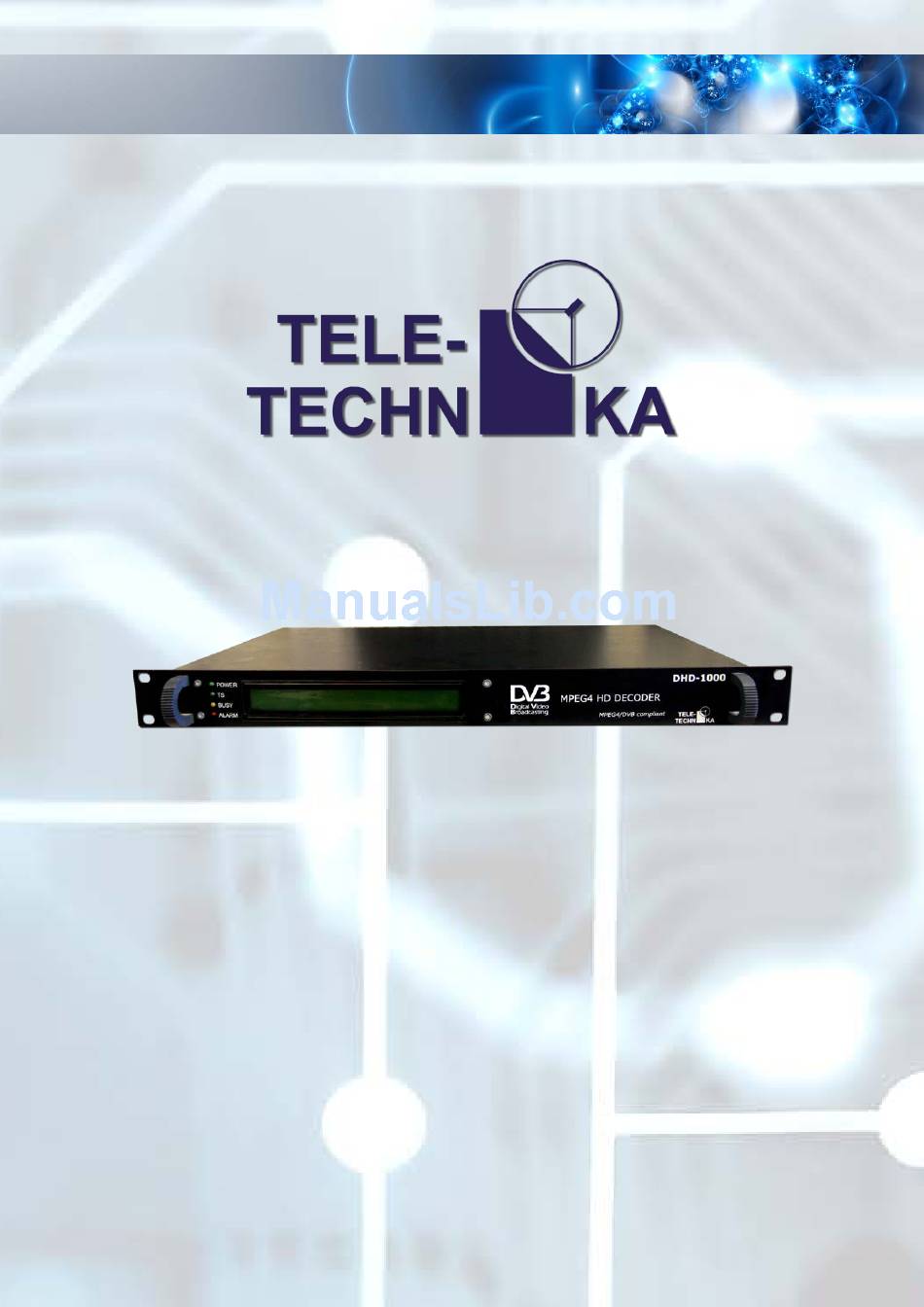

- Page 1 DHD-1000 MPEG4 HD DECODER MPEG4 system with IP input Technical documentation / User guide Teletechnika Ltd. 5th Edition / 6th November 2012...
- Page 2 General description The MPEG-2 compression that brought a revolutionary advance in the transmission of picture and sound, by today was superseded by the MPEG-4 compression technique. On the customers’ intensive demand Teletechnika developed the new generation of its decoders, the MPEG4 (H.264) HD DECODER.
- Page 3 Mechanical parameters, operation The height of the encoder is 1 unit (1U) with 19’’ width and is supplied with standard power cable. In case of rack-mounted usage, the operator should take care of the proper airflow and ventilation! Do not cover the case because it could cause overheating! Hardware structure Front Panel: State indicator LEDs LCD...
- Page 4 page: Streaming mode: No Rx (Idle): No TS receiving, waiting mode Unicast UDP TS Rx: TS receiving in unicast mode Multicast UDP TS Rx: TS receiving in multicast mode Nr of TS packets: Packet size (TS UDP packet frame number): 1 ... 7 in parentheses is the size in bytes page: MGMT IP:...
- Page 5 Rear Panel 230V AC POWER MGMT PGM UDP/IP CVBS OUT SDI OUT L OUT R OUT 230V AC: 230V power connector (cable included) 1AT: 1 Amper ’T’ type fuse, removable POWER: Supply switch MGMT: Management 10/100 Base-T Ethernet Port for configuration PGM: Programmer connector just for service purposes UDP/IP:...
- Page 6 ‘, ‘. The BUSY LED indicates the boot process. ‘ DHD-1000 MPEG4 HD DECODER This takes 2-3 seconds. Then, the previously described information displayed on the display. Settings The settings of the equipment only could be done via the MGMT connector. If there is only a cable between the equipment end the computer it must be a crosslink type, otherwise e.g.
- Page 7 Web surface The general and IP settings of the equipment can be reached via our PC’s browser. Type the IP address into the browser’s heading and press enter. The device supports the Firefox and the Internet Explorer browsers. One device at a time only one connection can connect to other open browser connection is possible only if the channel is released.
- Page 8 Network Settings IP Configuration Obtain IP address automatically: DHCP: automatic IP settings from the used DHCP server Use the following IP configuration: Manual IP network settings: IP Address: IP address of the equipment’s MGMT port Subnet Mask: subnet mask of the equipment’s MGMT port Default Gateway: default MGMT gateway DNS Server:...
- Page 9 Ethernet Configuration (These settings should not be changed!) Auto Negotiate: Checkbox for automatic negotiation Speed: If Auto Negotiate is not checked give the parameters of the used network 10 or 100 Mbps Duplex: Duplex- or half-duplex mode of the two way communication Prepare for sending the network settings (if it is done it is marked with ‘DONE!’...
- Page 10 We couldn’t give user name therefore by the login always keep it the user name field empty. The password can be up to 4 digits. Note the password you specified, because without a password reset operation is not possible without knowing the password. Advanced ARP Cache Timeout (secs): The timeout of the address resolution in seconds.
- Page 11 Measure / Main parameters: Clicking this menu item in the web browser connects to the Encoder’s 10001 control TCP port. The process of connecting a disconnected puzzle icon and the 'Connecting ...' label is marked: If the connection is successfully a connected puzzle and a ’Connected’ label is displayed: If you lose the connection with the device a disconnected puzzle again a ‘Disconnected’...
- Page 12 After a successful connection to the content page, and configured the device status parameters are displayed: The interface works: data query page when you open always happens, and it can be set to double click on the desired field and press Enter, and rewrite the content fix it, you can return with Escape.
- Page 13 Settings field: In this section can be set the parameters. The left side shows the name of the parameter. On the right side can be change any parameter. In tooltip we can see the additional information about the unit and the adjustable rate. Own IP: The IP address of the UDP/IP marked port Own MAC:...
