Thank you for selecting the MobilePal™ Wireless Power Bank. Before operating, please
read this manual carefully and follow the instructions to operate properly.
1. General Information
This device is a carefully designed wireless charger and portable power bank. It
provides you convenience of wireless charging at home or in your office. It also serves as
portable backup power on the go for your smartphones, tablets, digital cameras, MP3/MP4
players, and other electronic devices.
2. Feature Overview
1. Integrated Qi wireless charging transmitter for wirelessly charging all devices
conforming to the Qi charging standard. It can also be used as a wireless charging pad or
charging station in the pass-through mode.
2. Integrated high-capacity, rechargeable lithium-polymer battery at 3.7V, 8000mAh or
10000mAh capacity (as labeled on the device).
3. Simultaneous wireless charging via Qi transmitter and wired charging via USB cables.
4. Intelligent charging to prevent overcharging.

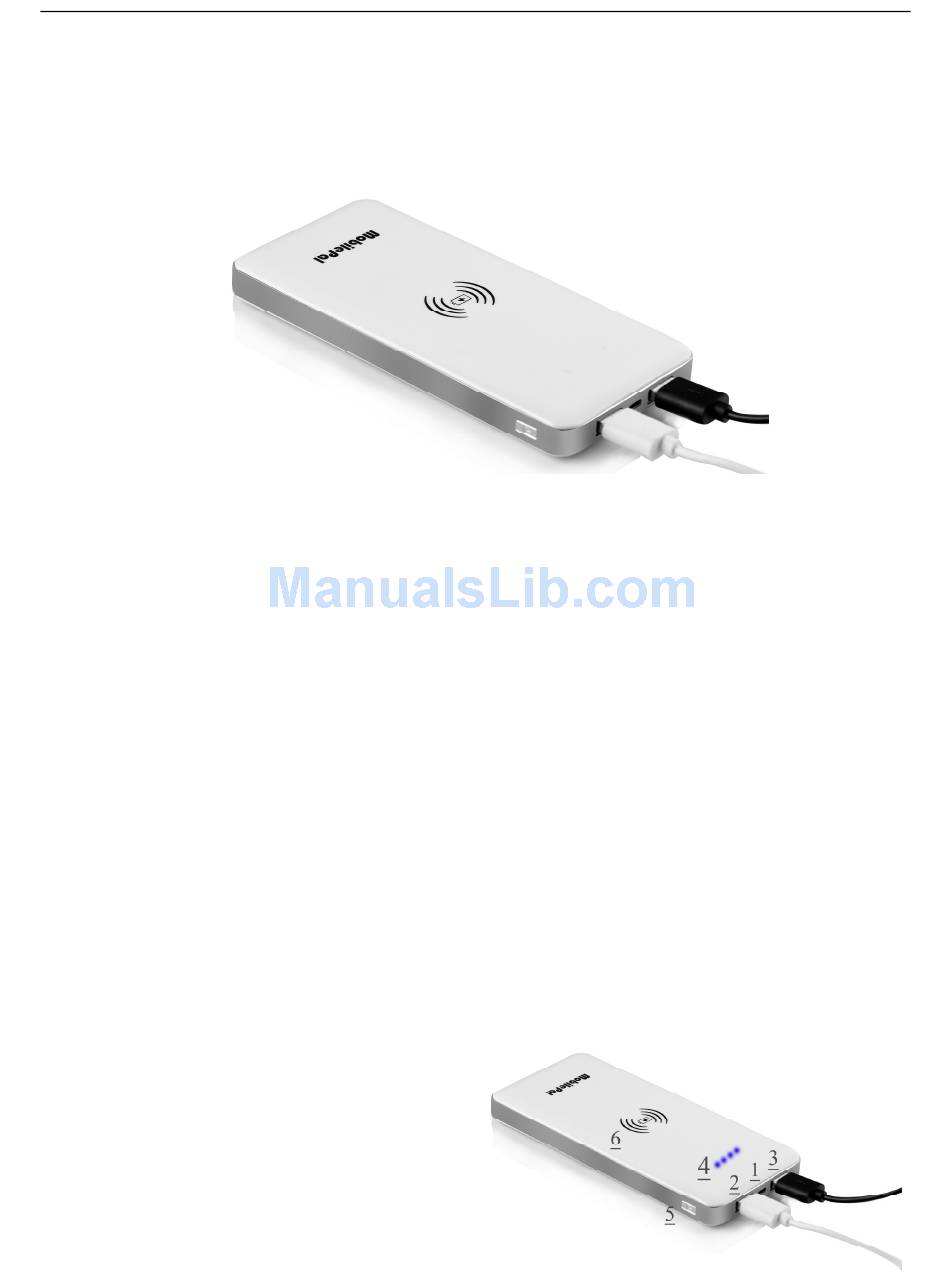

3. I/O Ports, Buttons and Indicators
1. Micro-USB Input: 5V DC, 1A
2. USB1 Output: 5V DC, 1A
3. USB2 Output: 5V DC, 2.1A
4. LED indicators (blue and red)
5. Power button
6. Center of wireless transmitter
MobilePal™ 8000mAh and 10000mAh
Wireless Power Bank User Manual
1
Advertisement
Table of Contents
Related Manuals for MobilePal MobilePal 8000mAh
Summary of Contents for MobilePal MobilePal 8000mAh
- Page 1 MobilePal™ 8000mAh and 10000mAh Wireless Power Bank User Manual Thank you for selecting the MobilePal™ Wireless Power Bank. Before operating, please read this manual carefully and follow the instructions to operate properly. 1. General Information This device is a carefully designed wireless charger and portable power bank. It provides you convenience of wireless charging at home or in your office.
- Page 2 4. Safety Information and Precautions 1. Keep your device dry. Humidity and liquid may damage your device. Store and charge your device in cool and ventilated place. Do not touch the device if your hands or feet are wet. 2. Never dispose the battery in water to avoid causing internal short-circuit, over-heating, smoking, fire, deformation, or even explosion of the battery.
- Page 3 and the blue LEDs will be on. In the standby mode, the device will turn off automatically within 5 minutes when not charging. • To turn on the wireless transmitter, press and hold the power button for three seconds until the red LED is on. When the red LED is on, press and hold the power button for three seconds to turn off the wireless transmitter, and the red LED will be off.
- Page 4 larger the deviation, the lower the charging efficiency becomes. 4. If the transmitting terminal detects that the wireless charging current is too high, it will automatically disable the output ports to prevent damage. Remove and then reposition the wireless receiver on the charging pad to restart charging. 5.
- Page 5 Recharging power-bank (wired or wireless charging disabled) • Pass-through charging • 12. Dimension (Length * Width * Height) Device: 6in x 2.87in x 0.49in (153mm x 73mm x 12.5 mm) • Packaging 6.5in x 3.94in x 1in (180mm x 144mm x 25 mm) •...
