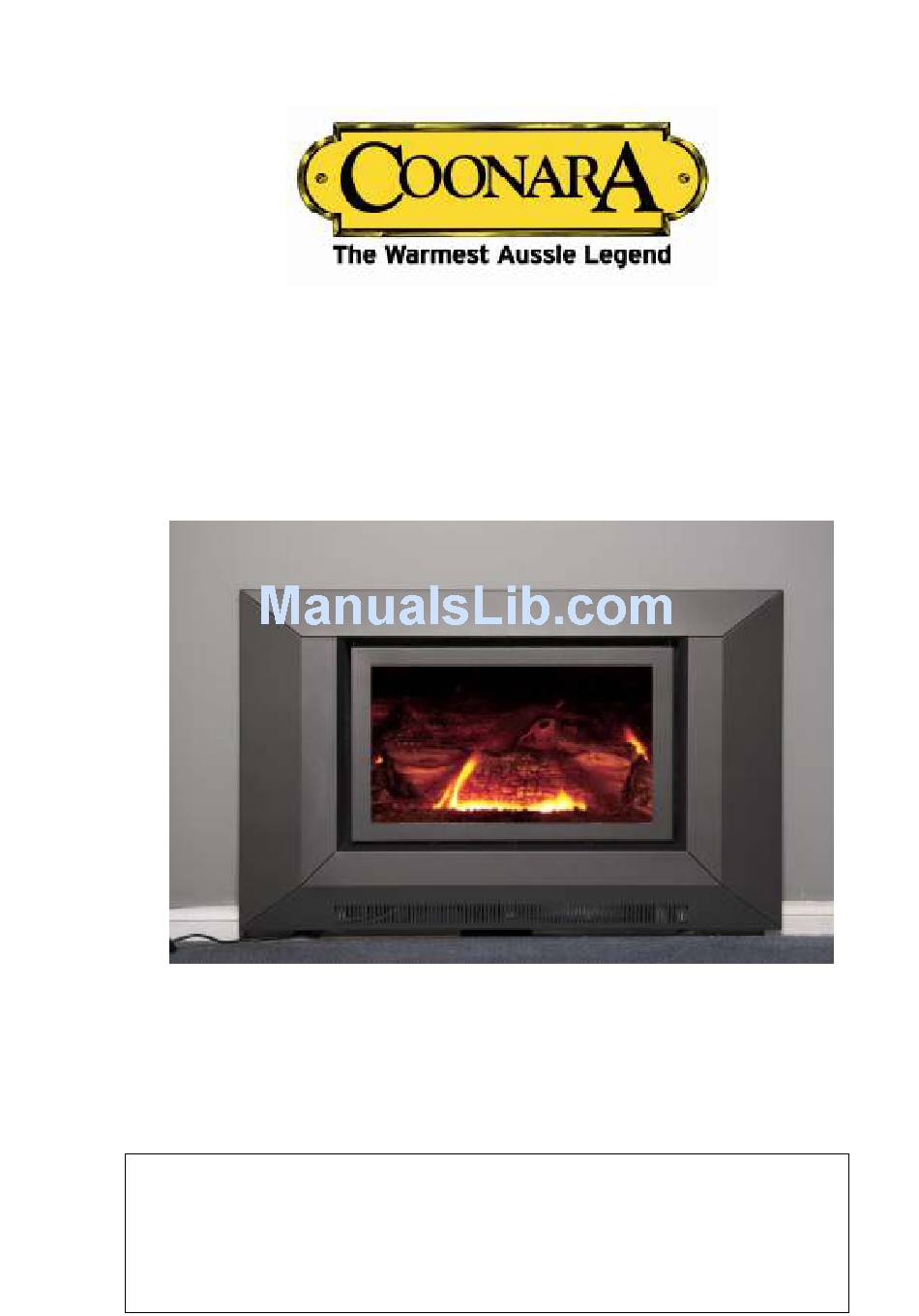

The Genuine
A Great Way To Keep Warm

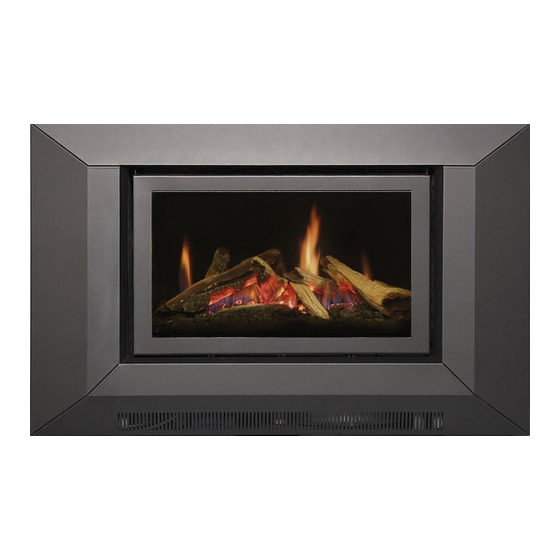

Coonara "Grange Classic"
One of the world's most powerful efficient gas
log space heaters
CUSTOMER OPERATING INFORMATION
&
INSTALLATION INSTRUCTIONS
Serial Number of Heater
Model:
: ____________
________________
Grange Classic Gas Heaters
ARE MANUFACTURED BY
SHAMIC SHEETMETAL
SHAMIC SHEETMETAL
SHAMIC SHEETMETAL
SHAMIC SHEETMETAL
(AUST.) PTY. LTD.
PO BOX 8, KILSYTH, VIC. 3137
PH: 03 9737 5300 FAX: 03 9761 6455
Revised: 25/06/2008
www.shamicheating.com.au
Printed: 3/12/2009
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Coonara Grange Classic
Summary of Contents for Coonara Grange Classic
-
Page 1: Installation Instructions
CUSTOMER OPERATING INFORMATION & INSTALLATION INSTRUCTIONS Serial Number of Heater Model: : ____________ ________________ Grange Classic Gas Heaters ARE MANUFACTURED BY SHAMIC SHEETMETAL SHAMIC SHEETMETAL SHAMIC SHEETMETAL SHAMIC SHEETMETAL (AUST.) PTY. LTD. PO BOX 8, KILSYTH, VIC. 3137... - Page 2 WARNING THE FOLLOWING INSTRUCTIONS MUST BE CARRIED OUT OR WARRANTY BECOMES VOID. Heater must be installed by an authorized person. You must obtain a license number from the installer. Heater must be placed on a flat level surface. Inbuilt models must be placed on AC sheeting, to prevent unit from rattling.
-
Page 3: Table Of Contents
CONTENTS PRODUCT FEATURES…………………………………………………4 SAFETY PRECAUTIONS………………………………………………5 CUSTOMER OPERATING INSTRUCTIONS………………………...6 SAFETY FEATURES……………………………………………………7 INSTALLATION INSTRUCTIONS……………………………………8-16 DIMENSIONS……………………….…………………………………...17 PRESSURE ADJUSTMENTS……………..……….…………………...18 WIRING DIAGRAM…………………………………………………….19 LOG SET………………………………………………………………….20 CARE OF APPLIANCE & WARRANTY……………………………...21 TROUBLE SHOOTING GUIDE. ……………………………………….22 WARRANTY FORM & CONTACT DETAILS…………………….…23 PLEASE STORE THIS MANUAL IN A SAFE PLACE FOR FUTURE REFERENCE Revised: 03/12/2009 3/12/2009... -
Page 4: Product Features
100 Pa Cut out Pressure 90 Pa Electrical Connection Standard Flex. 2 Mt. 3 Pin Plug Coonara “Grange Classic” Inbuilt Gas Log Space Heaters Zero Clearance to Combustible Materials 5.1 Star Energy Rate Manual controls. Optional thermostat Electronic ignition. Modulated heat settings External combustion air intake - prevents de-oxygenation of room air. -
Page 5: Safety Precautions
SAFETY PRECAUTIONS DO NOT –OPERATE THIS APPLIANCE BEFORE READING THIS INSTUCTION MANUAL. DO NOT – PLACE ARTICLES ON OR AGAINST THIS APPLIANCE. DO NOT – STORE CHEMICALS, FLAMMABLE MATERIALS OR SPRAY AEROSOLS NEAR THIS APPLIANCE DO NOT – OPERATE WITH PANELS, COVERS OR GUARDS REMOVED FROM THIS APPLIANCE. -
Page 6: Customer Operating Instructions
Customer Operating Instructions The Coonara Grange Classic Gas log space Heater has been designed for a simple and efficient operation to provide you with a higher heat output than most other heaters in the market. The optional heat transfer kit means that your heater will provide you with a fully controlled modulated supply of heat, from a pleasant and steady warmth to the strongest heat output, to reach almost any corner of your home. -
Page 7: Safety Features
NOTE: In the event the electricity supply cord is damaged, it must be replaced with the original Coonara part obtainable from your authorized dealer. SAFETY FEATURES: Automatic Pre-purge: Before heater ignition this operation is done to evacuate any remains of gas or flue products from inside the firebox that could be the cause of a mishap. -
Page 8: Installation Instructions
INSTALLATION OPTIONS: * ONLY TO BE CARRIED OUT BY AN AUTHORIZED PERSON! The Grange Classic Inbuilt Heater is a zero clearance appliance and can be optionally installed in a false fireplace or wall cavity made of combustible materials such as wood or chipboard. Coonara provide the heater with their own flue kit, of flexible pipes of 60mm and 50mm diameter for the inlet and exhaust. - Page 9 ALL INBUILT MODELS ARE TO BE PLACED ON A FLAT LEVEL SURFACE TO PREVENT RATTLES VERTICAL FLUE INSTALLATION INBUILT MODEL 1. Connect flue terminal to both flexible flue pipes. 2. Feed both flexible pipes down the chimney cavity. 3. Fix flue terminal securely to top of chimney and seal to prevent water entry. Seal with Hi temperature waterproof silicon sealant prior to cementing to chimney top, pop rivet circular flange to the collector box.
- Page 10 Grange Inbuilt Flue Installation Collector box Chimney top plate COLLECTOR BOX NOTE: AIR INTAKE RESTRICTOR PLATE MUST BE REMOVED FOR FLUE LENGTHS OF MORE THAN 1 METER. Rear vent Flue Installation 1. Determine the exact location for the heater. 2. Mark the exact location for the wall penetration a.
- Page 11 NSTALLATION - GAS PRESSURE TO GAS VALVE NAT 1.1 KPA / LPG 2.75 KPA Only to be carried out by an authorised person! 1. Unpack flue kit and log set. (Packed inside with heater). 2. Carefully remove the cardboard carton surrounding the heater, then remove the heater from the pallet.
- Page 12 5. Feed the gas line through the hole located at the lower right hand side of the outer weather cover (provided) and the flue pipes through the pre-punched hole for the flue pipes on the upper left hand side. 6. Fit the outer weather cover over the exposed heater body and screw to the outer wall. Also use a silicon sealant.
- Page 13 Revised: 03/12/2009 3/12/2009...
- Page 14 Revised: 03/12/2009 3/12/2009...
- Page 15 The Offset Flue Box is used only when wall flue penetration has less than 300mm high from outside floor...
-
Page 16: Dimensions
DIMENSIONS OF APPLIANCE INBUILT MODEL Revised: 03/12/2009 3/12/2009... -
Page 17: Pressure Adjustments
PRESSURE ADJUSTMENT Your Coonara Grange Classic Heater has been fully factory preset and adjusted and does not need to be re-adjusted during installation. But there will be some situations where some service has to be done and gas pressure may need to be re-adjusted as per the following instructions:... -
Page 18: Wiring Diagram
WIRING DIAGRAM PRESSURE SWITCH Revised: 03/12/2009 3/12/2009... - Page 19 COONARA GRANGE CLASSIC LOG SET LOCATION DETAILS REAR LOG CROSS LOG CORNER CORNER FRONT LEFT TWIG FRONT LOG FRONT RIGHT TWIG Revised: 03/12/2009 3/12/2009...
- Page 20 (1) year from date of purchase, excluding door glass and decorative logs. 3) If this Coonara heater is found to be defective in material or workmanship Shamic will repair or replace such defects in the Coonara heater at Shamic’s option in accordance with Coonara’s warranty policy during the period on this warranty.
- Page 21 9) Your authorised dealer must be notified of any defect in the heater, for investigation of the claim. In the event where repairs are necessary and claims under warranty are accepted, the purchaser shall be required to return to the authorised Coonara dealer the heater or any removable defect part for repairs.
-
Page 22: Trouble Shooting Guide
ROUBLE SHOOTING UIDE PROBLEM POSSIBLE CAUSE REMEDY Appliance fails to No gas supply or pressure insufficient. Ensure gas supply connected, purged, and pressure ignite. appropriate. Ensure unit plugged in and switch is on, check No electrical supply. supply fuse. Check supply. Active, neutral, & earth must be correctly orientated and connected. - Page 23 NAME _______________________________________________________________ ADDRESS____________________________________________________________ CITY/STATE/POSTCODE_______________________________________________ PURCHASED AT (Dealer name & address) ______________________________________________________________________ DATE PURCHASED____________________ MODEL ______________________ SERIAL NO ______________ WHERE DID YOU HEAR ABOUT GRANGE CLASSIC GAS HEATERS? RADIO, TELEVISION, NEWSPAPER, DEALER, WEBSITE, OTHER – PLEASE PROVIDE DETAILS: ____________________________________________________________________________ Revised: 03/12/2009 3/12/2009...
