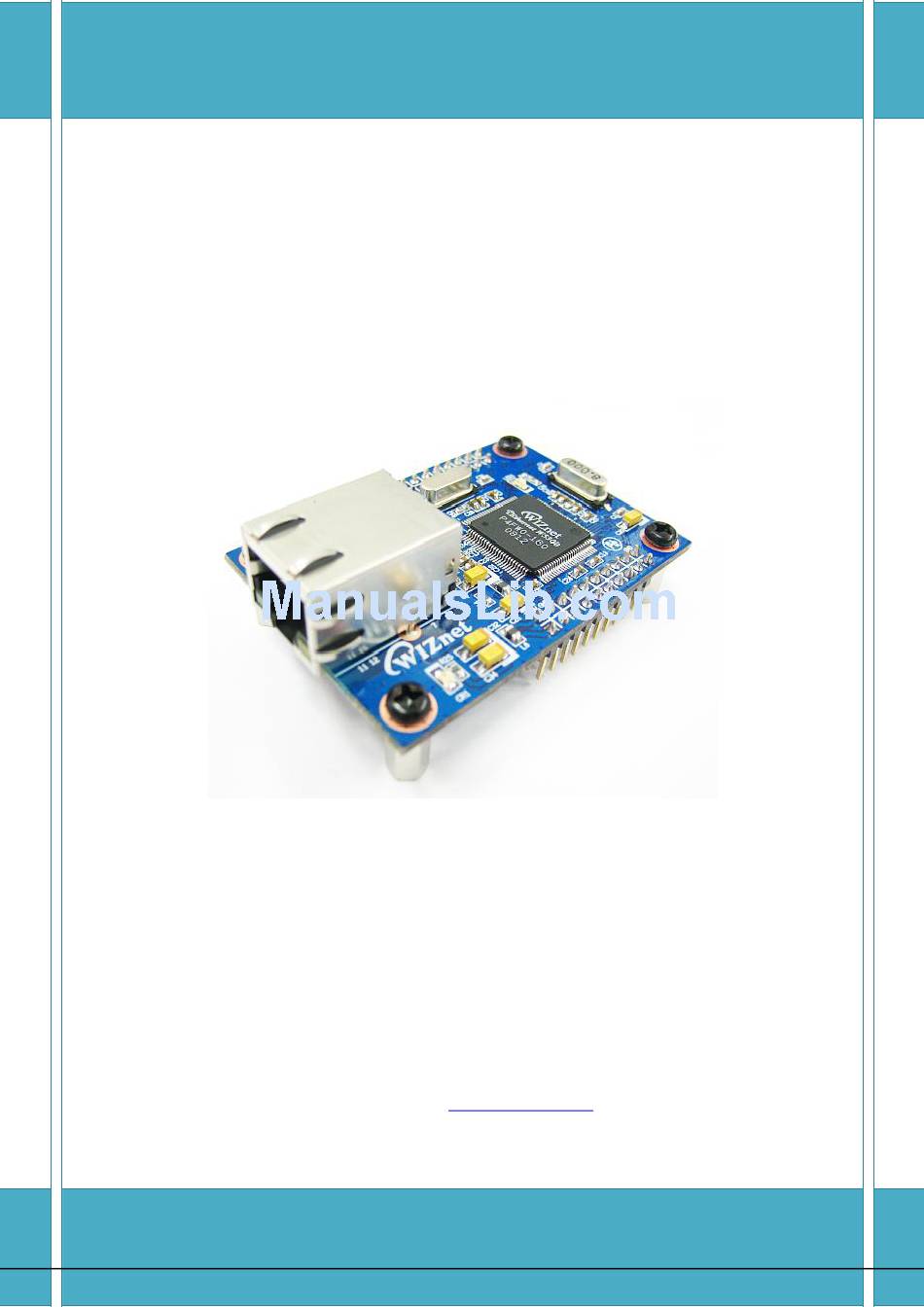

- Page 1 [텍스트 입력] WIZ-Embedded WebServer User’s Manual (Ver. 1.1.0) © 2007 WIZnet Co., Ltd. All Rights Reserved. For more information, visit our website at www.wiznet.co.kr...
- Page 2 The software CD is not provide anymore. For more software contents, please visit our website. (www.wiznet.co.kr) Ver. 1.1.0 2013. 06. Modified the table of contents in CH 1.3. Software CD is removed in the table of contents. © Copyright 2007 WIZnet Co., Ltd. All rights reserved...
- Page 3 WIZ-Embedded WebServer User’s Manual WIZnet’s Online Technical Support If you have something to ask about WIZnet Products, Write down your question on Q&A Board in WIZnet website ( ). WIZnet Engineer will give an www.wiznet.co.kr answer as soon as possible.
-
Page 4: Table Of Contents
Parameters ................................31 6.2. Specification ................................31 6.3. Board Dimensions and Pin Assignment ...................... 31 6.3.1. Pin Assignment .............................. 31 6.3.2. Size ..................................32 6.3.3. Connector Specification ..........................33 Warranty ............................. 35 © Copyright 2007 WIZnet Co., Ltd. All rights reserved... -
Page 5: Table 6. Wiz-Embedded Webserver Main Source ................................................................................. 27
WIZ-Embedded WebServer User’s Manual Tables Table 1. WIZ-Embedded WebServer Specification ..................8 Table 2. Contents of WIZ-Embedded WebServer ..................9 Table 3. WIZ-Embedded WebServer PIN MAP ..................12 Table 4. Expansion Connector .......................... 15 Table 5. WIZ-Embedded WebServer Testing Environment ..............22 Table 6. - Page 6 WIZ-Embedded WebServer User’s Manual Figures Figure 1. Block Diagram ............................9 Figure 2. WIZ-Embedded WebServer Base Board Layout ..............10 Figure 3. AVR JTAG Connector ........................11 Figure 4. AVR ISP Connector ..........................11 Figure 5. WIZ-Embedded WebServer PIN MAP ..................11 Figure 6.
-
Page 7: Introduction
WIZ-Embedded WebServer User’s Manual 1. Introduction WIZ-Embedded WebServer provides the tiny web server operating on low-speed MCU. It controls digital output or monitors digital and analogue input through web browser. The webpage is stored in the serial flash memory of the board, and can be updated through network. -
Page 8: Specification
Under 180mA Temperature 0C ~ 80C (Operation), -40C ~ 85C (Storage) Humidity 10 ~ 90% Table 1. WIZ-Embedded WebServer Specification 1.3. Contents (WIZ-Embedded WebServer) WIZ-Embedded WebServer Module WIZ-Embedded WebServer Base Board © Copyright 2007 WIZnet Co., Ltd. All rights reserved... -
Page 9: Block Diagram
2. Block Diagram Figure 1. Block Diagram The main MCU of WIZ-Embedded WebServer is 8 bit AVR (ATmega128). The Ethernet is processed by W5300, the hardwired TCP/IP chip. When connected to the IP address of the board at the web browser, the webpage in the serial flash memory is transmitted and displayed. -
Page 10: Wiz-Embedded Webserver Base Board
& output, analogue input and network configuration on the web. 3. WIZ-Embedded WebServer Base Board WIZ-Embedded WebServer module can be tested by using base board. Figure 2. WIZ-Embedded WebServer Base Board Layout © Copyright 2007 WIZnet Co., Ltd. All rights reserved... -
Page 11: Top W I Z
③ ATmega128 ISP Connector Figure 4. AVR ISP Connector ④ WIZ-Embedded WebServer Module Connector The connector has below pin map. Figure 5. WIZ-Embedded WebServer PIN MAP 3.3V 3.3V ADC0/PF0 ADC1/PF1 ADC2/PF2 ADC3/PF3 © Copyright 2007 WIZnet Co., Ltd. All rights reserved... -
Page 12: Table 3. Wiz-Embedded Webserver Pin Map
4 LEDs are installed in the WebServer Base Board, and connected to PORTB.4~7. Figure 6. WIZ-Embedded WebServer LED ⑧ System Reset Switch ⑨ Switch Switch is connected to PORTE.5~6. It is the slide switch. © Copyright 2007 WIZnet Co., Ltd. All rights reserved... -
Page 13: Figure 7. Wiz-Embedded Webserver Switch
⑪ Variable Resistor In order to test the analog data easily, you can use variable resistor and get the input value of analog variable. Variable resistor is connected to ADC0 channel. © Copyright 2007 WIZnet Co., Ltd. All rights reserved... -
Page 14: Figure 9. Wiz-Embedded Webserver Vr
It is the connector (J12) to extend to GPIO and the function pins of ATmega128 FUNCTION FUNCTION SCL/INT0/PD0 ADC0/PF0 SDA/INT0/PD1 ADC1/PF1 RXD1/INT2/PD2 ADC2/PF2 TXD1/INT3/PD3 ADC3/PF3 ICP1/PD4 ADC4/PF4 XCK1/PD5 ADC5/PF5 T1/PD6 ADC6/PF6 T2/PD7 ADC7/PF7 SS/PB0 AREF © Copyright 2007 WIZnet Co., Ltd. All rights reserved... -
Page 15: Table 4. Expansion Connector
WIZ-Embedded WebServer User’s Manual SCK/PB1 MOSI/PB2 MISO/PB3 /RESET PE1/TXD0 PE0/RXD0 Table 4. Expansion Connector © Copyright 2007 WIZnet Co., Ltd. All rights reserved... -
Page 16: Getting Started
Figure 11. Configuration Tool ⓐ Version : It displays Firmware version. ⓑ Board List : If “Search” button is clicked, all MAC address of WIZ-Embedded WebServer are displayed in the Board List. ⓒ Local IP/Port : IP Address of WIZ-Embedded WebServer ⓓ... -
Page 17: Firmware Upload
“Board List”. ⓘ Setting This function is used for changing the configuration values of WIZ-Embedded WebServer. After changing any configuration value, “Setting” button should be clicked for applying the value. With this, the values can be saved in the EEPROM and maintained even after shutting down the power of module. -
Page 18: Figure 12. Board Search Window
By using PING test, it is possible to check if the value is appropriate for network communication. ④ As below dialog box is shown, select the Binary file and click ‘OPEN’ button. © Copyright 2007 WIZnet Co., Ltd. All rights reserved... -
Page 19: Webpage Upload
WIZ-Embedded WebServer User’s Manual Figure 13. Open dialog box for uploading ☞ Be sure to use the firmware only for WIZ-Embedded WebServer. ⑤ You can see below status window showing ‘Processing’. Figure 14. Firmware uploading window ⑥ If the file is uploaded, ‘Complete Uploading’ message is displayed. -
Page 20: Use Of Rom File Maker Rev3.0
☞ There is limitation of file number in selecting at a time. (Normally, max 15 files can be selected simultaneously). If there are more files, use “Add Files” button for the several times. © Copyright 2007 WIZnet Co., Ltd. All rights reserved... -
Page 21: Figure 17. Rom File Maker
WIZ-Embedded WebServer User’s Manual Figure 17. ROM File Maker Select ‘Rom Image File’ option. If you click ‘Make Image’ button, ‘*.rom’ file can be created. Figure 18. ROM Image File Make © Copyright 2007 WIZnet Co., Ltd. All rights reserved... -
Page 22: Operation Test
WIZ-Embedded WebServer User’s Manual 4.2. Operation Test In this chapter, we will show how WIZ-Embedded WebServer operates through a sample testing. The hardware and software requirements for testing is as below. WIZ-Embedded WebServer 1) LAN Port 1) WIZ-Embedded WebServer Board... -
Page 23: Testing The Function Of Web Server
WIZ-Embedded WebServer User’s Manual STEP 2: Connect 5V DC adaptor to WIZ-Embedded Webserver board. 4.2.2. Testing the Function of Web Server STEP1: Supply the power to WIZ-Embedded WebServer board. STEP2: Configure the board by using Configuration Tool. STEP3:Execute the web browser and input the IP address of the WIZ-Embedded board to access the webpage. -
Page 24: Figure 21. Wiz-Embedded Webserver Digital Output Page
STEP6: Click ‘Digital Input’ menu, and check the status of switch installed on the WIZ-Embedded WebServer Base Board. Switch status is updated every one second. Figure 22. WIZ-Embedded WebServer Digital Input Page © Copyright 2007 WIZnet Co., Ltd. All rights reserved... -
Page 25: Figure 23. Wiz-Embedded Webserver Analog Input Page
WIZ-Embedded WebServer User’s Manual STEP7: Click ‘Analog Input’ menu and check the voltage level according to Variable Resistor(VR) which is installed on the WIZ-Embedded WebServer Base Board. The VR is updated every one second. Figure 23. WIZ-Embedded WebServer Analog Input Page STEP8: Click “... -
Page 26: Programmer's Guide
5. Programmer’s Guide 5.1. Memory Map The memory map of WIZ-Embedded WebServer is composed of 128Kbyte code memory and 64Kbyte data memory. The data memory is composed of internal SRAM and W5300. In addition, 4Kbyte EEPROM is built in AVR. Environment variables of the board are saved in this EEPROM. -
Page 27: Table 6. Wiz-Embedded Webserver Main Source
Function to control devices on the board such as LED, Switch & LCD lcd.c Function to process LCD spi.c Function to process SPI romfile.c Function to process ROM File System Table 6. WIZ-Embedded WebServer Main Source © Copyright 2007 WIZnet Co., Ltd. All rights reserved... -
Page 28: Compile
Check compile setting of Configuration option of ‘Project’ menu. For the setting method, refer to ‘AVR Studio User Guide’. The firmware provided by WIZnet is based on AVR-GCC 3.4.6. In another version, the operation can be abnormal. Figure 25. AVR Studio When compile is completed, hex file is created in the folder that user defined before. -
Page 29: Figure 26. Atmega128 Isp
Bootloader is written to be input at 0x1E000. For the re-programming the firmware file, remove the Atmega128 and program the ‘Boot.hex’ file. At this time, do not check the option of “Erase Device Before Programming” for not removing the bootloader. © Copyright 2007 WIZnet Co., Ltd. All rights reserved... -
Page 30: Figure 27. Wiz-Embedded Webserver Boot Loader Program
WIZ-Embedded WebServer User’s Manual Figure 27. WIZ-Embedded WebServer Boot Loader Program © Copyright 2007 WIZnet Co., Ltd. All rights reserved... -
Page 31: Wiz-Embedded Webserver Hardware Specification
3.3V 3.3V ADC0/PF0 ADC1/PF1 ADC2/PF2 ADC3/PF3 SCL/INT0/PD0 SDA/INT0/PD1 ADC4/PF4 ADC5/PF5 RXD1/INT2/PD2 TXD1/INT3/PD3 ADC6/PF6 ADC7/PF7 ICP1/PD4 XCK1/PD5 AREF T1/PD6 T2/PD7 SS/PB0 SCK/PB1 MOSI/PB2 MISO/PB3 RXD0/PE0 TXD0/PE1 /RESET Table 7. WIZ-Embedded WebServer PINMAP © Copyright 2007 WIZnet Co., Ltd. All rights reserved... -
Page 32: Size
WIZ-Embedded WebServer User’s Manual 6.3.2. Size Figure 29. WIZ-Embedded WebServer Module Dimension © Copyright 2007 WIZnet Co., Ltd. All rights reserved... -
Page 33: Connector Specification
WIZ-Embedded WebServer User’s Manual Figure 30. WIZ-Embedded WebServer Base Board Size 6.3.3. Connector Specification RJ45 : Ethernet Port Pinouts Figure 31. RJ-45 PIN Assignment © Copyright 2007 WIZnet Co., Ltd. All rights reserved... -
Page 34: Figure 32. Rj-45 Pin Assignment
Figure 32. RJ-45 PIN Assignment RS-232 Pin Number Signal Description Not Connected Receive Data Transmit Data Not Connected Ground Not Connected Not Connected Not Connected Not Connected Figure 33. RS-232 PIN Assignment © Copyright 2007 WIZnet Co., Ltd. All rights reserved... -
Page 35: Warranty
WIZnet warrants our products and its parts against defects in materials and workmanship under normal use for period of standard ONE(1) YEAR for the WIZ-Embedded WebServer board and labor warranty after the date of original retail purchase. During this period, WIZnet will repair or replace a defective products or part free of charge.
