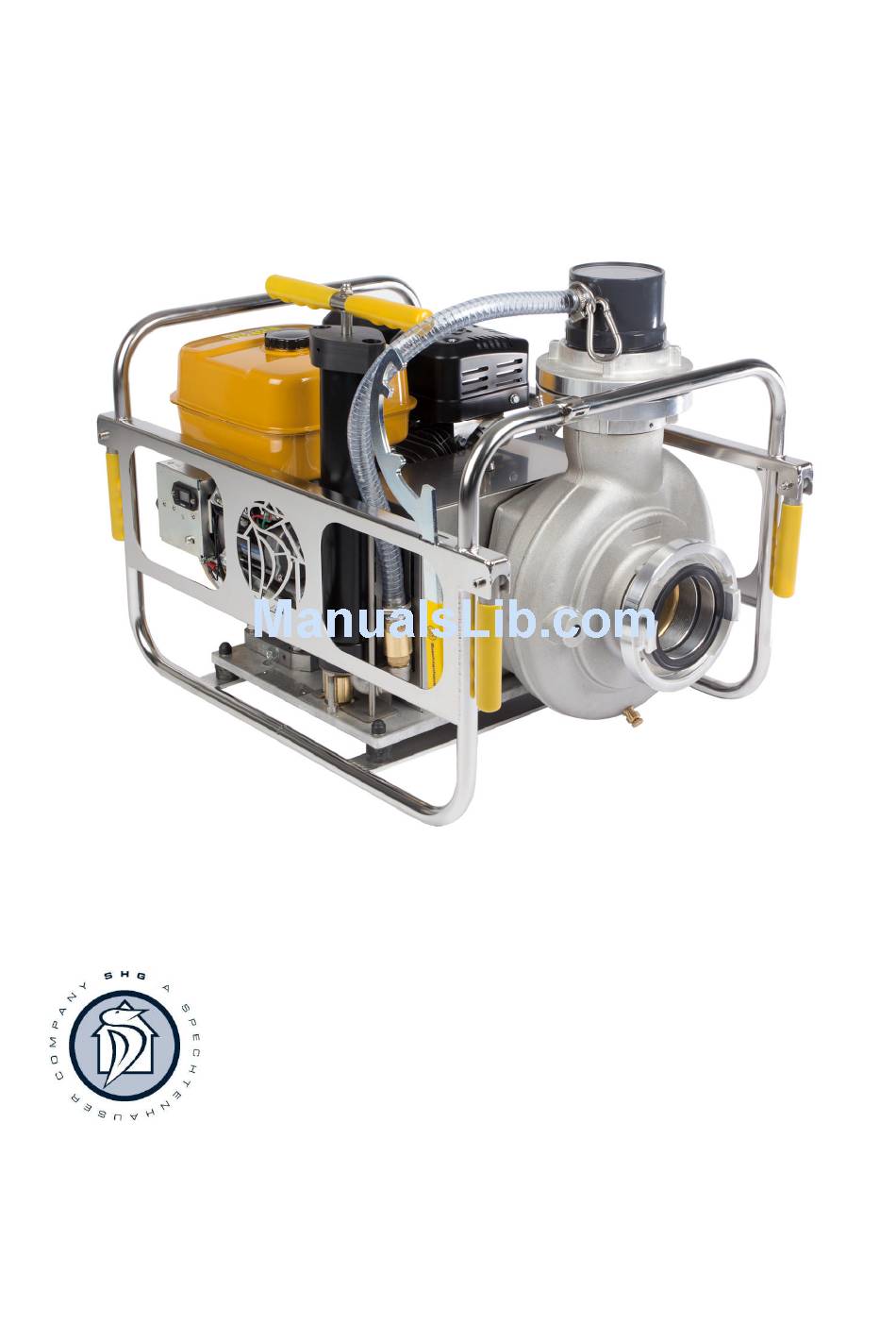

- Page 1 Operating manual: Mobile speciality pump Atlantica SHG S PECHTENHAUSER OCHWASSER EWÄSSERSCHUTZ Gewerbestraße 3, D-86875 Waal, Germany...
-
Page 2: Table Of Contents
Materials _____________________________________________________________________________ 7 Dimensions __________________________________________________________________________ 7 Description __________________________________________________________________________ 7 Operating the pump ______________________________________________________________________ 8 Operating the pump __________________________________________________________________ 8 Series connection of Atlantica pumps _________________________________________________ 10 Using the wheel set __________________________________________________________________ 10 Accessories_____________________________________________________________________________ 11 Service and Maintenance_________________________________________________________________ 12 Maintenance Intervals________________________________________________________________ 12... -
Page 3: General Information
Field 4: Max. fluid temperature Field 8: Max. capacity 1.3 Application The mobile speciality pump ATLANTICA is designed for strongly soiled waste water or sewage including solids or long fibres in case of flood control, flooding, pipe bursts or wa- ter level reduction. -
Page 4: Safety Instructions
Operating manual: Mobile speciality pump Atlantica 2 Safety instructions (General safety instructions as per VDMA 24292) This operation manual gives basic instructions that should be followed carefully during in- stallation, operation and maintenance. It is essential that this manual is carefully read by the responsible personnel/operator before assembly and commissioning. -
Page 5: Safety Regulations For Owner/Operator
Operating manual: Mobile speciality pump Atlantica 2.4 Safety regulations for owner/operator All safety instructions contained in this manual, all relevant national and local health and safety codes and any other service and safety instructions issued by the owner shall be complied with. -
Page 6: Unauthorized Modifications And Manufacturing Of Spare Parts
Operating manual: Mobile speciality pump Atlantica vironment must be reported. On completion of work all safety and protective facilities must be reinstalled and made operative again. Before restarting, the points listed in section 4 Operating the Pump are to be observed. -
Page 7: Technical Data
Operating manual: Mobile speciality pump Atlantica 3 Technical data 3.1 Equipment and weight Type Atlantica A Atlantica B Inlet: A-Storz B-Storz Outlet: A-Storz B-Storz Max. solid passage: 80 mm 70 mm Max. temp. of liquid: 0° - 40 °C 0° - 40 °C... -
Page 8: Materials
Operating manual: Mobile speciality pump Atlantica 3.5 Materials All housing parts made of aluminium alloy (except engine, see operating manual en- gine Subaru), bearing block made of galvanized steel All screw connections made of stainless steel Impeller made of wear-resistant and self-cleaning aluminium bronze ... -
Page 9: Operating The Pump
Operating manual: Mobile speciality pump Atlantica 4 Operating the pump Caution: The pump may only be used in accordance with the instructions in this operation manual. Note: Before using the pump, check that the engine has been filled with petrol. Filling during operation is strictly forbidden. - Page 10 Operating manual: Mobile speciality pump Atlantica open end of the hose must be coupled with the Spechtenhauser check valve, and in this case, for the suction process, the check valve, with the opening flap, must be lo- cated completely in the medium. For suction, the hose must not take in any air.
-
Page 11: Series Connection Of Atlantica Pumps
4.2 Series connection of Atlantica pumps To achieve pumping heights of over 15 m, series connection of Atlantica pumps is possi- ble. With this, the pressure side of the first Atlantica is connected to the next Atlantica over a dimensionally stable hose. -
Page 12: Accessories
Operating manual: Mobile speciality pump Atlantica 5 Accessories The following accessories are available for the Atlantica mobile special pump. PCV suction hose with associated A or B Storz connection, 90 arc in A or B Storz model ... -
Page 13: Service And Maintenance
Operating manual: Mobile speciality pump Atlantica 6 Service and Maintenance It shall be the user’s responsibility to ensure that all maintenance, inspection and assembly work is per- formed by authorized and qualified personnel who have adequately familiarized themselves with the subject matter by studying this manual and the operating manual engine Subaru in detail. -
Page 14: Dismantling The Impeller
Operating manual: Mobile speciality pump Atlantica 6.3 Dismantling the impeller If stubborn blockages form in the spiral housing, the spiral housing and the impeller can be dismantled via the following steps: Caution: Work may only be carried out on it when the pump is shut down and secured against restarting. -
Page 15: Assembling The Impeller
Operating manual: Mobile speciality pump Atlantica 6.4 Assembling the impeller When assembling the impeller, the following steps are to be taken: Caution: Work may only be carried out on it when the pump is shut down and secured against restarting. -
Page 16: Dismantling The V-Ribbed Belt
Operating manual: Mobile speciality pump Atlantica 6. Tightly screw the four cylindrical screws with the hexa- gon socket (M12), inside the pedestal, from the engine flange to the spiral casing. (Only the two screws below are shown in the image) To fasten the screws, medium-strength screw locking (Loctite) is to be used. -
Page 17: Mounting The V-Ribbed Belt
Operating manual: Mobile speciality pump Atlantica Caution: Danger due to trapping of limbs. 4. Loosen the four cylindrical screws with the hexagon socket (M8) on the pedestal to the motor flange. (Only two of the four screws are visible on the image;... - Page 18 Operating manual: Mobile speciality pump Atlantica 2. Place the engine flange on the pedestal, ensuring that the shaft is inserted evenly into the pedestal seat. 3. Tightly screw the four cylindrical screws with the hexa- gon socket (M8) on the pedestal to the engine flange.
- Page 19 Operating manual: Mobile speciality pump Atlantica 7. Counter the tension screw using the nut above the floor panel. Then tightly screw the belt tensioner to the engine. 8. You now need to mount the stainless steel cover and spiral housing. For these points, please refer to section 6.4 points 5 to 8.
-
Page 20: Problems / Faults
Operating manual: Mobile speciality pump Atlantica 7 Problems / faults Malfunctions, causes and fixes Problem Cause Remedy Engine does not run, stops No petrol Check the fill level. Check the power cable for damage. Defective power line. Check the power cable (ignition). - Page 21 Operating manual: Mobile speciality pump Atlantica EC Declaration of Conformity Declaration of EC-Conformity Attestation de Conformité CE Hiermit erklären wir, dass alle Exemplare unserer Geräte Herewith we declare that all our devices Nous attestons par la présente, que tous nos produits...
- Page 22 Operating manual: Mobile speciality pump Atlantica Operating hours: Date Length of time Date Length of time SHG S PECHTENHAUSER OCHWASSER EWÄSSERSCHUTZ Gewerbestraße 3, D-86875 Waal, Germany www.spechtenhauser.de Tel.: +49 (0)8246.9695-20 shg@spechtenhauser.de Fax: +49 (0)8246.9695-24 27.02.14 [5]...
- Page 23 Operating manual: Mobile speciality pump Atlantica Date Length of time Date Length of time SHG S PECHTENHAUSER OCHWASSER EWÄSSERSCHUTZ Gewerbestraße 3, D-86875 Waal, Germany www.spechtenhauser.de Tel.: +49 (0)8246.9695-20 shg@spechtenhauser.de Fax: +49 (0)8246.9695-24 27.02.14 [5]...
- Page 24 Operating manual: Mobile speciality pump Atlantica Date Length of time Date Length of time SHG S PECHTENHAUSER OCHWASSER EWÄSSERSCHUTZ Gewerbestraße 3, D-86875 Waal, Germany www.spechtenhauser.de Tel.: +49 (0)8246.9695-20 shg@spechtenhauser.de Fax: +49 (0)8246.9695-24 27.02.14 [5]...
- Page 25 Operating manual: Mobile speciality pump Atlantica SHG S PECHTENHAUSER OCHWASSER EWÄSSERSCHUTZ Gewerbestraße 3, D-86875 Waal, Germany www.spechtenhauser.de Tel.: +49 (0)8246.9695-20 shg@spechtenhauser.de Fax: +49 (0)8246.9695-24 27.02.14 [5]...
