Install the Ethernet Tap Unit

84
T I I
AP NSTALLATION NSTALL THE

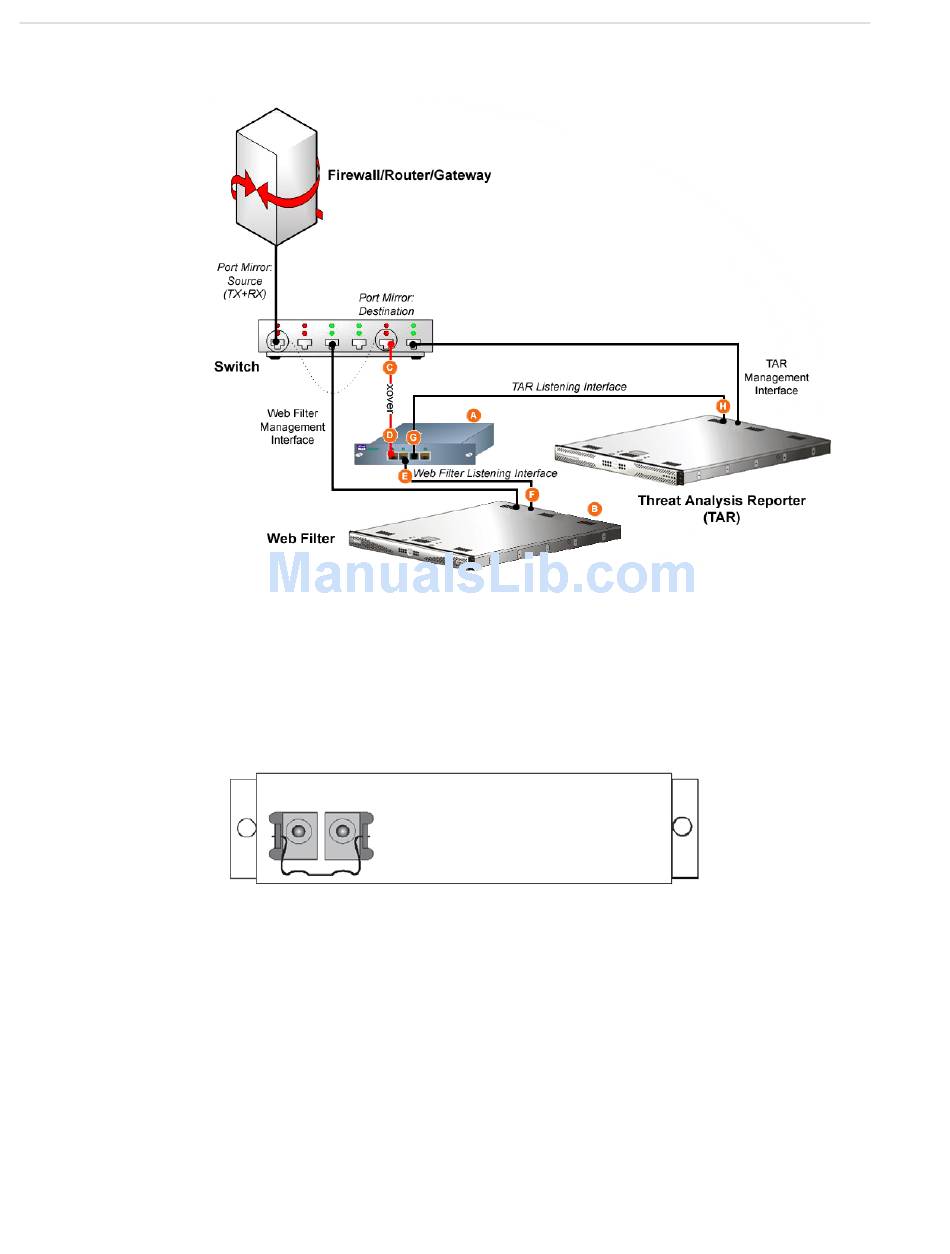

Diagram showing TAR Ethernet Tap installation on the network
This step is a continuation from Physically Connect the Unit to the Network in Step
1A or following setup in Step 1B. The procedures outlined in this step require the
use of a CAT-5E cable.
A. Provide power to the Ethernet Tap by connecting both power cords from the unit
to the power source.
AC power in rear panel of NetOptics 10/100BaseT Tap
B. If a designated source Web Filter (to be used with the Threat Analysis Reporter)
is already installed on the network, disconnect the cable that connects this Web
Filter to the switch.
If the designated Web Filter has not yet been installed, disregard this sub-step
and proceed to sub-step C.
C. Using a crossover cable, connect one end to the Switch's port configured to be
the destination port of the Port Mirror.
If adding a Threat Analysis Reporter to an existing installation, this port would
be the port that was originally occupied by the listening interface of the Web
Filter.
