AUREL TX-1C-5026 User Manual

Keyfob RF SAW with Motorola Encoder
RF Keyfob with SAW resonator, up to 4 channels. Ideal for application with encoded commands, low
spurious emission and high efficiency.

Available Models

TX-1C-5026: transmitter 1 ch
TX-2C-5026: transmitter 2 ch
TX-4C-5026: transmitter 4 ch

Use

By pressing and releasing any of the provided push buttons (according to model) the code will be
transmitted on the related.
Chabble 1
p/button
Chabble 3
p/button

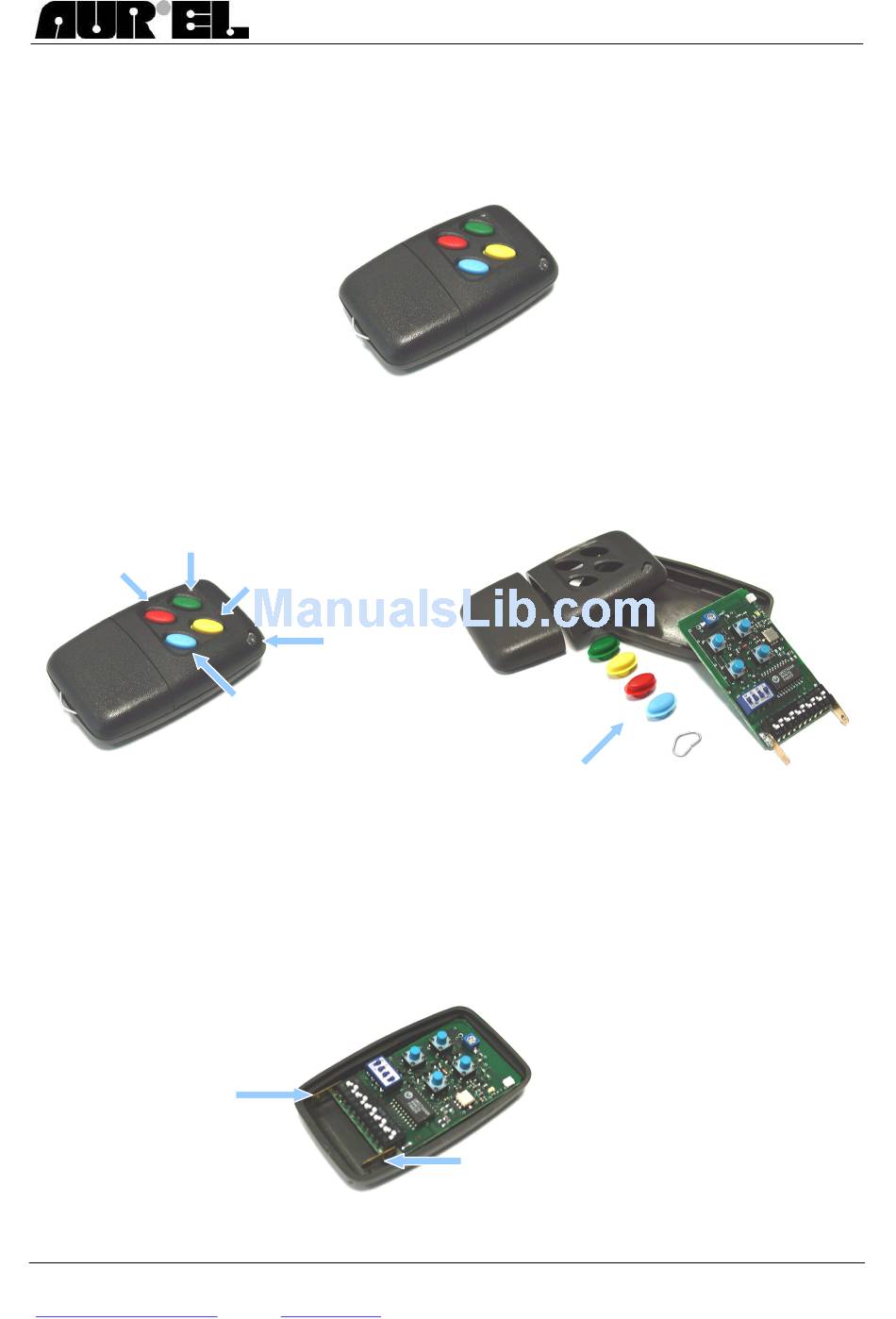

Mod. TX-4C-5026

Battery replacement

When the transmission LED light intensity is reduced, the supplying battery needs to be replaced. To this
purpose loose the screw in the back side of the radiocontrol, and then carefully open the plastic shell. Once
the old battery is removed, fit the new one (V23A, 12 V model) paying very much attention not to invert
the polarity. Close back the transmitter's plastic shell paying attention not to damage the integrated circuit.
Please do not waste the old battery in the environment but place it inside the containers provided at this
purpose, for its proper and correct disposal.
Positive pole [+]
Variazioni senza preavviso delle presenti informazioni non implicano responsabilità da parte AUREL. L'acquirente assume ogni responsabilità derivante dall'uso del prodotto.
AUR°EL S.p.A. Via Foro dei Tigli, 4 - 47015 Modigliana (FC) – ITALY
Tel.: +390546941124 – Fax: +390546941660
http://www.aurelwireless.com
Chabble 4
p/button
Data
transmission
Led
Chabble 2
p/button
- email: rfcomm@aurel.it
TX-1C-5026, TX-2C-5026, TX-4C-5026
Full Kit
Negative pole [-]
User Manual
Rev. A, 21-09-2001
