Hobot -168 User Manual

Glass cleaning robot
Hide thumbs Also See for HOBOT-168:
Table of Contents

Advertisement

Quick Links

HOBOT

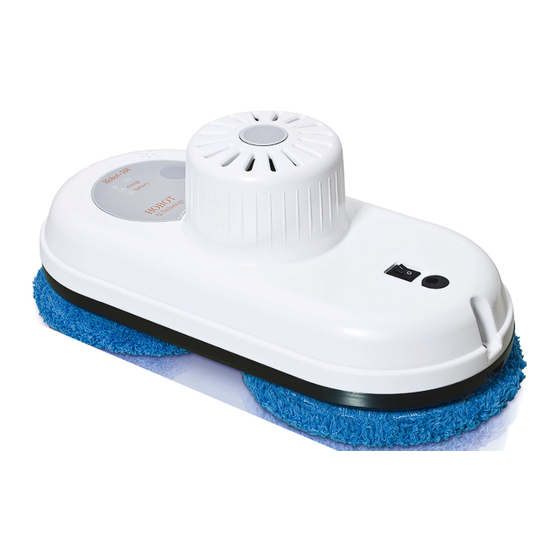

HOBOT-168 Glass Cleaning Robot
User's Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HOBOT-168 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Hobot HOBOT-168

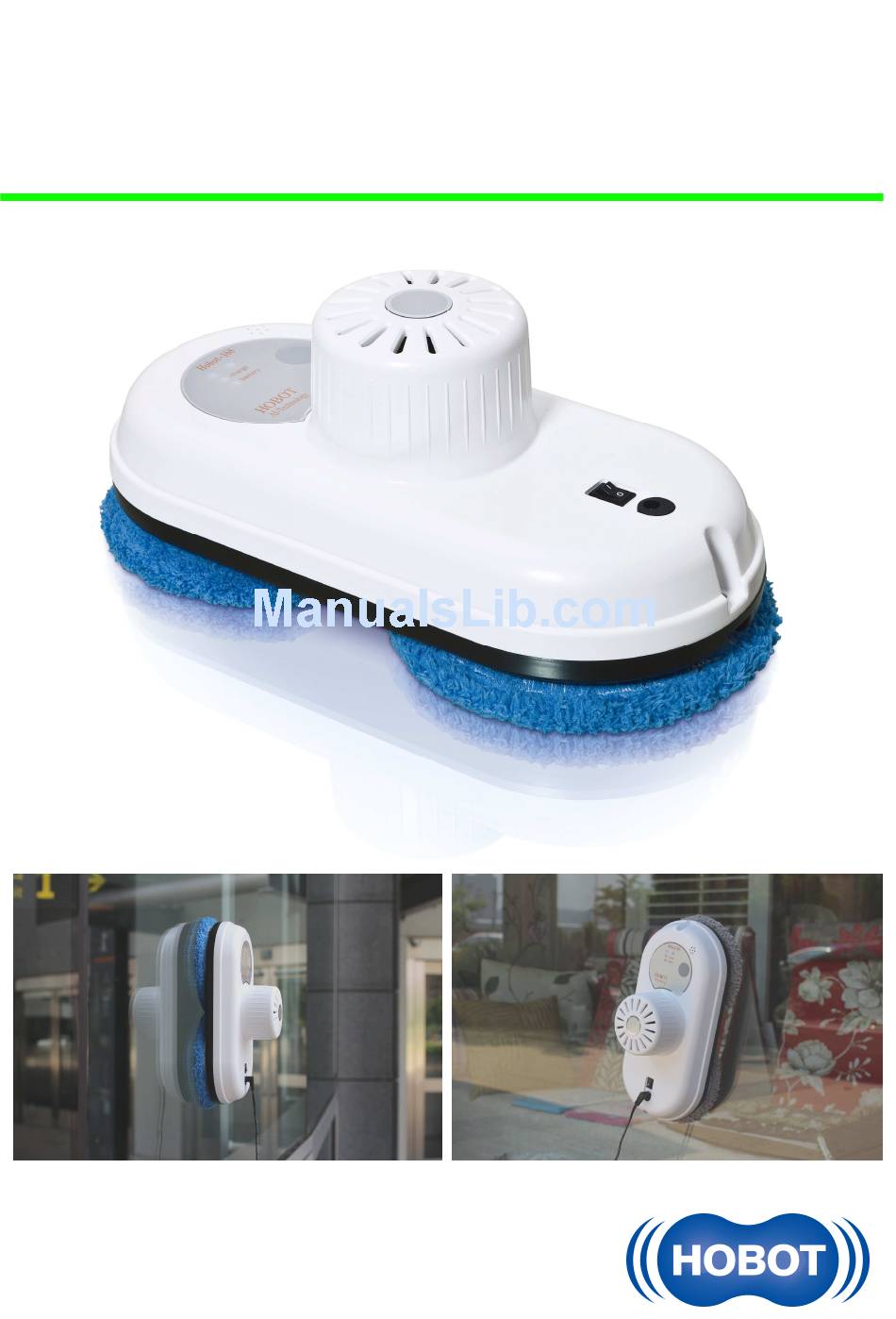

  • Page 1 HOBOT HOBOT-168 Glass Cleaning Robot User’s Manual...

  • Page 2: Technical Support

    Copyright Copyright © 2012 by HOBOT® Technology Inc. All rights reserved. No part of this publication may be reproduced, transmitted, transcribed, stored in a retrieval system or translated into any language or computer language, in any form or by any means, electronic, mechanical, magnetic, optical, chemical, manual or otherwise, without the prior written permission of this company.

  • Page 3: Important Safety Precautions

    14. Keep hair, loose clothing, fingers, and all parts of body away from the openings and moving parts. 15. Do not use in areas with existed flammable or combustible liquids, gas. - 2 - HOBOT Technology Inc.

  • Page 4: Product Introduction

    Product introduction HOBOT-168 is a glass-cleaning robot, with a vacuum motor inside that can suck air and stand on the glass surface. An embedded UPS (Un-interrupted Power System) can prevent the robot falling from the window even when no electrical power.

  • Page 5: Product And Accessories

    3 kinds of automatic operation modes for cleaning entire window Auto-finish. Embedded UPS (Un-interrupted Power System) Anti-dropping control algorithm Auto detect edges of window Micro-fiber cloth High strength safety rope (150Kgf) Remote control Table cleaning mode Power consumption：80W Input voltage: 100~240VAC, 50~60Hz - 4 - HOBOT Technology Inc.

  • Page 6: Getting To Know The Device

    DC power jack Safety rope Lower hooking hole HOBOT-168 shall always connect power cable for normal using. How to put device onto glass to start using (1) Turn on power-switch, and then make sure the fan is running. (2) Put device onto glass and keep 10cm away from the window frame.
  • Page 7 (1) Do not use it on frameless glass. (2) Make sure put cleaning ring onto cleaning wheel correctly for no leakage. (3) Do not use it in rainy or moist day. (4) Set danger-warning area downstairs for no-balcony window and door. - 6 - HOBOT Technology Inc.

  • Page 8: Led Indication

    Blue-LED flashing with “error number” times. 5. Friction factor check error at start-up. Red-LED one times Beep 6. Vacuum pressure too low Red-LED one times Beep 7. Air leakage while working Red-LED one times Beep - 7 - HOBOT Technology Inc.

  • Page 9: Remote Controller

    Auto Left then Down Auto Right then Down ※ Please remove the insulation spacer in the bottom of back of remote controller before using. If you have to replace the battery, just pull down the battery cover. - 8 - HOBOT Technology Inc.

  • Page 10: Using The Cleaning Ring And The Cleaning Cloth

    Plug into DC power jack DC extension cable Using the cleaning ring and the cleaning cloth 1. Cover cleaning ring with cleaning cloth. 2. Put cleaning ring onto cleaning wheel correctly (luck 6 claws) for no leakage. - 9 - HOBOT Technology Inc.

  • Page 11: Frequently Asked Questions (Faq)

    (5) When startup (press , or ), keep 10cm away from the window frame. Q2: HOBOT slips and cannot detect the upper frame of window in “Auto Up then Down”( ) mode. Ans: Press key and switch to auto mode.
  • Page 12 Q7: What to do if HOBOT stopped at higher area while no electric power supplied, HOBOT alarm and red lamp is flashing? Ans: (1) User can pull HOBOT back with safety rope. Slightly pull the safety rope at an angle close to the glass to prevent dropping.

  • Page 13: General Safety Information

    Do not use broken adapter, power cord or plug. Do not attempt to service the adapter. There are no service parts inside. Replace the whole unit if it is damaged or exposed to high moisture. Consult your HOBOT dealer for help and maintenance.

  • Page 14: Limited Warranty

    Limited warranty If there are defects in your HOBOT glass-cleaning robot due to faulty materials, workmanship or function within warranty period from the date of purchase or delivery, please contact the local retailers or local authorized dealers for repair or replacement.
