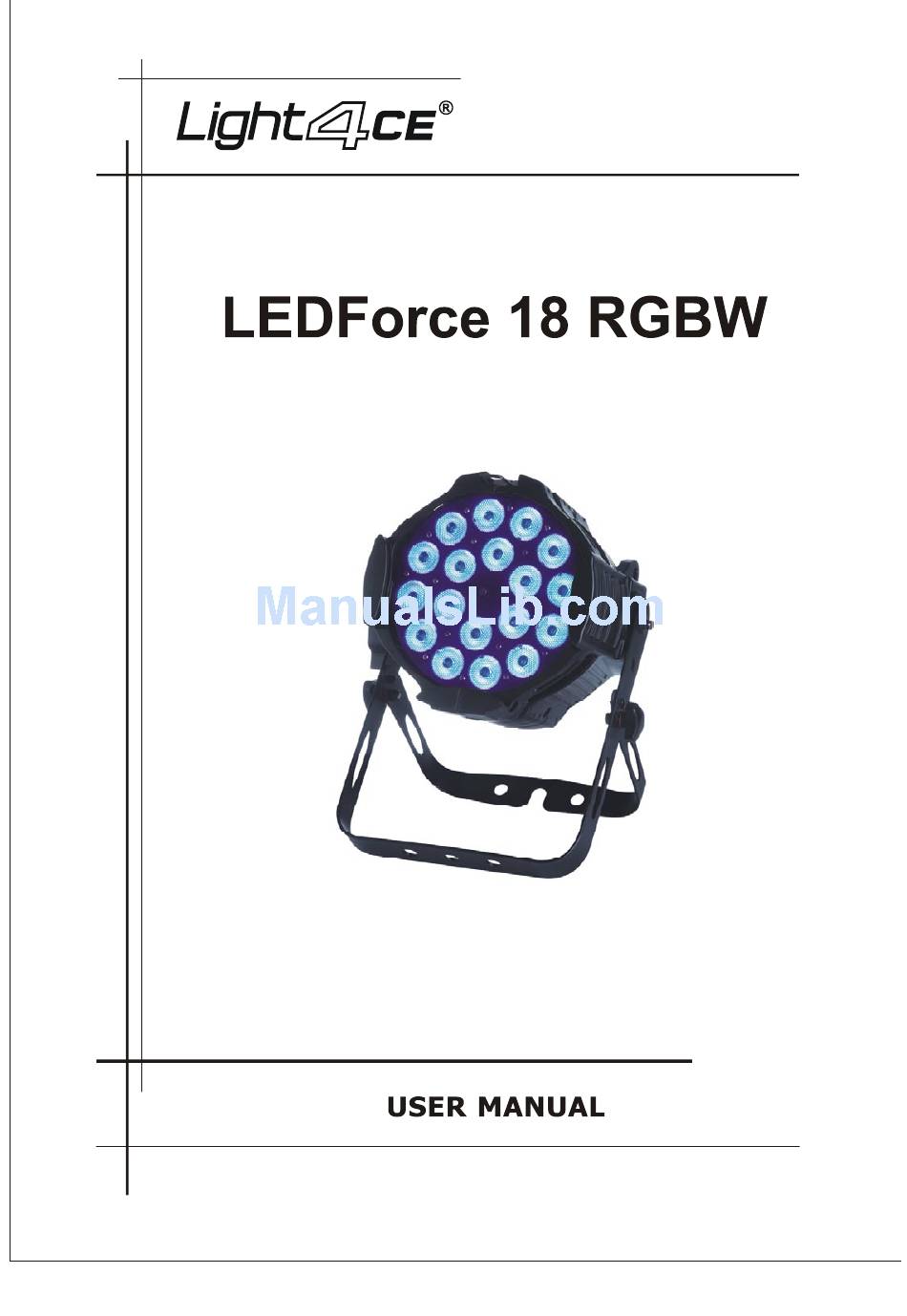

Page 2: User Manual

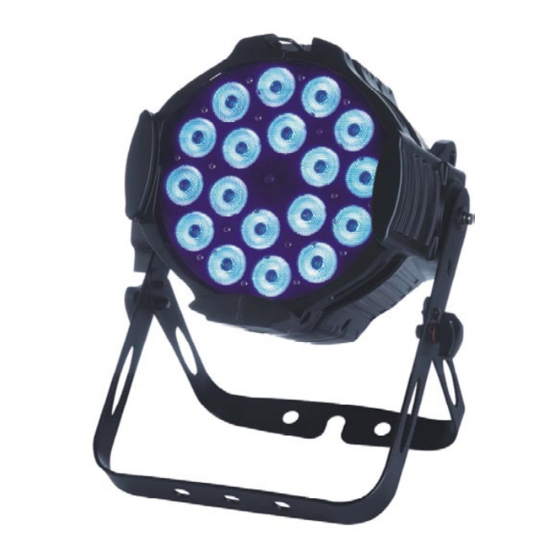

User manual LEDForce 18 RGBW 1.Safety instructions - Every person involved with the installation, operation and maintenance of this device has to : be qualified follow the instructions of this manual - CAUTION! Be careful with your operations. With a dangerous voltage you can suffer a dangerous electric shock when touching the wires! - This device has left our premises in absolutely perfect condition. - Page 3 I.Display description: II.Display instruction Mode: show running mode VALUE: the display shows address, speed and dimmer value. SLAVE: the slave sends to indicate MASTER: the master sends to indicate III. Control buttons UP: select DMX address and speed clockwise direction. Down: select DMX address and speed counter-clockwise direction. Mode: select LED mode, the details as figure I. The device can save the current state under power off and enter automatically the last program when re-turn Figure I: Mode Display...
-
Page 4: Technical Specifications
3.Technical specifications Input voltage range:90-260V, 50/60Hz Power consumption: 95W/107VA (power factor= 0.88) LED device: 18 x5 Watt Quad Color RGBW LEDs Expected life time: 50,000 hours Beam Angle: 25°, (10° optional kit available) Operational modes: Sound Active, Macro, Auto, DMX Control protocol DMX 512 DMX modes: 2 Control channels: 4,6 Setting and addressing: LED control display DMX IN/OUT: 5-pin XLR Dimensions : (LxWxH) 292 x 216 x 216mm / 11,5” x 8,5” x 8,5” (without hanging bracket) Weight : 4.9 kg Version:1.1 April 19, 2010 Specifications are subject to change without specification...
