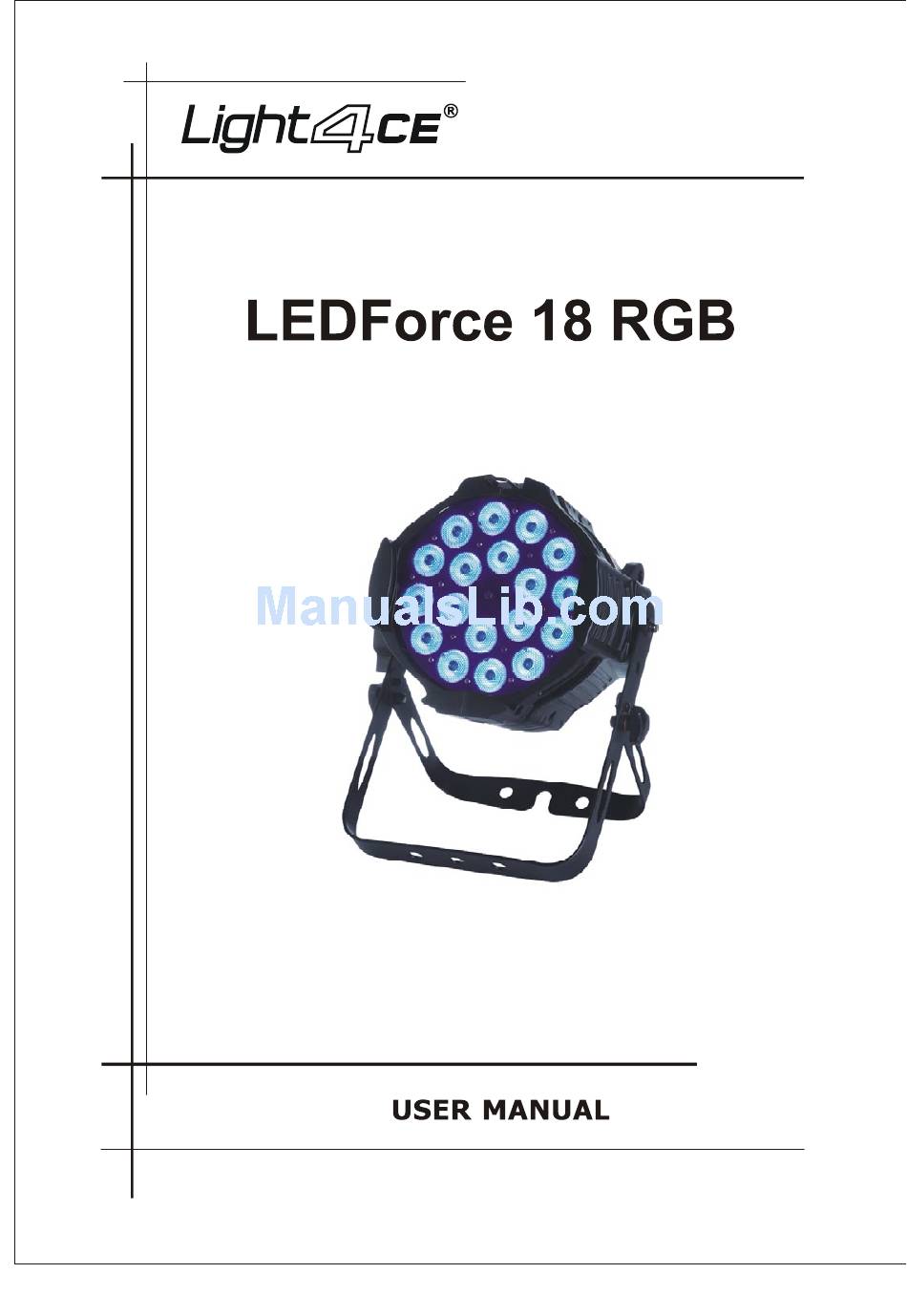

Light4CE LEDForce 18 RGB User Manual

Table of Contents

Need help?

Do you have a question about the LEDForce 18 RGB and is the answer not in the manual?

Page 2 User manual LEDForce 18 RGB 1.Safety instructions - Every person involved with the installation, operation and maintenance of this device has to : be qualified follow the instructions of this manual - CAUTION! Be careful with your operations. With a dangerous voltage you can suffer a dangerous electric shock when touching the wires! - This device has left our premises in absolutely perfect condition.
Page 3 Button mode Function description Mode Select your desire mode DMX: select address, run AUTOMODE, adjust MODE SPEED, MACRO: select colour Down DMX: select address, run AUTOMODE, adjust MODE SPEED, MACRO: select colour MODE DISPLAY INTRODUCTION DMX mode 1 (1CHS) 1XXX (XXX=001-511) Macro DMX mode 2 (2CHS) 2XXX (XXX=001-511)
Page 4 3.Technical specifications Input voltage range:90-260V, 50/60Hz Power consumption: 61W/123VA (power factor= 0.49) LED device: 8 x 3 Watt Tri Color RGB LEDs Expected life time: 50,000 hours Beam Angle: 25°, (10° optional kit available) Operational modes: Sound Active, Macro, Auto, DMX Control protocol DMX 512 DMX modes:4 Control channels: ,,3,7 Setting and addressing: LED control display DMX IN/OUT: 5-pin XLR Dimensions : (LxWxH) 292 x 216 x 216mm / 11,5” x 8,5” x 8,5” (without hanging bracket) Weight : 4.9 kg Version:1.1 April 19, 2010 Specifications are subject to change without specification...
