HydraMaster RX-20 700-041-006 Owner's Manual

Rotary extractor
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
DOMESTIC AND INTERNATIONAL

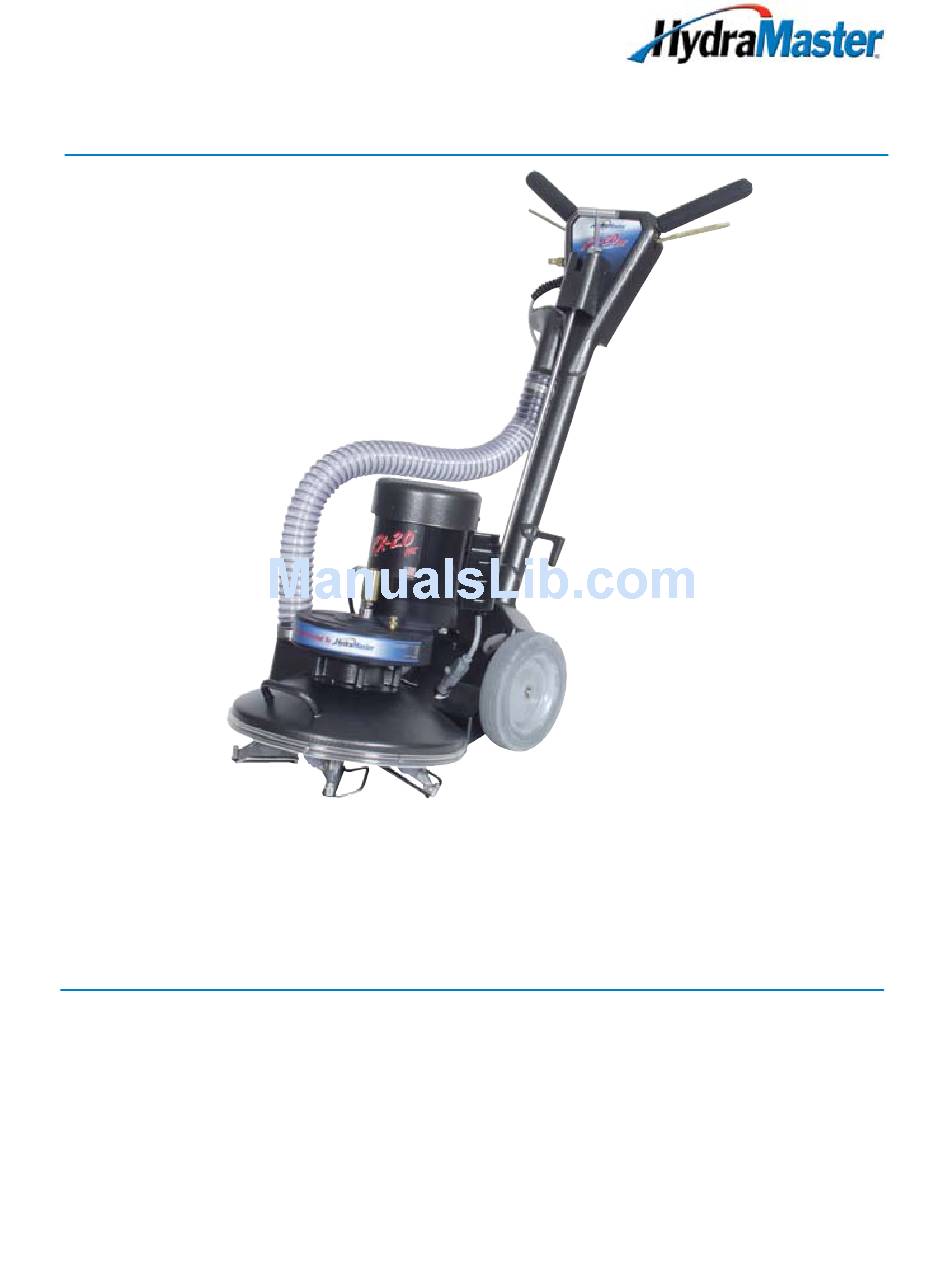

RX-20 Rotary Extractor
Owner's Manual
Models 700-041-006 and 700-041-007
HydraMaster
th
11015 47
Avenue West
Mukilteo, Washington 98275
MAN-33272 Rev. 3, September 23, 2011
(182-006)
No part of this manual may be reproduced or used in any form or by any means (i.e. graphic, electronic, photocopying or electronic
retrieval systems) without the express written permission of HydraMaster. Specifications and information in this document are
subject to change without prior notice. All rights reserved. © 2011 HydraMaster

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RX-20 700-041-006 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for HydraMaster RX-20 700-041-006

Summary of Contents for HydraMaster RX-20 700-041-006

  • Page 1 No part of this manual may be reproduced or used in any form or by any means (i.e. graphic, electronic, photocopying or electronic retrieval systems) without the express written permission of HydraMaster. Specifications and information in this document are subject to change without prior notice. All rights reserved. © 2011 HydraMaster...

  • Page 3: Table Of Contents

    RX-20 Table of Contents INTROduCTION ..................SECTION 1 Contact Information ................. 1-2 Warnings, Cautions and Notices ............. 1-3 MACHINE SpECIfICATIONS ..............SECTION 2 Configurations ..................2-2 ASSEMbly INSTRuCTIONS ..............SECTION 3 OpERATINg INSTRuCTIONS ..............SECTION 4 preparation....................4-1 Operation ....................4-2 ClEANINg INfORMATION .................
  • Page 4 RX-20 ASSEMbly dRAWINgS ANd pARTS lISTS ..........SECTION 8 final Assembly parts list ............... 8-2 upper and lower Handle Assembly parts list ........8-6 Handle locking linkage Assembly parts list ........8-7 base and drive Train Assembly parts list ..........8-8 gear box Assembly parts list ..............
  • Page 5 RX-20 list of figures figure 2-1. RX-20 Optional Equipment ................ 2-3 figure 3-1. fully Assembled RX-20 ................3-1 figure 4-1. pull or push on Adjustment lever; location of 440 Male Quick Connect; Vacuum Hose Inlet (120 V Version Shown) ..........4-1 figure 4-2.
  • Page 6 RX-20 figure 8-1. final Assembly ................... 8-2 figure 8-2. upper and lower Handle Assembly - Overview......... 8-3 figure 8-3. upper and lower Handle Assembly - parts View 1 of 2 ......8-4 figure 8-4. upper and lower Handle Assembly - parts View 2 of 2 ......8-5 figure 8-5.
  • Page 7 RX-20 1- Introduction Congratulations you now own a piece of equipment that incorporates the latest in carpet, tile and grout cleaning technology. your foresight in purchasing an RX-20 shows that you care enough to give your customer the maximum cleaning process available. you have invested in not only a cleaning tool, but a marketing tool that will enhance your professional image in every way.

  • Page 8: Introduction

    RX-20 CONTACT INfORMATION If you have any questions regarding the operation, maintenance or repair of this machine, refer to the following information and contact the appropriate HydraMaster department. Hours Telephone Numbers E-mail Addresses Tech Support: Monday-friday (425) 775-7275 Support techsupport@hydramaster.com 7:00 a.m.

  • Page 9: Warnings, Cautions And Notices

    RX-20 WARNINgS, CAUTIONS AND NOTICES HydraMaster uses this WARNINg symbol throughout the manual to warn of possible injury or death. This CAuTION symbol is used to warn of possible equipment damage. This NOTICE symbol indicates that federal or state regulatory laws may apply, and also emphasizes supplemental information.
  • Page 10 RX-20 Introduction: 1-4...
  • Page 11 RX-20 2- Machine Specifications RX-20 - 120 V RX-20 - 230 V Length 23” 23” Base Width 16” 16” Height - Standard Up to 43” Up to 43” Weight 70 lbs 70 lbs 1/2 HP Totally Enclosed 1/2 HP Totally Enclosed, Motor Fan-Cooled Fan-Cooled...

  • Page 12: Machine Specifications

    RX-20 RX-20 - 120 V RX-20 - 230 V Handle Assembly Foam Grips Foam Grips Transportation 8” diameter, 1-1/2” Wide; 8” diameter, 1-1/2” Wide; Wheels Gray, Non-Marking Gray, Non-Marking Electric Cord 50 ft, 14/3 50 ft w/M-F IEC Ends 230 V The base, exhaust manifolds, handle, gear box housing and cleaning heads are all cast aluminum.

  • Page 13: Figure 2-1. Rx-20 Optional Equipment

    RX-20 OPTIONAL EqUIPMENT To better meet your business needs, HydraMaster offers these options that you can add to your basic rotary extractor system: If you want this Order this P/N: option: pad and bonnet 190-041-020 driver (Top photo, figure 2-1)
  • Page 14 RX-20 Machine Specifications: 2-4...

  • Page 15: Assembly Instructions

    RX-20 3 - Assembly Instructions To prepare your RX-20 for use, follow these instructions: Remove the machine from the packaging. Inspect the machine carefully for any damage that may have occurred during shipping. Remove the solid shipping plug from the top of the gear box (see figure 3-1).
  • Page 16 RX-20 Assembly Instructions: 3-2...

  • Page 17: Operating Instructions

    The vacuum hose must be in good condition to ensure maximum airflow. A solution hose with a 440 female quick connect is also required. If you do not have a 440 female quick connect, please call HydraMaster Customer Service to order it.

  • Page 18: Operation

    RX-20 Electrical Cord Connection The 50 ft electrical cord on your RX-20 (120 V/60 Hz configuration) is a permanently attached, three-prong grounded line requiring a three-prong, 15 Amp receptacle. A three-prong to two-prong adapter may be used if its ground wire is properly attached to a grounded terminal.

  • Page 19: Figure 4-3. Lift Or Lower Handle To Maneuver

    RX-20 To fully engage the motor as you are cleaning, you also need to hold down the momentary switch, or button, at the same time you as you squeeze the motor trigger (see figure 4-2). The momentary switch is an integrated safety feature on the RX-20 which cuts power to the machine if the operator’s hands leave the machine for any reason.

  • Page 20: Figure 4-4. Correct Cleaning Patterns

    RX-20 To move forward and backward, position the handle so that the unit remains stationary, then push forward or pull back. To familiarize yourself with your RX-20, practice on an open area. depress both the solution trigger and motor trigger and move the RX-20 slowly in a 3 to 5-ft arc, as shown in figure 4-4.

  • Page 21: Cleaning Information

    RX-20 5 - Cleaning Information CLEANINg PATTERNS for regular carpet cleaning use an overlapping arc pattern three times over the same area (two passes with solution and one pass for drying). When cleaning carpets, first clean in circular pattern, then use the overlapping arc pattern to dry the area. dirtiest areas may require two or more cleaning passes.

  • Page 22: Special Information

    RX-20 SPECIAL INfORMATION When you clean some plush carpets, you may notice a “pilling” effect. (pilling occurs when fluffy particles appear on carpet surfaces; it is caused by fibers that loosen because of a weak twist or snags.) With an RX-20, loose yarns form balls and are kicked aside as the cleaning heads revolve. This is normal when aggressive cleaning or even normal vacuuming takes place, as evidenced by a number of dead, loose yarns in the vacuum cleaner bag.

  • Page 23: Machine Maintenance

    RX-20 6 - Machine Maintenance good care and regular maintenance of your RX-20 will result in a long, dependable life for the unit. Keep in mind that your RX-20 will be in full view of your customer. An RX-20 that is dirty and unkempt in appearance can cause your business or professional image to suffer.

  • Page 24: Figure 6-2. Check Jet Spray For Even Flow

    RX-20 Check the spray on the jets for even flow. An uneven spray will cause improper flow of the cleaning solution (see figure 6-2). do NOT spray the high pressure solution in your face or eyes. bodily injury can result. Figure 6-2.

  • Page 25: Figure 6-6. Lubricate Vacuum Seal On Top Of Hub

    Coat the shaft with TKX All-purpose lube gear Box Shaft ® (HydraMaster p/N 000-087-006) or a similar lubricant. Re-install the vacuum head assembly onto the shaft by rotating it counter-clockwise (figure 6-7). An accumulation of debris in the gear box, if not removed, may damage the gear box oil seal.

  • Page 26: Periodic Maintenance

    RX-20 PERIODIC MAINTENANCE Check the oil level in the gear box on a monthly basis. This is a permanently lubricated gear box. you do not need to change the oil. However, maintaining the proper oil level is important. To check the oil level, remove the vent plug and look into the gear box. Turn the star until you can see the inspection hole in the gear.

  • Page 27: Transport And/Or Storage

    RX-20 TRANSPORT AND/OR STORAgE Whenever your RX-20 is transported or stored, HydraMaster recommends that you remove the star assembly (cleaning head). The machine will then sit flat on the floor and remain more stable, especially during transport. fREEzE WARNINg AND PROTECTION your RX-20 can suffer damage from freezing, as can any equipment that functions with the use of water.
  • Page 28 RX-20 Machine Maintenance: 6-6...

  • Page 29: Figure 7-1. Wiring Diagram - 120 V, 60 Hz

    RX-20 7- Electrical diagrams Figure 7-1. Wiring Diagram - 120 V, 60 Hz 6037 7-1: Electrical diagrams...

  • Page 30: Electrical Diagrams

    RX-20 Figure 7-2. Wiring Diagram - 230 V, 50 Hz 4503 Rev. A Electrical diagrams: 7-2...

  • Page 31: Assembly Drawings And Parts Lists

    RX-20 8 - Assembly drawings and parts lists The following RX-20 major assemblies are detailed in this section: „ final Assembly parts list „ upper and lower Handle Assembly parts list „ Handle locking linkage Assembly parts list „ base and drive Train Assembly parts list „...

  • Page 32: Final Assembly Parts List

    RX-20 Figure 8-1. final Assembly final Assembly Parts List 6393 Rev. C Item Part Number Description 604-053-002 Assembly, Vacuum Head Assembly, upper and lower Handle Assembly, base and drive Train 000-174-057 Washer, 3/8” lock 000-143-096 Screw, 3/8”-16uNC X 1.00” lg. Hex Head 120 V Version Shown Here 000-068-176 Hose, 3/16”...

  • Page 33: Figure 8-2. Upper And Lower Handle Assembly - Overview

    RX-20 Figure 8-2. Upper and Lower Handle Assembly - Overview 6391 Rev. g 120 V Version Shown Here 8-3: Assembly drawings and parts lists...
  • Page 34 RX-20 Figure 8-3. Upper and Lower Handle Assembly - Parts View 1 of 2 6391 Rev. G HIDDEN HIDDEN HIDDEN HIDDEN 120 V Version Shown Here Assembly Drawings and Parts Lists: 8-4...
  • Page 35 RX-20 Figure 8-4. Upper and Lower Handle Assembly - Parts View 2 of 2 6391 Rev. G 120 V Version Shown Here HIDDEN 8-5: Assembly Drawings and Parts Lists...

  • Page 36: Upper And Lower Handle Assembly Parts List

    RX-20 Upper and Lower Handle Assembly Parts List Item Part Number Description Item Part Number Description 000-107-096 Handle, Arc 000-157-042 Relay, AC Relay 120 V 000-107-103 Trigger pivot 000-157-032 Switch, Micro 000-105-007 plate, back - Handle 000-108-012 protector, power Cord Relief 000-169-058 Valve, S/S Solution 000-174-001...

  • Page 37: Handle Locking Linkage Assembly Parts List

    RX-20 Figure 8-5. Handle Locking Linkage Assembly 6390 Rev. A Handle Locking Linkage Assembly Parts List Item Part Number Description 000-107-097 link 000-107-256 plunger 000-094-030-07 Nut, Adjusting, linkage - Handle locking 000-139-006 Ring, 5/8 Snap 000-103-012 pin, 1/4 X 7/8” - Clevis 000-103-013 pin, Cotter 8-7: Assembly drawings and parts lists...

  • Page 38: Base And Drive Train Assembly Parts List

    RX-20 Figure 8-6. Base and Drive Train Assembly 6392 Rev. b Base and Drive Train Assembly Parts List Item Part Number Description 000-105-008 plate, Seal 000-059-001 gear box - Complete 000-006-009 base w/ Handle - painted 000-091-015 Motor, 1/2 Hp TEfC-H/S (120 V Version) 000-091-016 Motor, 1/2 Hp TEfC 220V/50Hz, 1,450 rpm (230 V Version)

  • Page 39: Gear Box Assembly Parts List

    RX-20 Figure 8-7. gear Box 2191 Rev. C gear Box Assembly Parts List Item Part Number Description 000-042-007 body, gear box - RX-20 000-041-078 Cover, gear box - RX-20 000-059-004 gear, Spur - Spur gear box driven gear 000-150-002 Output Shaft, Spur, double lead Thread 000-059-006 gear/Input Shaft Assembly 000-008-007...

  • Page 40: Figure 8-8. Vacuum Head Assembly

    REVISION COdE dATE CHKd AppVd AddEd ITEM 21; ECR #632 10/12/2007 l.O.l. C.I.R. ECR bOARd RX-20 Figure 8-8. Vacuum Head Assembly 6389 Rev. A Item bREAK VANE, CONE JET - H/E RX-20 S. STEEl 000-076-078 - - - WASHER, 1/4" flAT S.
  • Page 41 RX-20 Vacuum Head Assembly Parts List Item Part Number Description Item Part Number Description 000-107-020 RX-20 plastic Hub - double lead Insert 000-052-078 Elbow, 1/8” NpT X 45° Street 000-107-089 Star, Assembly 000-052-427 bushing, 1/8” NpT X 1/8” fpT 000-143-045 Screw, 1/2”...

  • Page 42: Figure 8-9. Vacuum Shoe And Skid Assembly

    RX-20 Figure 8-9. Vacuum Shoe and Skid Assembly Vacuum Shoe and Skid Assembly Parts List 6386 Item Part Number Description 000-064-011 RX-20 Shoe, 4” Vac Head - Weldment 000-057-048 gasket, RX-20 Vacuum Head 000-107-245 RX-20 Skid 000-094-058 Nut, #10-32uNf - Nylock Assembly drawings and parts lists: 8-12...

  • Page 43: Figure 8-10. Vacuum Head (Original Style) Assembly

    RX-20 Vacuum Head (Original Style) Assembly Parts List Figure 8-10. Vacuum Head (Original Style) Assembly 6388 Item Part Number Description 000-107-020 plastic Hub, double lead Insert 000-107-089 Star, Wheel Assembly 000-143-045 Screw,1/2” Modified RX-20 Star Removal Bolt 000-139-001 Ring, plastic RX-20 00-064-012-O Shoe and Skid Assembly (Original Style) 000-057-047...

  • Page 44: Figure 8-11. Vacuum Shoe And Skid (Original Style) Assembly

    RX-20 Vacuum Shoe and Skid (Original Style) Assembly Parts List Figure 8-11. Vacuum Shoe and Skid (Original Style) Assembly 6387 Item Part Number Description 000-064-011 4” Vac Head - Weldment 000-057-048 gasket, RX-20 Vacuum Head 000-107-095 Skid, Wire - RX-20 000-094-058 Nut, #10-32uNf - Nylock Assembly drawings and parts lists: 8-14...

  • Page 45: 120 V Assembly Parts List (P/N 604-999-004)

    RX-20 RX-20 - 120 V Assembly Parts List (P/N 604-999-004) Part Number Description Part Number Description 000-006-009 Base, w/Handle - Powder Coated 000-105-008 Plate, Cast Base 000-015-006 Bracket, Head Stabilizer 000-106-001 Plug,1/8” Brass 000-106-014 Plug, Gear Box Vent 000-015-139 Bracket, Handle-To-Base 000-015-190 Bracket, Relay Mount 000-107-096...

  • Page 46: 230 V Assembly Parts List (P/N 604-999-220)

    RX-20 RX-20 - 230 V Assembly Parts List (P/N 604-999-220) Part Number Description Part Number Description 000-006-009 base, w/Handle - Coat 000-103-012 pin, 1/4 X 7/8” Clevis 000-011-001 bezel, Threaded for 000-157-134 000-105-008 plate, Cast base 000-015-006 bracket, Head Stabilizer 000-106-001 plug,1/8”...

  • Page 47: Repair And Replacement

    Seal Up and Lift Out damaged, replace it with a new seal. HydraMaster recommends changing the felt seal after 10 hours of use. Replace it with a seal that has been pre-soaked in a quality 30 weight SAE motor oil .

  • Page 48: High Pressure Valve Assembly

    RX-20 HIgH PRESSURE VALVE ASSEMBLY In the event that the valve assembly needs to be replaced, follow this procedure: Remove the 440 male quick connect with a wrench. Remove the five hex head screws in the back plate on the handle and lift the back plate off.

  • Page 49: Troubleshooting

    RX-20 10 - Troubleshooting Low Vacuum Flow at the Cleaning Heads Possible Cause Solution 1.1 Hub not sealing properly. Replace felt seal with a lubricated one. 1.2 Restricted air flow. Remove hoses from the vacuum shoe and skid assembly, and clear them of debris. 1.3 Low vacuum flow from power.
  • Page 50 RX-20 Loss of Oil from gearbox Possible Cause Solution Replace damaged oil seal. Refill gearbox with oil. 5.1 loose or ruptured oil seal. No Power Possible Cause Solution 6.1 RX-20 wiring or power Have an electrician inspect unit for possible wiring source.

  • Page 51: Warranty Information

    HydraMaster unless otherwise specified in the listing below. HydraMaster agrees, at its option, to repair at the point of shipment, or to replace without charge, any parts or parts of products of HydraMaster’s manufacture, which within the specified warranty period shall be proved to HydraMaster’s satisfaction to have been...
  • Page 52 All recommended maintenance must be performed by competent service personnel. Records of periodic maintenance must be kept and copies may be required to be furnished to HydraMaster before this warranty is honored. Coverage Schedule frame, Handle, body 3 years...
