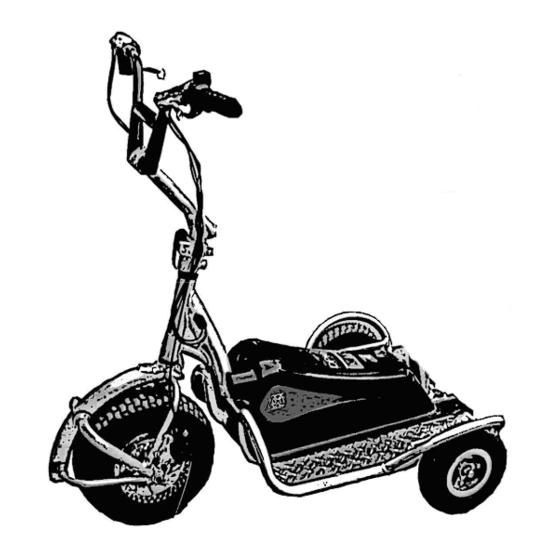

Monty e-bike DPIE 3 User Manual

E-bike
Hide thumbs
Table of Contents

Advertisement

Quick Links

DPIE 3
USER'S MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DPIE 3 and is the answer not in the manual?

Questions and answers

Related Manuals for Monty e-bike DPIE 3

Summary of Contents for Monty e-bike DPIE 3

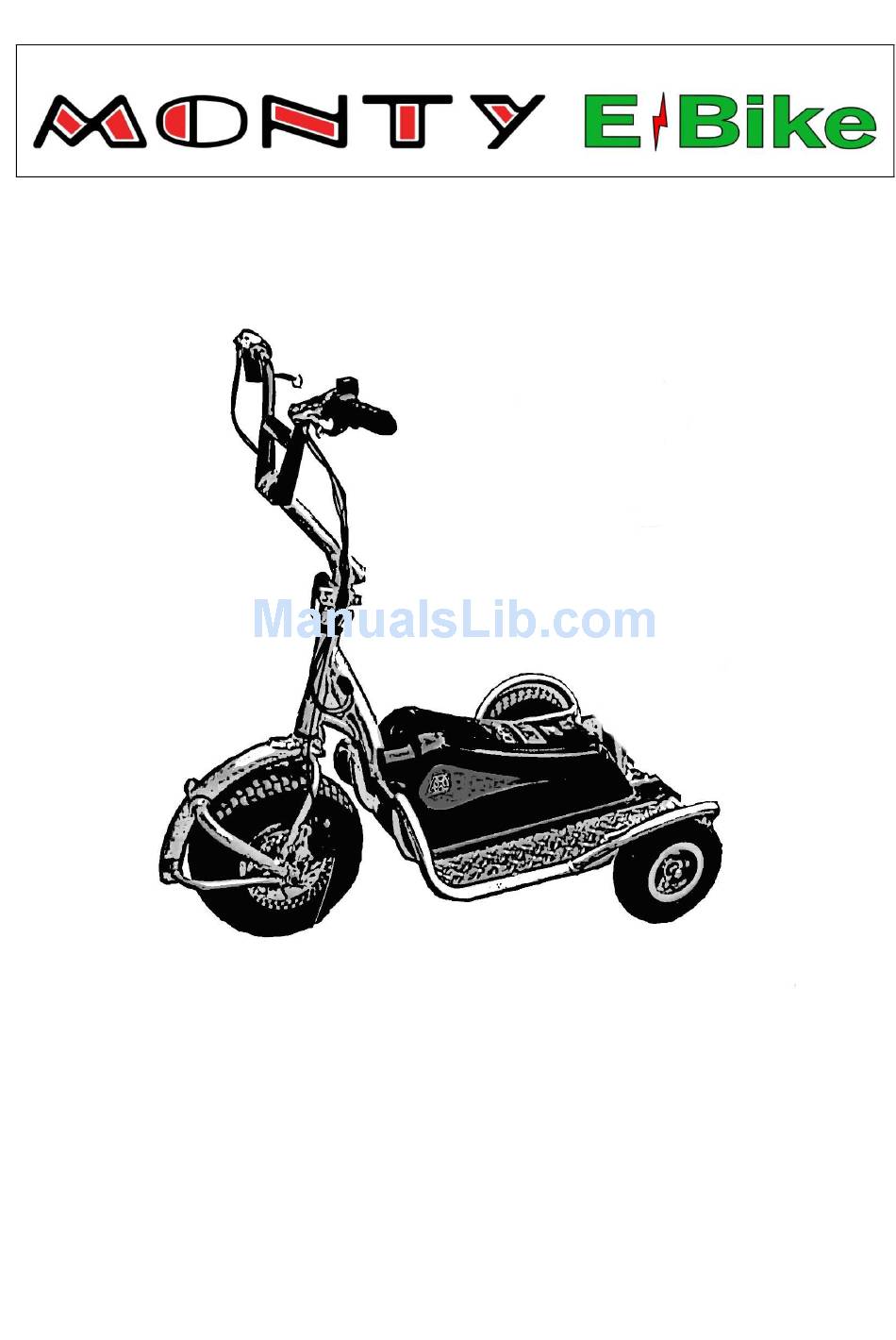

  • Page 1 DPIE 3 USER’S MANUAL...

  • Page 3: Not Correspond With The Precise Characteristics Of Your Dpie

    Please read this manual carefully before using your new electric bike ( hereafter: DPIE 3 ), and save this manual for future reference. If you have any doubts or questions, please contact your authorized Monty dealer. Your DPIE 3 is fitted with a top-quality engine and a battery of long-lasting which will not require much maintenance.

  • Page 4: Important

    IMPORTANT WARNINGS NON-FULFILLMENT OF THE INSTRUCTIONS DETAILED IN THIS MANUAL MAY LEAD TO MECHANICAL FAILURES, A LOSS OF CONTROL AND POSSIBLE FALLS, WITH SERIOUS PHYSICAL INJURIES TO THE USER OR OTHERS, INCLUDING EVEN DEATH INCORRECT USAGE MAY ALSO RISK YOUR PHYSICAL INTEGRITY AND THAT OF OTHERS.

  • Page 5: Table Of Contents

    1. ÍNDEX SECTION PRESENTATION................... IMPORTANT................ ÍNDEX.................... ICONS ............DPIE 3 PARTS..............GENERAL NORMS..............VEHICLE ASSEMBLING ......... USER’S GUIDE..............VERIFICATIONS................ADVICES..................SAFETY................... 10. MECHANICS AND MAINTENANCE 10.1 Wheels ................10.2 Handlebar and Stem............10.3 Headset and Fork............10.4 Brakes................11. BATTERY AND CHARGER 11.1 Battery charging..............

  • Page 6: Dpie 3 Parts

    3. DPIE 3 PARTS 1. THROTTLE 2. IGNITION KEY 3. SADDLE 4. BATTERY LEVEL 5. BRAKE LEVER 6. STEM 7. SEAT POST RELEASE 8. QUICK RELEASE 9. BASKET 10. CHARGER PLUG 11. BATTERY CAGE 12. FORK 13. SEAT SUPPORT 14. DISC BRAKE 15.

  • Page 7: General Norms

    • Please read this manual carefully before using your Monty DPIE 3. • Ensure that the bike works correctly before riding • We recommend you not to change any of the DPIE 3 technical characteristics and not to add any devices which may interfere with them.
  • Page 8 2º How to move the vehicle through the throttle: DPIE 3 is provided with a throttle (6) set to the right grip in order to initiate the move of the vehicle. If one turns opposite to the clock hands, the engine is to speed, if one turns to the clock hands, the engine is to brake.
  • Page 9 3º How to stop or decrease the speed: If one uses the brake lever (1), the engine assistance and the transmission are to be interrupted so one shall grip the brake lever to stop the vehicle. Remember that the DPIE 3 is only provided with a front wheel brake.

  • Page 10: Verifications

    • Correct folding security system. • Correct tight of the quick-fastening clamps. DPIE 3 does not require any initial kind of lubrication, it is prepared to travel the first km. without any type of maintenance, afterwards, the standard maintenance. DPIE 3 and its components shall be checked before riding. Remember that if one detect any problem which can not solved by oneself, please contact with an official dealer.

  • Page 11: Safety

    9. SAFETY DPIE 3 preventive actions 1. To brake or stop the DPIE 3, the user shall grip the brake lever rightly, depending on the circumstances and the engine is to be disconnected automatically. Bear in mind that the brake system works as follows: One shall grip the left lever to brake the front wheel.
  • Page 12 Not to ride stoop, kneeling or any other form except the right one DPIE 3 is not made to get up / get down from the kerbs or to pass obstacles. In case that one should face it, one should get down from the vehicle.

  • Page 13: Mechanics And Maintenance

    ATTENTION: Caution regarding to the intensive use As any mechanical device , DPIE 3 is to wear down with different efforts. The different materials and components used may react differently to this daily decline. If the lasting life of a given component has been exceeded, it may suddenly break, injuring the user.

  • Page 14: Handlebar And Stem

    The air pressure must be checked regularly PRESSURE TABLE Wheel Recommended Maximum Front Rear Equivalences (approx.): 1 Bar = 100 Kpa = 14,5 PSI Wheels removing To remove the wheel in case of a tire getting flat or any other reason, one shall follow the following steps: Front wheel: Make sure that the contact is out and remove the key.
  • Page 15 To fold the DPIE 3 handlebar: (A) to block the handlebar. (Figura 3) (Stem closing system). Figure 3: STEM CLOSING Figure 4: FOLDING FOLDING: First pull out the closing lever (1) (Figure 5) (Open the closing) move the lever down and lateral to open the safety blockade. (Arrow 2) in (Figure 6) (unblocked closing ) Move the stem in the rear direction.
  • Page 16 IMPORTANT: Make sure all the closings to be perfectly blocked, your safety depends on it. The handlebar and stem must be fitted correctly positioned and tightened in a suitable and safety position to the user. Stem adjustment and subjection. The stem is fitted directly to the fork tube, to make the adjustment, the lateral screws shall be loose lightly (Figure 9) (Lateral screws), check the headset as it is explained on the following item and tight the system again.

  • Page 17: Brakes

    If the brakes are not working correctly, one may lose control and fall down. If the DPIE 3 is not working properly, fix it or take it to an authorized dealer.
  • Page 18 Not all brakes are compatible with all types of levers. For any brake, be sure to use only compatible levers such as those that come originally with the DPIE 3. MECHANIC DISC BRAKE The mechanic disc brake press the brake shoes/ pads on the disc placed on the front hub instead of pressing the pads on the rim.
  • Page 19 Important: The brake lever corresponds to the front Wheel. 11. BATTERY AND CHARGE The battery is one of the most important part of the DPIE 3. A correct use of the battery is to last its life. The battery can provide 300 chargers approximately.

  • Page 20: Battery And Charger

    Charger fuse 10 A BATTERY CHARGE INDICATORS El DPIE 3 provides a battery charge indicator on the right grip. (Figure 12). This indicator has 5 light: 3 Green, 1 Orange, 1 Red. It is similar to a traffic lights. Figure 12...

  • Page 21: Battery Charging

    ), the electrical components may not work normally. Actions which may effect or reduce the battery performance. • Constantly starting and stopping the DPIE 3 as it can be driving in cities • Constantly braking and turning the bike on and off •...

  • Page 22: Electric Components

    12. ELECTRIC COMPONENTS CONTROLLER DPIE 3 controller is the nerve centre of the system. It consists of a small box placed under the battery compartment and where all the components are connected. The controller receives all the necessary information from the brakes, engine, battery, etc.

  • Page 23: Cleaning

    as part of the front wheel must be firmly placed as it is explained in the section on the wheels section. Otherwise, there is a risk of a serious problem. Be especially careful with the engine cable which comes from the front wheel axle. Do not bend, cut or damage it in any way.

  • Page 24: Maintenance Chart

    Stem Aluminium, holding type Brakes Front: Disc Tires Front: 13 x 5,00-6 Rear: 2,80/2,50-4 Weight D-PIE 3 :38,15 Kg. Seat + seat post: 2 Kg. Seat support. 1 Kg. Basket: 0.9 Kg Tow: 6.3 Kg. User max. weight 100 Kg. Luggage max.

  • Page 25: Solutions

    16. ADJUSMENT CHART Part Item Adjust Strenght Wheels Front nut 20-25 Nm Rear nut 30-35 Nm Seat height Quick release 100 N* SEAT post Quick release 100 N* Stem ahead Subjection screw 12-15 Nm Adjust screw 10-14 Nm Handlebar screw 12-15 Nm Brake lever clump Fix screw...
  • Page 26 climbing a not very steep Check the fuse and change it if it hill. were necessary ( see technical The fuse is fused section ) 4º The engine stops or Engine overheated Intensive and continuous use of works irregularly after the bike at maximum power may having use the vehicle overheat the engine and its...

  • Page 27: Frequent Questions

    We recommend to protect the vehicle and store it in a covered area, mainly in the coastal areas What happens if the DPIE 3 has not been used for a long time? The maintenance of the battery shall be made even if the vehicle is not used.
  • Page 28 19. CLIENT CONTAC FORM Dear Client, If you want to be kept up-to-date on the latest Monty electrical products, including everything related to the World of the E-bikes, send an e-mail with the following information to: E-bike@monty.es: Name: Address: Zip code: Town: Country: Telephone number:...

  • Page 29: Form

    • By telephone: : 93.632.59.89 We thank you for having dedicated some time to read this manual in order to improve the use of the new DPIE 3. We thank you , as well, for any point of view from your side.
