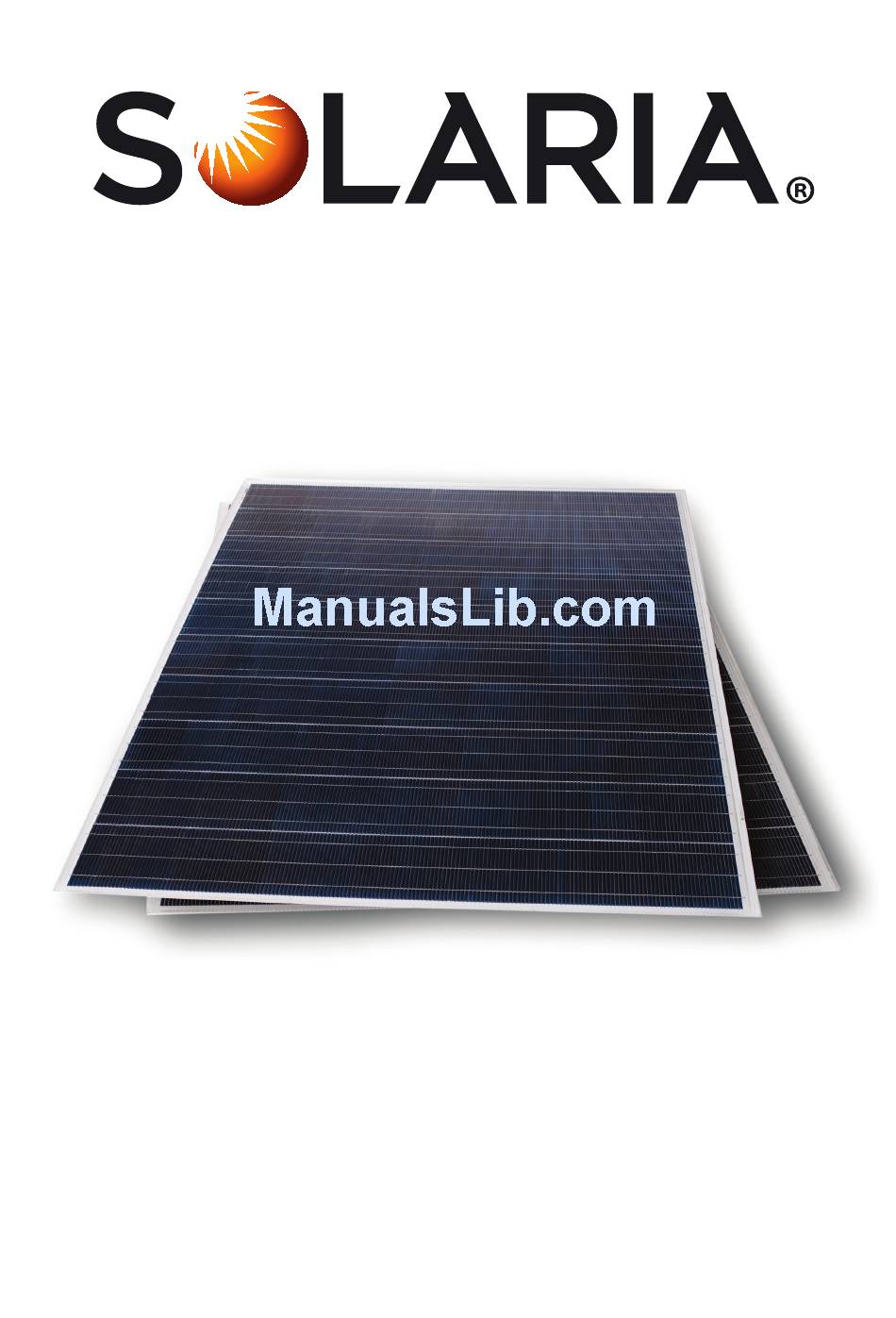

- Page 1 SAFETY, INSTALLATION, AND OPERATIONS MANUAL North America and Europe Solaria Frameless 230W/220W/210W Module Series: Mono-crystalline Solar Panels (156x156mm Cells)
-
Page 2: Limited Warranty
2.1. GENERAL SAFETY Solaria modules are qualified for Application Class A: Hazardous voltage (IEC 61730: higher than 50V DC; EN61730: higher than 120V), hazardous power applications (higher than 240W) where general contact access is anticipated (modules qualified for safety through EN IEC 61730-1 and -2 within this application class are considered to meet the requirements for Safety Class II). -
Page 3: Fire Safety
The roof construction and installation may affect the fire safety of your building, and improper installation may contribute to hazards in the event of fire. ▲ Do not use roof top open rack fixed tilt mountings. Solaria modules are not designed for these mountings. ▲... -
Page 4: Electrical Installation
An additional multiplying factor of 125% (80% de-rating) may be applicable. Refer to section 690-8 of the National Electric Code (NEC) for more information. ▲ All Solaria modules are equipped with factory locking connecting cables. Modules have been designed to be easily connected. DO NOT disconnect the locking connectors under load. - Page 5 All Solaria modules are factory supplied with bypass diodes located in the junction box. These diodes protect shaded cells within a module. Partial shading of a single module in a string of modules causes reverse voltage across the shaded cells.
-
Page 6: Module Mounting
-color 6 of 12 MODULE MOUNTING The Solaria Corporation Limited Warranty for PV Modules is contingent upon modules being mounted in accordance to the requirements described in this section. 4.1. SITE CONSIDERATIONS Solaria modules should be tracker mounted in locations which meet the following requirements: Modules should not be mounted in locations where they will be in direct contact with salt water. - Page 7 4. Install a hex nut and tighten each of the four 5/16”-18 assemblies to 15 foot-pound. SAFETY, INSTALLATION, AND OPERATIONS MANUAL © The Solaria Corporation Contents subject to change without notice. U.S. and International patents issued and pending...
-
Page 8: Module Orientation
5. MAINTENANCE Solaria modules are virtually maintenance free. Following simple maintenance steps will ensure reliable production of DC electric power for the expected life of the product. Inspect electrical and mechanical connections for safety and corrosion at least once every year. -
Page 9: Disclaimer Of Liability
No license is granted by implication or otherwise under any patent or patent rights. The information in this manual is based on Solaria Corporation knowledge and experience and is believed to be reliable; but such information including the product specifications (without limitations) and suggestions do not constitute a warranty, expressed or implied. - Page 10 • Serial Number Label • Traceability for date and place of manufacture SAFETY, INSTALLATION, AND OPERATIONS MANUAL © The Solaria Corporation Contents subject to change without notice. U.S. and International patents issued and pending Document PSC-0004 Rev 02, November 2010...
- Page 11 11 of 12 FRAMELESS MECHANICAL SPECIFICATIONS: Frameless Module Weight: 29 kg (65 lbs) SAFETY, INSTALLATION, AND OPERATIONS MANUAL © The Solaria Corporation Contents subject to change without notice. U.S. and International patents issued and pending Document PSC-0004 Rev 02, November 2010...
- Page 12 4-color 2-color 1-color Solaria USA Solaria Germany Solaria India 1-color 6200 Paseo Padre Pkwy Oranienburger Strasse 23 202 SSH Pride, Plot 273 Fremont, CA 94555 D-10178 Berlin, Germany Road No. 78 United States of America Jubilee Hills, Hyderabad T:+40 30 233 297 97...
