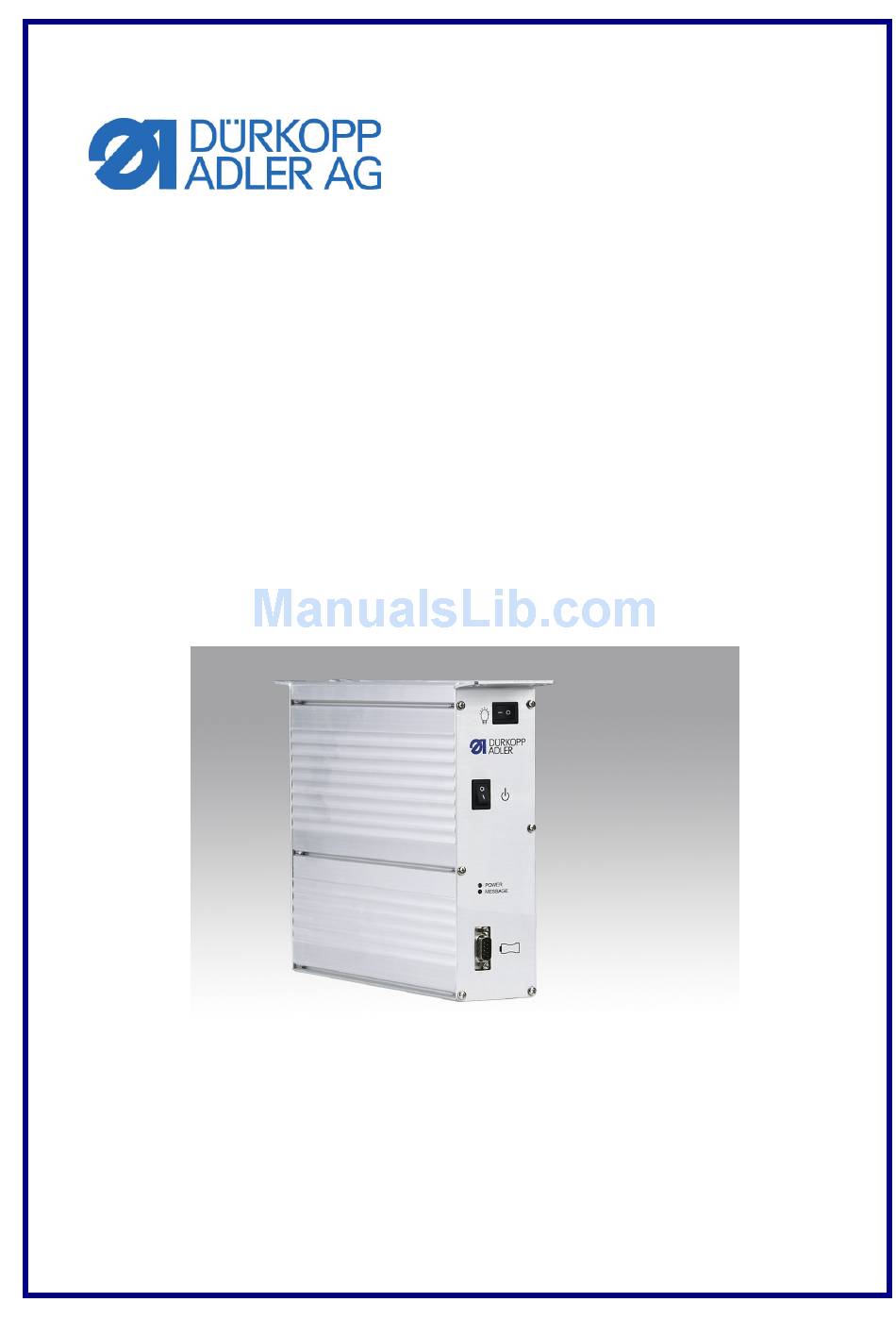

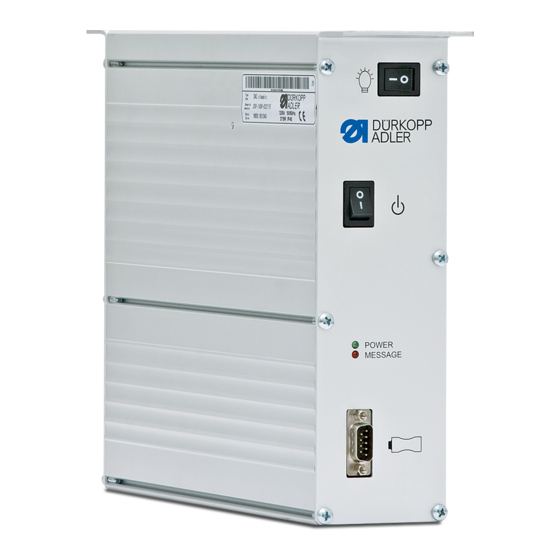

- Page 1 DAC basic/classic operating manual part II class 838 0791 838901 Dürkopp Adler AG, PO Box 17 03 51, D-33703 Bielefeld, Potsdamerstr. 190, D-33719 Bielefeld Phone +49 (0) 521 9 25 00, Fax +49 (0) 521 9 25 24 35, www.duerkopp-adler.com Ausgabe/Edition: May 2013 revision index: B02.3...
- Page 2 Operating manual part II DAC basic/classic © 2013 Dürkopp Adler AG All rights reserved. No parts of this work may be reproduced in any form or by any means - graphic, electronic, or mechanical, including photocopying, recording, taping, or information storage and retrieval systems - without the written permission of the publisher.
- Page 3 Operating manual part II Contents PART II ..........................4 Parameter ......................... 4 Parameter of class 838 ........................4 1.1.1 Operator-level ............................4 1.1.2 Technician-level ...........................5 1.1.3 Developer-level ..........................18 Sets of parameters for class 838 ....................20 Error-, warning- and info-messages ................21 ©...
- Page 4 Operating manual part II PART II Parameter The parameter overview is help a sought-after parameter for finding fast and changing. The construction of the list has already been explained in the list using structure. There are parameters, which can be found in the technicians' and developers' level both different consequences, however, have.
- Page 5 Operating manual part II 1.1.2 Technician-level The technician's level must not be accessed by normal users. Modifications at this level must only be done by service staff. The technician's level is unlocked by the following key combination: When switching on the control unit P (23)and the reset (18) button must be pressed at the same time. This allows access to the technician's level.
- Page 6 Operating manual part II Preset Unity Description 6000 Wished speed reduction when shifting the feed dog. Type of the start backtack, if the backtacking is toggled. 0 = Simple start backtack; 1 = Double start backtack; 2 = Start multiple backtack Type of the end backtack, if the backtacking is toggled.
- Page 7 Operating manual part II Preset Unity Description Thread Clamp Mode of the thread clamp 0 = on switching angle FK = t0101, out switching angle FK = t0102, Without FL; 1 = on switching angle FK = 108° , out switching angle FK = 268° , Without FL;...
- Page 8 Operating manual part II Preset Unity Description Increasing U when the thread clamp magnet will be driven 0 = No; 1 = Yes Thread trimmer Cutting speed Pedal position for starting the cutting process. 0 = Position -2; 1 = Position -1 °...
- Page 9 Operating manual part II Preset Unity Description Motor brake at the normal stop 0 = Brakes for the duration of t0809; 1 = Brake durably actively at the stop 2 = Position will be hold permanently Holding current at the machine stop Reaction rate at changes of the needle position Period of the motor brake Setting the reference position...
- Page 10 Operating manual part II Preset Unity Description Thread tension ° Mode of the thread tension release and thread tension reduction with active foot lifting. 0 = No thread tension release; 1 = Thread tension release in the seam; 2 = Thread tension release after thread trimming; 3 = Thread tension release in the seam and after thread trimming.
- Page 11 Operating manual part II Preset Unity Description Function module Function of module 1 (X2.30) No Function; Additional thread tension; Switch stitch length; Single stitch with stitch length switching; Single stitch backwards with stitch length switching; Lift/lower roller; Lift/lower fabric end stop; Lift/lower edge trimmer;...
- Page 12 Operating manual part II Preset Unity Description Pulse duty ratio in the time period t Increasing U when the output FF3 will be driven 0 = No; 1 = Yes Turning Back Turning back 0 = No; 1 = Yes °...
- Page 13 Operating manual part II Preset Unity Description 9999 1500 Maximum speed for the maximum duty cycle 2,55 0,50 Delay after switch off the edge trimmer for the step trimming process 2,55 0,50 Delay for move out the step trimmer 2,55 0,50 Time for blowing during move out the step trimmer 2,55...
- Page 14 Operating manual part II Preset Unity Description Machine run blockage Machine run blockage 0 = off; 1 = on The mode of operation from machine run blockage switch 0 = NC; 1 = NO Emergency shutdown of the motor or motor places 0 = Emergency shutdown;...
- Page 15 Operating manual part II Preset Unity Description Hardware-Test Bold Inputs or Outputs are only available at DACclassic controls. 1.Analog Um: Supply Voltage in V U24: Supply Voltage for Outputs in V Imo: Current of the 24V supply PAn: Analog value of the pedal Nre: X1.4 Analog Input Ian: X1.1 Analog Input I2T: I²T of the motor (Attention: Footpedal Switch and...
- Page 16 Operating manual part II Preset Unity Description Function of the bartack input (machine connector Pin 5) no function; on threading help; Bartack suppression/recall; Manual bartack; Half stitch; Full stitch; Direction finder position; Turning back Input function module 1 (look at t 11 00); Input function module 2 (look at t 11 30);...
- Page 17 Operating manual part II Preset Unity Description OP1000 Contrast of the display of the OP1000 Button receipt active 0 = No; 1 = Yes Function of the input “F no function; on threading help; Bartack suppression/recall; Manual bartack; Half stitch; Full stitch;...
- Page 18 Operating manual part II 1.1.3 Developer-level Preset Unity Description Bartack ° Mechanical switching angle of the bartack Thread trimmer The FA speed shall angle be reached before switching on the magnets. Chainstitch mode 0 = No; 1 = Yes Increasing U in the thread trimming process 0 = No;...
- Page 19 Operating manual part II Preset Unity Description Miscellaneous of the control Period for raising off Umag on 33V Period for the DeEnergizer process 16,00 16,00 Adjust the PWM frequency Showing machine serial number Showing production date 999,9 x d5111 Reset value of the service counter ( 0 means disabled) x 10000St service counter factor x d5111...
- Page 20 Operating manual part II Sets of parameters for class 838 Parametersatz Für Unterklassen Preset Preset 1000 40,5 54,0 12,00 11,00 II-20 © 2013 Dürkopp Adler AG...
- Page 21 Operating manual part II Error-, warning- and info-messages The control DAC basic or DAC classic has got three groups of messages. In the following table this three groups are described. Level Acronym Description Error Error Switch off the control and eliminate the problem .
- Page 22 Operating manual part II Level Code Error description Corrective - Check the thread lever up position (Position 2) Error 3100 AC RDY timeout , intermediate circuit - Check mains voltage voltage has not reached the defined - If mains voltage OK, replace control unit threshold in the given time.
- Page 23 Information 7801 Wrong software version - Update software (Only DAC classic . Further using only of - Replace control unit DAC basic functions) Information 7802 Update failure - Update software (Only DAC classic . Further using only of - Replace control unit...
