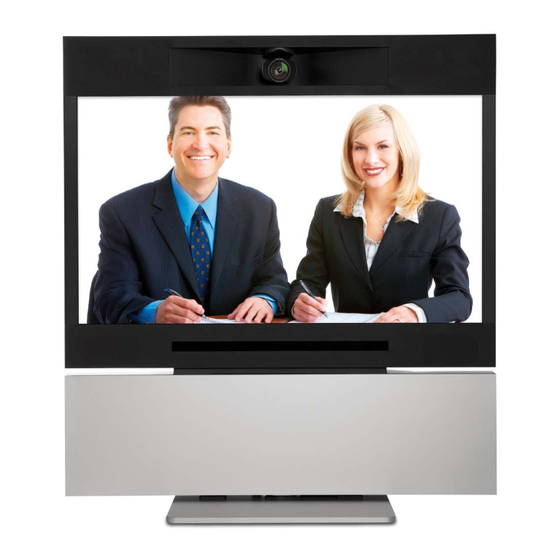

Cisco TelePresence System Profile 65" Installation Manual

65 inch
Hide thumbs

Advertisement

Installing Cisco TelePresence System Profile 65"
PROfILE 65" IS DELIvERED WITH:
Monitor
Column
Foot module (stand-alone or wall stand)
Grille
Camera
Touch 8" interface device
Remote control
Microphones
Accessories
1
Unpacking the foot module
Lift out to open
the snap lockers.
fOOT MODULE (25 kG / 55 LbS)
1.
Open the snap lockers
HEAvY
CAUTION
2.
Lift out the foot module box
3
Mounting the column to the foot module to complete the bottom module
PERSON 1:
Lift here.
MOUNTING THE BOTTOM MODULE
PERSON 2:
1.
Lift here.
2.
3.
Front
When the bottom module is finished,
the hole in the foot module should be
visible on the rear side only.
The illustration shows the stand-alone
foot module. The wall stand foot module
is mounted in the same way.
78-19779-02 Profile 65 Installation Sheet | April 2012 | © 2010-2012 Cisco Systems, Inc. All rights reserved.
PRECAUTIONS
Follow the steps in this installation guide when unpacking and
assembling the Profile 65".
A minimum of four (4) persons are required during the installation of the
system.
• The monitor box requires four (4) persons to lift.
• The column requires two (2) persons to lift.
• The foot module requires two (2) persons to lift.
NOTE:
The floor must be in level.
WEIGHTS Of THE DIffERENT UNITS (PACKAGING INCLUDED)
• Monitor box: 110 kg / 243 lbs
• Column: 40 kg / 88 lbs
• Foot module box: 25 kg / 55 lbs
• Accessories, camera, Touch 8" and grille boxes: 8 kg / 17.6 lbs
STAND-ALONE FOOT MODULE
Front
WALL STAND FOOT MODULE
Rev. Date
Prep.
Checked Change
Telecom AS
Sheet 1 of 1
Processes
Tolerances
Specification:
Front
-
Type:
European
-
Manufacturer:
117000 rev.
projection
-
Type number:
Thickness:
Eagle
Unit:
mm
Dimensions without paint or finish
Color:
Sheet size:
A4
Surface:
All materials, finishes, and proccesses
Glossiness:
Scale:
1:10
must comply with the RoHS directives
Flame class:
3D CAD model file 117000
rev. 00Z+ is master
Part weight:
108964g
Flame class requirement: -
UL reference:
ACCESSORIES TO THE fOOT MODULE
• Orange level adjustment tool
• 4 × Nuts
Rev. Date
Prep.
Checked Change
• Wall brackets (wall stand only)
Sheet 1 of 1
Processes
Tolerances
Specification:
Material
Telecom AS
-
Type:
-
European
-
Manufacturer:
-
117000 rev.
projection
-
Type number:
-
• Spacer (wall stand only)
Thickness:
-
Eagle
Unit:
mm
Dimensions without paint or finish
Color:
-
Sheet size:
A4
All materials, finishes, and proccesses
Surface:
-
must comply with the RoHS directives
Glossiness:
-
• Allen key (wall stand only)
Scale:
1:10
Flame class:
-
3D CAD model file 117000
rev. 00Z+ is master
Part weight:
108964g
Flame class requirement: -
UL reference:
-
Lift the column and place it carefully
on the foot module.
When looking down through the
column you can see the four screws
in the foot module.
Make sure the screws enter the
corresponding holes in the column.
Open the front door to access the
screws. Secure the column to the
foot module with four nuts. The nuts
are found in the plastic bag. See the
illustration to the right.
Fasten the 4 nuts
(two on each side
of the system).
UNPACKING THE SYSTEM AT THE DESTINATION
It is highly recommended to start the unpacking and assembling of
Profile 65" at the place where the system is to be used.
Check the dimensions of the lift if you need to use a lift for the
transportation.
Outer dimensions and total weight of the main unit (package included):
• Height: 145 cm / 57.1 in.
• Width: 76 cm / 29.9 in.
• Length: 170 cm / 66.9 in.
• Weight: 183 kg / 402 lbs
NOTE:
If it is not possible to bring the main unit to the destination,
follow step 1–2 and bring the smaller units to the destination.
2
Unpacking the unit
Lift out to open
the snap lockers.
Material
Surface treatment
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
1.
Place the unit on a stable surface.
2.
Open the snap lockers to remove
outer cover.
3.
Locate the different parts.
4.
Lift out the camera, Touch 8",
grille and accessories boxes.
Surface treatment
-
5.
Remove the packaging above and
-
-
-
around the column and monitor
-
-
-
box.
-
-
The illustration shows
a cross section of
the bottom module
(column and foot
module).
Page 1
DIMENSIONS (WHEN ASSEMBLED)
The Profile 65" system has the following dimensions:
• Height: 167 cm / 65.7 in.
• Width: 153 cm / 60.3 in.
• Depth: Stand-alone: 66 cm / 26 in.
USER DOCUMENTATION
User guides and compliance and safety information for this product are
available on the Cisco web site:
The Video conferencing room primer and Video conferencing room
acoustics guidelines documents contain information about optimizing a
meeting room for video conferencing.
Monitor box
Outer cover
Grille box
Touch 8" box
Accessories box
Camera box
Foam to protect
the column
Column
4
Key lock and levelling adjustment
The level adjustment tool is found in
the foot module box. The key lock
tool is found in the accessories box.
Lock
Unlock
KEY LOCK
Place the orange key on the key
lock and turn clockwise to lock,
counterclockwise to unlock.
Wall stand, with short bracket: 44.7 cm / 17.6 in.
Wall stand, with long bracket: 52.2 cm / 20.6 in.
http://www.cisco.com/go/profile-docs
MONITOR bOX
COLUMN
(110 kg / 243 lbs)
(40 kg / 88 lbs)
HEAvY
HEAvY
AND
AND
BULKY
BULKY
REQUIRES:
REQUIRES:
4 PEOPLE TO LIfT
2 PEOPLE TO LIfT
CAUTION
CAUTION
ACCESSORIES BOX
• Power cables
• Wrench
• Microphones
• key lock tool
• Remote control
• Gloves
• batteries
• Cleaning cloth
ADJUST UP
Place the level adjustment tool as
illustrated. Seen from above, turn
clockwise to adjust the height up.
ADJUST DOWN
Place the level adjustment tool at
the opposite side of the wheel.
Turn counterclockwise to adjust
the height down.
