FSG 5W
VHF/AM WATERPROOF
HANDHELD TRANSCEIVER
Operation Manual
Before operating the Transceiver,
please read this manual thoroughly!
Document No.
Article No.
Revision No.
Date of Revision
86899 Landsberg
Keep for future use!
029.HB.04E
November 2009
Avionics Division
Germany
Fax +49 (0)8191/ 3351-49
Internet: www.dittel.com
D10177
7
Advertisement
Table of Contents
Related Manuals for Dittel FSG 5W
Summary of Contents for Dittel FSG 5W
-
Page 1: Before Operating The Transceiver
Telephone +49 (0)8191/ 3351-0 Fax +49 (0)8191/ 3351-49 E-Mail: info@dittel.com Internet: www.dittel.com Dittel Messtechnik GmbH is certified to DIN EN ISO 9001:2000 and DIN EN ISO 14001:2005. It is an accredited manufacturer of aeronautical equipment DE.21G.0100, maintenance facility DE.145.0245, and development facility ETSO-2C37e/ETSO-2C38e. -
Page 2: Safety Information
The information in this Operation Manual does not profess to include all the details of design, production, or variation of the equipment, or to cover all the possible contingencies which may arise during operation or maintenance. Should any unusual problem arise or further information be desired, please contact the Dittel Messtechnik GmbH Sales Department. Subject to modification... - Page 3 FSG 5W OPERATION MANUAL FSG 5W DIMENSIONS November 2009 D10177...
-
Page 4: Table Of Contents
FSG 5W OPERATION MANUAL Table of Contents Section 1, General Description ..................5 1.1 Introduction......................5 1.2 Equipment Description ....................5 1.3 Modes of Operation ....................6 1.4 Scope of Delivery ....................7 1.5 Optional Accessories....................7 Section 2, Charging and Battery Test..............2.1 Battery Information....................9 2.2 Battery Replacement.....................9... -
Page 5: Section 1, General Description

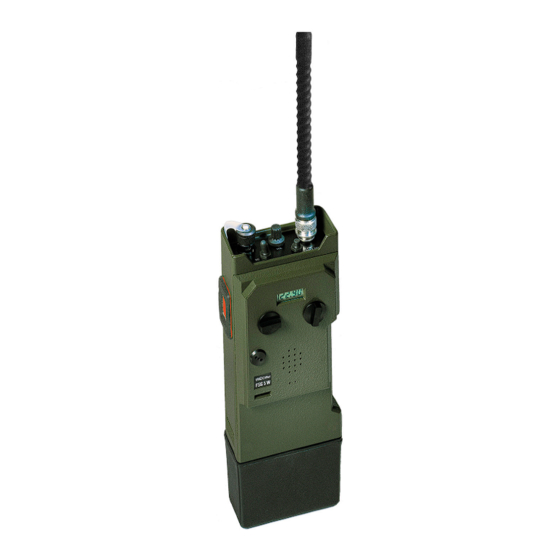

Illustrated Parts List. Equipment Description The basic model FSG 5W is the heavy-duty water- and dustproof version of the proven self-contained portable hand-held AM transceiver FSG 5 with extended fre- quency range. It operates throughout the VHF band 118.000 to 143.975 MHz with 25 kHz channel spacing, thus providing 1,040 communication channels in every single unit, being down compatible to ICAO Annex 10. -
Page 6: Modes Of Operation
‘135.92’) in a liquid crystal display (LCD) on the front cover. The LCD is lighted by LEDs when pressing the ‘LAMP/BATT. TEST’ button on top of the case. The FSG 5W also offers a transmit sidetone output as standard. Receive/sidetone audio volume is adjustable in five steps. Accessory like voice operated PTT keys can be supplied via the accessory socket with switchable 12 VDC from the radio’s... -
Page 7: Scope Of Delivery
FSG 5W OPERATION MANUAL Scope of Delivery VHF/AM hand-held Transceiver FSG 5W, 1,040 channels, frequency range 118.000 MHz to 143.975 MHz, ready for use; including attached battery pack, helical antenna, and Operation Manual. Optional Accessories Various audio, control, antenna, and charger accessories allow mobile flight co-or-... - Page 8 FSG 5W OPERATION MANUAL THIS PAGE INTENTIONALLY LEFT BLANK D10177 November 2009...
-
Page 9: Section 2, Charging And Battery Test
Charging and Battery Test Battery Information The Snap-On type battery pack of the radio FSG 5W contains a top quality re- chargeable nickel-metal hydride (Ni-MH) battery 12 VDC / 1.5 Ah. It provides sufficient electrical DC power to supply the radio and other connected special accessory. -
Page 10: Battery Test
FSG 5W OPERATION MANUAL Battery Test The battery status should be checked repeatedly/frequently after battery replace- ment and/or before important missions begin. Disconnect charger or remove radio from drop-in charger before testing, if applicable. Press LAMP/BATT. TEST button (4) for a few seconds. -
Page 11: Recharging The Battery Using Dl-5A/5W
• Charging should be done within the ambient temperature range of 10°C to +40°C, otherwise the battery may not be fully charged. • The VHF Transceiver FSG 5W with attached battery pack may be operated while being inserted into the drop-in charger, e.g. for temporary fixed base use. - Page 12 FSG 5W OPERATION MANUAL D10177 November 2009...
-
Page 13: Section 3, Operating Instructions
Operating Instructions Introduction A view of the transceiver FSG 5W is given on the last page of this Manual. Please fold out the back flap when reading the operating instructions. Each number of a control, switch, etc. corresponds to the number of the control, switch, etc. given below. -
Page 14: Operation In The Transmit Mode
• Verify that the display (6) shows your desired operating frequency. • Hold the transceiver FSG 5W in the left hand, with the microphone area (10) as close as possible to the upper lip. This technique is necessary because the noise cancelling feature of the micro- phone favors sound close to the microphone and discriminates against sounds away from the microphone. -
Page 15: Switching Off
• An external power supply (12 VDC from car or aircraft supply, negative ground) or a battery charger may also connected via socket (1). Even the 12 VDC supply of external accessories like our VOX 90 is possible (then the FSG 5W must be switched ON) •... -
Page 16: Tips To Obtain Maximum Radio Range
Hold antenna neither close to your skin, eyes, other electronic equipment, nor touch it! Functional Checks When the transceiver FSG 5W does not operate correctly, check the following: • Is desired operational frequency adjusted? • Carry out a battery test without any charger or external supply connected. -
Page 17: Section 4, Technical Data
FSG 5W OPERATION MANUAL Section 4 Technical Data General Dimensions : 232 mm × 87.5 mm × 54 mm (without antenna) Weight : 1,100 g including battery and helical antenna : 118.000 … 143.975 MHz / 1,040 channels, Frequency range... -
Page 18: Receiver
FSG 5W OPERATION MANUAL Receiver Sensitivity : 1 µV / 50 Ω or less for 6 dB S+N/N, 1 kHz/m = 30% Squelch : AM/Pulse combined, automatic, defeatable, threshold internally adjustable Selectivity : 6 dB or less at ± 8 kHz 40 dB or more at ±... -
Page 19: Appendix A Certificate
FSG 5W OPERATION MANUAL Appendix A Certificate November 2009 D10177... -
Page 20: D10177 November
FSG 5W OPERATION MANUAL THIS PAGE INTENTIONALLY LEFT BLANK D10177 November 2009... - Page 21 FSG 5W OPERATION MANUAL FSG 5W Operator's switches, controls and indicators November 2009 D10177...
