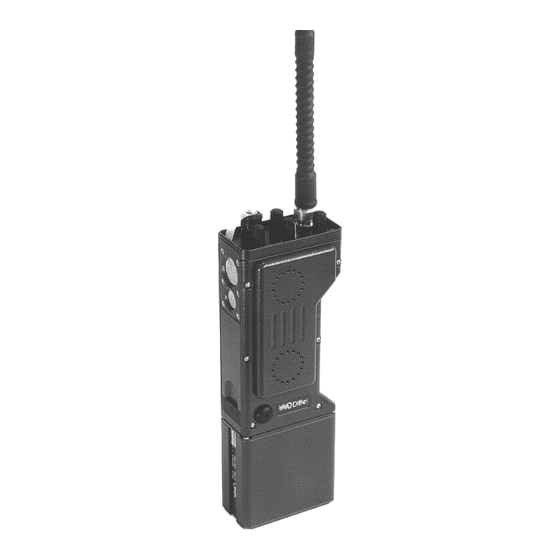

Water- and dustproof handheld uhf/am transceiver incl. vox function

Advertisement

Dittel Messtechnik GmbH
Erpftinger Straße 36
Telephone +49 (0)8191 / 3351-0
Dittel Messtechnik GmbH is certified to DIN EN ISO 9001:2000 and DIN EN ISO 14001:2005. It is an accredited manufacturer of aeronautical
equipment DE.21G.0100, maintenance facility DE.145.0245, and development facility ETSO-2C37e/ETSO-2C38e.
FSG 7016
WATER- and DUSTPROOF
HANDHELD UHF/AM
Operator's Manual
Before operating the Transceiver, please
Please observe the Safety Information!
e-mail: info@dittel.com
TRANSCEIVER
incl. VOX FUNCTION
applies for FSG 7016, article no F10165
read this manual thoroughly!
Document No.
Article No.
Revision No.
Date of Issue
86899 Landsberg
Fax +49 (0)8191 / 3351-49
Keep for future use!
OM 030/1.00-E
November 2009
Avionics Division
Internet: www.dittel.com
D10011
7
Germany

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 7016 and is the answer not in the manual?

Questions and answers

Summary of Contents for Dittel 7016

  • Page 1 FSG 7016 WATER- and DUSTPROOF HANDHELD UHF/AM TRANSCEIVER incl. VOX FUNCTION Operator's Manual applies for FSG 7016, article no F10165 Before operating the Transceiver, please read this manual thoroughly! Please observe the Safety Information! Keep for future use! Document No.
  • Page 2: Warranty - Copyright - Service

    FSG 7016 Operator’s Manual Warranty - Copyright - Service Warranty The details and data in this operator's manual correspond to the respective state of technology on the day of printing. We reserve our right to change without prior notice due to new technological design or corresponding new production technology.
  • Page 3: Table Of Contents

    Voice Controlled Transmit Operation (VOX) ..............27 Switching OFF......................27 4.10 Siting ..........................28 4.11 Functional Checks......................28 Section 5, Technical Summary of Transceiver FSG 7016 ............29 Leading Particulars....................... 29 Transmitter Characteristics: ..................29 Receiver Characteristics: ..................... 30 Physical and Environmental Data: ................30 Certificates ............................31...
  • Page 4: Abbreviations And Acronyms

    FSG 7016 Operator’s Manual Abbreviations and Acronyms Aircraft Millisecond (1/1000 sec) Article Number (Dittel Milliwatt (10 Messtechnik GmbH) Nautical miles (1.852 km) Automatic Gain Control Nanowatt (10 Ampere hour Peak Envelope Power Amplitude Modulation Phase-Locked Loop Antenna Parts per million...
  • Page 5: Safety Information

    SAFETY INFORMATION Every radio, when transmitting, radiates energy into the atmosphere that may, under certain conditions, cause the generation of sparks. All users of our UHF/AM Transceiver FSG 7016 should be aware of the following warning: +++ Do not operate this radio in an explosive atmosphere +++ (gas, petroleum fuels, solvents, dust, etc.)!
  • Page 6 FSG 7016 Operator’s Manual THIS PAGE INTENTIONALLY LEFT BLANK D10011 November 2009...
  • Page 7: Section 1, General Description

    Section 1 Introduction This Operator's Manual contains information relative to the physical, mechanical and electrical characteristics of the Dittel Messtechnik GmbH FSG 7016 handheld water- and dustproof UHF/AM Communications Transceiver with VOX controlled transmit. This excellent transceiver system FSG 7016, article no F10165, manufactured by...
  • Page 8: Modes Of Operation

    • When operating the FSG 7016 together with a speaker/microphone A/N F10168, the FSG 7016 speaker is disabled during receive. When pressing the PTT key at the speaker/microphone, the FSG 7016 microphone will be disabled! •...
  • Page 9: License Requirement

    TNC connector ........E55275 TNC antenna coaxial cable connector, solder type ......... E08976 DL-5A/7016 drop-in automatic 10 hr. automatic desktop Ni-MH charger, 115/230 VAC, temperature controlled, autoswitching to trickle rate..F10167 Spare Ni-MH battery 12 Vdc/1,500 mAh, protected, sealed....E58155 Hand-holder complete, with adjustable strap, hook and loop fastener..
  • Page 10: General Description

    FSG 7016 1 General Description THIS PAGE INTENTIONALLY LEFT BLANK D10011 November 2009...
  • Page 11: Section 2, Charging And Battery Test

    Section 2 Battery Information The snap-on type battery pack of the radio FSG 7016 contains ten top quality rechargeable Ni-MH batteries with a capacity of 1,500 mAh. They provide sufficient electrical DC power to supply the radio and other connected special accessory.
  • Page 12: Recharging The Battery Using Dl-5A/7016 Drop-In Charger

    • Charging should be done within the ambient temperature range of 10°C to +40°C, otherwise the battery may not be fully charged. • The UHF Transceiver FSG 7016 with attached battery pack may be operated while being inserted into the drop-in charger, e.g. for temporary fixed base use.
  • Page 13: Battery Test

    Continuous starts a few minutes before the radio switches OFF itself automatically due to low battery supply voltage. Release the side TEST key 9 . Continue to program frequencies and TX power output of the transceiver FSG 7016. November 2009...
  • Page 14 FSG 7016 2 Charging and Battery Test THIS PAGE INTENTIONALLY LEFT BLANK D10011 November 2009...
  • Page 15: Section 3, Windows Programming Using Programming Software V2.0

    (A/N F10173) Section 3 Introduction IMPORTANT! • Each radio FSG 7016 leaves the factory with frequencies and RF output power programmed for testing purposes. Therefore it is absolutely necessary to program your radio first before using. Hard- and Software Requirements...
  • Page 16 • Menu to select Communications COM port Interface. • Automatic communications failure warning. • Two headline indications: FSG 7016 Firmware read-out, and setting file name. • Help: FSG 7016 Firmware version, FSG 7016 Prog control program version. • Exit the program.
  • Page 17: Control Window Command Information Instruction

    “Mouse click opens Single-Channel Editing”, this allows drag and drop of information associated from any grey CH No. to another grey CH. Additional Field(s) information shows FSG 7016 hardware version information / date. FSG Settings Settings from/into File shows file name from which the setting information is originated.
  • Page 18: Edit Individual Settings Temporarily

    Power of the channel concerned. This opens the Setting window. • New channel setting(s) will change the actual function of this channel accordingly, but only temporarily as long as the COM link to the FSG 7016 remains active. • Any setting change removes the “Programmed” status confirmation mark.
  • Page 19: Section 4, Operating Instructions

    TEST key on the left side, and operating instructions. Operator's Switches, Controls and Indicators A view of the transceiver FSG 7016 is given on the last page of this Manual. Please fold out the back flap when reading the operating instructions. Each number of a control, switch, etc.
  • Page 20 FSG 7016 4 Operation ANTENNA SOCKET : TNC screw type, 50 Ohms. To connect mobile UHF helical antenna or any grounded 50 Ω UHF antenna with TNC cable connector. VOLUME CONTROL : A seven-step potentiometer, which is active when the transceiver is operated in the •...
  • Page 21 FSG 7016 4 Operation EXTERNAL ACCES- SORY CONNECTOR Pin assignment: (cont'd) A: Phone OUT 8 … 600 Ohms; B: Common GND; C: External MIC IN, 4 … 600 Ohms/0.35 … 10 mV; D: DATA TX; E: DATA RX; F: External PTT key IN (against ground);...
  • Page 22: Preparation For Use

    RF radiation to the human body, a very good antenna radiating efficiency is also obtained for long radio communications distance. • When using the FSG 7016 in buildings, vehicles or aircraft, the radio should always be operated on a suitable external - DC grounded - antenna. Assure appropriate lightning protection where elevated outdoor antennas are used.
  • Page 23: Operation In The Receive (Listen) Mode

    The 'VOL' Control 4 will now control the audio level applied to the external loudspeaker or headset, as applicable. • When the FSG 7016 is operated with a combined speaker/ microphone (A/N F10168), receive is only audible in the speaker/ microphone.
  • Page 24: Operation In The Transmit (Talk) Mode

    • Verify that 'CH' switch 5 is set to the desired operating channel 1 … 16. • Monitor the appropriate channel whether it is busy or not! • Hold the transceiver FSG 7016 vertically in the left hand, with the microphone area 11 as close as possible to the upper lip.
  • Page 25: Matching An External Microphone

    • Connect an external microphone (4 … 600 Ohm, may be part of a headset or helmet) to the accessory socket 7 of transceiver FSG 7016. Align white dot of the cable connector with the white dot of the chassis accessory socket 7 .
  • Page 26: Operation Using A Headset Or Helmet

    Operation using a Headset or Helmet • When a headset or helmet with an external microphone is connected to the FSG 7016, both the radio's microphone and loudspeaker are automatically disabled. • The use of an external microphone always requires proper microphone sensitivity matching using the 'EXT MIC SENS' switch 6 , refer to paragraph 4.6.
  • Page 27: Voice Controlled Transmit Operation (Vox)

    Otherwise you have to repeat! • Familiarise yourself with the VOX function before any mission! To operate the FSG 7016 in VOX Mode, proceed as follows: • Verify that 'CH' switch 5 is set to the desired operating channel 1 … 16.
  • Page 28: Siting

    4.11 Functional Checks If the transceiver FSG 7016 does not operate correctly, check the following: • Is the required channel adjusted with the 'CHAN' knob? Adjust required channel! • Is battery supply sufficient? Press and hold side TEST key, observe 'TX BATT' LED or listen to battery status tone, particularly during transmit.
  • Page 29: Section 5, Technical Summary Of Transceiver Fsg 7016

    FSG 7016 5 Technical Summary Technical Summary of Transceiver FSG 7016 Section 5 Leading Particulars Handheld UHF/AM Aviation Transceiver FSG 7016 Model: Article-No. F10165 Frequency Range: 225.000 MHz to 399.975 MHz Channel Spacing: 25 kHz Number of Channels: 16 pre-set channels out of 7,000 channels...
  • Page 30: Receiver Characteristics

    FSG 7016 5 Technical Summary Receiver Characteristics: Receiver Sensitivity: ≤ 1 µV (-107 dBm) for 6 dB s+N/N, 1 khz, m = 30% Squelch: sophisticated AM/FM Squelch, can be switched off Selectivity: ≥ 60 dB @ ± 17 kHz / ≥ 70 dB @ ± 25 kHz...
  • Page 31: Certificates

    FSG 7016 Certificates Certificates November 2009...
  • Page 32 FSG 7016 Certificates D10011 November 2009...
  • Page 33 FSG 7016 Operator’s Manual FSG 7016 Operator's Switches, Controls and Indicators November 2009 D10011...
