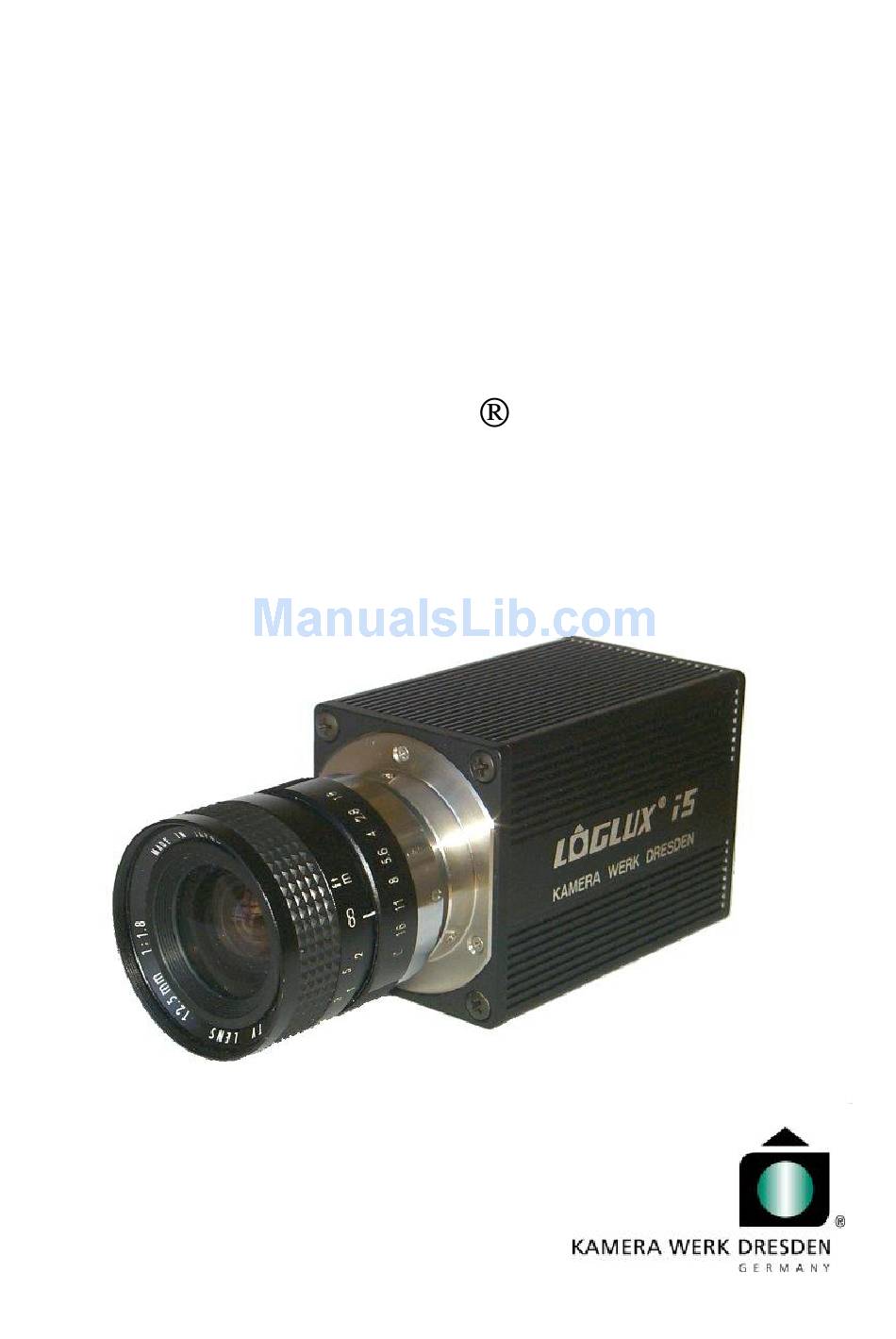

- Page 1 Manual CMOS Industrial Camera LOGLUX i5 CL Version 1.08 (July 2004)
-
Page 2: Table Of Contents
The CMOS large-area sensor IBIS5 ... 5 The dynamic (contrast) range of the IBIS5 sensor... 6 The shutter modes of the IBIS5 sensor... 8 The look-up tables (LUTs) of the CMOS industrial camera LOGLUX i5 CL ... 9 ™ The CameraLink image data interface... - Page 3 - Complete revision of chapter ‚Function group ‚Camera profiles‘‘, integration of the trigger and switching module in the firmware-version camera [V.1.22 (uC), V.1.004 (FPGA)] (renaming and addition of registers, address relocations, etc.) - Addition of figure ‚View of a split cable‘ in chapter ‚Installation of the CMOS industrial camera ® LOGLUX i5 CL‘...
-
Page 4: Introduction
The below chapters will enable the user to operate a camera system including a CMOS industrial camera LOGLUX i5 CL, and to fully exploit the camera functions by applying the supplied LOGLUX LuxWare configuration tool. -
Page 5: The Cmos Industrial Camera Loglux I5 Cl
Manual: CMOS Industrial Camera LOGLUX i5 The CMOS industrial camera LOGLUX i5 CL The CMOS industrial camera LOGLUX i5 CL is one of the latest and most modern products from the ‚industrial image processing CMOS camera‘ range of KAMERA WERK DRESDEN GmbH. -
Page 6: The Dynamic (Contrast) Range Of The Ibis5 Sensor
Manual: CMOS Industrial Camera LOGLUX i5 The dynamic (contrast) range of the IBIS5 sensor In contrast to, say, CMOS sensors for multimedia applications, the IBIS5 has a very wide dynamic (contrast) range. This parameter describes the sensor's capability to show both very bright and very dark image parts in the active frame. - Page 7 Manual: CMOS Industrial Camera LOGLUX i5 Upon the completion of the last integration cycle, the residual potentials of the pixels are inverted and translated into digital numerical values. Please note that the multiple integration slope mode does not work when the rolling shutter mode is selected.
-
Page 8: The Shutter Modes Of The Ibis5 Sensor
The ‚central/snapshot shutter‘ mode should be used whenever undistorted images of moving objects are needed. Compared with the ‚rolling/curtain shutter’ mode, the image rate is lower. Page 8 of 46 Manual: CMOS Industrial Camera LOGLUX i5 KAMERA WERK DRESDEN GmbH... -
Page 9: The Look-Up Tables (Luts) Of The Cmos Industrial Camera Loglux I5 Cl
The possibility of immediate real-time data manipulation in the camera is a great advantage of the CMOS industrial camera LOGLUX i5 CL. In addition to the fixed-programmed functions such as bit shifting operations, three user-specific, configurable look-up tables (LUTs) are available for the purpose. -
Page 10: Operation Of The Complete Loglux I5 Cl Set Camera System
Note: You need to have administrator rights for the respective PC if you want to install hardware or software components! Page 10 of 46 Manual: CMOS Industrial Camera LOGLUX i5 Optimum desktop PC system Pentium III/IV or Athlon XP processor >2.0GHz... -
Page 11: Installation Of The Cmos Industrial Camera Loglux I5 Cl
LOGLUX i5 CL is very easy. First mount the CMOS industrial camera LOGLUX i5 CL in a safe and stable manner. Use the slot on the bottom of the camera housing and the associated keys for the purpose, where possible, as these allow safe fastening to various modular design systems having fitting counterparts. -
Page 12: Description Of The Loglux Luxware Configuration Tool
It is a special feature of the CMOS industrial camera LOGLUX i5 CL that the user can manipulate the image data in the camera using up to three selectable look-up tables. The LUT load and storage functions required for the purpose are provided by the software. -
Page 13: The Start Menu
Manual: CMOS Industrial Camera LOGLUX i5 The start menu Figure 9 : The start menu KAMERA WERK DRESDEN GmbH Version 1.08 (04/07) When starting the software for the first time, a window will appear after some time that shows the image processing (IP) hardware of the PC... -
Page 14: The Configuration Menu
The configuration window is subdivided into four panels. Figure 10 : The configuration menu Page 14 of 46 Manual: CMOS Industrial Camera LOGLUX i5 At the top of the window is a 'Disconnect' button which is used to return to the IP hardware scan. -
Page 15: The 'Camera Globals' Menu
Manual: CMOS Industrial Camera LOGLUX i5 The 'Camera globals' menu This menu is used for renaming the selected camera, setting the communication speed, selecting the camera profile, and displaying two camera temperature values. Figure 11 : The 'Camera globals' menu KAMERA WERK DRESDEN GmbH Version 1.08 (04/07) -
Page 16: The 'Profile Globals' Menu
Figure 12 : The 'Profile globals' menu Page 16 of 46 Manual: CMOS Industrial Camera LOGLUX i5 The user can change the name of the selected profile in the 'Profile Name' input field. All... -
Page 17: The User Profile Parameters
'width of the ROI' and 'height of the ROI'. The graphic 'ROI position' display gives an indication of the position and size of the ROI set relative to the full CMOS sensor area. Page 17 of 46... -
Page 18: The 'Trigger' Profile Menu
Figure 14 : The ‚Trigger‘ profile menu trigger frequency is largely dependent on the integration time of the individual image. Page 18 of 46 Manual: CMOS Industrial Camera LOGLUX i5 24V, see chapter Under 'Trigger Source' the user can choose... -
Page 19: The 'Switchport' Profile Menu
Manual: CMOS Industrial Camera LOGLUX i5 The ‚Switchport‘ profile menu This menu serves the setting of the signal sources, switch signal delay, switch signal length, and polarity of a switch signal using one of the two camera switchports (0 and 1). - Page 20 The raw (i.e. not pre-processed) sensor greyscale value versus object light intensity diagram gives a survey of the sensor conversion function in the individual integration steps. Page 20 of 46 Manual: CMOS Industrial Camera LOGLUX i5 With 'Exposure precalculation' and 'Manual exposure configuration' the user is given two...
-
Page 21: The 'Sensor' Profile Menu
Manual: CMOS Industrial Camera LOGLUX i5 The ‚Sensor‘ profile menu Sensor-specific parameters are entered in this menu. These include the pixel clock rate, the shutter mode, the ADC amplification, and the gamma correction option. Figure 17 : The ‚Sensor‘ profile menu KAMERA WERK DRESDEN GmbH Version 1.08 (04/07) -
Page 22: The 'Output Data' Profile Menu
(LUTs). These include bit rotation operations, inversions, and test image generation. Figure 18 : The ‚Output data‘ profile menu Page 22 of 46 Manual: CMOS Industrial Camera LOGLUX i5 Under 'Transfer mode' the user can select one of the following functions: Bypass... -
Page 23: The 'Special Function' Menu
Manual: CMOS Industrial Camera LOGLUX i5 The 'Special Function' menu This menu is used for configuration of special additional functions if camera has a custom-designed camera firmware inside. In standard delivery the camera has no custom-designed camera firmware inside. Figure 19 : The ‚Special Function‘ menu KAMERA WERK DRESDEN GmbH Version 1.08 (04/07) -
Page 24: The 'Look-Up Table X' Menu
Figure 20 : The 'Look-up table x' menu Page 24 of 46 Manual: CMOS Industrial Camera LOGLUX i5 The user can enter the desired LUT name in the 'Name' field. All upper-case and lower-case letters and numerals as well as the separating character '_' are available for the purpose. -
Page 25: The 'Terminal' Menu
Manual: CMOS Industrial Camera LOGLUX i5 The 'Terminal' menu This menu is used for configuring the LOGLUX i5 CL camera by means of the integral ASCII terminal. For the commands required to configure the camera see the camera manual. Selecting the 'Advanced features' option is a prerequisite for using the terminal. -
Page 26: The 'Firmware' Menu
This menu displays the components of your camera and allows an update or back-up copy of the firmware versions to be made. Figure 22 : The 'Firmware' menu Page 26 of 46 Manual: CMOS Industrial Camera LOGLUX i5 The 'Advanced features" box must be checked to make an update or back-up copy of the camera firmware. -
Page 27: The 'Framegrabber' Menu
Manual: CMOS Industrial Camera LOGLUX i5 The 'Framegrabber' menu The framegrabber menu is used for setting the data storage and greyscale histogram display parameters, and for grabbing a frame and creating an image file from the live image. Figure 23 : The 'Framegrabber' menu KAMERA WERK DRESDEN GmbH Version 1.08 (04/07) -
Page 28: T Able 2 : P Arameter Notation For Camera Configuration
Every line of a message or response is closed with a cr character ($0D). Messages always have the following format: +Maskbyte String Page 28 of 46 Manual: CMOS Industrial Camera LOGLUX i5 Syntax Value range $00...$FF %00000000...%11111111 #0...#255... -
Page 29: T Able 3 : R Egisters Of The Function Group 'C Amera Configuration
Description of the LOGLUX i5 CL register set The functions of the configuration registers of the CMOS industrial camera LOGLUX i5 CL are chronologically ordered by function groups which are described below. Function group ‚Camera configuration‘... -
Page 30: Function Group 'Camera Profiles
PROFILE_TRGRATE $108 1 word PROFILE_SMODE $10A 1 word Page 30 of 46 Manual: CMOS Industrial Camera LOGLUX i5 w $03 #0 ;line break character CR+NL w $07 $00 ;no hardware write check w $08 $F0 ;show all errors only w $09 #1 ;working profile is profile 1... -
Page 31: T Able 4 : R Egisters Of Function Group 'C Amera Profiles
Manual: CMOS Industrial Camera LOGLUX i5 Register Addr. Format PROFILE_TMMODE $10C 1 byte PROFILE_SW0SOURCE $10E 1 byte PROFILE_SW0POL $10F 1 byte PROFILE_SW0DELAY $110 1 long PROFILE_SW0LEN $114 1 long PROFILE_SW1SOURCE $118 1 byte PROFILE_SW1POL $119 1 byte PROFILE_SW1DELAY $11A 1 long... -
Page 32: T Able 5 : L Ist Of Register Initial Values Of Function Group ' Camera Configuration
(transmission time) or by the slope (edge steepness) of the 24V trigger signal. Example: Page 32 of 46 Manual: CMOS Industrial Camera LOGLUX i5 Initial profile value 4 (free running trigger) 0 (sequence mode) - Page 33 Manual: CMOS Industrial Camera LOGLUX i5 PROFILE_TRGRATE The register specifies the rate, or frequency, of framegrabbing (in Hz, or snapshots per second) after triggering for a sequence of snapshots or a continuous "snapshot" (video). Where the readout speed of an image is...
- Page 34 - the entries must be unequal to zero - is also the number of integration sections. A valid integration time Page 34 of 46 Manual: CMOS Industrial Camera LOGLUX i5 w $119 #0 ;Switchport 1 is low-active 75.76ns delay at 66 MHz pixel clock rate).
- Page 35 Manual: CMOS Industrial Camera LOGLUX i5 must be entered in register PROFILE_INT3 for the single integration slope mode; the other registers are to be filled with zeros. The following conditions must be met to display a sensor frame as a live...
-
Page 36: T Able 6 : R Egisters Of Function Group 'W Orking Parameters
The register content of the respective target profile will be irrevocably overwritten by the register content of the source profile. Example: Page 36 of 46 Manual: CMOS Industrial Camera LOGLUX i5 w $14C #1 ;permanent precharging Description Value range Meaning... -
Page 37: T Able 7 : R Egisters Of Function Group 'Lut Programming
(provided the missing function values are added in the above-mentioned manner). Programming aids are recommended to be used for the generation and programming of the function values. Two such aids are included in the software package for the CMOS industrial camera LOGLUX i5 CL. One is a MathCAD generated and saved in a file by defining the corresponding mathematical functions. -
Page 38: Glossary
Highest significant bit of a larger information unit such as a byte OHCI Open host controller interface, standard interface for the unified connection of Page 38 of 46 Manual: CMOS Industrial Camera LOGLUX i5 metal oxide semiconductor, KAMERA WERK DRESDEN GmbH (0...255) - Page 39 Manual: CMOS Industrial Camera LOGLUX i5 external devices to standardized PC ports Personal computer (IPC - industrial personal computer) Peripheral components interconnect, standard of a PC-internal data transmission process or physical plug-in unit connection (PCI slot) progressive scan Here: Full-frame scan, principle of continuously scanning the sensor lines in...
-
Page 40: Technical Specification
Binder 2-pin female c. type 712 (Order no. 99-0402-00-02) Pin 2: GND Binder 4-pin female c. type 712 (Order no. 99-0410-00-04) Pin 2: Switchport 0 Pin 3: Switchport 1 Pin 4 : GND Manual: CMOS Industrial Camera LOGLUX i5 test image, three user-program- mable LUTs,... -
Page 41: Wiring Of The Loglux ® I 5 Cl Trigger Input
Manual: CMOS Industrial Camera LOGLUX i5 ® Wiring of the LOGLUX i5 CL trigger input The trigger input must be wired as follows: ® Wiring of the LOGLUX i5 CL switch outputs The switch outputs must be wired as follows:... - Page 42 Note: For the purpose of a faster data transmission during an update, the baud rate of the serial RS-232 port is recommended to be set to '115000' kbaud (in menu ‚Camera Globals‘). Page 42 of 46 Manual: CMOS Industrial Camera LOGLUX i5 ® i5 CL camera: ®...
- Page 43 Manual: CMOS Industrial Camera LOGLUX i5 MCU firmware update When updating the MCU firmware, the contents of file LOGLUXi5CL_xxx.txt (with xxx standing for the current version) in the user-specific source directory must be transferred to the camera. Select the ‚Firmware‘ profile menu.
-
Page 44: Choosing A Lens For The Loglux I5 Cl
Reasonably, the first partial integration time should be the longest time, and the last partial integration time should be the shortest time. Page 44 of 46 Manual: CMOS Industrial Camera LOGLUX i5 ® i5 CL KAMERA WERK DRESDEN GmbH ®... -
Page 45: Adding A Non-Supported Cameralink Framegrabber
Question: Is framegrabber 'xyz' supported? ™ Answer: CameraLink framegrabbers are supported in two ways. KAMERA WERK DRESDEN GmbH offer several CameraLink configuration tool. Other CameraLink LOGLUX i5 CL camera by means of the INI file of the LuxWare configuration tool (see... -
Page 46: Using Software-Supported Framegrabbers On The Serial Com Port Of The Loglux I5 Cl Camera
(tap) identifier; see the framegrabber ™ port (tap) identifier, see the framegrabber ™ framegrabber is supported by the LuxWare configuration tool. ™ port (on the MVtitan-CL of Fa. Matrix Manual: CMOS Industrial Camera LOGLUX i5 KAMERA WERK DRESDEN GmbH...
