Page 1: User Manual

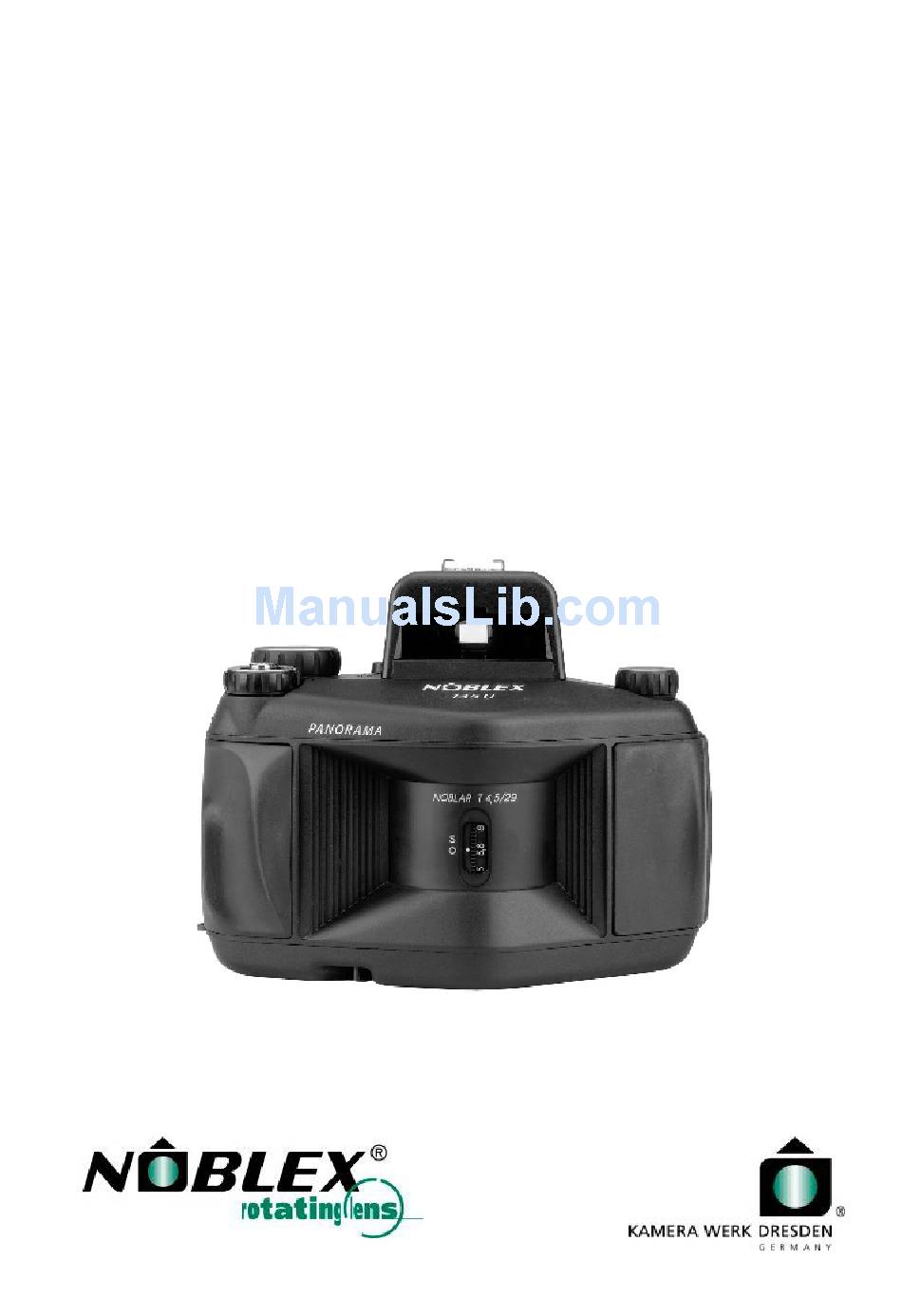

KAMERA WERK DRESDEN GmbH USER MANUAL NOBLEX 135 Page 1 of 9... - Page 2 KAMERA WERK DRESDEN GmbH NOBLEX 6/150 UX with on- plugged PANOLUX 135 NOBLEX 135 U with on- plugged PANOLUX 135 Page 2 of 9...
-
Page 3: Table Of Contents
What to do if your camera requires service ... 8 Technical Features... 9 NOBLEX running duration of lens drum ... 9 Technical features of all NOBLEX 135 models ... 9 Important Notes The camera is not waterproof and therefore not suited for use in wet environments, when raining or in snow. - Page 4 If colour film remains too long in the camera, you may experience a colour shift. Always use fresh film. Designation of Parts and Operation Elements of NOBLEX 135 rewind knob (9) accessory shoe PANOLUX (13)
-
Page 5: Standard Features
If you do not use your camera for an extended time, remove the batteries. Inserting and Rewinding the Film NOBLEX 135 cameras require 35MM film rolls. When inserting and rewinding the film please follow these instructions: Inserting the film (1) Turn the camera off at the ON/OFF switch (10). -
Page 6: Rewinding The Film
KAMERA WERK DRESDEN GmbH Rewinding the film (1) Press the rewind button (14) until it is engaged. (2) Lift out the crank on the rewind button (9), turn the crank in the direction of the arrow to rewind the film. Shortly before the film is completely rewound resistance on the rewind knob (9) drops considerably. -
Page 7: Noblex For Advanced Users
KAMERA WERK DRESDEN GmbH NOBLEX for Advanced Users Lens Shift When using the lens shift the subject is moved upwards without tilting the camera. Converging lines can thus be avoided. In order to shift the lens follow these instructions: (1) Turn the aperture selector wheel (1) to aperture f=4.5. -
Page 8: Panolux 135
KAMERA WERK DRESDEN GmbH Please note Step 5: If you turn the drum counter clockwise here, the film is exposed and you lose one picture. Please be very careful when changing filters in order to avoid damage to the lens caused by the tweezers. -
Page 9: Technical Features
Measurements (L/W/H) (mm) Weight (gramm) Sample for long time exposure by means of multiple expo- sure with NOBLEX 135 at selected exposure time 1/30 sec Number of drum rotations NOBLEX 135 s 26 mm small format film (36 exposures)
