BT Micro Installation Manual

Step 2 continued

F) Enter your broadband service Username
and Password.
Note: In some cases a Password may
not be required. In this case just enter
the Username.
Click on "Next".
G) Confirm the settings are...
VPI 0
VCI 38
Click on "Next".
H) Confirm the configuration by
selecting "Confirm Changes".
This completes the ADSL programming
6
Step 2 continued

A) Troubleshooting

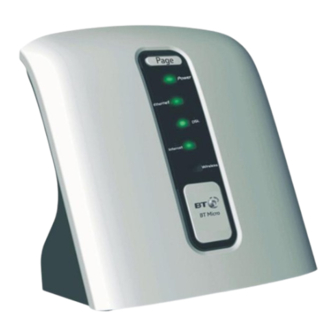

Your BT Micro has an activity status panel at the front of your system. The status of
the lights (LEDS) will help you see if all your connections are properly installed.
I) Open your browser and browse to a web page.
It may take several minutes for the DSL to synchronise. Your BT
Micro is ready to browse the Internet once the DSL LED has gone
solid green with an occasional flicker, and the Internet LED is
solid or flashing green.
7
RED
Solid Green Flashing Green OFF
Power LED
Power or Power ON - Power OFF
device malfunction
Powered device
No cable connection
Ethernet LED connected to the -
-
or
BT Micro LAN
no powered device
DSL line connected DSL attempting
DSL LED
- and synchronised. to synchronise -
(Occasional flicker)
IP connected. IP connected DSL line
Username/password
Internet LED
incorrect. (No traffic detected) (Traffic detected) not connected
VPI/VCI incorrect
- Wireless LAN Wireless LAN Wireless LAN
Wireless LED
enabled activity present disabled
BT Micro
Note: If the Power led flashes red, it means BT Micro is in DECT registration mode.
For e-support please go to our website:
www.productsupport.bt.com

C) Quick Reference Guide

Use this to get the most from the telephone features of your BT Micro.
For example, you can use your BT Micro to take messages when you
are not available to answer your phone. (Voicemail).
D) Owner's Manual
The Owner's Manual is contained in the Documentation CD. Use it to
learn how to access the advanced capabilities of your BT Micro.
For example, you can connect your PC to the BT Micro LAN without
needing to have them connected via a cable. (Wireless LAN). You can
also use your BT Micro to make calls over the Internet. (VoIP).
8
Offices Wordwide
The telecommunications services described in this publication
are subject to availability and may be modified from time to time.
Services and equipment are provided subject to British
Telecommunications plc's respective standard conditions of contract.
Nothing in this publication forms any part of any contract.
©British Telecommunications plc 2005
Registerd office: 81Newgate Street, London EC1A 7AJ
Registered in England No. 1800000
Part No. LR2770.31010 -3
Printed in paper which meets international environmental standards.
BT Micro
Communication without
complication
Fast Installation Guide
