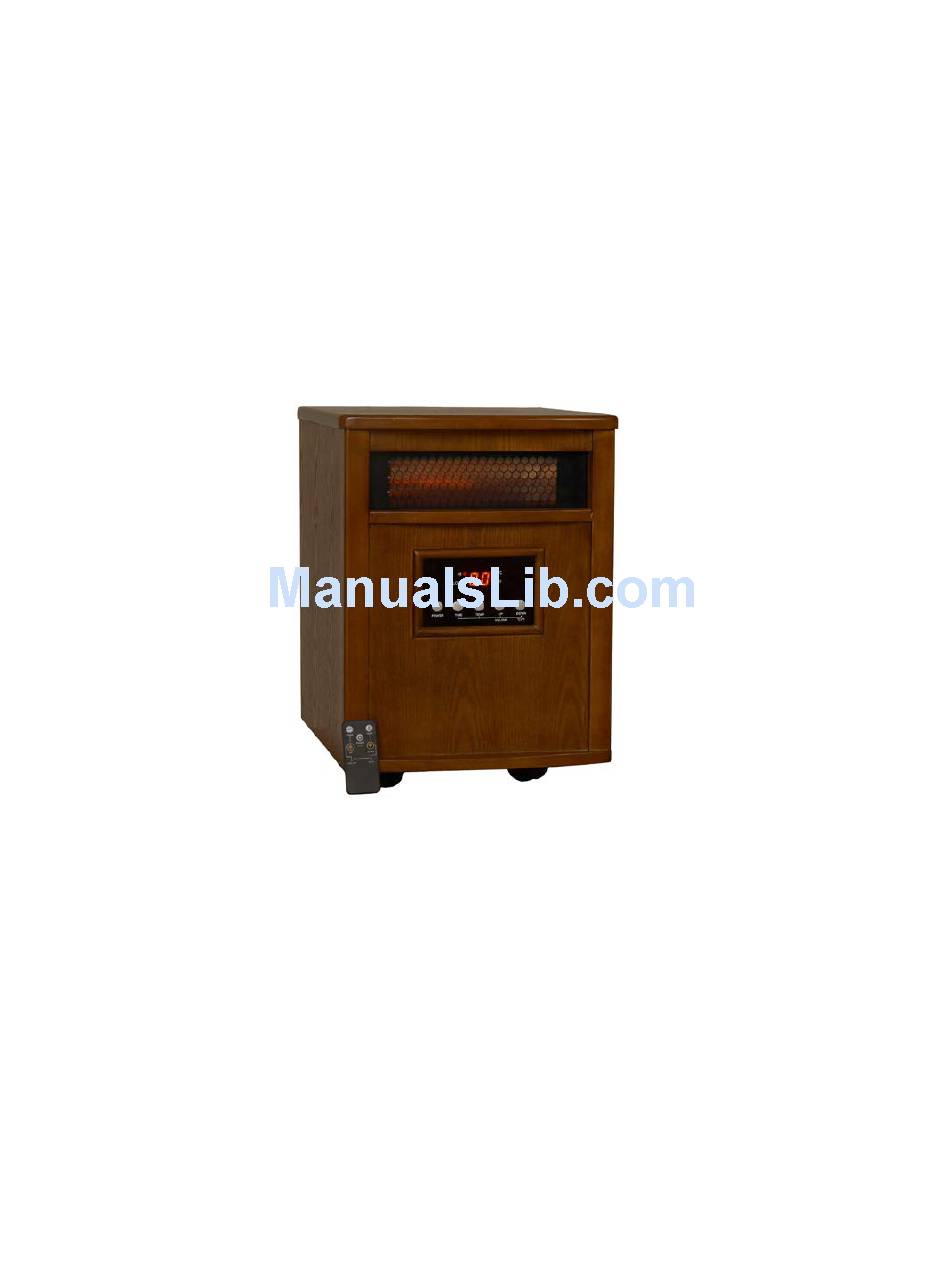

Dynamic Infrared Heater
User's Manual
Model# DYN-HTR-1500-200
FOR INDOOR USE ONLY
120VAC 15 AMP DEDICATED CIRCUIT
The Dynamic Infrared Heater works with your in-home furnace to provide
supplement heat. Carefully and thoroughly read this manual before using the
Dynamic Infrared Heater for the first time. We recommend keeping this manual for
regular review and future reference. Heater is intended for residential use.
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Golden Designs DYN-HTR-1500-200
Summary of Contents for Golden Designs DYN-HTR-1500-200
- Page 1 Dynamic Infrared Heater User’s Manual Model# DYN-HTR-1500-200 FOR INDOOR USE ONLY 120VAC 15 AMP DEDICATED CIRCUIT The Dynamic Infrared Heater works with your in-home furnace to provide supplement heat. Carefully and thoroughly read this manual before using the Dynamic Infrared Heater for the first time. We recommend keeping this manual for...
-
Page 2: Important Instructions
Introduction Dynamic Infrared Heaters utilize the latest infrared heat technology. Dynamic Infrared Heaters provide a safe, convenient, clean, and economical way to distribute heat throughout your home or business without producing deadly fumes or monoxide gases. Our heating system produces therapeutic infrared heat that can potentially relieve symptoms of cardiovascular conditions and inflammatory diseases. -
Page 3: Heater Specifications
Use heater only as described in this manual. Any other use is not recommended by the manufacturer as it may lead to fire, electric shock, and/or series physical injury or death. Heater Specifications Dynamic Infrared Heater Model# DYN-HTR-1500-200 Carton Size: 17.3 in x 15.4 in x 20.9 in Thermostat: Electronic Analog Heater Size: 14.9 in x 13 in x 17.7 in... -
Page 4: Components And Functions
Components and Functions A. The Dynamic Infrared Heater is constructed with 1 Infrared Quartz Bulb and a 2 resistance wire system. Air is drawn inside the Dynamic Infrared Heater, flows along the circumference of the chamber and over the Infrared Quartz Bulb. The Quartz Bulb and RMS system produce infrared rays that heat the air which passes through the inner chamber. -
Page 5: Operating Instructions
Operating Instructions Visually inspect the Dynamic Infrared Heater for any damages before operation. Do not operate the heater if any damages are detected. Contact your dealer immediately. NOTE: “UP” and “DOWN” arrow buttons on the control panel and remote control have dual function capabilities. - Page 6 3) By pressing the TIME button, the LED display will switch from the temperature status to the TIME status and begin to flash. The default time will display “--“. This means that the TIME is not activated and, therefore, the heater will remain on. You must press the HI/LOW/UP button or the F/DOWN once again within (5) seconds to set the time.
- Page 7 5) Press the HI/LOW/UP button to switch from HI (rated at 1500W) to LOW (rated at 750W). The default setting is HI. From HI to LOW 6) To find the ambient room temperature, hold down the TEMP + TIME and then let go. The ambient temperature will be displayed.
-
Page 8: Care, Maintenance, And Storage
(Note: To set back to factory settings, hold down the TIME button for (5) seconds. This will set all values back to default.) 7) The Dynamic Infrared Heater can be turned off by pressing the POWER button. DO NOT TURN OFF THE MASTER POWER SWITCH ON THE REAR OF THE HEATER OR UNPLUG THE HEATER UNTIL THE FAN SHUTS DOWN. -
Page 9: Troubleshooting
the heater. You may want to repack it back in its original carton. Always store the heater in a dry and dust free environment. (Note: You may want to clean the filter prior to storing the heater away so that it is ready for operation the next time it is put in use.) Troubleshooting 1. - Page 10 a. The control panel displays no temperature or TIME. SOLUTION: First, check to make sure the power cord is not damaged, is plugged in, and the outlet has power. Secondly, check to make sure the control panel is not damaged. If the control panel display continues to be inoperable, contact the manufacturer for further troubleshooting.
-
Page 11: Limited Warranty
Limited Warranty 1 Year Limited Warranty: Dynamic warranties the heating elements and electronics against defects in material and workmanship for a period of one year from the original date of purchase. This portable heater is for INDOOR use only. Operating your portable heater outdoors will VOID this warranty. - Page 12 Page Is Intentionally Left Blank...
-
Page 13: Warranty Card
WARRANTY CARD Congratulations on your purchase of the Dynamic Infrared Heater. Please take the time to complete the following Warranty Card and mail it to: Golden Designs, Inc. c/o Dynamic Portable Heater 1840 S. Milliken Ave. Ontario, CA 91761 Please include a copy of your sales receipt showing date of purchase as this will serve as proof of purchase.
