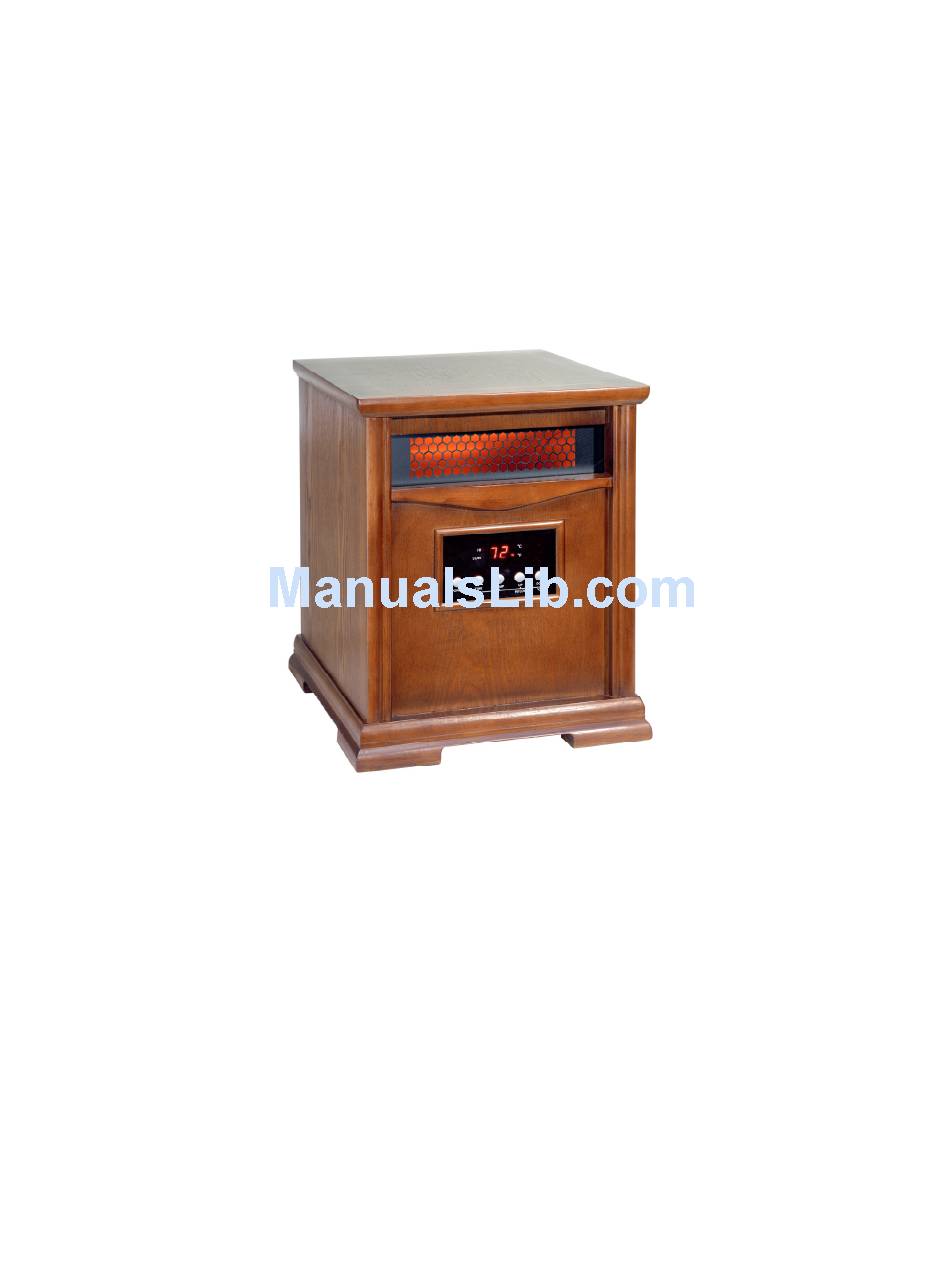

Dynamic Infrared Heater
FOR INDOOR USE ONLY
120VAC 15 AMP DEDICATED CIRCUIT
The Dynamic Infrared Heater works with your in‐home furnace to provide
supplement heat. Carefully and thoroughly read this manual before using the
Dynamic Infrared Heater for the first time. We recommend keeping this manual
for regular review and future reference. Heater is intended for residential single
room use.
User's Manual
Model# DYN-HTR-1500-600
Advertisement
Table of Contents
Related Manuals for Golden Designs DYN-HTR-1500-600
Summary of Contents for Golden Designs DYN-HTR-1500-600
- Page 1 Dynamic Infrared Heater User’s Manual Model# DYN-HTR-1500-600 FOR INDOOR USE ONLY 120VAC 15 AMP DEDICATED CIRCUIT The Dynamic Infrared Heater works with your in‐home furnace to provide supplement heat. Carefully and thoroughly read this manual before using the Dynamic Infrared Heater for the first time. We recommend keeping this manual for regular review and future reference. Heater is intended for residential single room use. ...
-
Page 2: Important Instructions
Introduction Dynamic Infrared Heaters utilize the latest infrared heat technology. Dynamic Infrared Heaters provide a safe, convenient, clean, and economical way to distribute heat throughout your home or business without producing deadly fumes or monoxide gases. Our heating system produces therapeutic infrared heat that can potentially relieve symptoms of cardiovascular conditions and inflammatory diseases. -
Page 3: Heater Specifications
Use heater only as described in this manual. Any other use is not recommended by the manufacturer as it may lead to fire, electric shock, and/or series physical injury or death. Heater Specifications Dynamic Heater Model DYN-HTR-1500-600 Carton Size: 21.7 in x 15.4 in x 17.1 in Thermostat: Electronic Analog Heater Size: 18.3 in x 12.9 in x 15 in... -
Page 4: Components And Functions
Components and Functions A. The Dynamic Infrared Heater is constructed with Infrared Quartz Bulbs. Each Infrared Quartz Bulb is rated at 250W. These bulbs produce therapeutic infrared rays that warm the air which passes through the inner chamber. The Infrared Quartz Bulbs are constructed with a stainless steel thermal conducting housing. -
Page 5: Operating Instructions
Unpacking the Dynamic Infrared Heater 1. First, check the carton to make sure there are no obvious damages that may have occurred during shipment. 2. Open the Dynamic Infrared Heater packaging and remove the heater by sliding it from the box. - Page 6 2) By pressing the F/Down button, you can switch the temperature format from Fahrenheit to Celsius and vice versa. Press the F/Down to switch from Fahrenheit to Celsius. 3) By pressing the TIME button, the LED display will switch from the temperature status to the TIME status and begin to flash.
- Page 7 4) Again, default set temperature displayed on the LED display is 72 F. By pressing the TEMP button, the LED display will switch to the temperature status and flash. You must press the HI/LOW/UP button or F/DOWN button once again within (5) seconds to set the desired temperature.
- Page 8 heater. The ambient temperature is what the heater believes to be the current room temperature. To find the ambient room temperature, you must push the temperature button + time button and let go quickly. This will display the ambient room temperature and this is the temperature you want to match your home thermostat reading (primary heating device).
-
Page 9: Care, Maintenance, And Storage
Care, Maintenance, and Storage Before care or maintenance is applied, always unplug the cord from the receptacle. The cabinet housing can be wiped down with water and a damp cloth or with furniture polish. The heater has a washable filter. The filter should be cleaned regularly to provide for maximum performance. Once the filter is removed, run warm water through and over the filter to remove dirt and dust. - Page 10 4. PROBLEM: a. The portable heater continues to operate even when the power switch is turned off. SOLUTION: Do not unplug. The portable heater has a fan that will continue to operate even when the power switch is turned off. This fan continues to run in order to cool down the portable heater. Once the fan stops running, you can then unplug the portable heater.
-
Page 11: Limited Warranty
Disclaimers Dynamic and Golden Designs, Inc. shall not be liable for loss of use of heater or other Dynamic products or other incidental or consequential costs, expense or damages. Any implied warranty shall have duration equal of the applicable warranty stated above. - Page 12 Page Is Intentionally Left Blank...
-
Page 13: Warranty Card
WARRANTY CARD Congratulations on your purchase of the Dynamic Infrared Heater. Please take the time to complete the following Warranty Card and mail it to: Golden Designs, Inc. c/o Dynamic Portable Heater 1840 S. Milliken Ave. Ontario, CA 91761 Please include a copy of your sales receipt showing date of purchase as this will serve as proof of purchase.
