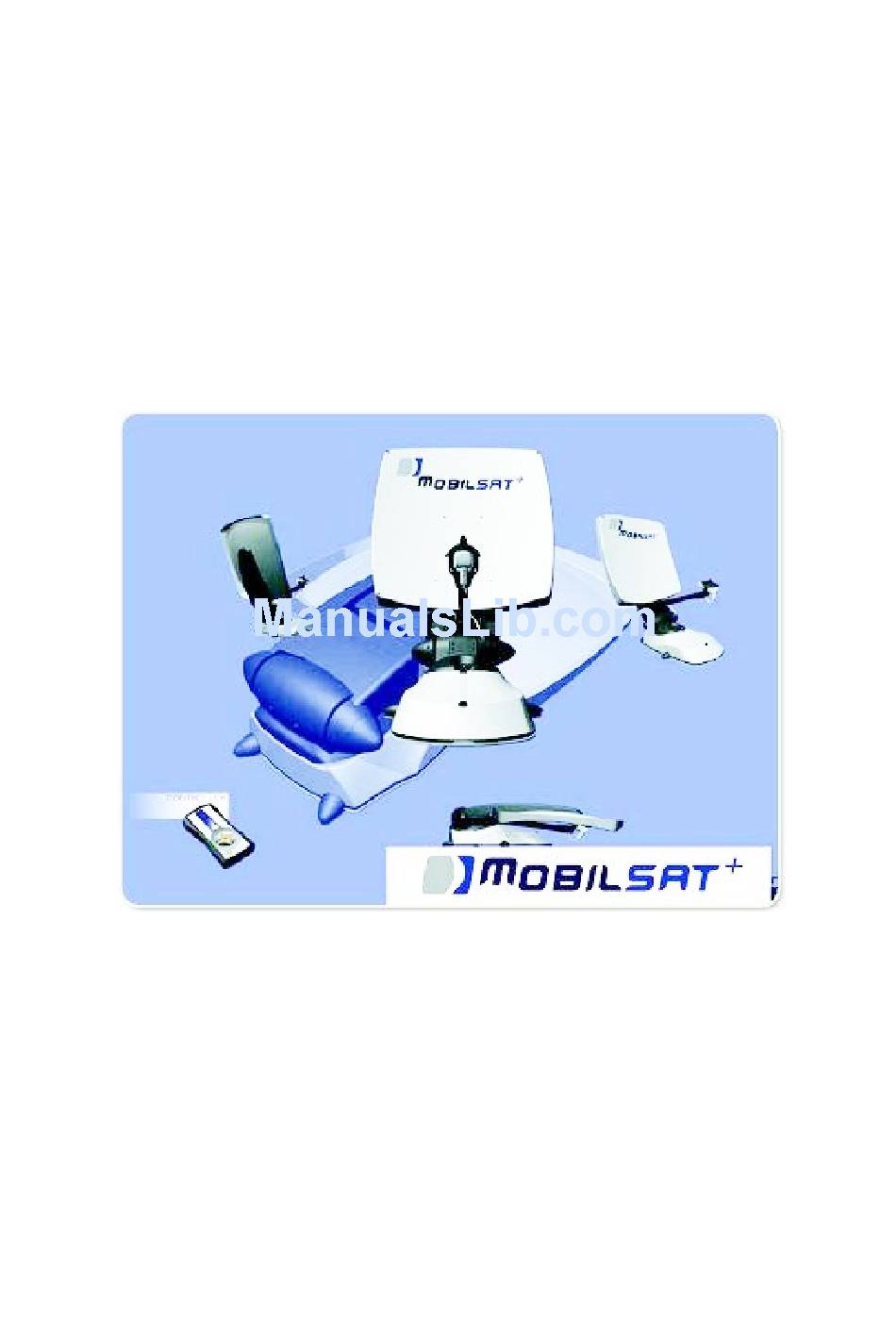

- Page 1 Digital satellite antenna with control panel MobilSat Mounting instructions Models MSP-S / MSP-C...
-
Page 2: Table Of Contents
SUMMARY Introduction...............................2 Safety instructions.............................3 2.1. Proper use (for the intended purpose)....................3 2.2. Safety during installation work......................3 2.3. Proper installation and safety......................3 2.4. Adhesive sealant ..........................4 2.5. Road Traffic Licensing Regulations ....................4 Certifications .............................4 Package contents ............................4 Unpacking and preparation ........................5 Mounting instructions ..........................5 6.1. -
Page 3: Safety Instructions
MobilSat Mounting instructions 2. Safety instructions 2.1. Proper use (for the intended purpose) The MobiSat is designed to receive digital TV and radio programs via satellite. The turntable can be used to receive digital TV and radio signals in the frequency range from 10.70 to 12.75GHz. -
Page 4: Adhesive Sealant
MobilSat Mounting instructions Modifications to the electrical installations in the vehicle should only be carried out by a specialist in vehicle electrics. Do not make any unauthorized changes to the turntable. 2.4. Adhesive sealant The turntable is attached to the roof of the vehicle by adhesive and is secured by additional fixing screws. -
Page 5: Unpacking And Preparation
MobilSat Mounting instructions 5. Unpacking and preparation Please keep original packaging material because it will be needed in case of system return for repair or maintenance actions. In other cases the supplier will not be responsible for damages occurred during transport. -
Page 6: Mounting Of The Assembly Plate
ATTENTION It’s absolutely needed to mark the roof of the vehicle with a line, in order to exclude the possibility to mount the assembly plate in a wrong direction. MobilSat antenna can be mounted in only one direction; LNB must be oriented towards the rear of the vehicle. All other positions will not be considered as correct and will cause immediate guarantee expiration. -
Page 7: Mounting Of The External System
MobilSat Mounting instructions Seal also the edges of the assembly plate, as displayed in the following figure. 6.4. Mounting of the external system Connect the cable set to the external unit. The cable can be plugged in the proper connector using the dedicated space in the lower part of the unit. -
Page 8: Protection Circuit
MobilSat Mounting instructions Notes for power supply on trailers Often trailers don’t have a stable power supply, or they don’t have a battery at all. In these cases it’s necessary to power the system using a 220V/12V voltage transformer connected, directly to the main line. -
Page 9: Connection To The Satellite Receiver
MobilSat Mounting instructions 6.10. Connection to the satellite receiver Now it’s possible to connect the antenna system to the satellite receiver, using the F-connector cable. 6.11. Installation menu All the functions of the system are activated using the control panel, showed in the following picture. - Page 10 MobilSat Mounting instructions USER MENU In every menu, except “Mech. Zero Set” e Keys UP/DOWN pressed ”Factory settings”: simultaneously for more than 3 seconds Menu’ XX OK menu INSERT PASSWORD XXXX Digit selection Select from list (scroll menù blocked) Change value...
- Page 11 MobilSat Mounting instructions RESTORE SET ANTENNA DEFAULT SETTINGS MECHANICAL ZERO OK menu OK menu CONFIRM RESTORE SEARCH FOR MECH OTORS ACTIVATED UNTIL END OF ROTATION AND ELEVATION DEFAULT SETTING? ZERO EXECUTION END OF ROTATION O ACTIONS FOR AND ELEVATION REACHED...
-
Page 12: Technical Data
MobilSat Mounting instructions 7. Technical data Power supply:...………………………………..…. 11/16V Current consumption stand-by mode:………….. 60mA Current consumption during sat search:……..2A typ - 3,5A peak Typical time for sat search:……………………….30-60 sec Max time for sat search:……….…. …………….. 300 sec External unit weight:……………………………….15,5Kg 8.
