Summary of Contents for European Touch Espresso Spa
-
Page 2: European
Touch. If examination of the Pedicure Spa by European Touch during the applicable warranty period shows it to have a defect in material or workmanship, European Touch will, at its option, repair or replace the defective component or part thereof. - Page 3 • Shipment, if requested, to European Touch of Pedicure Spa parts or components thought to be defective. Parts or components may only be returned if authorized in advance by European Touch. All returns must be freight prepaid.
-
Page 4: Important Information

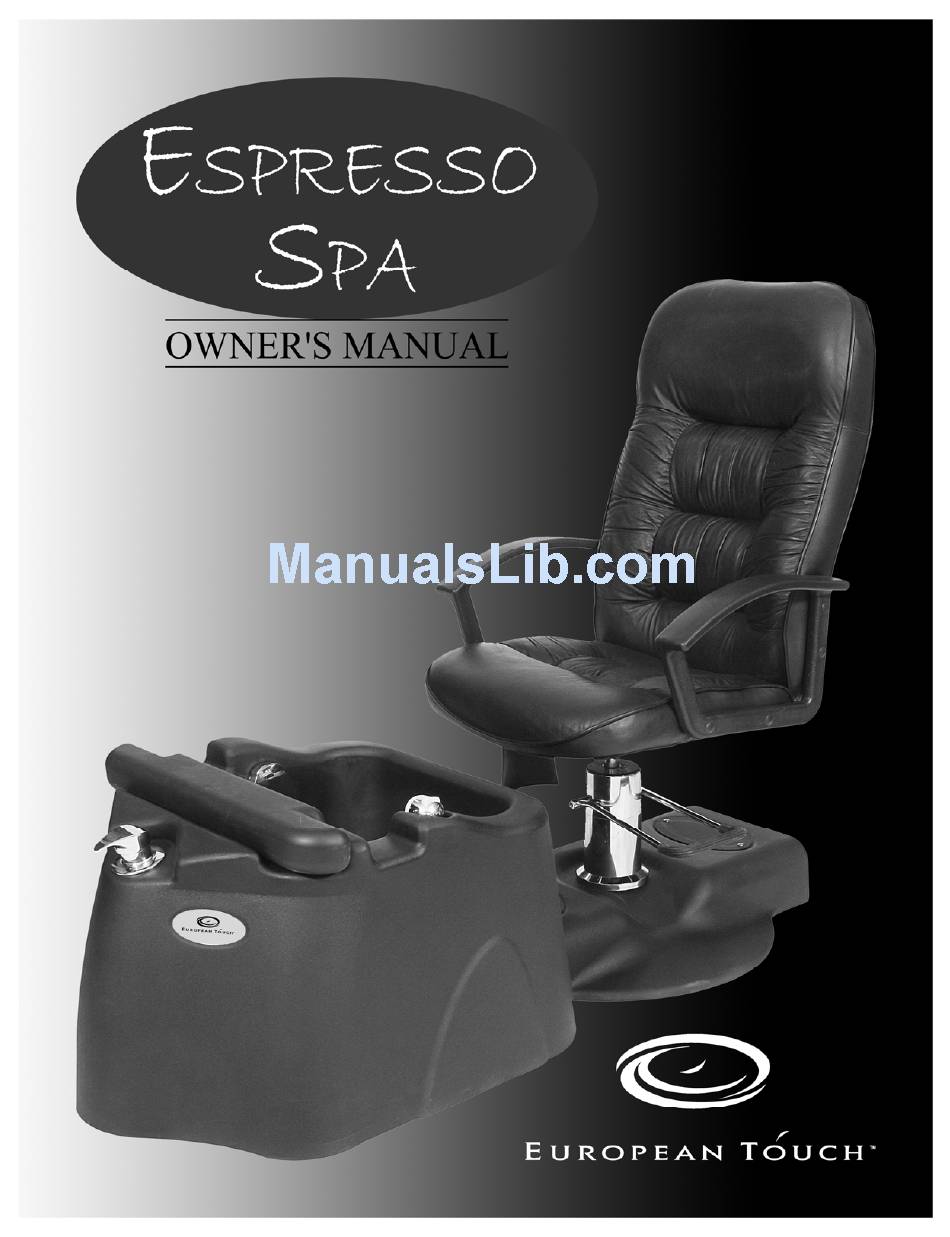

OWNERS MANUAL For Espresso ® MPORTANT NFORMATION Serial Number: Work Order Number: Installed by: Installation Date: The serial number and work order number are located under the rear access panel. Remove rear access panel to locate the serial number and work order number. Document ID: 39080000 Rev: C Technical Support: 1-800-626-6912... -
Page 5: Table Of Contents
ABLE OF ONTENTS ..............2 UROPEAN OUCH IMITED ONDITIONAL ARRANTY ......................4 MPORTANT NFORMATION ..........................6 NTRODUCTION ....................6 MPORTANT AFETY NSTRUCTIONS ............................7 ANGER ...........................7 ARNINGS ......................8 MPORTANT EQUIREMENTS ........................8 EALTH ARNING ....................9 EDICURE PECIFICATIONS ..................10 NSTALLATION SSEMBLY NSTRUCTIONS ....................16 EDICURE RODUCT UIDELINES ............17 LEANING AND ISINFECTING ROCEDURES... -
Page 6: Ntroduction
NTRODUCTION Thank you for selecting EUROPEAN TOUCH, the leading designer, manufacturer, and marketer of ™ pedicure spas in North America. The Espresso Spa (herein referred to as pedicure spa) is an innovative pedicure spa that has been designed to serve you dependably for many years. Please take time to thoroughly read this entire manual before installation and use. -
Page 7: Danger
ANGER Never use pins or other metallic fasteners with this appliance. Carefully examine the covering before each use. Discard the appliance if the covering shows any sign of deterioration, such as checking, blistering, or cracking. Keep Electrical Components Dry – Do not operate in a wet or moist condition. ARNINGS WARNING: RISK OF ELECTRIC SHOCK;... -
Page 8: Important Requirements
MPORTANT EQUIREMENTS EUROPEAN TOUCH requires that you contact your local, licensed plumber and licensed electrician to install your new pedicure spa. Installation must be in compliance with all your local and state building codes. Your pedicure spa cannot operate efficiently or safely unless it is provided with adequate electrical power, sufficient water pressure, proper water temperature, and required drainage capabilities. -
Page 9: Pedicure Spa Specifications
EDICURE PECIFICATIONS Hot and cold water supply lines required (hot and cold shut offs may be installed under pedicure spa base) SHIPPING INFORMATION Dimensions: 48”L (165cm) x 40W (84cm) x 41”H (104cm) – includes Spa, carton, and pallet Weight: 140 lbs. (117 kg) - includes spa, carton, pallet SPA INFORMATION Overall Dimensions: 66"L (152.4cm) x 27”W (68.6cm) x 49"H (125cm) -
Page 10: Installation /Assembly Instructions
Unpack all three boxes received. Be sure that you have received all components. The components should include: ** If you do not have any of the above components please contact EUROPEAN TOUCH’s Technical Support Department at 1-800-626-6912 immediately. ** (8:00 am – 5:00 pm CST, Monday–Friday) - Page 11 Tools that are needed for proper assembly: 7/16” Open End Wrench or Socket Wrench Phillips Screw Driver or Electric Screw Driver 3/16” or 5mm Allen Wrench Crescent Wrench Channel Locks Wrench STEP 1 Pick-up Pick-up Points Points Rear Hole or Metal Base Pick-up Points Metal Base...
- Page 12 STEP 3 Flip the entire extension section over and position if behind the basin. Be sure the pump/handle of the hydraulic lift lines up with the recess molded into the extension. STEP 4 Take the power strip and peel off the outer layer of the double sided tape exposing the adhesive. Place the power strip horizontally on the front of the base underneath the front opening of the extension.
- Page 13 STEP 7a – Unit purchased without Power Drain Pump Tighten a 1½” coupler to the end of the PVC pipe sticking out of the basin. Continue to route the plumbing as needed using 1½” Schedule 40 PVC. STEP 7b – Unit purchased with Power Drain Pump Run the black hose underneath the extension towards the back of the extension.
- Page 14 STEP 9 Attach water and drain connections at rear of assembled unit and test for leaks. Be sure to add a vacuum breaker if required by your specific plumbing codes. STEP 10 Take the transformer that is shipped with the chair and plug that into the power strip and run the cord underneath the extension and out the top of the rear access hole.
- Page 15 STEP 12 Left Right Assemble the chair by setting the seat cushion onto the hydraulic pedestal. Locate both armrest and find the (L) or (R) on them. This denotes left or right. Assemble armrests to the seat cushion using the supplied screws and Phillips screw driver. Assemble back cushion to the armrests using the supplied screws.
-
Page 16: Pedicure Product Guidelines
Please use pedicure products and cleaning solutions in accordance with each manufacturer's directions. EUROPEAN TOUCH pedicure spas will give you many years of service as long as proper precautions, precise cleaning, and operating instructions are followed. It is the responsibility of the pedicure spa user to properly clean and maintain the pedicure spa. -
Page 17: Pipe -Free Spa Cleaning And Disinfecting Procedures
LEANING AND ISINFECTING ROCEDURES Always check with your state board for required cleaning and disinfecting procedures. It is extremely important to clean and disinfect your pedicure spa after each pedicure, after the last pedicure of the day, and once a week for overnight cleaning. Regular cleaning will help keep your pedicure spa in good working condition. Proper and continuous cleaning will kill harmful bacteria and germs that can cause infection. -
Page 18: Daily Cleaning Log
AILY LEANING Pedicure Spa # Date Time Initials After Client End of Day Weekly For your convenience on pages 19-20; we are providing daily cleaning log sheets which you can remove from the manual for your use. A daily cleaning log may be required by your state’s health board. - Page 19 AILY LEANING Pedicure Spa # Date Time Initials After Client End of Day Weekly Document ID: 39080000 Rev: C Technical Support: 1-800-626-6912 Page 19 of 26...
- Page 20 AILY LEANING Pedicure Spa # Date Time Initials After Client End of Day Weekly Document ID: 39080000 Rev: C Technical Support: 1-800-626-6912 Page 20 of 26...
-
Page 21: Replacement Parts
EPLACEMENT ARTS Drain Assembly ITEM PART DESCRIPTION NUMBER 30020205 CONTROL HANDLE (CHROME) 30020204 NIPPLE INTERNAL THREAD 30020203 LOCKING PLATE OVERFLOW 30010224 TUB LOCK GASKET 30010222 OVERFILL HEAD WITH BALL JOINT 30020208 STOPPER (CHROME) 30010227 GASKET STOPPER RINATO 30020201 THREADED WASTE BOLT 30020202 STRAINER DRAIN (CHROME) 30010235 GASKET RUBBER DRAIN TOP SIDE... -
Page 22: Full Assembly
Full Assembly Document ID: 39080000 Rev: C Technical Support: 1-800-626-6912 Page 22 of 26... - Page 23 39010003 DRAIN KIT PDP 39150002 ASM PDP FOR TAIL EXTENSION 39150008 ASM HC PUMP TAIL EXTENSION 6130088 WASHER SCS 7/8 NYLON BLUE ASM MOTOR EUROPEAN TOUCH 39150007 SYSTEM 39020008 EUROPEAN TOUCH MOTOR WASHER 30150001 SUBASM SHOWER SPRAYER CT 25022014 ESCUTCHEON SPRAYER BRASS...
-
Page 24: High Capacity Power Drain Pump Assembly
PLYWOOD 4 IN X 6 IN BLOCK Motor Assembly ITEM PART DESCRIPTION NUMBER 39010006 COVER INLET 14000225 MAGNET 39040000 MOTOR EUROPEAN TOUCH SYSTEM 39010005 TUBE CLEAR GENIEYE 39040003 SENSOR INTERLOCK GENIEYE Document ID: 39080000 Rev: C Technical Support: 1-800-626-6912 Page 24 of 26... -
Page 25: History And Notes
ISTORY AND OTES Document ID: 39080000 Rev: C Technical Support: 1-800-626-6912 Page 25 of 26... - Page 26 EUROPEAN TOUCH 8301 W. Parkland Court Milwaukee, WI 53223 Phone Number: 1-414-357-7016 Toll Free: 1-800-626-6912 Fax: 1-414-357-6360 Web Site: www.europeantouch.com Email: info@europeantouch.com...
