Adeunis RF ARF73 User Manual

Uhf professional data modem
Hide thumbs Also See for ARF73:
Table of Contents

Advertisement

Quick Links

Download this manual See also: User Manual
UHF Professional Data modem
User Guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ARF73 and is the answer not in the manual?

Questions and answers

Related Manuals for Adeunis RF ARF73

Summary of Contents for Adeunis RF ARF73

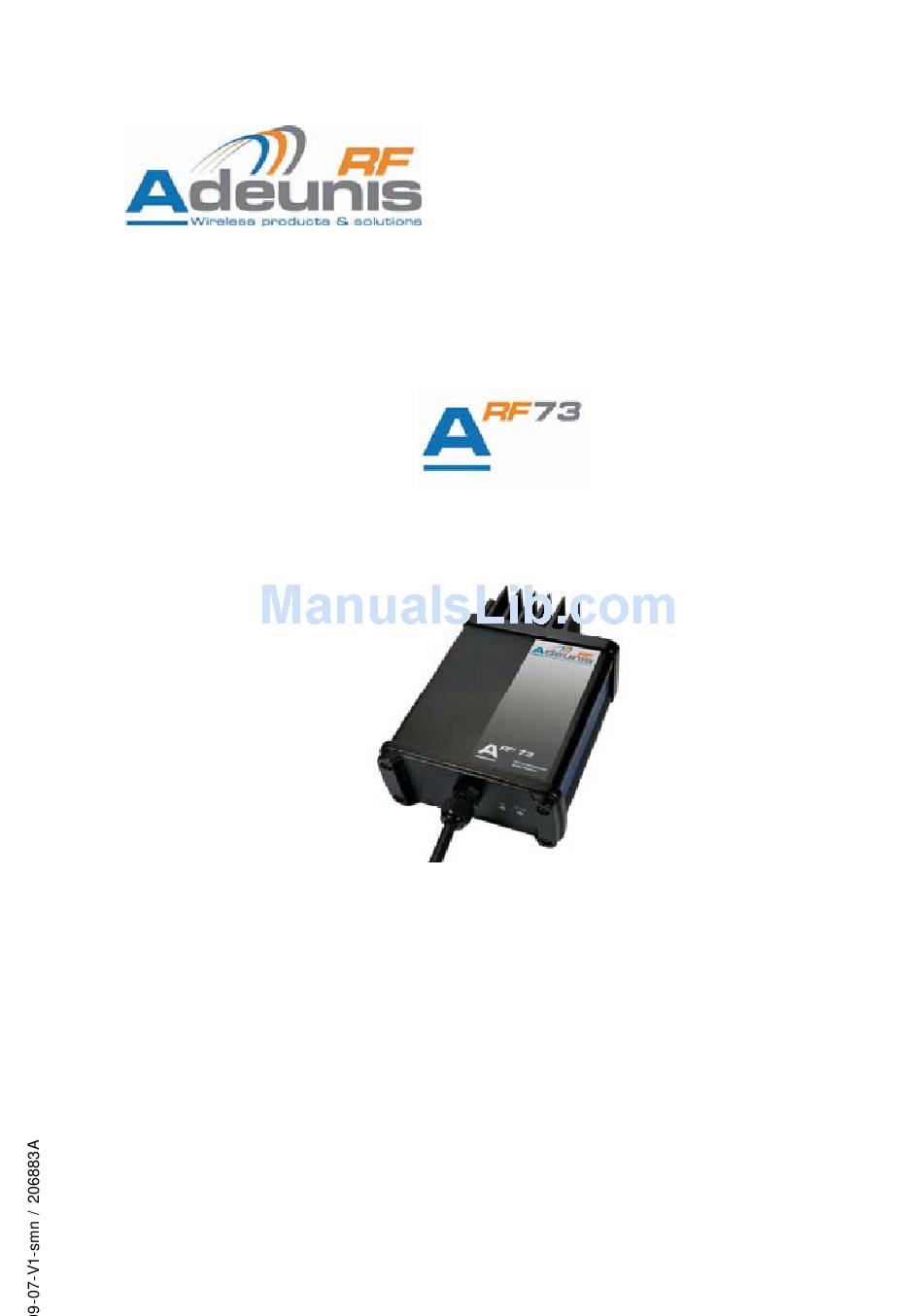

  • Page 1 UHF Professional Data modem User Guide...
  • Page 2 No part of this document may be reproduced or transmitted (in electronic or paper version, photocopy) without Adeunis RF consent. This document is subject to change without notice. All trademarks mentioned in this guide are the property of their respective owner.

  • Page 3: Table Of Contents

    RF73 User Guide Table of Contents   Table of Contents ................1   About this document................. 2   Declaration of conformity ..............3 Download of the user guide ........... 3     Overview ................... 4 Product Power supply ............... 4  ...

  • Page 4: About This Document

    RF73 User Guide About this document RF73 This guide describes the A devices, their options and accessories. Ref. 09-07-V1-smn...

  • Page 5: Declaration Of Conformity

    Crolles, May 12th, 2009 VINCENT Hervé / Quality manager Download of the user guide Thank you for having chosen the ADEUNIS RF products. The user guide is downloadable on our web site www.adeunis-rf.com Index Products Paragraph Modems > Data modem...

  • Page 6: Overview

    Product Power supply The ARF73 product is supplied from a DC voltage source. Required voltage is 10V minimum and must not exceed 28V. The positive ‘+’ polarity must be applied on the red cable. The input voltage is protected against reverse polarity and short transient voltage.

  • Page 7: Serial Link Wiring

    RF73 User Guide The green “ON” led is continuously lighted when the ARF73 is powered on. Serial link wiring The ARF73 is delivered with an RS232 cable interface with a female SUBD-9. The modem is wired as a DCE equipment.

  • Page 8: Radio Communication

    RF73 User Guide Radio communication Radio communication Radio communication is performed when the modem is set in transceiver mode (this is the default at power-up). The radio data rate is fixed to 9600bps. The output power may be programmed to 0.5W, 2W or 4W to either optimize covered range or power consumption.

  • Page 9: Radio Rate Selection

    RF73 User Guide The predefined table is setup with the following values: Channel Frequency ≡ S200 S200 (MHz) S250 – 400kHz S250 – 350kHz S250 – 300kHz S250 – 250kHz S250 – 200kHz S250 – 150kHz S250 – 100kHz S250 – 50kHz S250 frequency (central frequency calibrated in factory...

  • Page 10: Power Output

    RF73 User Guide Power output The RF output power is selected by the S231 register. There is 3 RF output power available, 500mW, 2W and 4W. Channel RF output (W) S231 After a long use at 4W, the radiator and the box can warm until 65°C without spoiling the working.

  • Page 11: Command Mode

    RF73 User Guide Command mode The command mode is used to read and update the modem configuration registers using AT command. In command mode the radio reception and transmission is inhibited. Entering command mode: The command mode is entered by issuing a +++ sequence on the serial link. The three consecutive + characters are accepted if no character have been sent before and after the +++ sequence for a minimal duration defined by the S214 register.

  • Page 12: Transceiver Mode

    RF73 User Guide • ‘O’<cr><lf> (ASCII character 0x4f,0x0d,0x0a) for accepted command (meaning OK) • ‘E’<cr><lf> (ASCII character 0x45,0x0d,0x0a) for error (meaning ERROR) Transceiver mode In transceiver mode, two protocols are available: • Transparent protocol • Addressed protocol The communication is always half-duplex. The radio transmission is processed prior to the radio reception (when the transceiver is sending a radio frame, it is not able to decode any incoming radio frame).

  • Page 13: Transparent Mode

    RF73 User Guide Transparent mode In transparent mode, the modem acts as a wired serial link. It means that alternately, the modem sends on the radio the data received from the serial link and sends on the serial link the data received from the radio. The radio frame format is : •...
  • Page 14 RF73 User Guide Processing incoming RS232 data: the incoming RS232 data are internally buffered. The buffered data are sent in a radio frame (the RF modulation is started) when almost one of the following conditions occurs: when a break (silence greater than S217 timeout) is detected on the incoming serial flow (no more data to be sent).

  • Page 15: At Commands

    RF73 User Guide AT Commands Description AT commands are interpreted only when the transceiver is in Command mode. Command: are used to read and update the modem parameters A command starts with the 2 ASCII ‘AT’ characters. ‘AT’ means ‘Attention’ followed with one or several characters or other data.

  • Page 16: Register Description

    RF73 User Guide Sxxx=y<cr><lf> for each register. The command ends with a double <CR><LF> sequence. AT/V Software version display. Restore the register default values. Note that S235 and S250 are not restored by ATR. Register description Type Register Function Description Default Note Value...
  • Page 17 RF73 User Guide (36dBm) S250 Receiver Indicates the bandwidth Depending Frequency BW adjustment of the helicoidal receiver filters. customer Format is 438.5000 demand S220 Over the air addressed mode format transparent mode S252 Reception From 0 up to 255 address Used in addressed protocol only, for filtering incoming frame...
  • Page 18 RF73 User Guide Serial link management S210 Baudrate Serial link rate in bits/s ‘4’: 9 600 ‘5’: 19 200 ‘6’: 38 400 S211 Data length ‘7’ : 7 bits ‘8’ : 8 bits S212 Parity ‘1’ : none ‘2’ : even ‘3’...
  • Page 19 RF73 User Guide digits: yyyymmdd Where: yyyy : year mm: month dd: day S237 Owner An available register with blank free format for customer information S260 Firmware Must always be left to 0 update no upgrade upgrade firmware after next ATO command The register value could be updated using the ATSn=m<cr>...

  • Page 20: Specifications

    RF73 User Guide Specifications General technical characteristics Supply voltage 10 to 28 Volts Transmission consumption 15VA (under 4W) Reception consumption Operating temperature -30°C to +70 °C Packaging IP65 Box with TNC female antenna connector Range 50km with included antenna Size / Weight 169x100x55 mm + antenna / 710g Standard compliance EN300-113 / EN301-489 / EN60950...

  • Page 21: Protocol

    Serial data rate 9600,19200,38400bps Serial ports RS232 port Setup and configuration through Hayes commands Modes Transparent/Addressed mode Embedded protocol ADEUNIS-RF enhanced and versatile RF communications manager Embedded profiles Multimode modem References ARF7499BD : Modem RS232 - IP65 box Ref. 09-07-V1-smn p 19...

  • Page 22: Glossary

    User Guide Glossary To Be Defined Not Connected Not Used <cr> Carrier return <lf> Line feed ANNEX : Firmware updates Firmware Updates V0.07 Add standard functionality of Adeunis modem V0.06 Original version minimal for radio transmission Ref. 09-07-V1-smn p 20...
