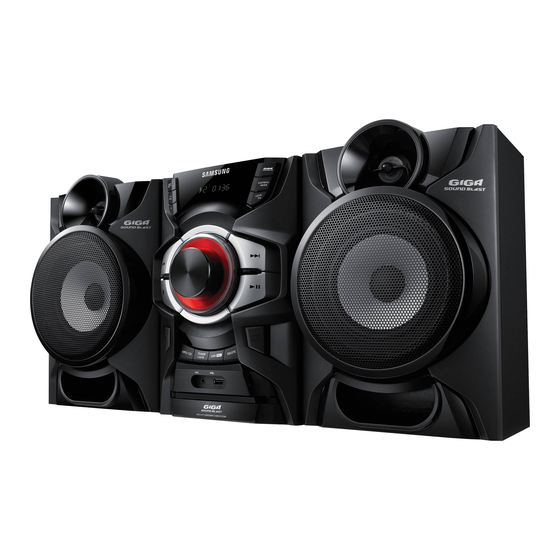

- Page 1 MX-F630 MX-F730 MINI-Compact System MP3-CD/WMA-CD/CD-R/RW Playback user manual Imagine the possibilities Thank you for purchasing this Samsung product. To receive more complete service, please register your product at www.samsung.com/register...
-
Page 2: Safety Warnings
Safety Warnings TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE THE COVER (OR BACK). NO USER-SERVICEABLE PARTS ARE INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN This symbol indicates “dangerous voltage” inside CAUTION : TO PREVENT ELECTRIC SHOCK, This symbol indicates important instructions the product that presents a risk of electric shock or... -
Page 3: Important Safety Instructions
Important Safety Instructions Read these instructions. Keep these Instructions. Heed all warnings. Follow all instructions. Do not use this apparatus near water. Clean only with dry cloth. Do not block any ventilation openings. Install in accordance with the manufacturer's instructions. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat. -
Page 4: Precautions
Precautions • Ensure that the AC power in your house matches the Disc Storage requirements listed on the identification sticker located on the back of your product. • Do not keep in direct sunlight. • Do not place the product on amplifiers or other equipment • Keep in a cool, ventilated area. which may become hot. Make sure the ventilation slots are • Keep in a clean, protective jacket. not covered. Store vertically. • Do not stack anything on top of the product. • Do not allow the discs to become contaminated with dirt. -
Page 5: Table Of Contents
Contents Thank you for buying this SAMSUNG mini-compact system. Please take time to read these instructions. They will allow you to operate your system with ease and take full advantage of its features. Safety Warnings ........2 To delete a file ........11 Important Safety Instructions.... -
Page 6: Description
Description Front Panel POWER button 16. PLAY/PAUSE button 17. Search/Skip button • P ress this button to switch your mini-compact 18. VOLUME Control system on and off. 19. LOCAL EQ button AUTO CHANGE button 20. FOOTBALL MODE button EQ button 21. GIGA SOUND BLAST button Window Display Search/Skip button STOP/Tuning Mode button USB button MP3/CD button... -
Page 7: Rear Panel
Rear Panel 1. 2.0 CH Speaker Connector Terminals for more than 8 hours, the power will automatically turn off. The speaker connector terminals are located on the rear of the system. 4. FM/AM Antenna Connector Terminal 1. To achieve the correct sound quality, insert the Plug t he connector on the FM/AM antenna (supplied) speaker connector cables identified below into into the FM/AM terminal on the rear of the system. -
Page 8: Remote Control
Remote Control POWER 12. VOLUME - 24. TUNING/ALBUM , TUNER/AUX 13. TUNING/ALBUM . 25. EQ 14. TUNING MODE 26. AUTO CHANGE TUNER/AUX Number(0~9) 15. TIMER ON/OFF 27. REPEAT A-B button 16. TIMER SET 28. PAUSE • During playback, 17. SLEEP 29. SEARCH press the desired • Set a sleep time 30. -
Page 9: Cd/Mp3/Wma-Cd Playback
CD/MP3/WMA-CD Playback Selecting a Track Lets you play 12 cm compact discs without an adapter. You can select a desired track while a disc is being played. ☛ This product is designed to play audio CDs, CDs, To play the previous track CD-Rs, CD-RWs, or MP3/WMA-CDs. -
Page 10: A-B Repeat Playback
A-B Repeat Playback Checking or Editing the Programmed Tracks You can repeatedly play back a designated section You can check a list of programmed tracks and of a CD. edit them as you want. 1. Press the REPEAT A-B button at the beginning of desired part. -
Page 11: Playing A Usb Device
Playing a USB Device Connect an external storage device such as a USB To delete a file flash memory or external HDD (Hard Disk Drive) You can delete a file on your USB device. to the product. You can play files in MP3/WMA format. -
Page 12: Setting The Clock
Press the ENTER button. Setting the Clock Result: The minutes flash. Press the TUNING/ALBUM , or . button to set During each step, you have a few seconds to set the the minutes. required options. If you exceed this time, you must d Press the ENTER button. -
Page 13: Listening To Radio
Recording Function Listening to Radio You can record from a CD, radio broadcast, or an You can store up to: external source to a USB storage device. 15 FM stations, 15 AM stations. 1. Connect an external USB storage device to the USB ( ) jack on your product. -
Page 14: Recording Speed
• If you disconnected the USB device during a recording, the main Press the TUNING/ALBUM , or . button to select a unit powers off and you will not be able to delete the recorded level from -06 to 06. file from your USB device. -
Page 15: Connecting A Microphone
Refer to the chart below when this unit does not function properly. If the problem you are experiencing is not listed below or if the instructions below do not help, turn off the unit, disconnect the power cord, and contact the nearest authorized dealer or Samsung Electronics Service Center. Symptom Check/Remedy • Is the power cord plugged securely into the outlet? -
Page 16: Specifications
Input sensitivity (AUX) 800 mV *: Nominal specification - Samsung Electronics Co., Ltd reserves the right to change the specifications without notice. - Weight and dimensions are approximate. - Design and specifications are subject to change without prior notice. - For information on the power supply and power consumption, refer to the label attached to the product. -
Page 17: English English 5
Contact SAMSUNG WORLD WIDE If you have any questions or comments relating to Samsung products, please contact the SAMSUNG customer care centre. Area Contact Centre Web Site Area Contact Centre Web Site ` North America Slovakia 0800-SAMSUNG (726-7864) www.samsung.com... - Page 18 Code No. AH68-02604J (Rev 0.0)
