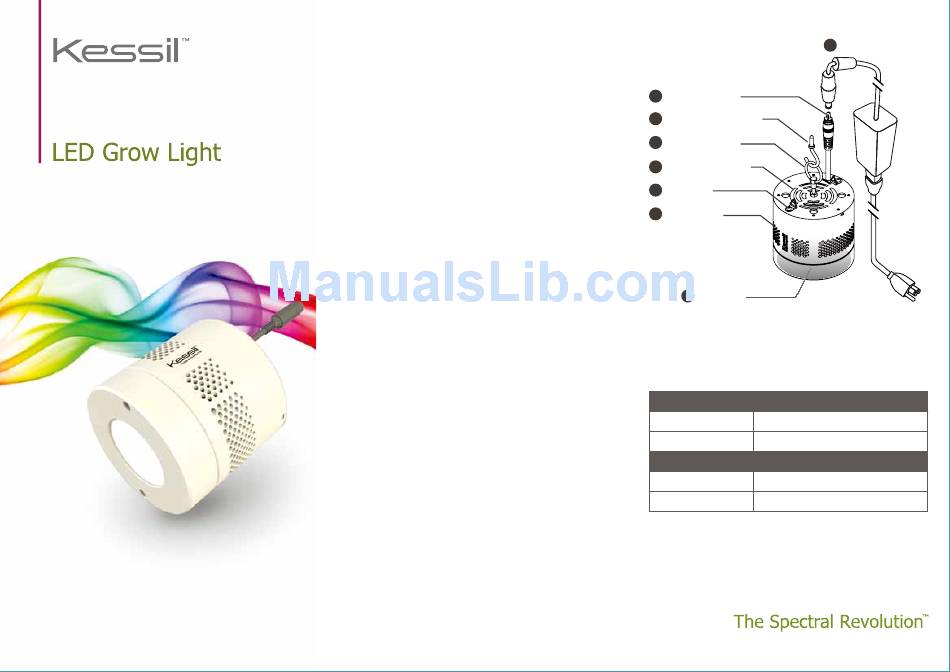

INSTALLATION GUIDE
1. Remove contents from package.
2. Screw the hanging bolt (C) into the center hole.
3. Hang H350 1 to 2 ft. above the object to be
illuminated.
**
4. Connect H350 to the specified DC power supply (H).
5. Plug the power supply into an outlet with the
correct specifications (see product specifications
for more information).
H350 may also be hung by mounting 2 metal hooks (diameters of
*
at least 2.5 mm and thread numbers of at least 6) through its
brackets (E).
** H350 should only be installed on wood, acoustical tile or other
similar ceilings.
For sufficient airflow, the intake and venting holes (D, F) should be
**
at least 12 in. from surrounding obstructions.
SAFETY INSTRUCTIONS
1.DO NOT use a power supply that is outside the
specifications. This is a fire hazard and may lead
to unit failure.
2.DO NOT use outdoors. This unit is intended for
indoor use only.
3.DO NOT expose unit to an extremely humid
environment or submerse unit in water. This may
lead to unit failure.
4.DO NOT place working illuminator in close contact
with any objects. This may cause objects to heat
up and the unit to overheat.
5.KEEP diffuser (G) away from sharp objects. This
may break the diffuser and lead to unit failure.
6.DO NOT cover or place objects on the power
supply. Power supply should not be contained in
an airtight space.
*
Power Cord
A
Gold Metal Hook
B
Hanging Bolt
C
Air Intake Hole
D
Bracket
E
Vent Hole
F
Diffuser
G
PRODUCT SPECIFICATIONS
Illuminator
Power consumption 92 W MAX
Input Voltage 54 VDC
Listed Power Supply
Input 100-240 VAC 47-63 Hz 1.3A MAX
Output 54 VDC, 1.7A
DC Power Supply
H
