Kessil A160WE Owner's Manual

A160WE
OWNER'S MANUAL
210914A3

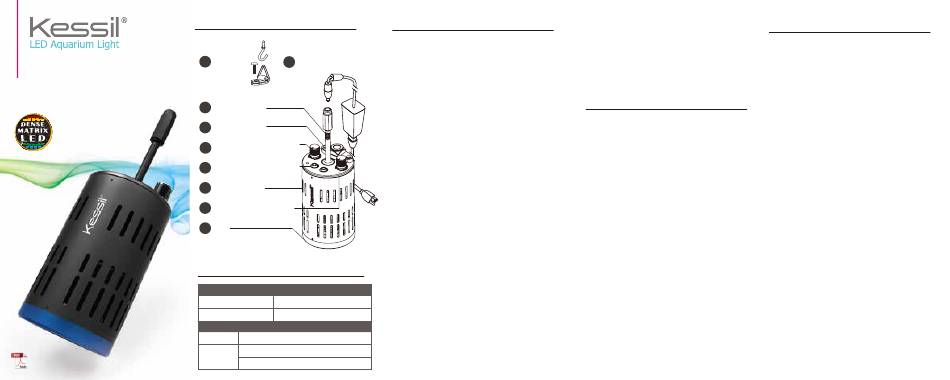

PARTS DIAGRAM

H Bracket I DC Power Supply
A
Power Cord
B Mount
Spectral Tuning Control
C
D External Controller Port
E Venting Holes
F Light Intensity Control
G Lens

PRODUCT SPECIFICATIONS

Illuminator
Power Consumption 40 W maximum
Input Voltage 19-24 VDC ± 5%
Listed Power Supply
Input 100-240 VAC 50-60 Hz
19 VDC, maximum 3.42A
Output
24 VDC, maximum 2.10A

INSTALLATION GUIDE

1. Remove contents from package.
2. Secure designated mount (B) to unit
with screws, and screw gooseneck to
attach mount ( ).
gooseneck sold separately
*
3. Hang the A160WE 1 to 2 ft. above the
object to be illuminated.
**
4. Connect power cord (A) to the specified
DC power supply (I).
5. Plug the power supply into an outlet
with the correct specifications (see
p r o d u c t s p e c i f i c a t i o n s f o r m o r e
information).
6. Adjust the Light Intensity Control (F)
and the Spectral Tuning Control (C) to
the desired setting. A160WE Tuna Blue
tunes from 10,000K - Actinic. A160WE
Tuna Sun tunes from 6,000K - 9,000K.
7. The jacks beneath the controls can be
connected to an external 0~10V controller.
Please consult your controller' s owners
manual for more information.
The A160WE may also be hung by mounting
*
two metal hooks ( diameters of at least 2.5
mm and thread numbers of at least 6 ) through
its brackets ( H ) .
The A160WE should only be installed on
**
wood, acoustic tile or other similar materials.
For sufficient airflow, the venting holes ( E )
**
should be at least 12 in. from surrounding
obstructions.

SAFETY INSTRUCTIONS

1. DO NOT use a power supply that is
outside the specifications. This is a fire
hazard and may lead to unit failure.
2. DO NOT use outdoors. This unit is
intended for indoor use only.
3. DO NOT expose unit to an extremely
humid environment or submerse unit in
water. This may lead to unit failure.
4. DO NOT place working illuminator in
close contact with any objects. This
may cause the objects to heat up and
the unit to overheat.
5. KEEP lens away from sharp objects.
This may break the lens and lead to
unit failure.
6. DO NOT cover or place objects on the
power supply. Power supply should not
be contained in an airtight space.
INSTRUCTIONS DE SECURITE
1. N'UTILISEZ PAS de câble d'alimentation
ne correspondant pas aux
caractéristiques. Il y aurait un risque
d'incendie et de dommages de l'unité.
2. NE PAS UTILISER à l'extérieur. Cette
unité est prévue pour une utilisation en
intérieur.
3. N'EXPOSEZ PAS l'unité à un
environnement extrêmement humide ou
ne submergez pas l'unité dans l'eau.
Cela pourrait endommager l'unité.
4. NE PLACEZ PAS l'illuminateur en
marche, en contact direct avec d'autres
objets. Cela pourrait causer un
réchauffement trop élevé de ces
derniers et pourrait faire surchauffer
l'unité.
5. GARDEZ la lentille (H) à l'écart des
objets pointus. Les objets pointus
pourraient casser la lentille et
endommager l'unité.
6. NE RECOUVREZ PAS, ou ne placez
pas d'objet sur le câble d'alimentation.
Le câble ne doit pas se trouver dans un
espace fermé.
