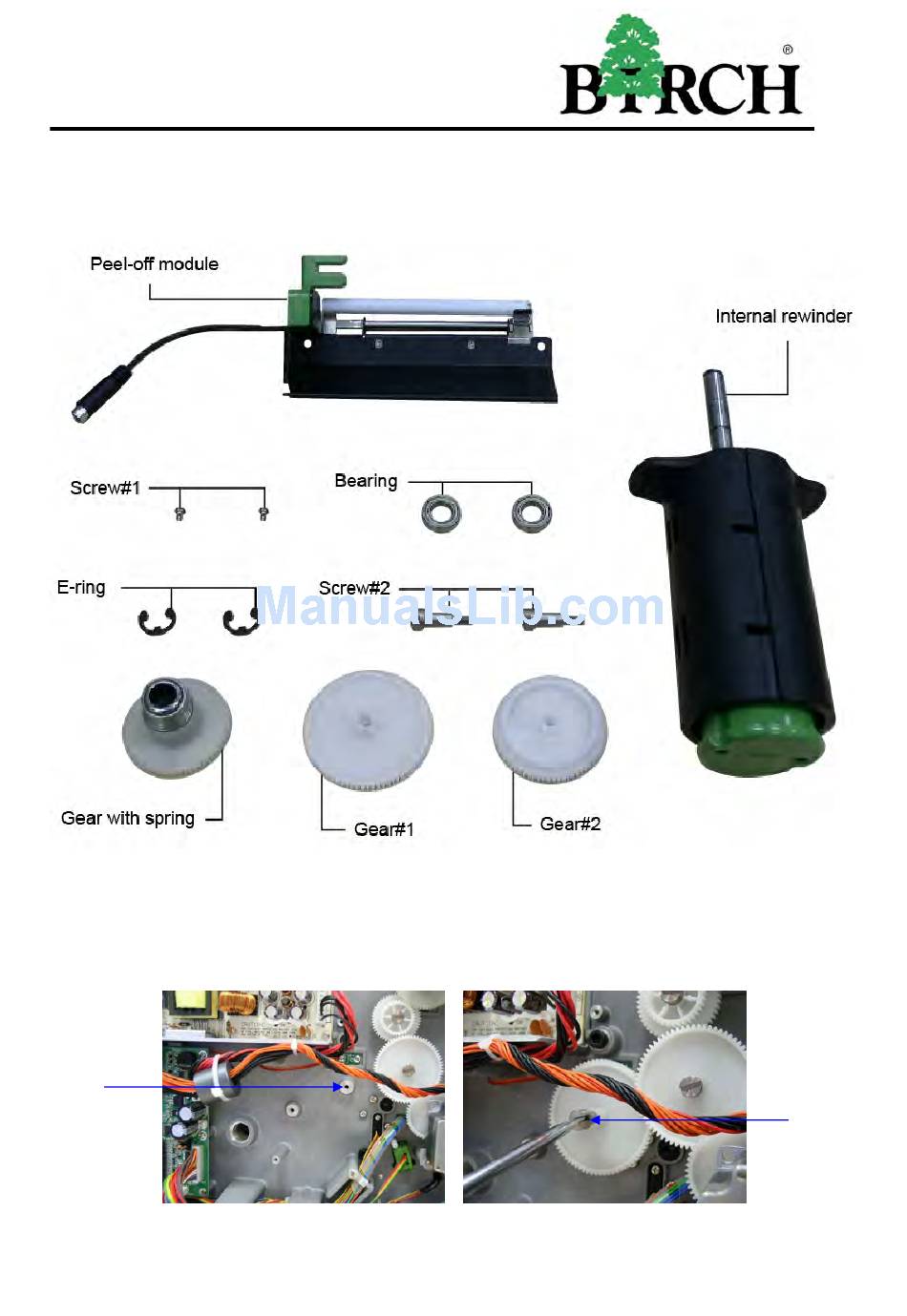

- Page 1 BP-8410M/BP-846M+/ BP-8463M+ Bar Code Printer Service Manua 3.13 Peel-off Kit Installation (Option) Peel-off kit parts list: 1. Refer to section 3.1 to remove the electronics cover. 2. Fasten the screw#2 to fix the gear#1. Gear#1 position Screw#2...
- Page 2 BP-8410M/BP-846M+/ BP-8463M+ Bar Code Printer Service Manua 3. Fasten the screw#2 to fix the gear#2. Gear#2 position 4. Put the bearing into the internal rewind hole. Internal rewind Bearing hole (Left side) 5. Open the printer right side cover. 6. Remove the dustproof cover from the internal rewind hole and put the bearing into it.
- Page 3 BP-8410M/BP-846M+/ BP-8463M+ Bar Code Printer Service Manua 8. Fix the internal rewind by E-ring. 9. Insert the gear (with spring) into the spindle and fix it with E-ring. Gear with E-ring spring 10. Refer to section 3.1 to remove the lower front panel.
