Thank you for using the "INKSYSTEM" Continuous ink supply system. It is the
best device for an inkjet printer, and it will definitely decrease your printing costs.
Before using this system, please read this manual carefully. The pictures in this manual
may be different with the real ones. It's just for your reference.
Remarks: Some pictures maybe different from the real products, especially for
the external ink tanks, these pictures are just for reference, please handle according
the real products.
I. Inspection & Unpacking
1. Accessories
1) Continuous ink supply system .................................................1
2) Air Filters ........................................................................5
3) Sponge ............................................................................1
4) Injector ............................................................................1
5) Long needle .......................................................................1
6) Short needle ......................................................................1
8) Installation Manual ..............................................................1
9) Certificate on free installation..................................................1
2. Inspection before installation
A. Check whether all the accessories are present.
B. Check whether the system is retrieved normally or too much air is remained
in the connecting tubes (length over 20cm).
II. Printer test
1. Check the printer status, and its mechanics for any damage.
INSTALLATION MANUAL ON CISS FOR PRINTER EPSON C110/C120/D120/D130/T30/T33
1
Installation Manual on
Continuous ink supply system (CISS)
For EPSON
C110/C120/D120/D130/T30/T33

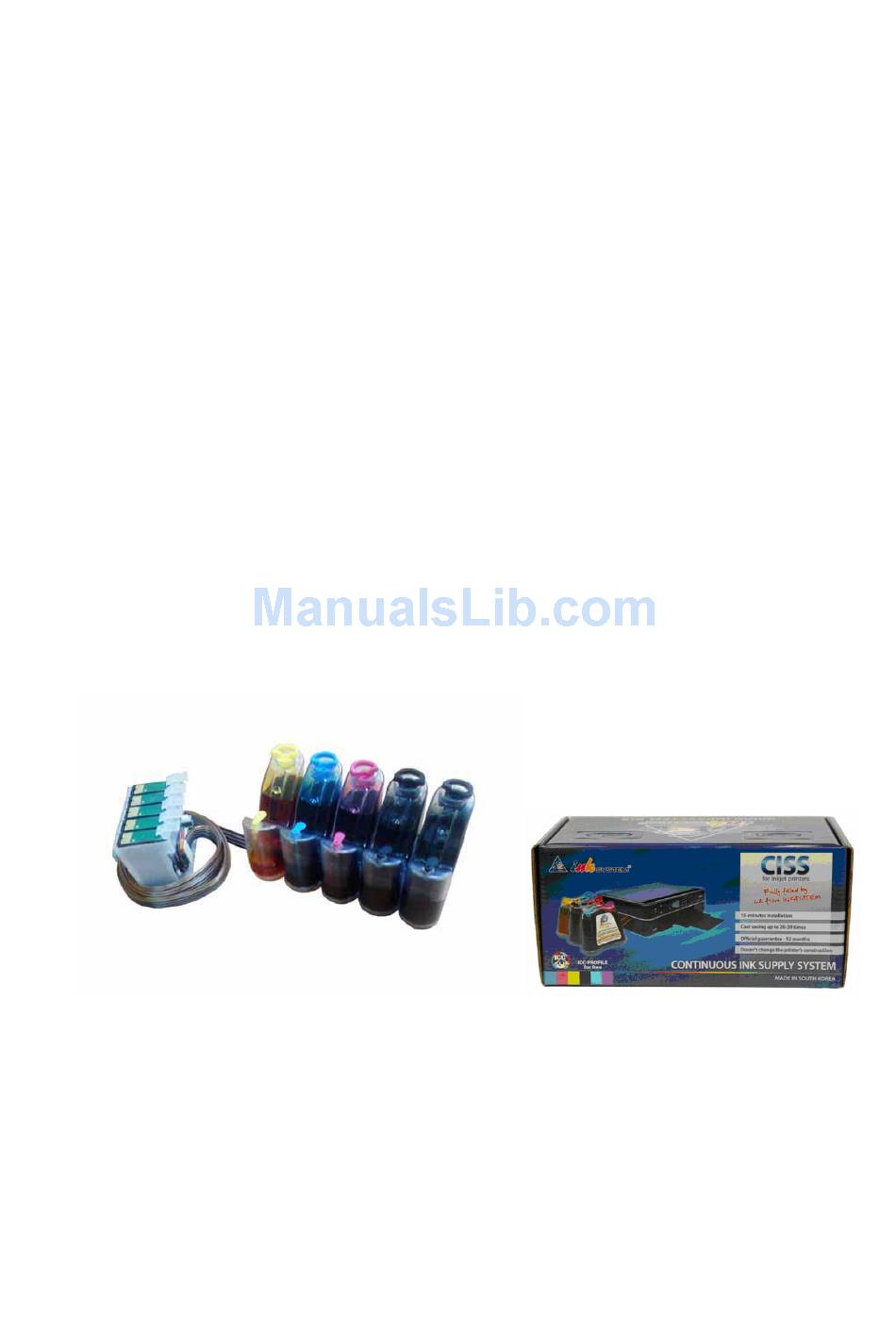

Pic. 1-1
Pic. 1-2
Advertisement
Related Manuals for INKSYSTEM Continuous ink supply system
Summary of Contents for INKSYSTEM Continuous ink supply system
- Page 1 For EPSON C110/C120/D120/D130/T30/T33 Thank you for using the “INKSYSTEM” Continuous ink supply system. It is the best device for an inkjet printer, and it will definitely decrease your printing costs. Before using this system, please read this manual carefully. The pictures in this manual may be different with the real ones.
- Page 2 2. Print a test sheet on nozzle check to see if there are gaps in lines on the printout. Pic. 2-1 Pic. 2-2, 2-3 3. If printer is alright, please print a picture to see the result. Ill. Installation Procedures 1.
- Page 3 Put this system on the right side of printer, tidy up ink flow tubes, pull out an air balance plug and replace it with an air filter with the bigger side downwards. This is repeated for each air balance plug. Keep the air balance plugs for future use. Move cartridge holder out Press ink button (3-2-1).
- Page 4 Tear sponge seal off (3-5-1).Tidy up ink tube. Stick rack onto the printer cover like (3-5-2). Make sure that tube and rack will not fall off while printing. Do not twist ink tube (3-5-3). Pic. 3-5-1 Pic. 3-5-2 Pic. 3-5-3 6.
- Page 5 8. Take off place meter Tidy up ink tube. Tear seal off, attach fixation like (3-8-2). Press ink tube while closing printer cover (3-8-3) to avoid deforming of ink tube. Pic. 3-8-2 Pic.3-8-3 9. Prepare for printing Plug power wire on (3-9-1), turn printer on (3-9-2).Check whether printer and ink tube can run normally.
- Page 6 (4- 1-5), otherwise, chips can not be recognized. Pic. 4-1-1 Pic. 4-1-2 Pic. 4-1-3 Pic. 4-1-4 Pic. 4-1-5 V. Removing used continuous ink supply system INSTALLATION MANUAL ON CISS FOR PRINTER EPSON C110/C120/D120/D130...
- Page 7 5. Please do not shake cartridges to avoid leaking. IX. Product Warranty INKSYSTEM warrants its products to be free from defects in material or workmanship. Rarely the equipment partly or completely fails within the warranty period. In these cases we do everything possible to ensure that our customers are satisfied with the purchase.
-
Page 8: Warranty Certificate
If the device has mechanical damages: chippings, dents, fractures, scratches, etc. intended or careless actions of the user or a third party. If the ink used was not manufactured by “INKSYSTEM” (South Korea) If the printing limit was exceeded – more than 100 000 prints.
