5

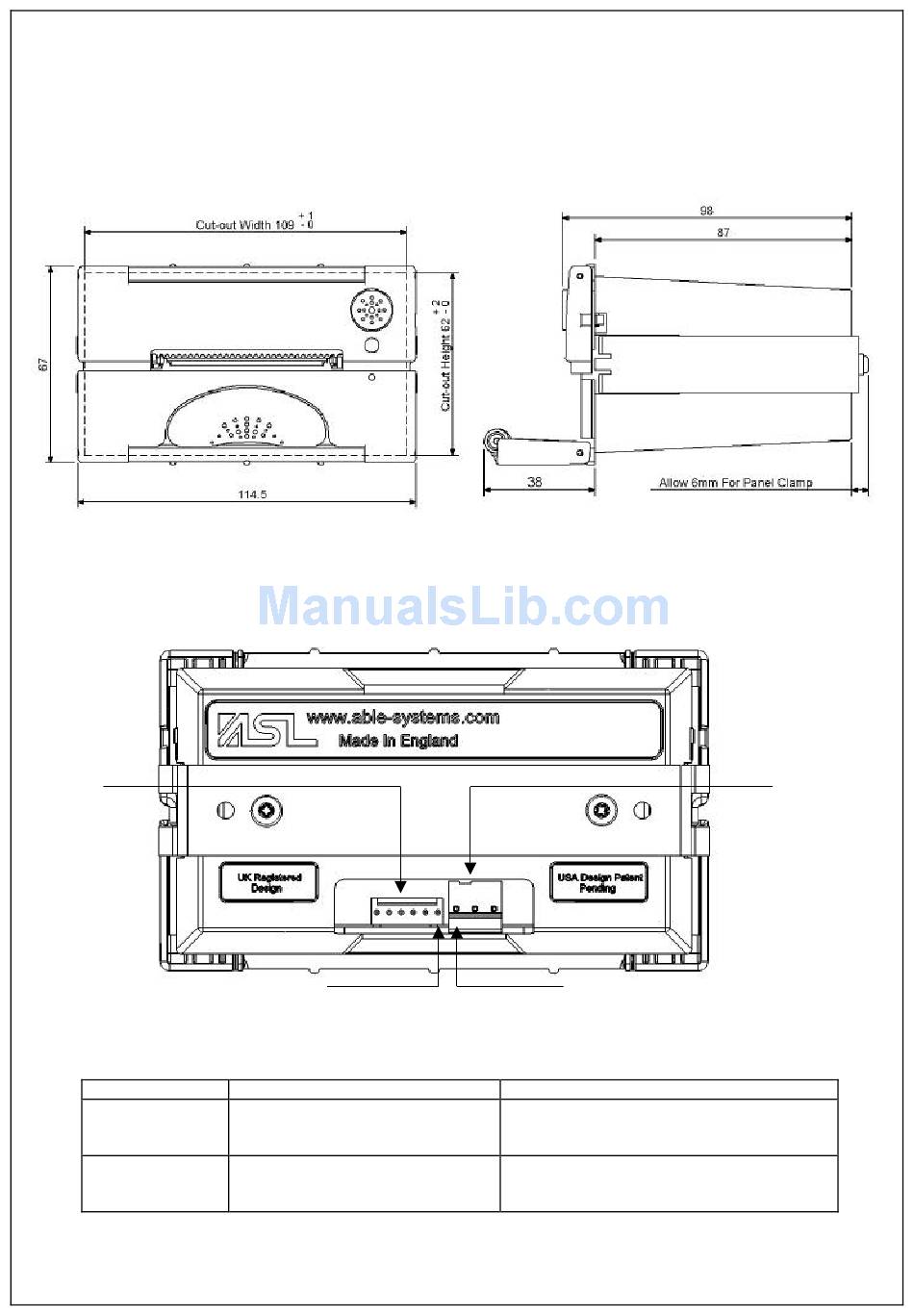

INSTALLATION
5.1
PANEL CUT-OUT
You will need a hole with the following dimensions:
Width
= 109 mm
Height = 62 mm
Depth = 93 mm
5.2
CONNECTOR DETAILS
The printer has two user connectors detailed below:
J2
(6-Way Data Input)
Connector Part Numbers
Reference
J1
J2
(+1mm / -0mm)
(+2mm / -0mm)
(minimum)
Pin 1
Connector
3-Way Power Input
Molex Part No: 26-60-4030
6-Way Data Input
Molex Part No: 22-27-2061
Ap1200 Users' Guide Page 9 of 14
Pin 1
Suggested Mating Part
09-91-0300 (Molex Housing)
08-52-0072 (Molex Crimp)
22-01-2065 (Molex Housing)
08-50-0032 (Molex Crimp)
J1
(3-Way Power Input)
