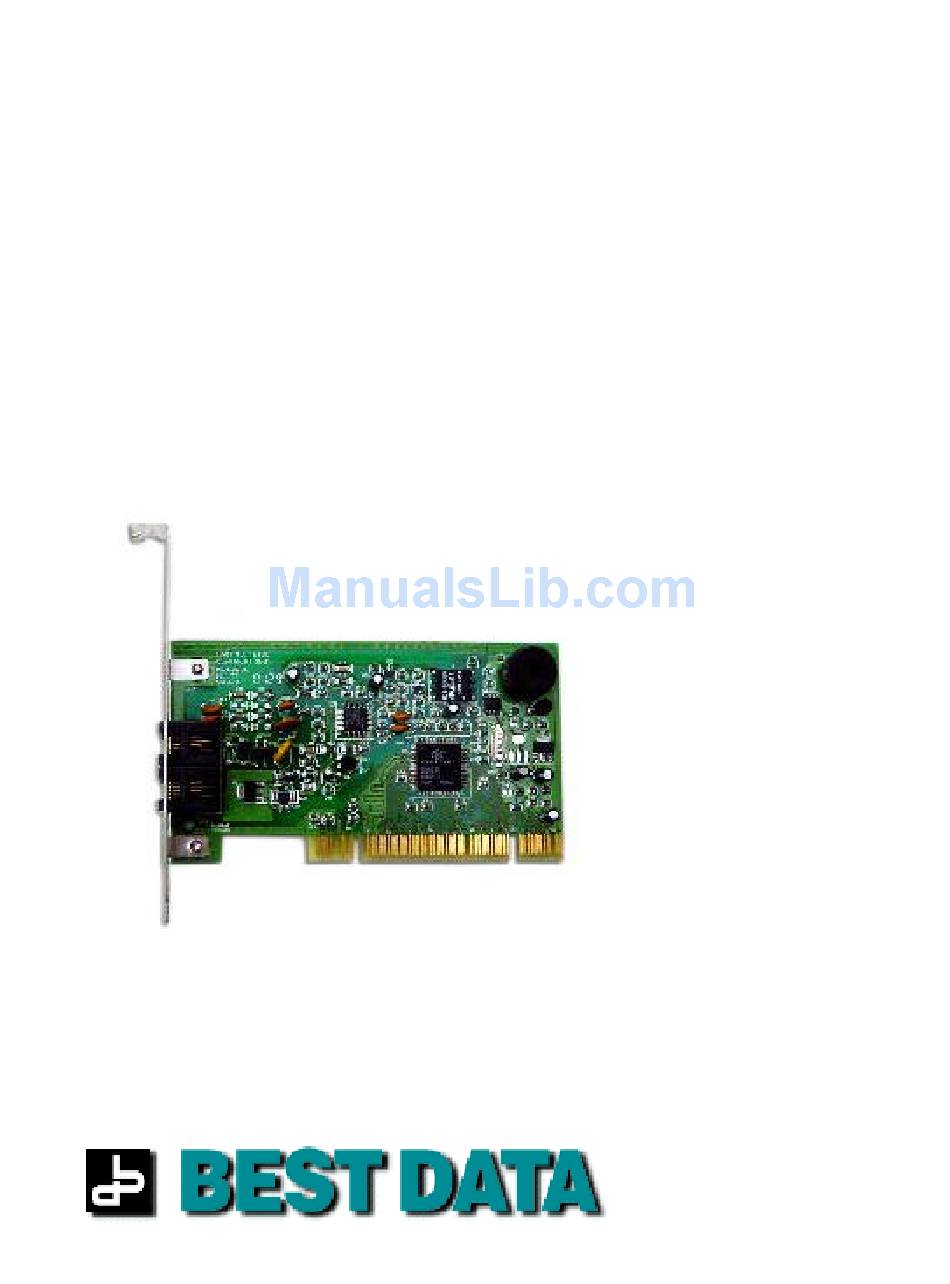

- Page 1 SMART ONE Internal PCI V.92 Modem Model: 56FW92...
- Page 2 SMART ONE V.92 MODEM...
-
Page 3: Table Of Contents
Table of Contents Warranty Statement…………………..…………………………………………4 FCC Statement…………………………………………… …………………….. 6 About This User’s Guide………………………………… …………………….. 7 Safety Notices…………………………………………………………....8 Chapter 1 Before you Begin………………… ………………………….. 9 Chapter 2 Installing the Modem ………………………………………. 10 Chapter 3 Modem Driver Installation……………........ 12 Windows 95……………………………………………………………. 13 Windows 98…………………………...……………………………….. -
Page 4: Warranty Statement
Limited Warranty and Conditions of Sale A. Best Data warrants that this product is free from all defects in materials and workmanship for five years from the date of purchase from an authorized dealer. - Page 5 Best Data reserve the right to revise or update its products, software, or documentation without obligation to notify any individual or entity. Please direct all Inquiries to: BEST DATA PRODUCTS, INC. 19748 Dearborn Street Chatsworth, CA 91311 Trademarks IBM PC is a trademark for International Business Machines.
-
Page 6: Fcc Statement
FCC Statement Note: This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: • This device may not cause harmful interference. • This device must accept any interference received, including interference that may cause undesired operation. -
Page 7: About This User's Guide
About This User’s Guide This manual is written for users who wish to install the Smart One V.92 modem themselves. It contains step by step instructions on how to configure it for different operating systems. We urge you to read the safety page of this manual before you proceed. -
Page 8: Safety Notices
Safety Notices To avoid a shock hazard, do not connect or disconnect any cables or perform installation, maintenance, or reconfiguration of this product during an electrical storm. To avoid shock hazard: • The power cord must be connected to a properly wired and earthed receptacle. -
Page 9: Chapter 1 Before You Begin
Chapter 1 Before You Begin Make sure you have the following items available before you start your modem installation: Package Contents: 1. 56FW 92 Internal PCI Modem 2. Quick Start Guide 3. Warranty Card 4. RJ-11 Telephone Cable 5. Modem Installation CD 6. -
Page 10: Chapter 2 Installing The Modem
Chapter 2 Installing the Modem Before inserting the modem into the computer there are a few things to examine on your system. The following is a list of items that you may want to check prior to installing the card into the computer. 1. - Page 11 Connect the telephone cable. Plug one end of the telephone cable into the RJ-11 jack marked LINE and the other end into a phone line outlet. You may now connect your telephone set to the jack marked PHONE (optional) 7. Replace the cover to the computer. 8.
-
Page 12: Modem Driver Installation
Chapter 3 Modem Driver Installation Select Your Operating System Depending on you computer’s Operating System, you need to go to the correct section of this guide and continue with the installation. Step by step assistance is available for you to install your modem under the operating system of your choice The Following operating systems are supported Windows 95 Page 13... -
Page 13: Windows 95
Windows 95 Installation 1. Windows will auto detect your modem upon startup. The following screen will appear: 2. Click Next to start the installation. The following screen will appear: 3. Click Other Locations . SMART ONE V.92 MODEM... - Page 14 The following screen will appear: 4. Type in the following path: X:\WIN95 (Where X = CD-ROM drive letter) and click OK. 5. Click the Finish button to complete the installation. (Note: You may be warned that a file could not be located. If this happens click OK and type: X:\WIN95 (Where X=CD-ROM drive letter) and click OK.) SMART ONE V.92 MODEM...
-
Page 15: Windows 98
Windows 98 Installation 1. Windows will auto detect your modem upon startup. The following screen will appear: 2. Click Next. The following screen will appear: 3. Select Search for the best driver for your device (Recommended) and click the Next button. SMART ONE V.92 MODEM... - Page 16 The following screen will appear: 4. Uncheck the box CD-ROM drive and check Specify a location and type: X:\Win98 (Where X=the CD-ROM drive letter) and then click Next. The following screen will appear: 5. Click Next. SMART ONE V.92 MODEM...
- Page 17 The following screen will appear: 6. Click Finish to complete the installation. SMART ONE V.92 MODEM...
-
Page 18: Windows Me
Windows ME Installation 1. Windows will auto detect your modem upon startup. The following screen will appear: 2. Select Automatic search for a better driver (Recommended) and click Next. 3. Windows will display multiple listings of the driver location. Choose the driver that shows the location of: X:\WINME\CXT1059E.INF and click OK. - Page 19 The following screen will appear: 4. Click Finish to complete the installation. SMART ONE V.92 MODEM...
-
Page 20: Windows 2000
Windows 2000 Installation (You must login with administrative rights) 1. Windows will auto detect your modem. The following screen will appear: 2. Click Next to start the installation. SMART ONE V.92 MODEM... - Page 21 The following screen will appear: 3. Select Search for a suitable driver for my device (Recommended) and click Next. The following screen will appear: 4. Check the box CD-ROM drive and click Next. SMART ONE V.92 MODEM...
- Page 22 The following screen will appear: 5. Click Next. The following screen will appear: 6. Click Yes and then click Finish when prompted to complete the installation. SMART ONE V.92 MODEM...
-
Page 23: Windows Xp
Windows XP Installation (You must login with administrative rights) 1. Windows will auto detect and install your modem with a built in HCF driver. 2. From your Windows desktop click Start, right click My Computer, left click Properties. Click the Hardware tab and the Device Manager button. 3. - Page 24 The following screen will appear: 4. Select Install from a list or specific location (Advanced) and click Next. The following screen will appear: 5. Select Don’t search, I will choose the driver to install and click Next. SMART ONE V.92 MODEM...
- Page 25 The following screen will appear: 6. Select Have Disk. 7. Type the path to the driver on the Modem Installation CD click OK. Example X:\WIN2K_XP (Where X = the driver letter of your CD-ROM) SMART ONE V.92 MODEM...
- Page 26 The following screen will appear: 8. Select Smart One 56FW-92 HCF PCI Modem and click Next. The following screen will appear: 9. Click Continue Anyway. 10. Click Finish when prompted to complete the installation. SMART ONE V.92 MODEM...
-
Page 27: Chapter 4 Testing The Modem
Chapter 4 Testing the Modem This chapter helps you verify whether the modem actually communicates with Windows or not. Here, you will find detailed test procedures for most versions of Windows. Before you use the modem, go through the following check list: 1. -
Page 28: Chapter 5 Installing Communications Software
Chapter 5 Communications Software Installation This chapter assists you with the installation of the data/fax software. The software has excellent embedded help in which you will be able to find detailed descriptions of the software functions. You can install the Super Voice communications software from the CD-ROM included in your package, which uses an easy point-and-click interface. -
Page 29: Chapter 6 Netwaiting
Chapter 6 NetWaiting NetWaiting Installation While Browsing the Modem Installation CD from My Computer open the MOHconfig folder and double click the MOHconfig.exe icon. This will appear to do nothing in some versions of Windows but could take up to 1 minute to complete. While browsing the Modem Installation CD from My Computer open the NetWaiting folder and double click the SETUP.EXE icon. -
Page 30: Chapter 7 General Troubleshooting
Chapter 7 Troubleshooting Problem: Your modem does not make a connection. Solution: If your modem places calls but neve r makes a connection, make sure you are dialing the right number. The remote modem may be turned off. Problem: You receive bursts of errors occasionally, but otherwise data quality is good Solution: The connection may have been established on poor-quality or noisy telephone lines. - Page 31 Problem: The modem speaker volume is too low or too high. Solution: If the software allows you to control the vo lume, make sure the speaker is enabled and set to a comfortable volume. If the software does not have speaker settings, add one of the AT commands listed below to the initialization string: for low volume for medium volume...
- Page 32 &W0 or &W1, and press Enter. For example, if you type AT &C1 &D2 &W0 and press Enter, the &C1 and &D2 parameter settings are stored in profile 0. Refer to the Best Data Web Page at www.bestdata.com/tech/56fw92win9x.htm for the complete set of AT commands.)
-
Page 33: Appendix A How To Get Technical Assistance
Mon. – Fri. 8:00am – 4:30pm PST Technical Support via the Internet The fastest way to get help is to reach the Best Data support site located at: www.bestdata.com/tech/tech. htm .You can find plenty of help that may eventually solve your problem or answer your question.
